The Formats page is used to view the following (if supported by the model, e.g. B):

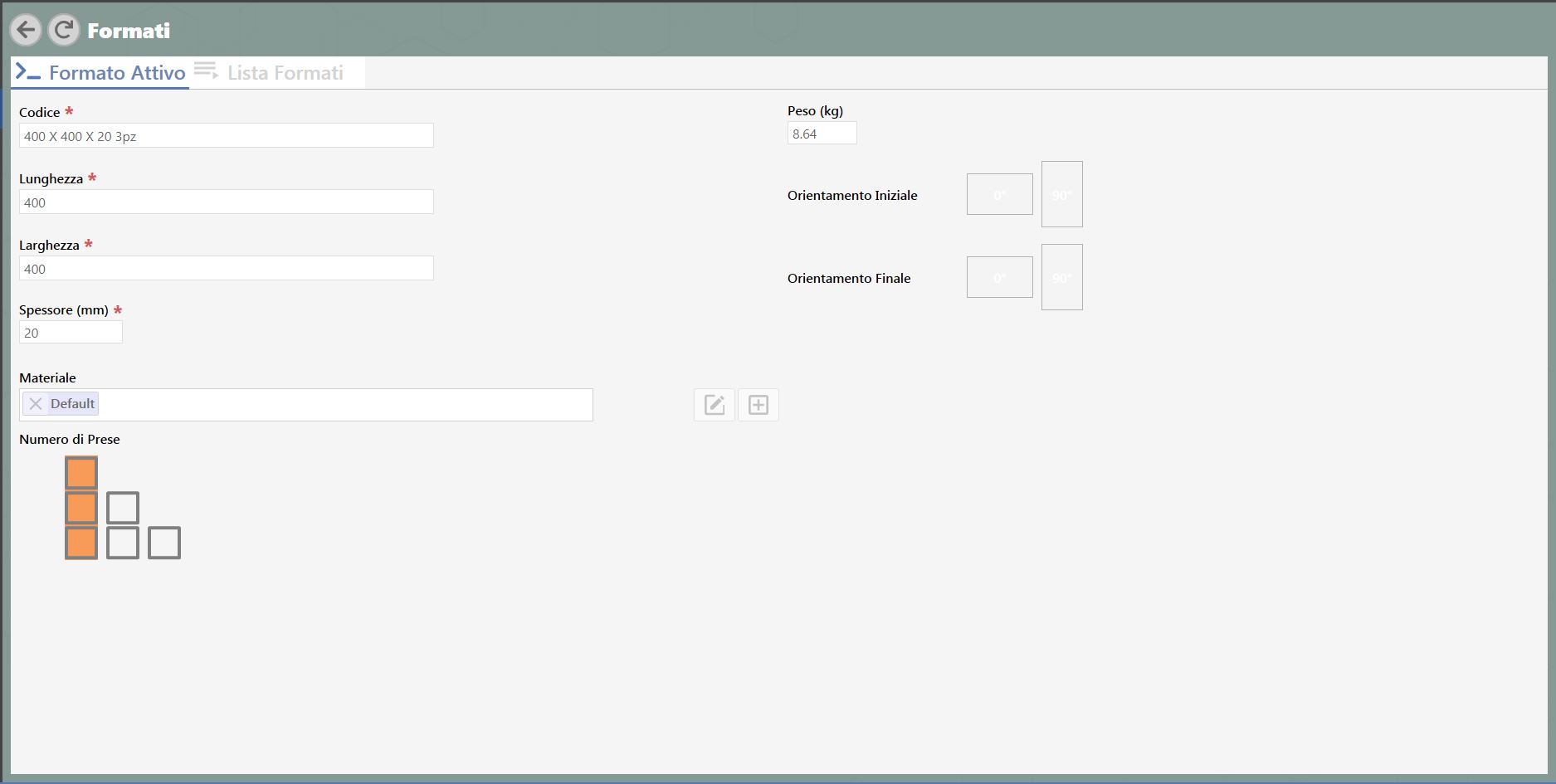

Active format parameters

The parameters of the active format can be viewed and edited in the “Formats” section:

Code

name of the format type.

Length

piece length.

Width

piece width.

Thickness

piece thickness.

Material

piece material type.

Number of picks

pieces picked up simultaneously.

Weight

piece weight.

Initial orientation

orientation of the pieces leaving the machine.

Final orientation

orientation of the pieces when picked up by the robot.

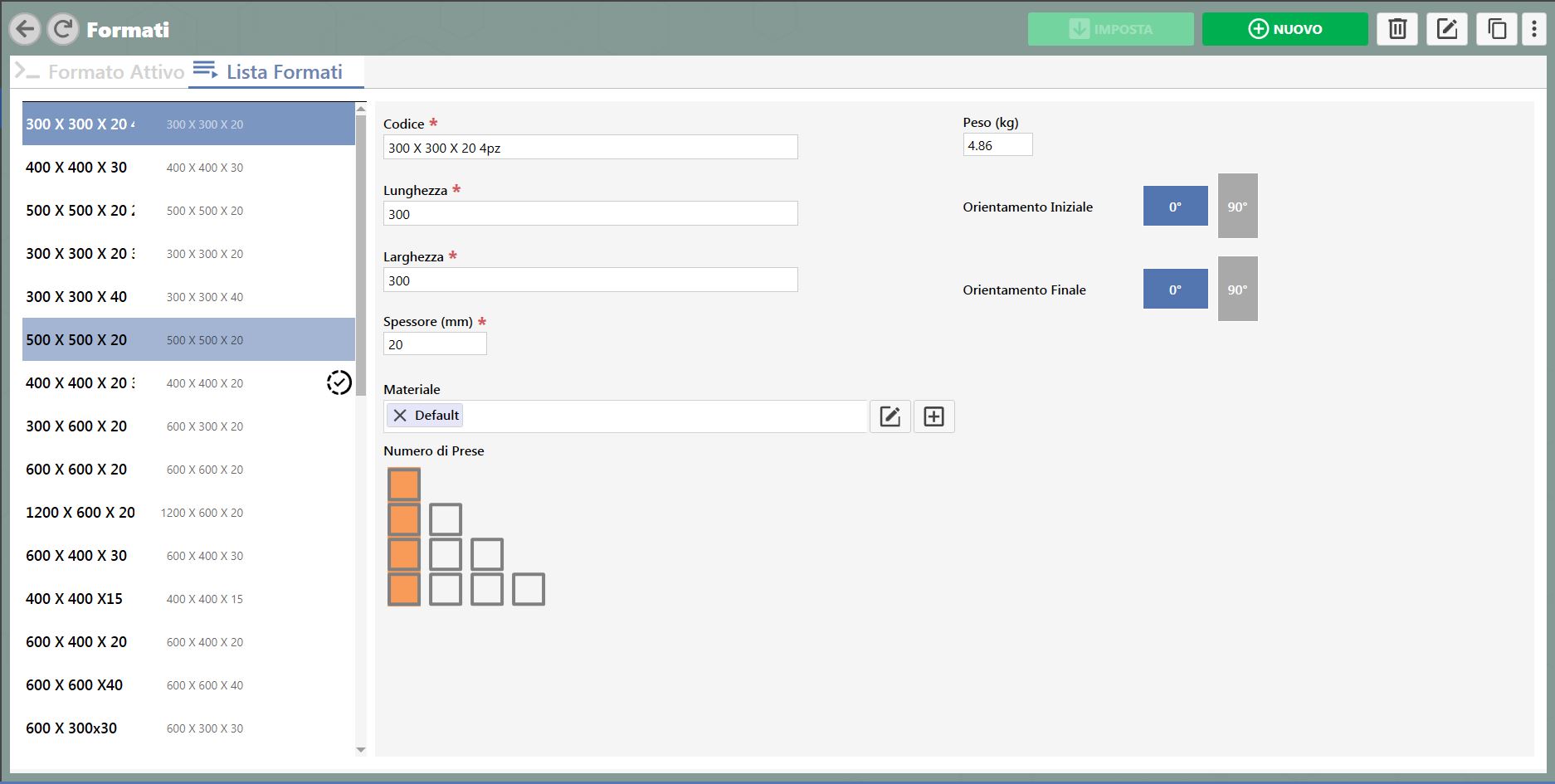

Format list

The format list contains all the different types of palletising format used.


Format list top bar

The following buttons provide the operator with functions for the selected format:


Set
Sets the selected format as the active format


New
Creates a new palletising format


Delete
Deletes the selected format


Edit
Edits the selected format


Duplicate
Creates a copy of the selected format

;
