DOC2.3.3 CONTAINER DETAILS

Container details can be managed on this page.

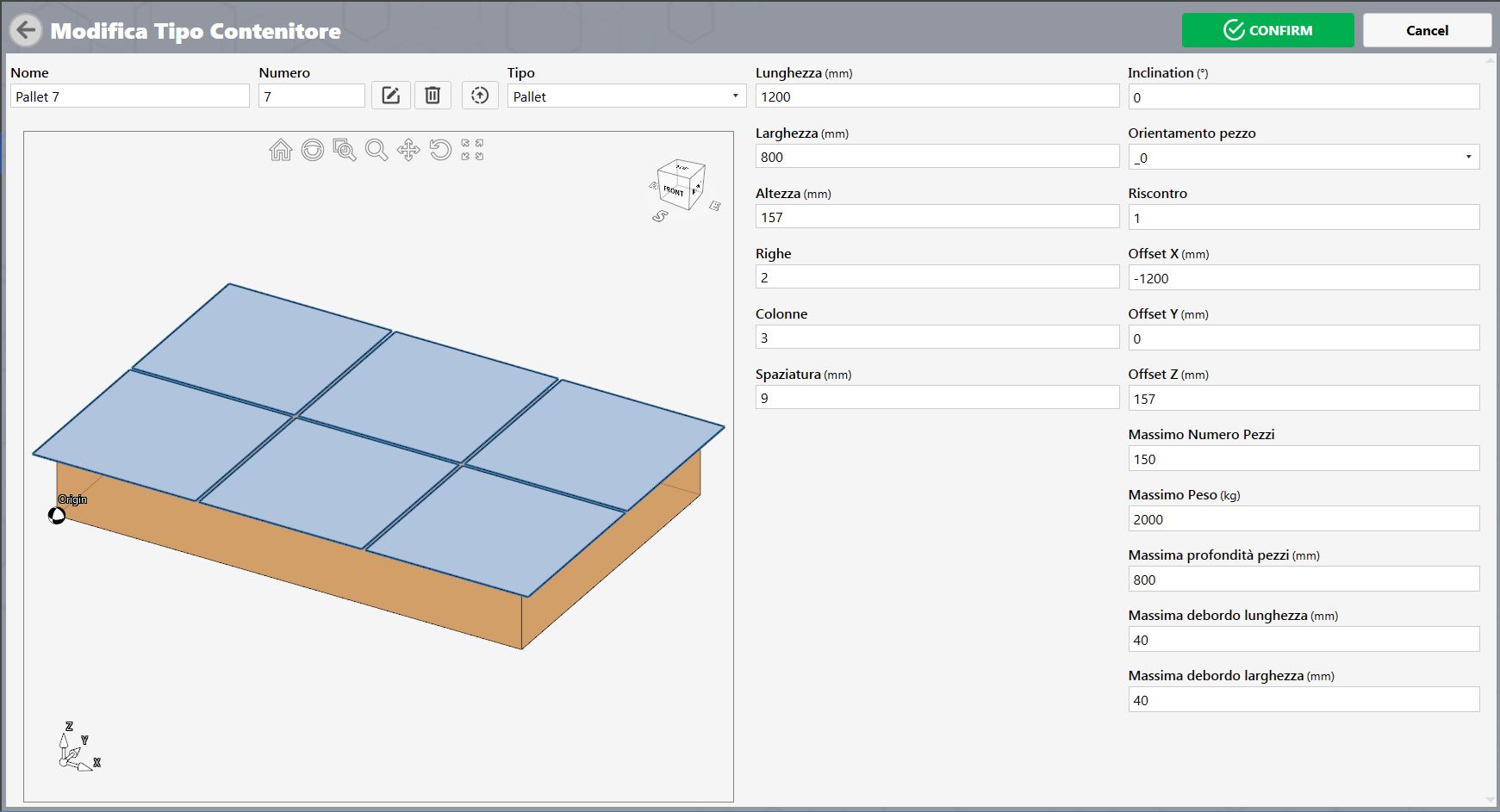

Pallet

Length	Container length
Width	Container width
Height	Container height
Rows	Rows of pieces to be placed in the container
Columns	Columns of pieces to be placed in the container
Spacing	Distance between a piece and the adjacent piece
Inclination	Inclination along the pallet X axis

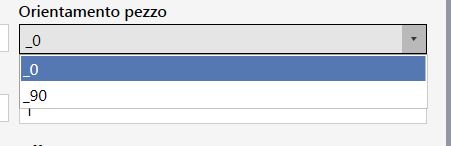

Piece orientation	0: piece length → pallet length 90: piece length → pallet width
Locator	Number of the locator supporting the container
Offset X	X coordinate from the selected locator to the container origin
Offset Y	Y coordinate from the selected locator to the container origin
Offset Z	Z coordinate from the selected locator to the container origin
Maximum number of pieces	Maximum number of pieces that can be placed
Maximum weight	Maximum weight supported by the container
Maximum piece depth	Maximum depth/height that can be palletised in the container
Maximum length overhang	Overhang/space available in the length direction beyond the end of the container on each side
Maximum width overhang	Overhang/space available in the width direction beyond the end of the container on each side

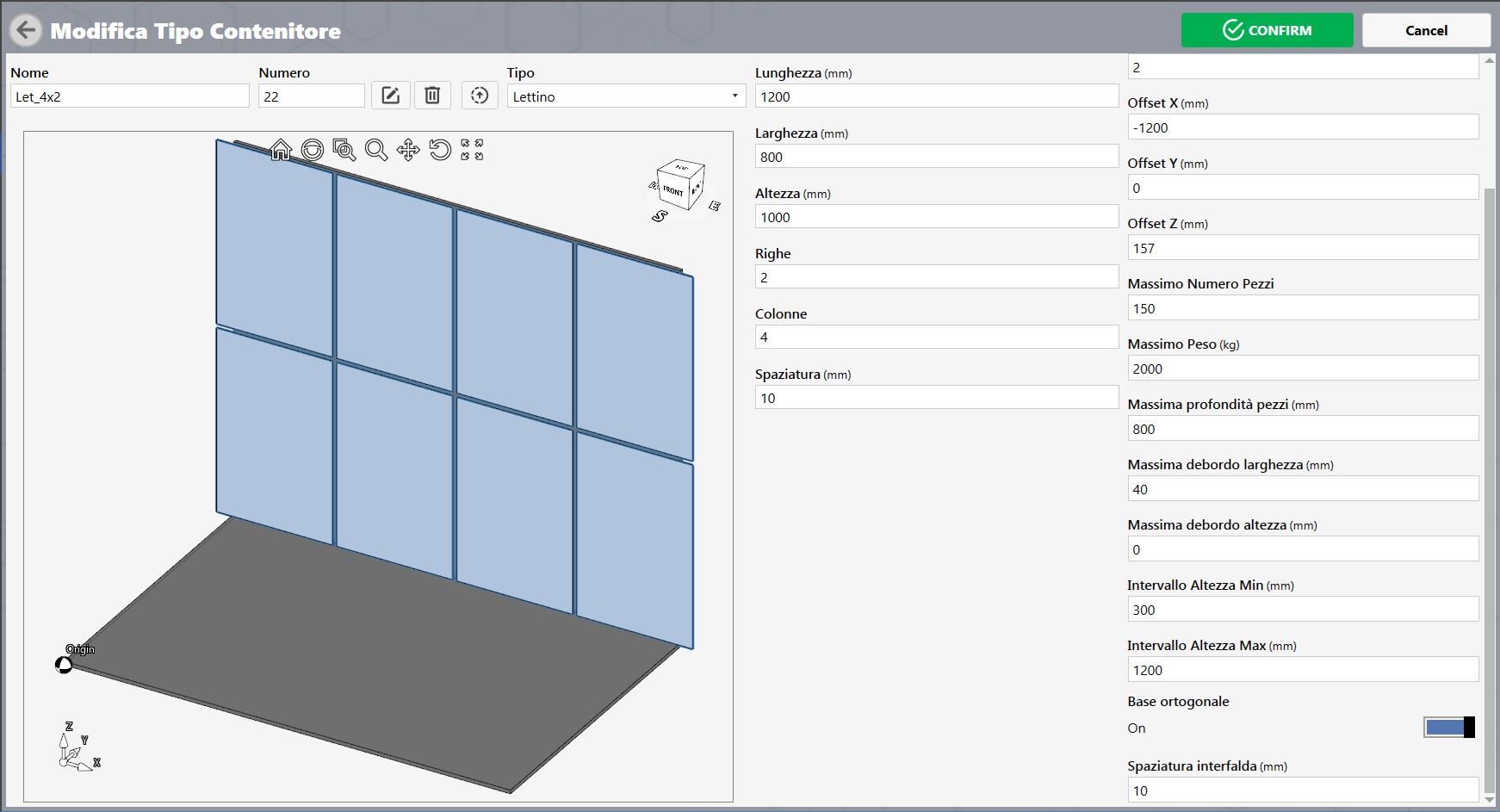

A-frame

Length	Container length.
Width	Container width.
Height	Container height.
Rows	Rows of pieces to be placed in the container.
Columns	Columns of pieces to be placed in the container.
Spacing	Distance between a piece and the adjacent piece in another column.
Inclination	Inclination along the pallet X axis.
Piece orientation	0: piece length → pallet length. 90: piece length → pallet width.
Locator	Number of the locator supporting the container.
Offset X	X coordinate from the selected locator to the container origin.
Offset Y	Y coordinate from the selected locator to the container origin.
Offset Z	Z coordinate from the selected locator to the container origin.
Maximum number of pieces	Maximum number of pieces that can be placed.
Maximum weight	Maximum weight supported by the container.
Maximum piece depth	Maximum depth/height that can be palletised in the container.
Maximum width overhang	Overhang/space available in the width direction beyond the end of the container on each side.
Maximum height overhang	Overhang/space available in the height direction above the top of the container.
Minimum height range	Minimum height of pieces that can be placed in the container.
Maximum height range	Maximum height of pieces placed in the container.
Orthogonal base	When the flag is ON, the bottom surface of the container is parallel to the floor. When the flag is OFF, the backrest of the container forms a 90_ angle with the bottom surface.
Row spacing	Distance between a piece and the adjacent piece in another row.

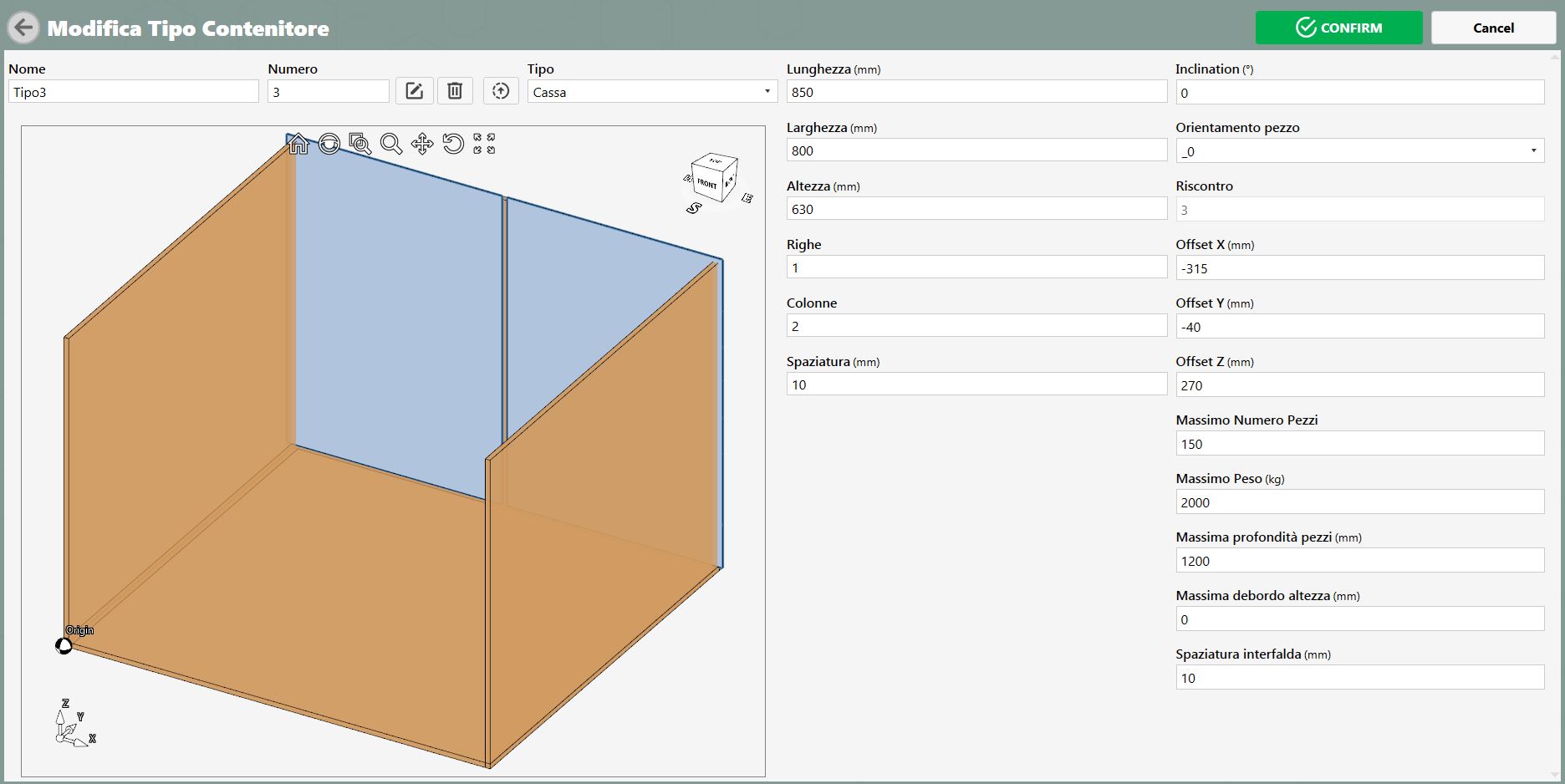

Crate

Length	Container length.
Width	Container width.
Height	Container height.
Rows	Rows of pieces to be placed in the container.
Columns	Columns of pieces to be placed in the container.
Spacing	Distance between a piece and the adjacent piece in another column.
Inclination	Inclination along the pallet X axis.
Piece orientation	0: piece length → pallet length. 90: piece length → pallet width.
Locator	Number of the locator supporting the container.
Offset X	X coordinate from the selected locator to the container origin.
Offset Y	Y coordinate from the selected locator to the container origin.
Offset Z	Z coordinate from the selected locator to the container origin.
Maximum number of pieces	Maximum number of pieces that can be placed.
Maximum weight	Maximum weight supported by the container.
Maximum piece depth	Maximum depth/height that can be palletised in the container.
Maximum height overhang	Overhang/space available in the height direction above the top of the container.
Row spacing	Distance between a piece and the adjacent piece in another row.

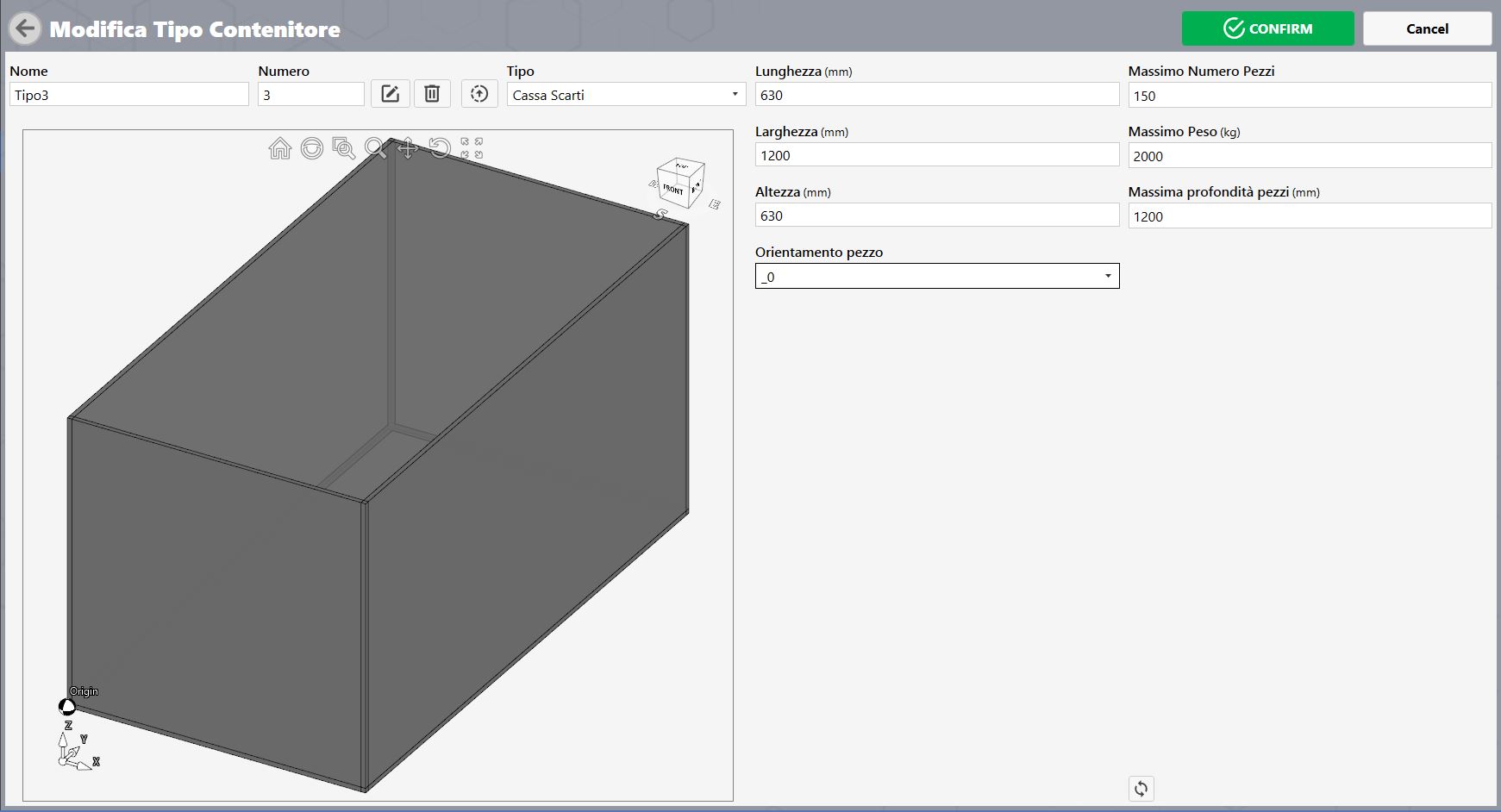

Waste box

Length	Container length.
Width	Container width.
Height	Container height.
Piece orientation	0: piece length → pallet length. 90: piece length → pallet width.
Maximum number of pieces	Maximum number of pieces that can be placed.
Maximum weight	Maximum weight supported by the container.
Maximum piece depth	Maximum depth/height that can be palletised in the container.
