Donatoni Macchine
Machine technical documentation Operational document

DOC2.3.1.2 CALIBRATE TOP POLISHING

This working allows removing material from the top part of the working piece and polishing the same area.

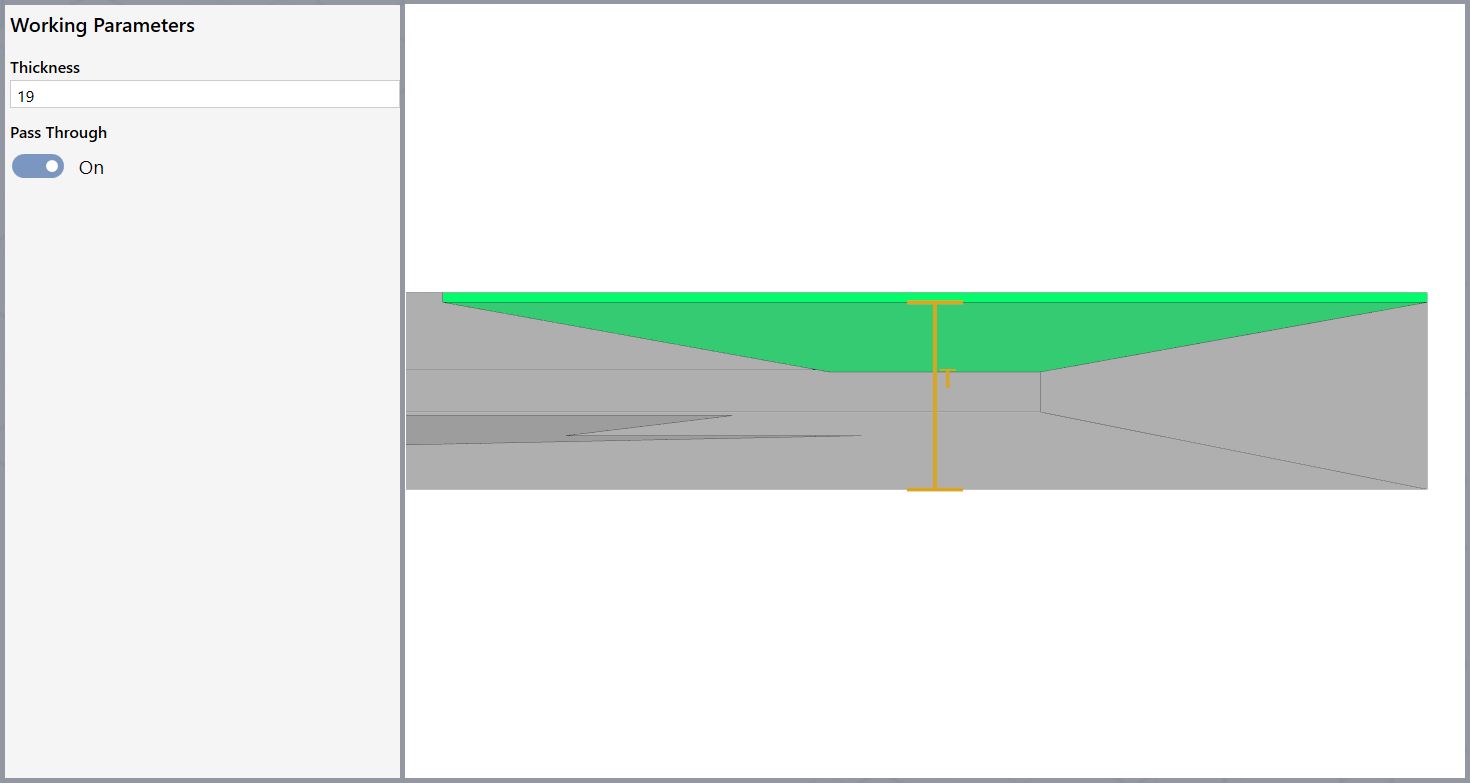

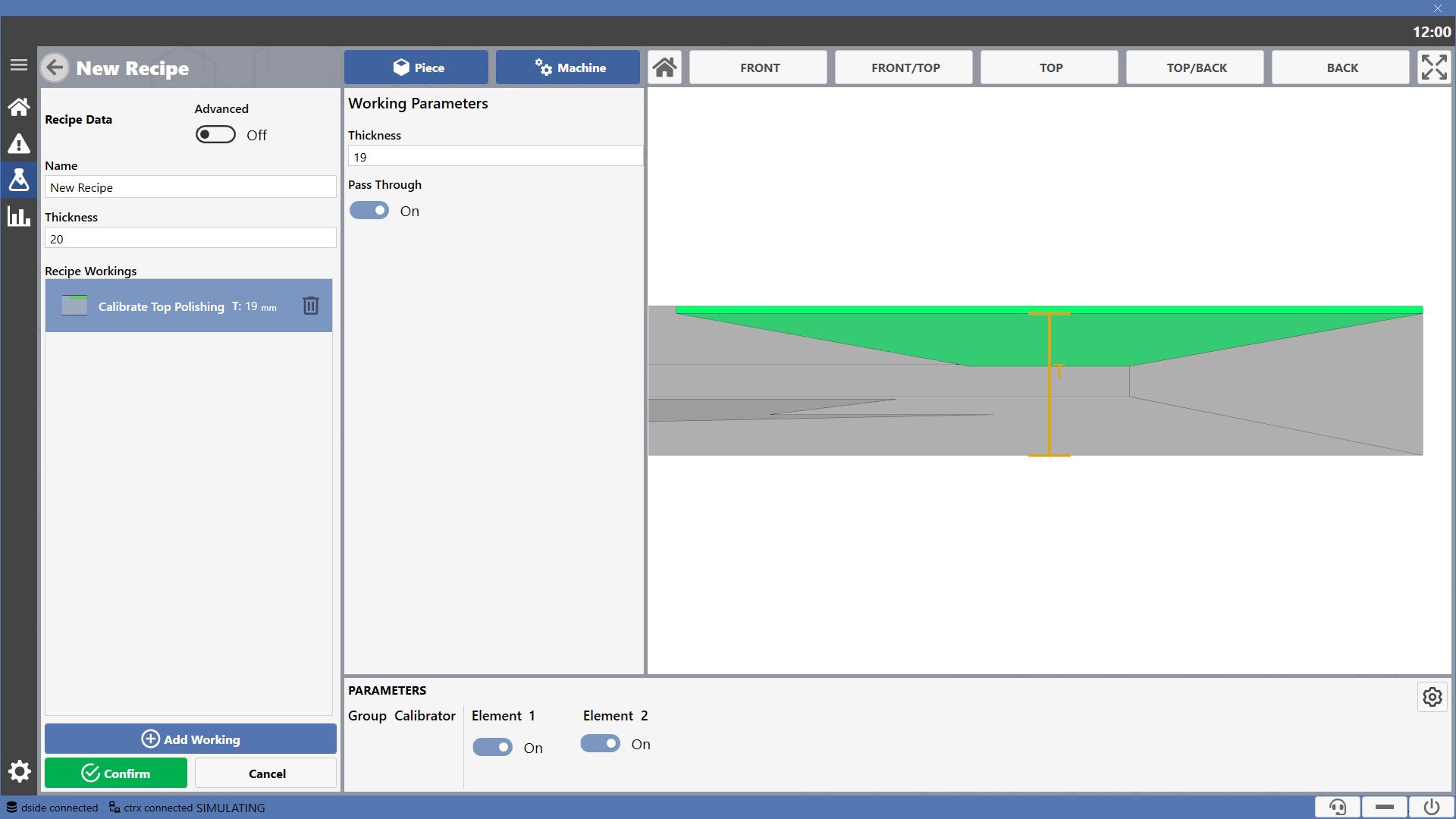

Parameters


Thickness
Specify the remaining thickness the piece must have at the end of the working.

NOTE

It is not possible to modify the width of this working.
The working width on the piece depends on the diameter of the calibrator tool mounted on the calibrator unit.

Available Groups

This working can be performed exclusively by the calibrator top cleaner group.

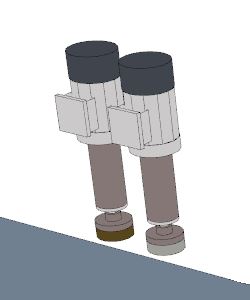

Top Calibrator Group


;
