IsoCam is the software used to machine profiles with the blade. It allows users to draw or import shapes, define the profile and apply different machining methods.
The machining programming workflow is divided into several stages, described on the subordinate pages.


Elements common to the various steps

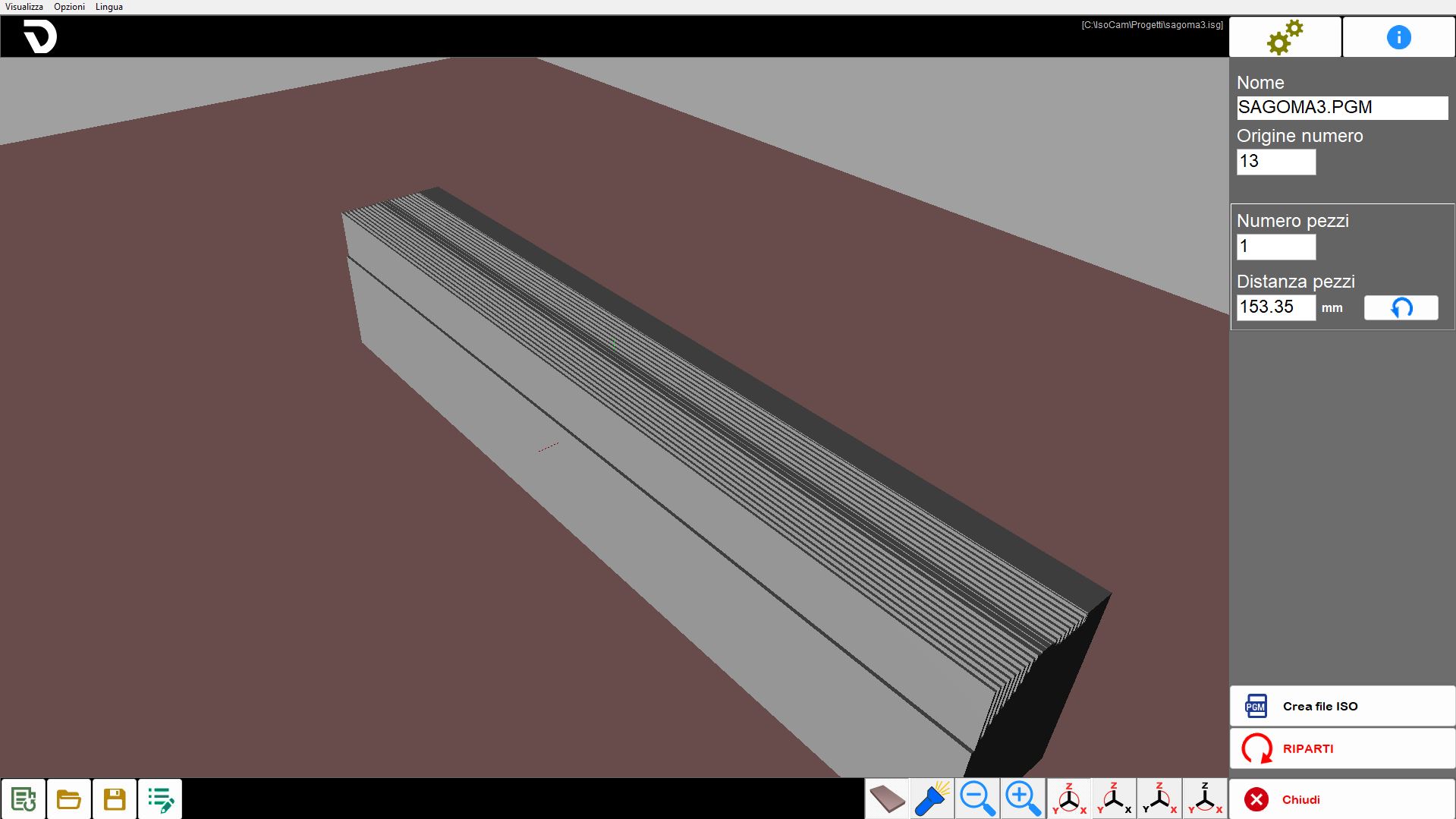

The user interface consists of several areas.

  • Menu: quick utilities.

  • Top bar: functions specific to the active page.

  • Central area: contains the drawing or active area, depending on the page.

  • Side bar: panel containing the parameters to be modified.

  • Bottom bar: buttons generally available in several areas of the software.

NOTE

All these elements vary according to the operating context.

The following elements always remain visible, regardless of the current stage of the process.

Menu

The menu bar is located at the top, above all other elements of the interface.

View

The operator can use several settings relating to the visibility of the workpieces in the work area.

Options

Colour settings can be changed.

Language

ISOCAM is currently available in the following languages:

  • German

  • English

  • Spanish

  • French

  • Italian

  • Portuguese

Right side bar


Settings
Opens the settings panel in the centre of the page.


Info
Opens a small panel containing useful information and contact details.


Step Management
This section allows users to move forwards and backwards through the different steps of the operating workflow.


Close
Pressing the button closes the IsoCam program.

Settings

This panel allows users to switch to IsoCamAdvanced mode, return to the basicversion and change the X and Y Grid Step


Bottom bar

Contains the common commands used to manage the current machining operation.


New machining operation
Opens a new blank IsoCam window and resets the operating workflow to Step 1 of 4.


Open machining operation
Opens a previously saved machining operation.


Save machining operation
Saves the changes made to a machining operation.


Edit machining operation
Returns the operating workflow to Step 1 of 4, allowing changes to be made to the machining operation currently in use.

;
