Donatoni Macchine
Machine technical documentation Operational document

DOC3.9 MANAGEMENT OF THE BENCH VIEWING

This function opens a panel with tools to resize the working area.

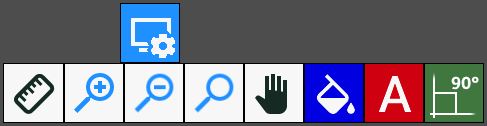

Buttons


Ruler
Allows to measure the distance between two points on the working area.


Zoom _
It is used to increase the dimensions of the working area.


Zoom -
It serves to decrease the dimensions of the working area.


Restore Zoom
It serves to restore the initial dimensions of the working area.


Move view
It is used to move the working area with all pieces above.


Show / Hide background color
Enable or disable the background color on the work area.


Show / Hide pieces name
Enable or disable the viewing of the name of the pieces on the work area.


Show / Hide right angles
Enable or disable the viewing of the right angles of the pieces on the work area.

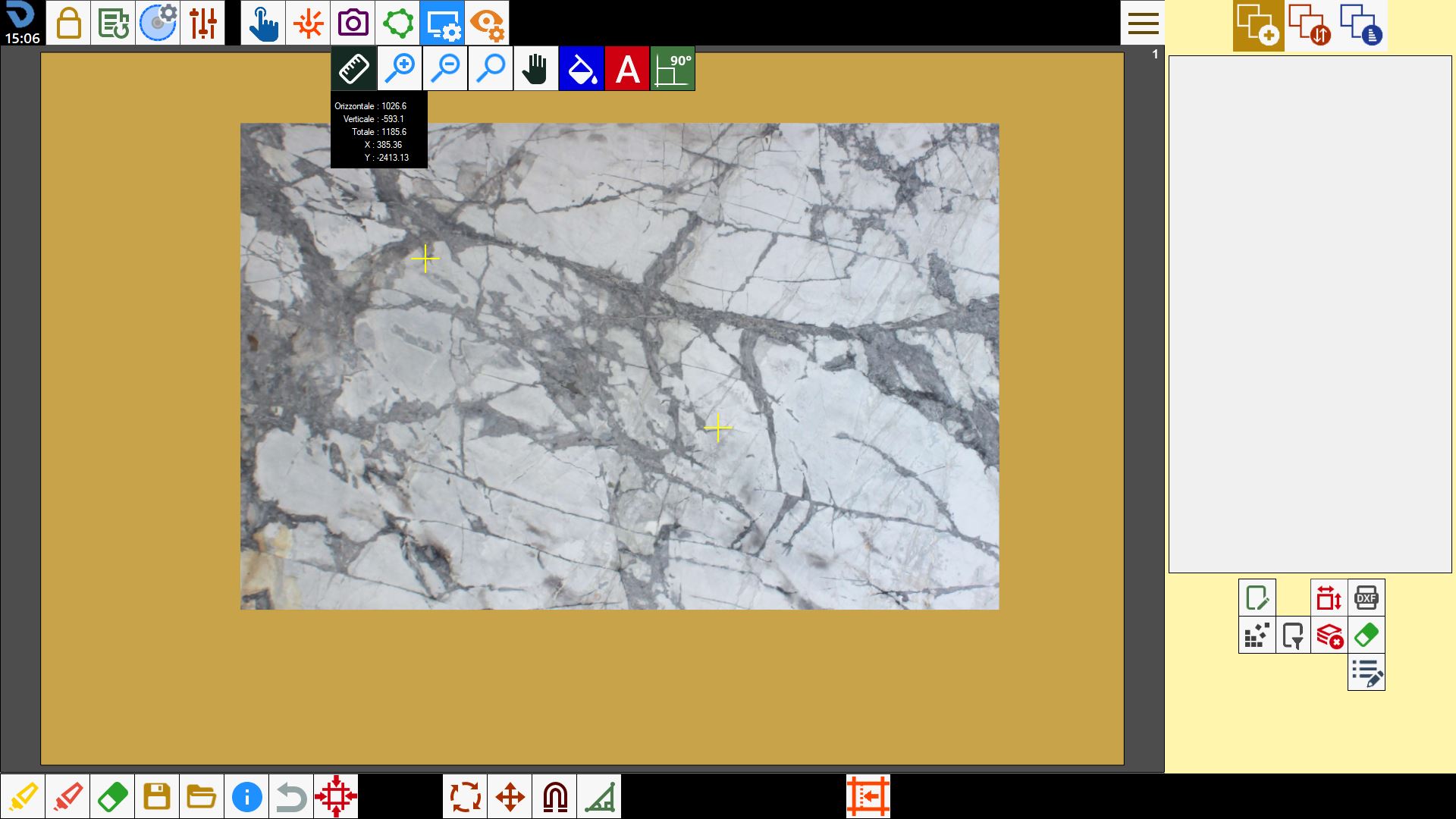

Ruler

To use this function the operator will have to indicate two points on the work area. These will be represented as two yellow crosses.


Under the ruler button, a small panel will appear showing the distance between the two points.


Horizontal

Horizontal distance between the first and the second point.

Vertical

Vertical distance between the first and the second point.

Total

Total distance between the first and the second point.

X

Horizontal mouse position in real time.

Y

Vertical position of the mouse in real time.

;
