Technical maintenance sheet Controlled procedure

MN0016CHECKING TANK CLEANLINESS AND DRAINING

Before proceeding, carefully read the

SAFETY INSTRUCTIONS

Intervalbased on abrasive consumption

Operation complexityLow01 / 05

Authorized personnelMachine operator

Required PPE:


Procedure

  • Check that the bridge and other machine components do not come into contact with the parts being moved

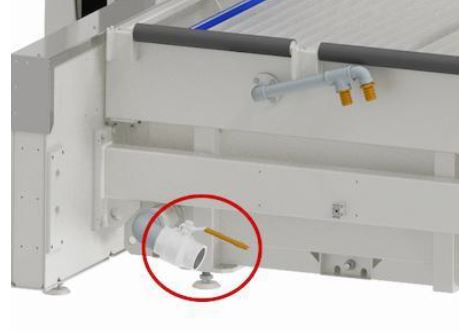

  • Open the drain valve to empty the tank

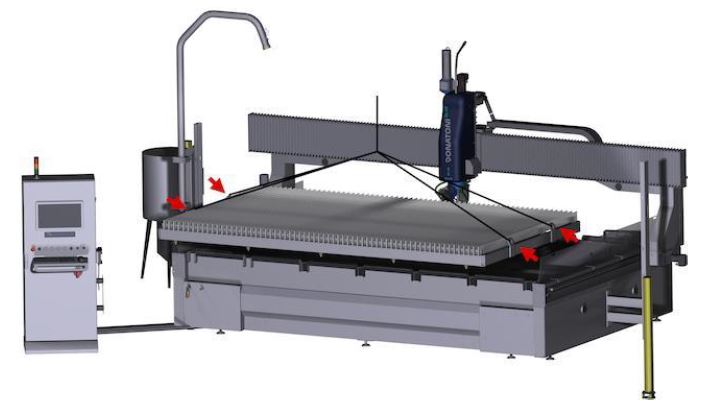

  • Lift the blade frame using the dedicated supports (Frame weight = 750Kg)


  • Remove the workpiece recovery grids

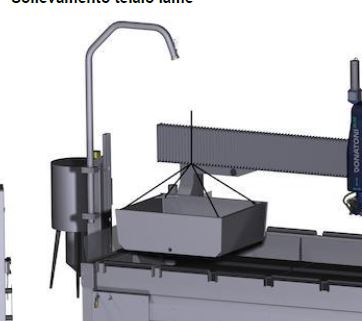

  • (OPTIONAL) Lift and empty the abrasive collection tanks. Then clean them and check their integrity


  • Thoroughly clean the tank, removing abrasive residue

  • Reposition the abrasive collection tanks, grids and blade bed

;
