Donatoni Macchine
Technical maintenance sheet Controlled procedure

MN0041GREASING TOOL PLUS SIDE SPINDLE LINEAR GUIDES

Before proceeding, carefully read the

SAFETY INSTRUCTIONS

Intervalevery 300 working hours

Operation complexityLow01 / 05

Authorized personnelMachine operator

Required PPE:


Video

Procedure

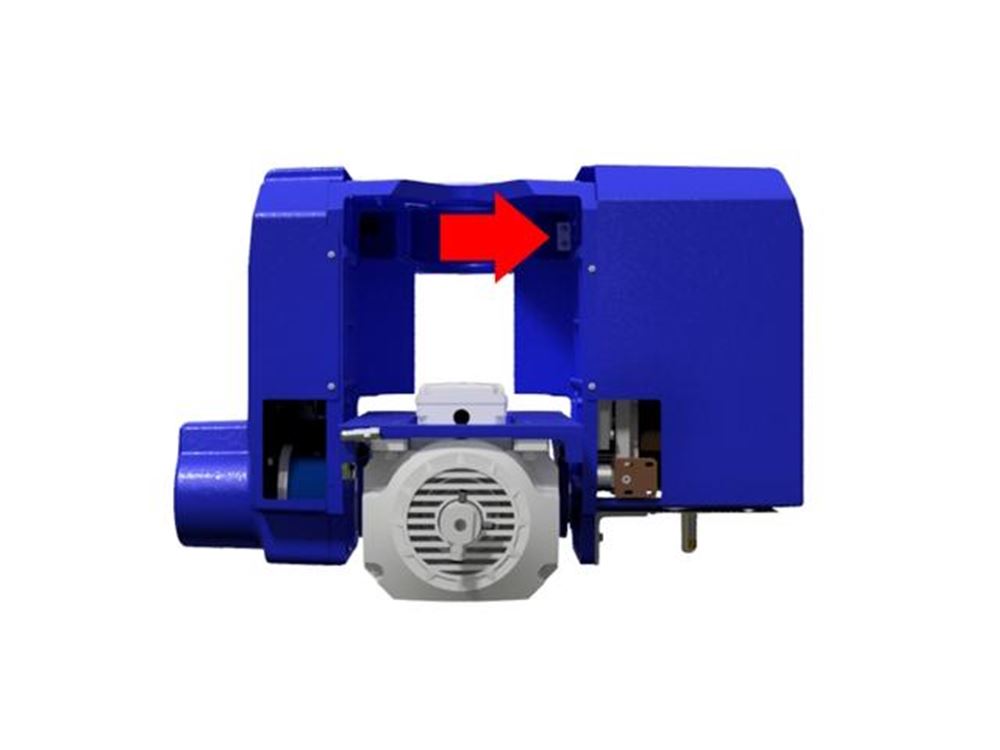

At least every 300 working hours, use a suitable grease gun to grease the MOVE system linear guides with 1cm3 of grease through the grease nipples shown in the figure


;
