Technical troubleshooting sheet Emergency diagnostic procedure

PE0005CONTROL ENABLE MISSING

Before proceeding, carefully read the

SAFETY INSTRUCTIONS

DescriptionMachine controls not enabled

SeverityLow01 / 05

Authorized personnelMachine operator

Required PPE:


Description

This message is displayed when the machine is switched on or after the emergency stop button is released.

Symptoms

…..

Possible causes

  1. The controls enable (RESET) button has not been pressed;

  2. Malfunction of the controls enable (RESET) button on the electrical cabinet;

  3. Malfunction of the Pilz safety control unit.

Possible solutions

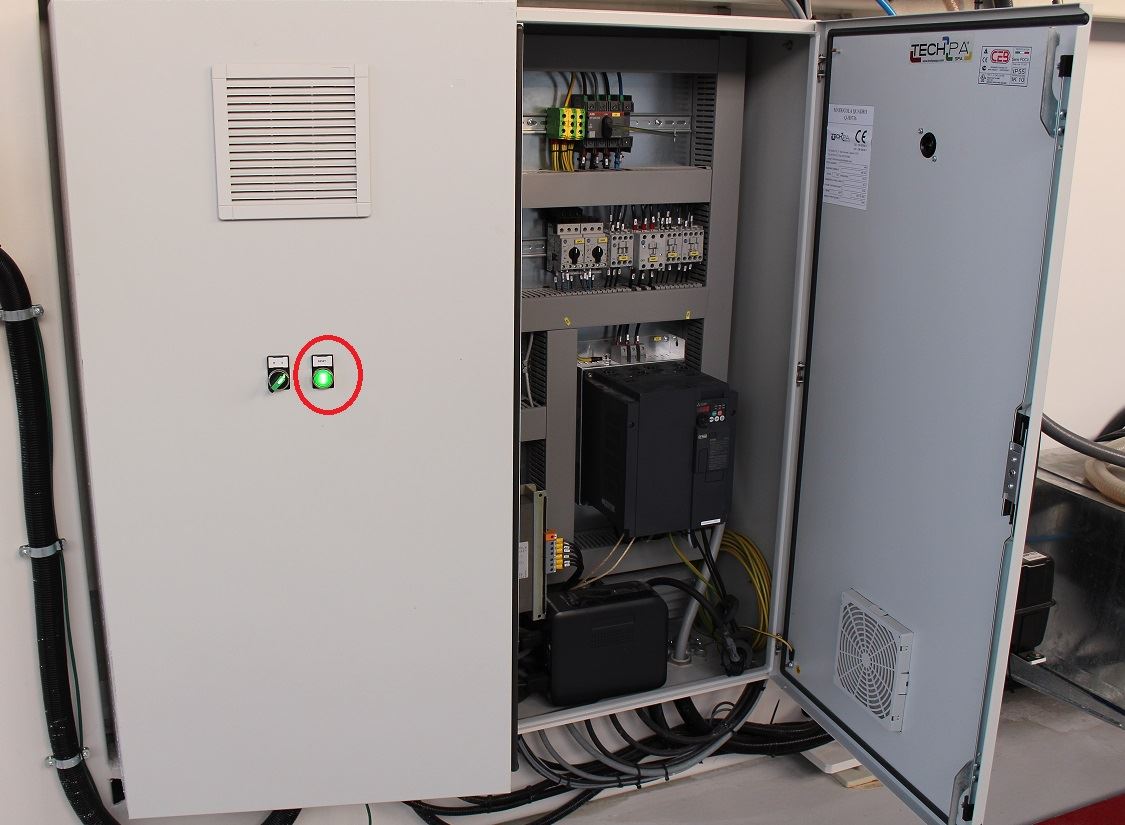

  1. Press the reset button on the electrical cabinet

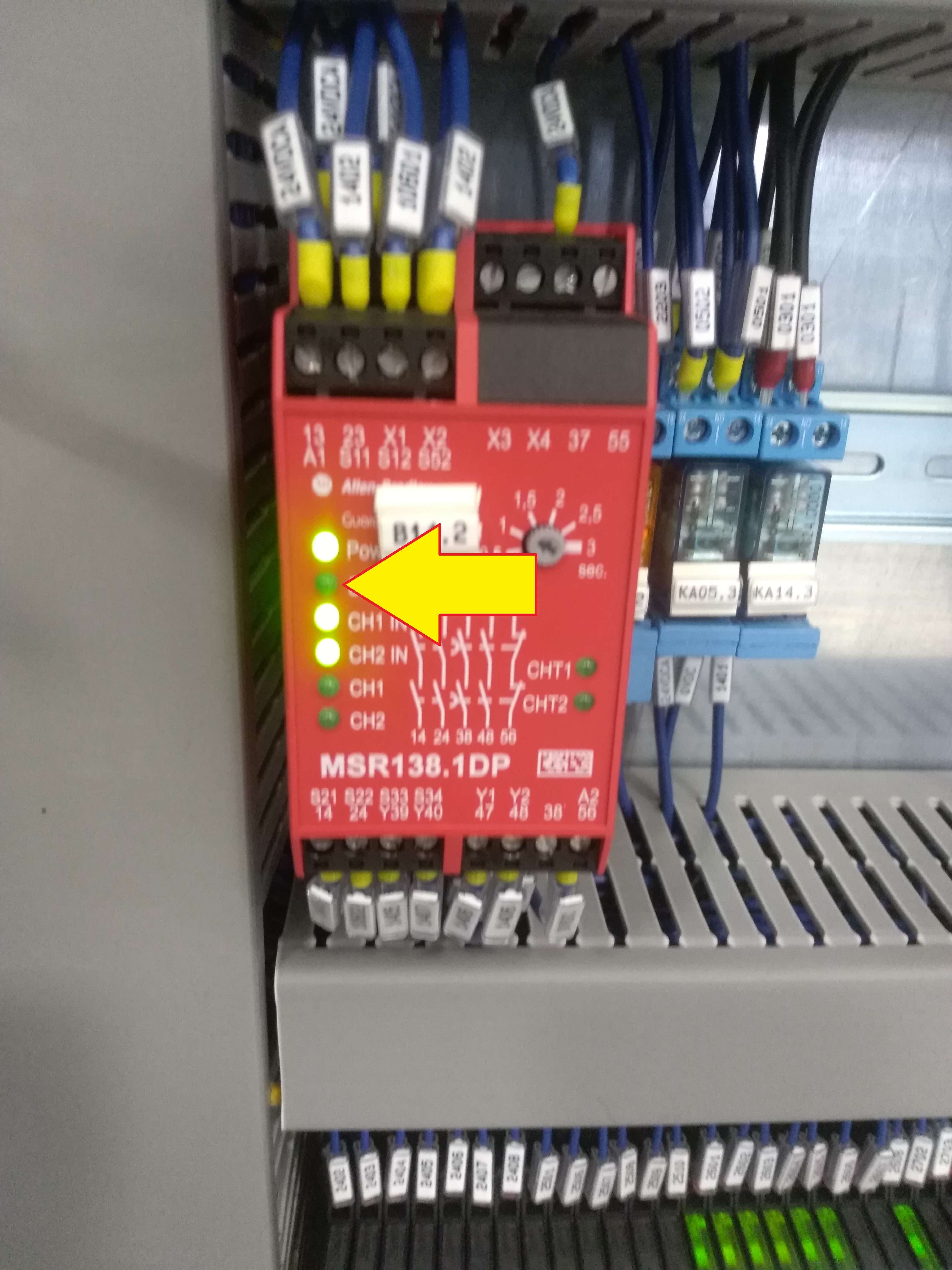

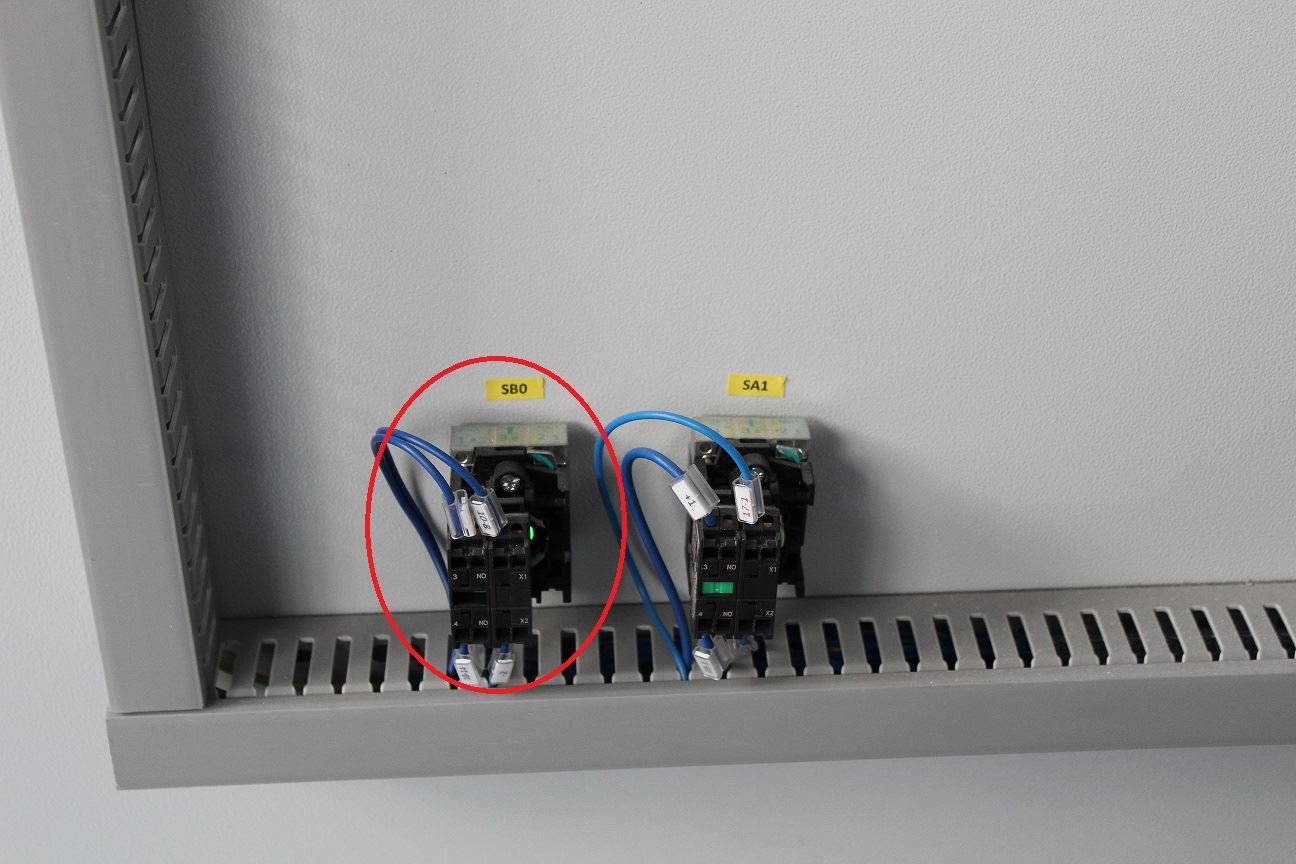

  2. Check the contacts of the controls enable button: while the button is held down, the contact must close and the green start LED must appear on the control unit; if not, replace the button contacts;



;
