Donatoni Macchine
Machine technical documentation Operational document

DOC2.6.2 MATERIALS

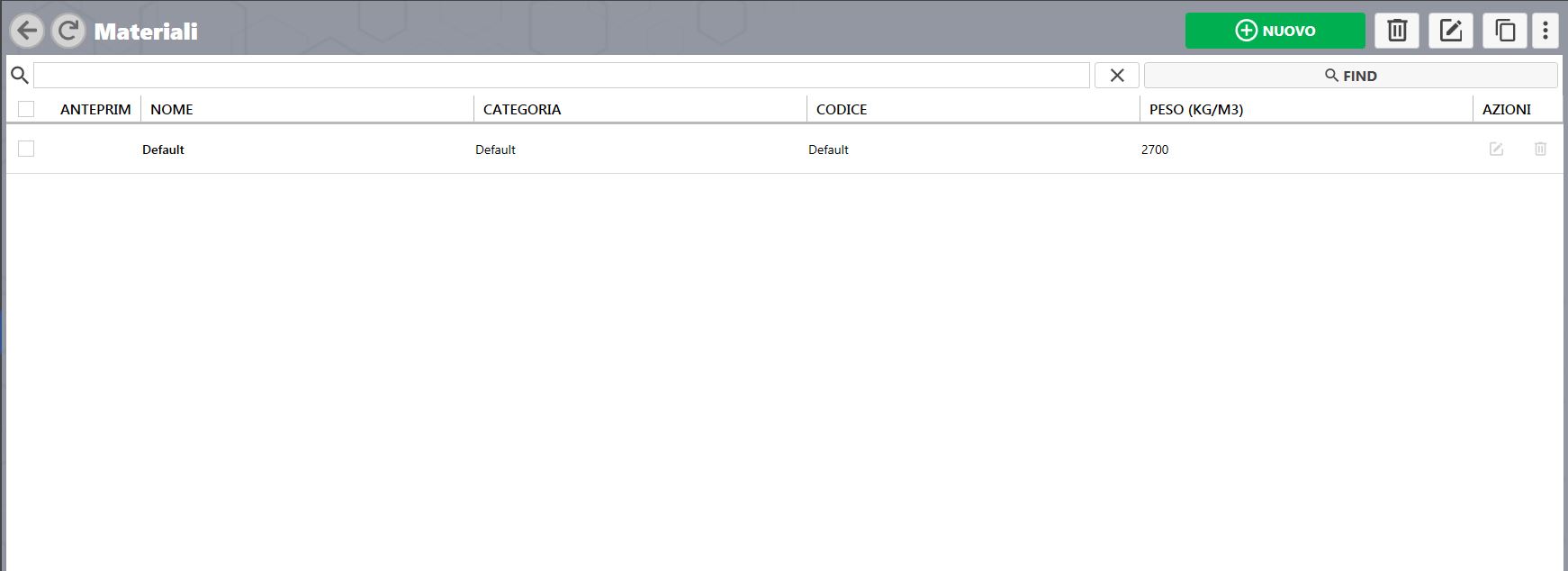

The “Materials” page is used to search for, view and edit the characteristics of a material used for the pieces to be palletised.


Top bar

The following buttons are located on the right-hand side of the top bar:


New
Creates a new material.


Delete
Deletes the selected material.


Edit
Edits the selected material.


Duplicate
Creates a copy of the selected material.

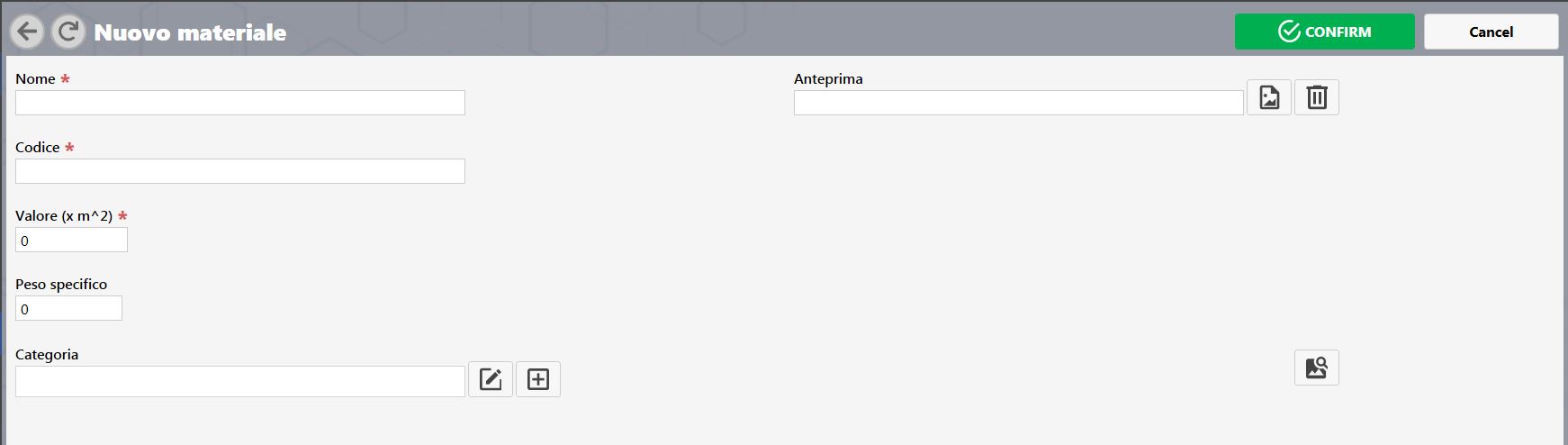

New material


Name

Code assigned to the material

Code

Code assigned to the material

Value per m^2

Specific weight

Specific weight of the material

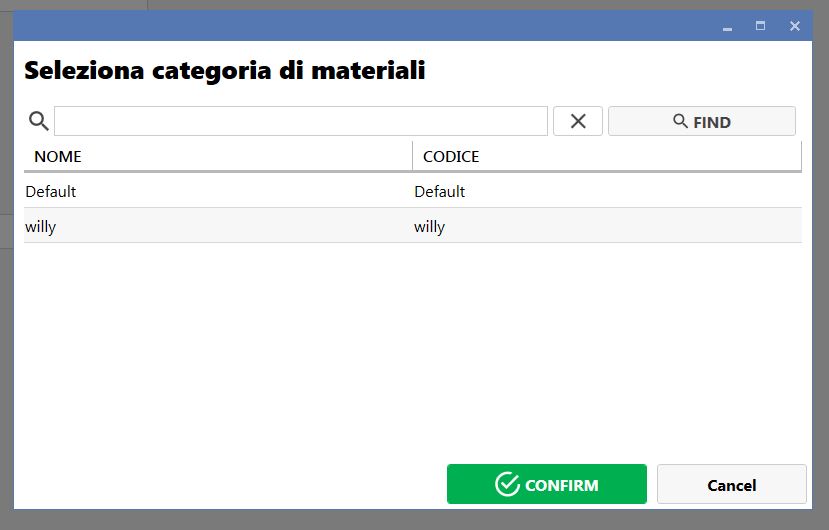

Category

used to select the relevant material category or create a new one


Preview

a preview file for the new material can be uploaded, or the existing one can be deleted

;
