Donatoni Macchine
Machine technical documentation Operational document

DOC2.6.3 SLABS

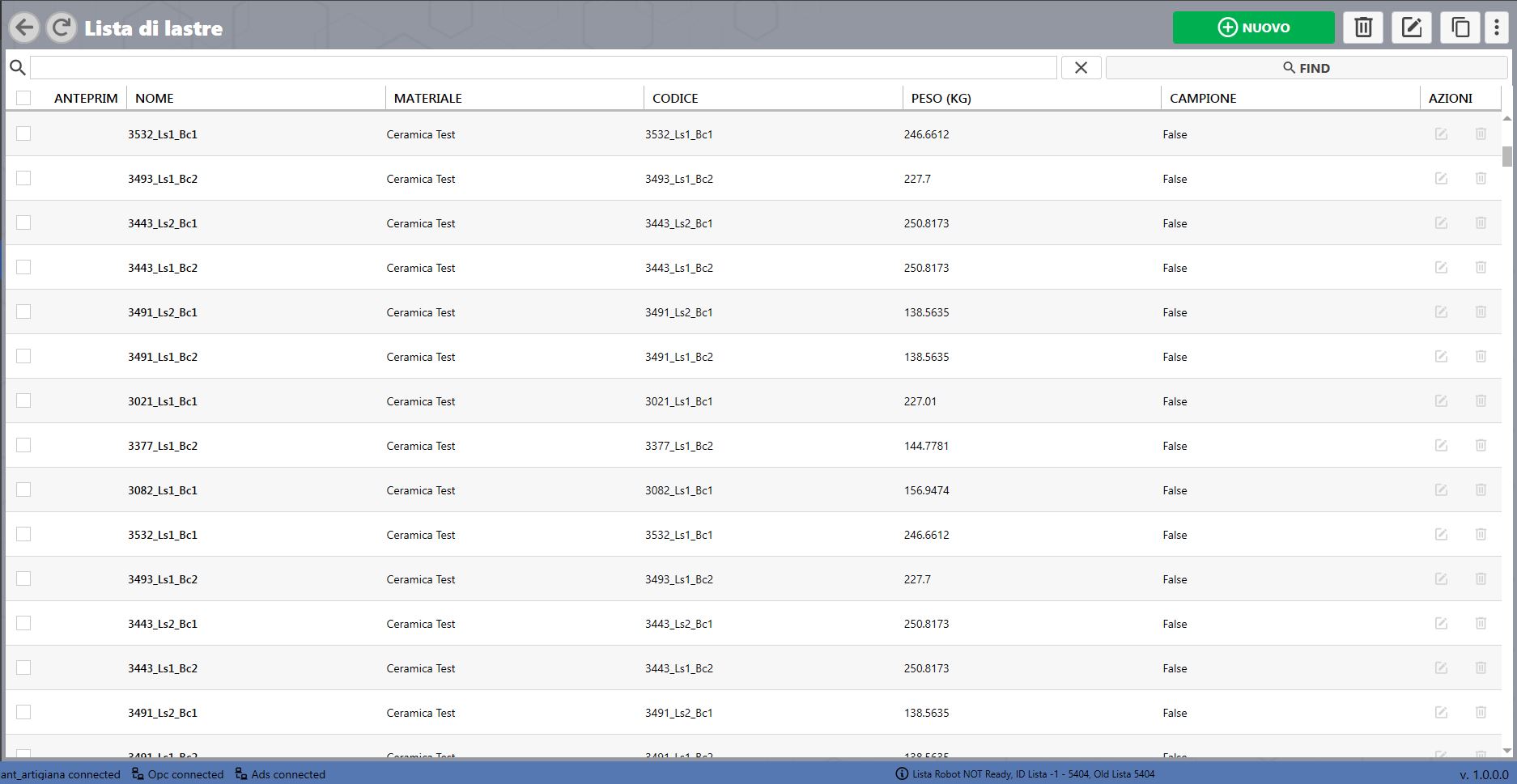

The “Slabs” page is used to search for, view and edit the list of slabs loaded by the robot.


Top bar


New
Creates a new slab.


Delete
Deletes the selected slab.


Edit
Edits the selected slab.


Duplicate
Creates a copy of the selected slab.

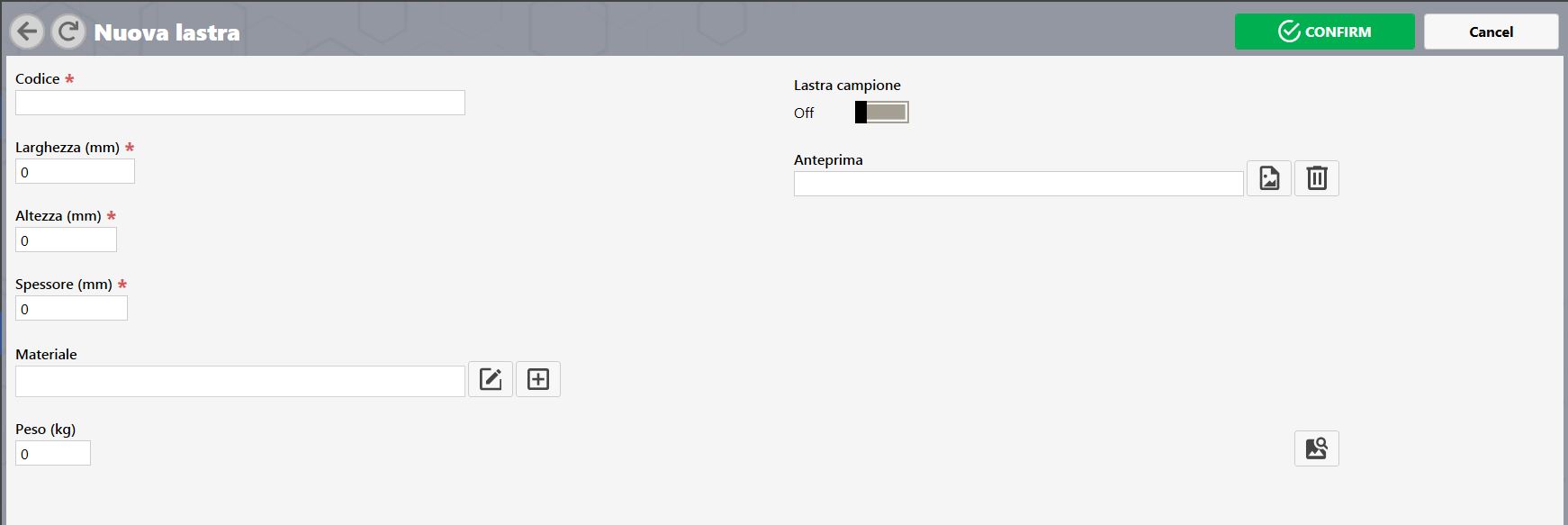

New slab


Code

Code assigned to the slab

Width

Slab width

Height

Slab height

Thickness

Slab thickness

Material

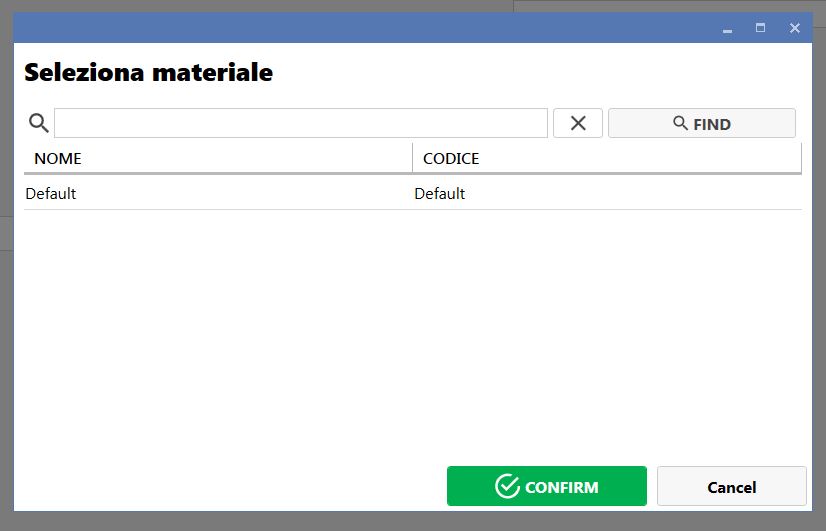

used to select the relevant material or create a new one


Weight

Calculated slab weight

Sample slab

Defines whether or not it is a sample slab

Preview

a preview file for the slab can be uploaded, or the existing one can be deleted

;
