Donatoni Macchine
Machine technical documentation Operational document

DOC2.7.1 ROBOT VARIABLES

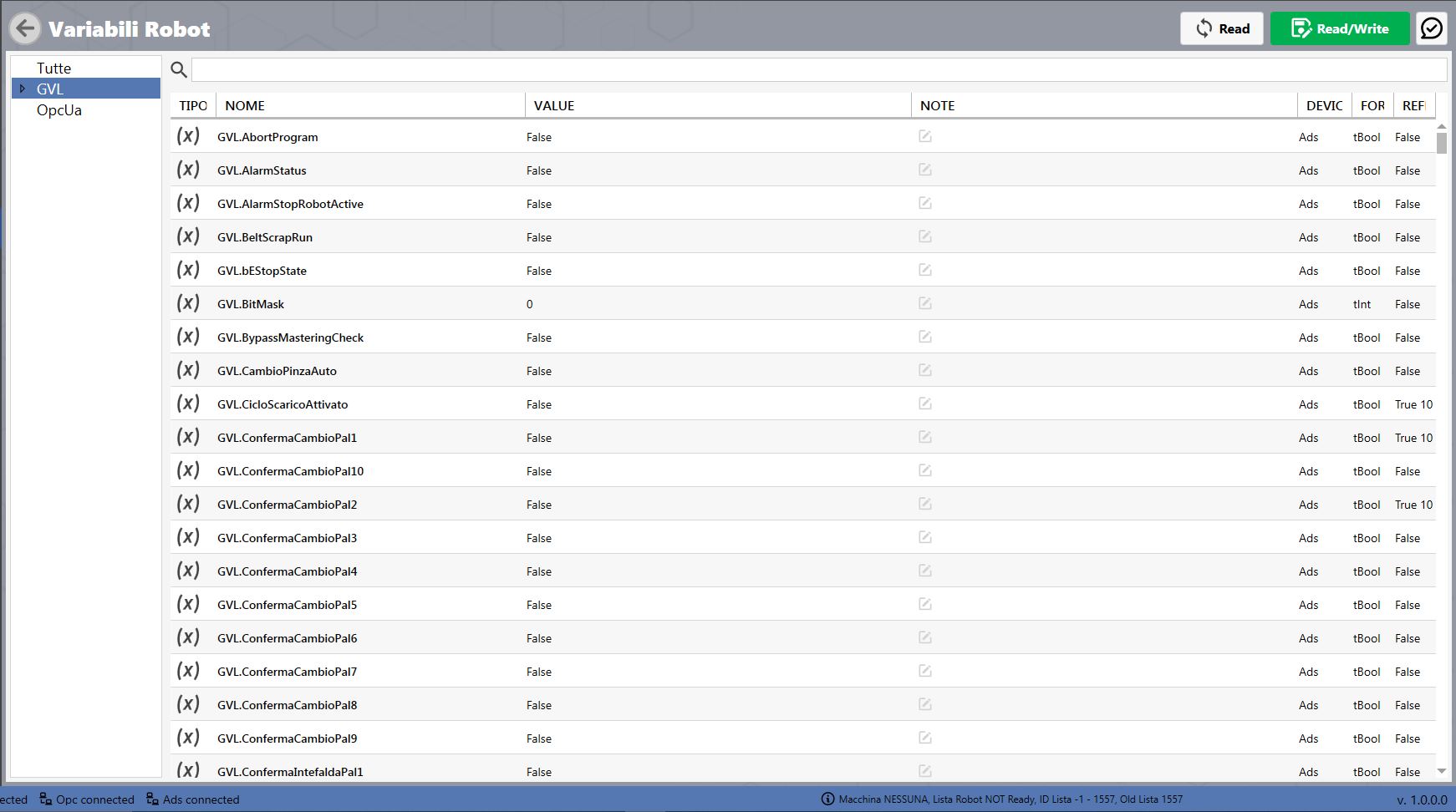

List of Robot OpcUa _ Ads exchange variables.


Top bar


Read
Reads and updates the value of the selected variables.


Read/Write
Reads and allows the selected variable to be edited.

Left-hand section


Robot Type
Menu for selecting the variables to display.

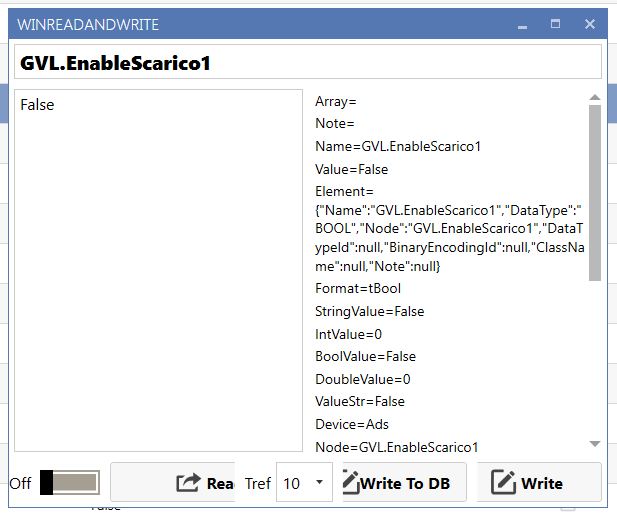

Read/Write


Read/write panel bottom bar


Write

Sends the write command.


Continuous reading

Reads and continuously updates the variable value.


Refresh time

Indicates the refresh interval for reading the variable value.

;
