Machine technical documentation Operational document

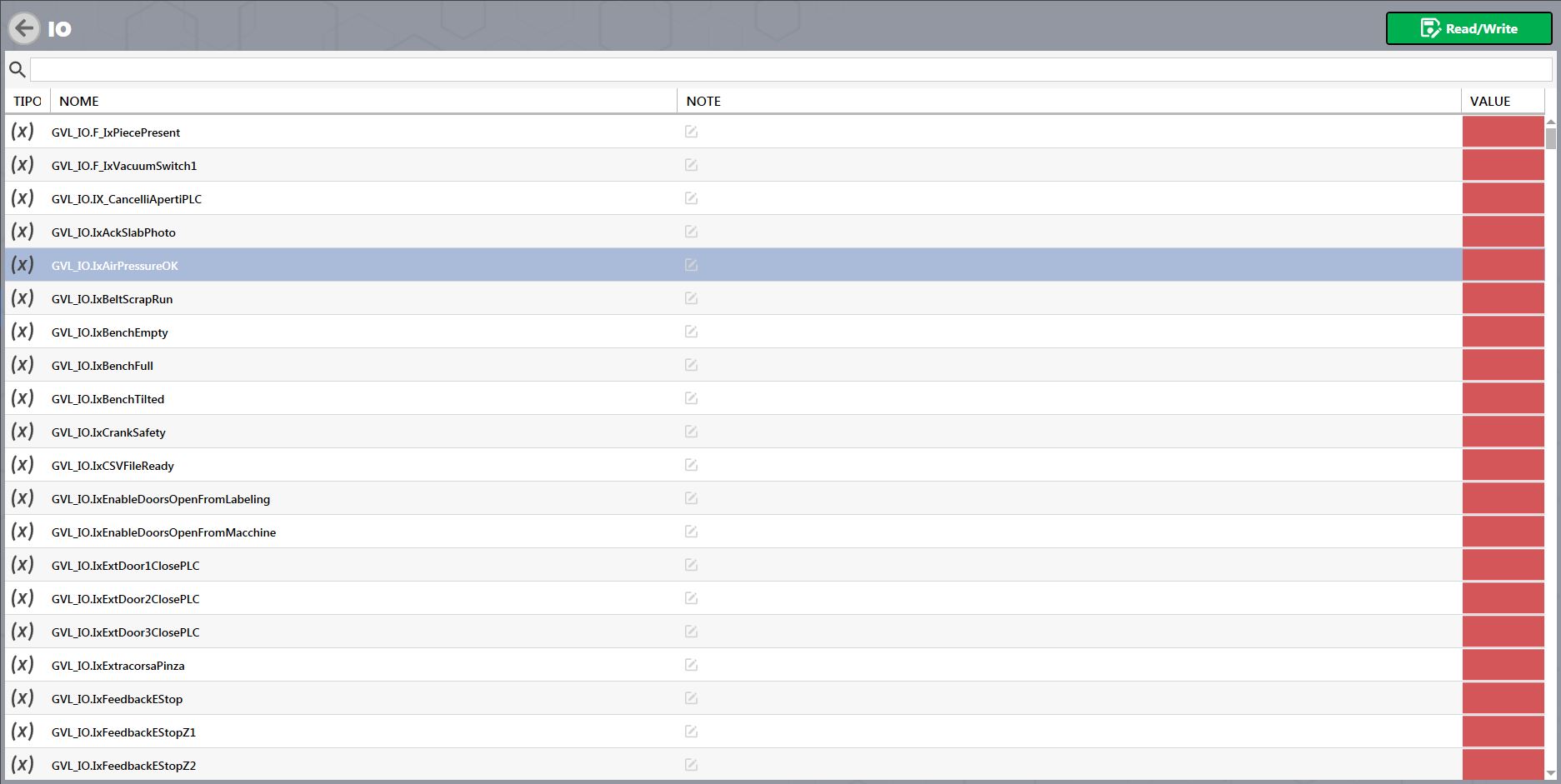

DOC2.7.2 IO

Reads and writes the E6Axis, E6Pos, Frame and Home working positions.


Top bar


Read/Write
Reads and allows the selected I/O to be edited.

Read/Write

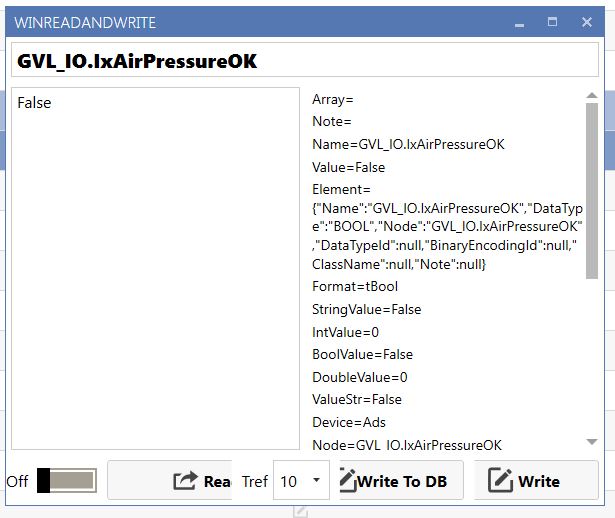

Read/write panel bottom bar


Write
Sends the write command.


Continuous reading
Reads and continuously updates the variable value.


Refresh time
Indicates the refresh interval for reading the variable value.

;
