DOC2.7.3 WORKING POSITIONS

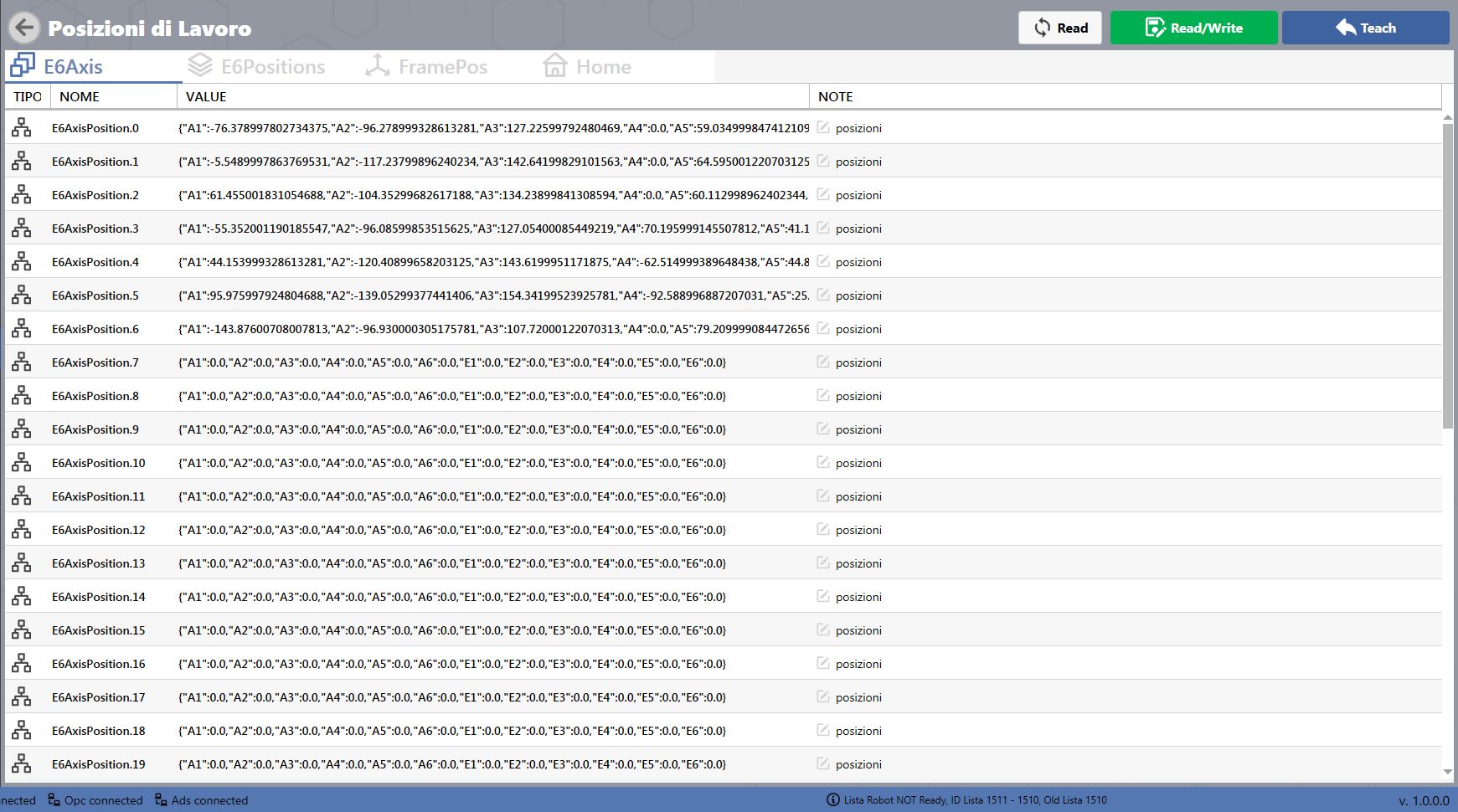

Menu for viewing and editing the robot working positions, divided according to the position type:

  • E6Axis

  • E6Position

  • FramePos

  • Home


Top bar


Read/Write
Reads and allows the selected I/O to be edited.


Teach
Updates the selected position with the robot coordinates at that moment.

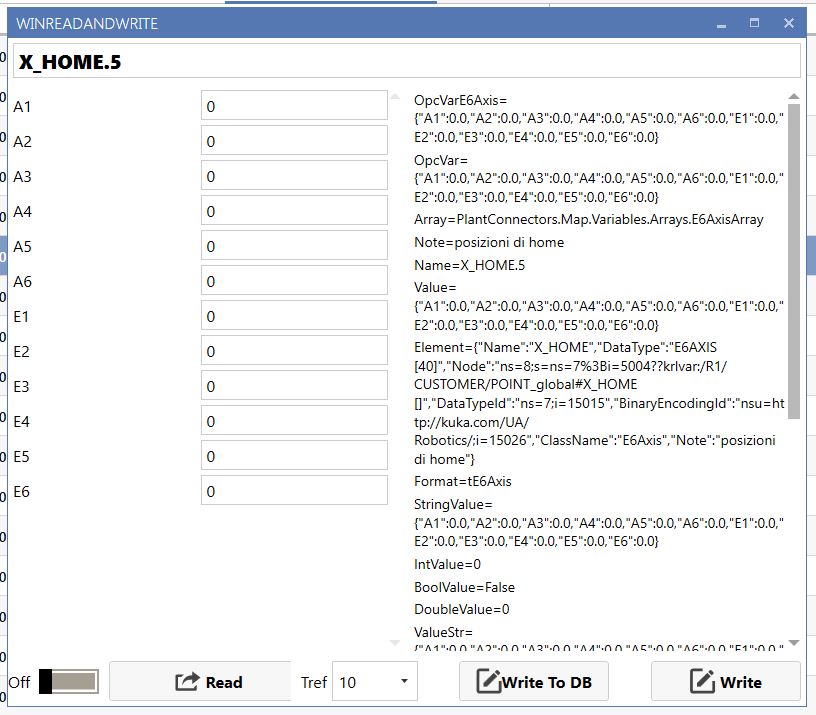

Read/Write


Read/write panel bottom bar


Write

Sends the write command.


Continuous reading

Reads and continuously updates the position value.


Refresh time

Indicates the refresh interval for reading the variable value.

;
