Machine technical documentation Operational document

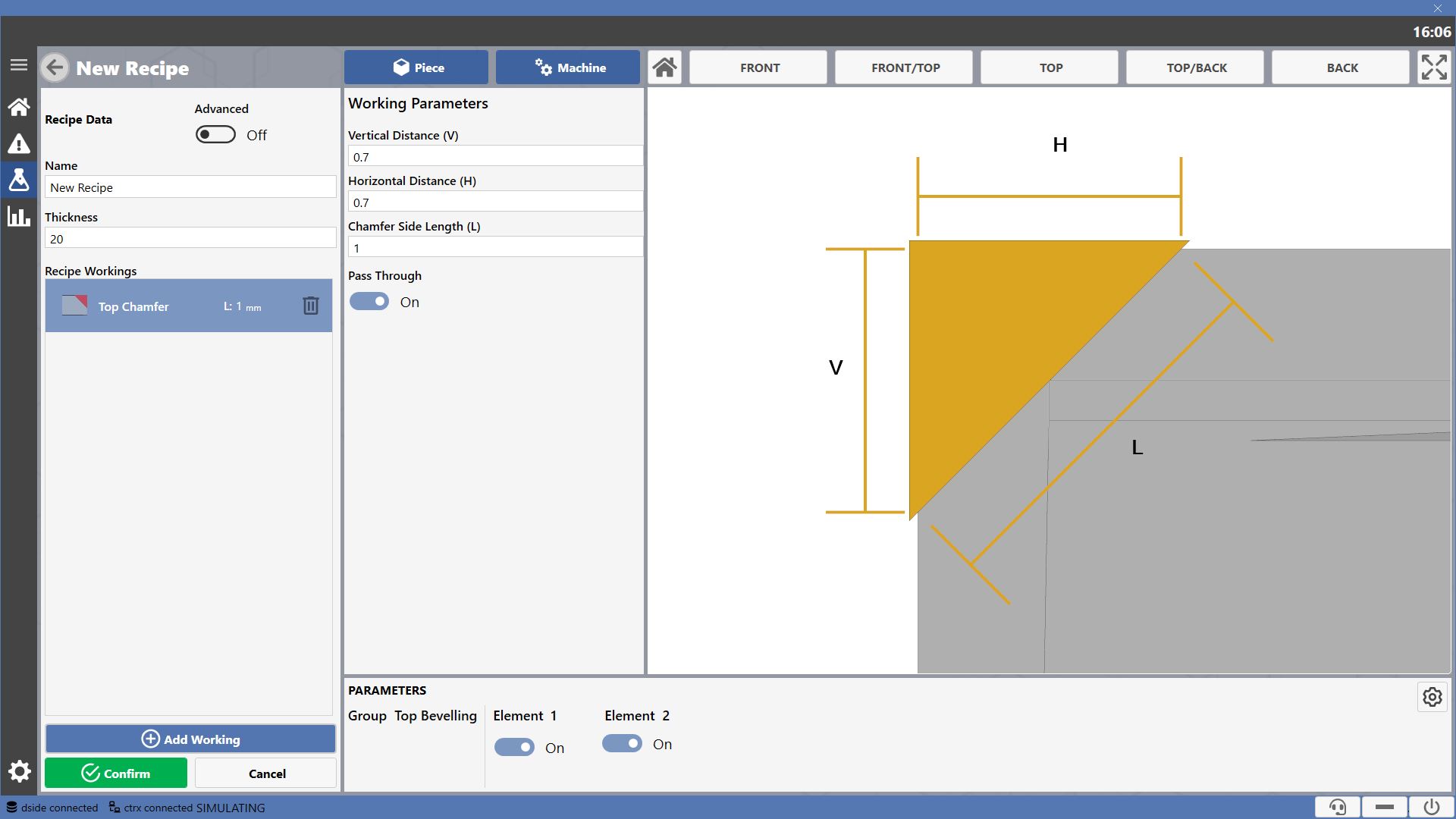

DOC2.3.1.5 TOP BEVELLING

This working allows performing a top edge chamfer of the piece side.

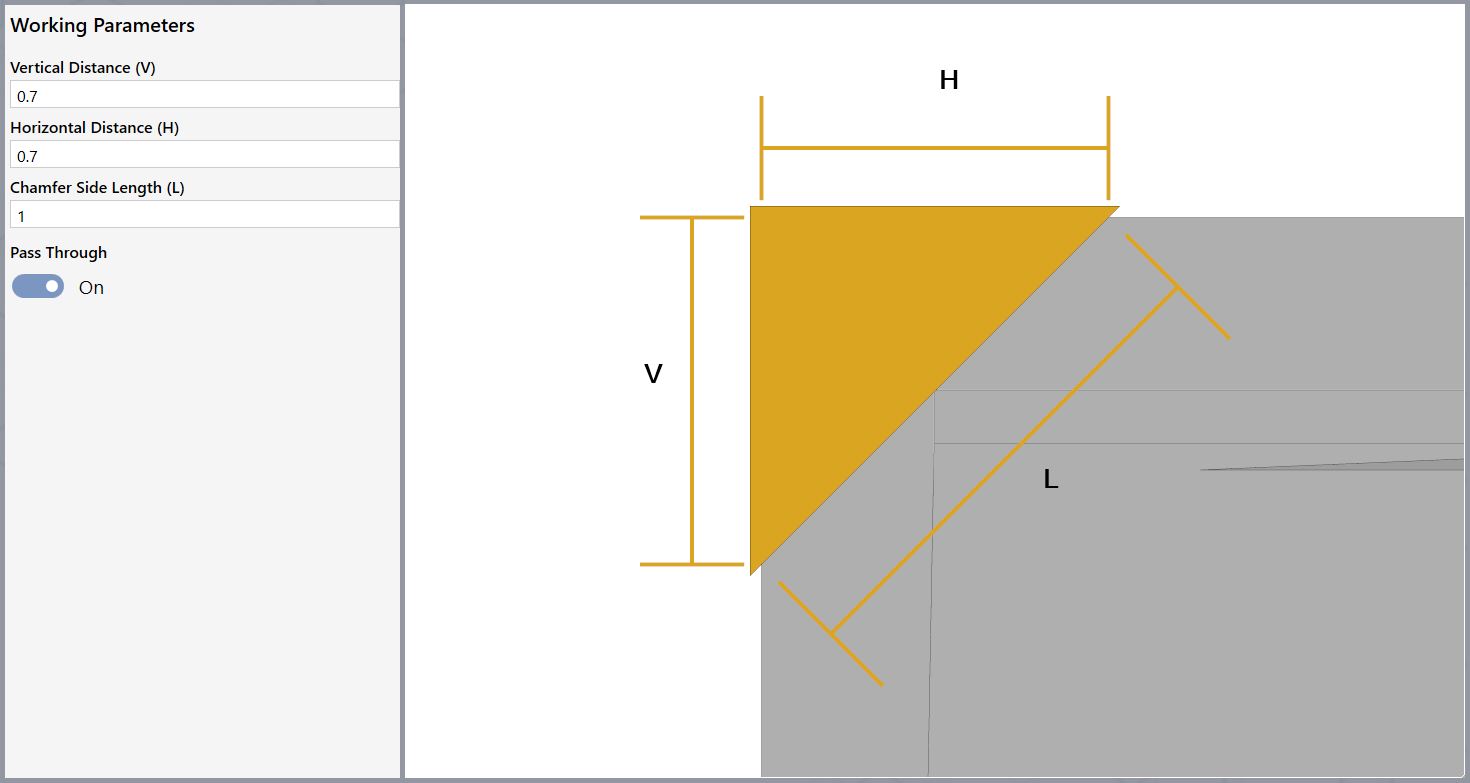

Parameters


Vertical Distance
Specify the vertical distance at which the chamfer working must end relative to the reference edge.


Horizontal Distance
Specify the horizontal direction distance at which the chamfer working must end relative to the reference edge.


Chamfer length
Specify the diagonal dimension that the chamfer must have.

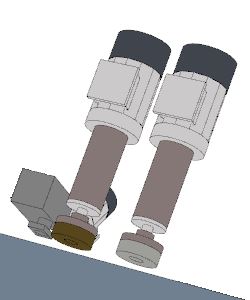

Available Groups

Top Chamfer Group


;
