DOC2.3.1.6 BOTTOM CHAMFER

This working allows performing a bottom chamfer of the edge of the piece.

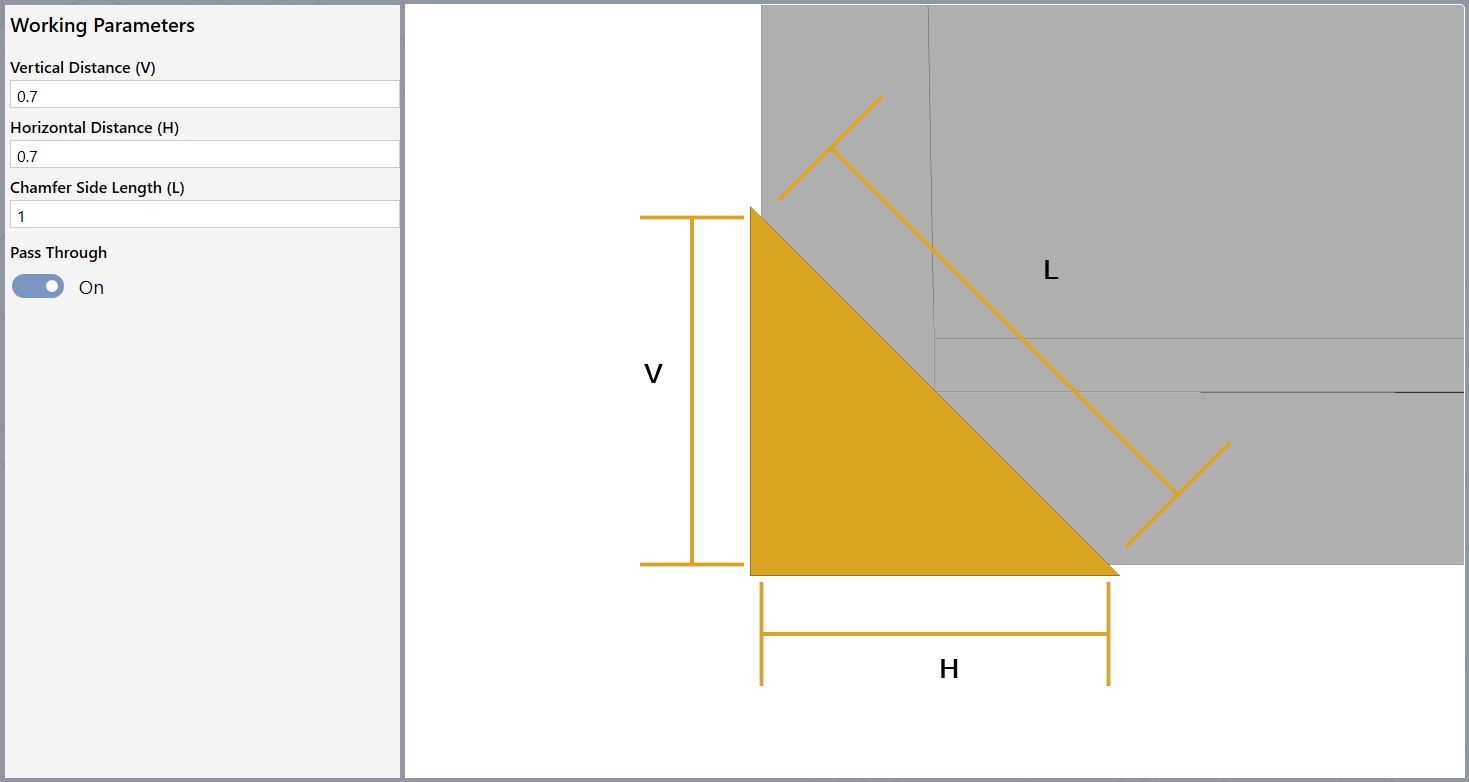

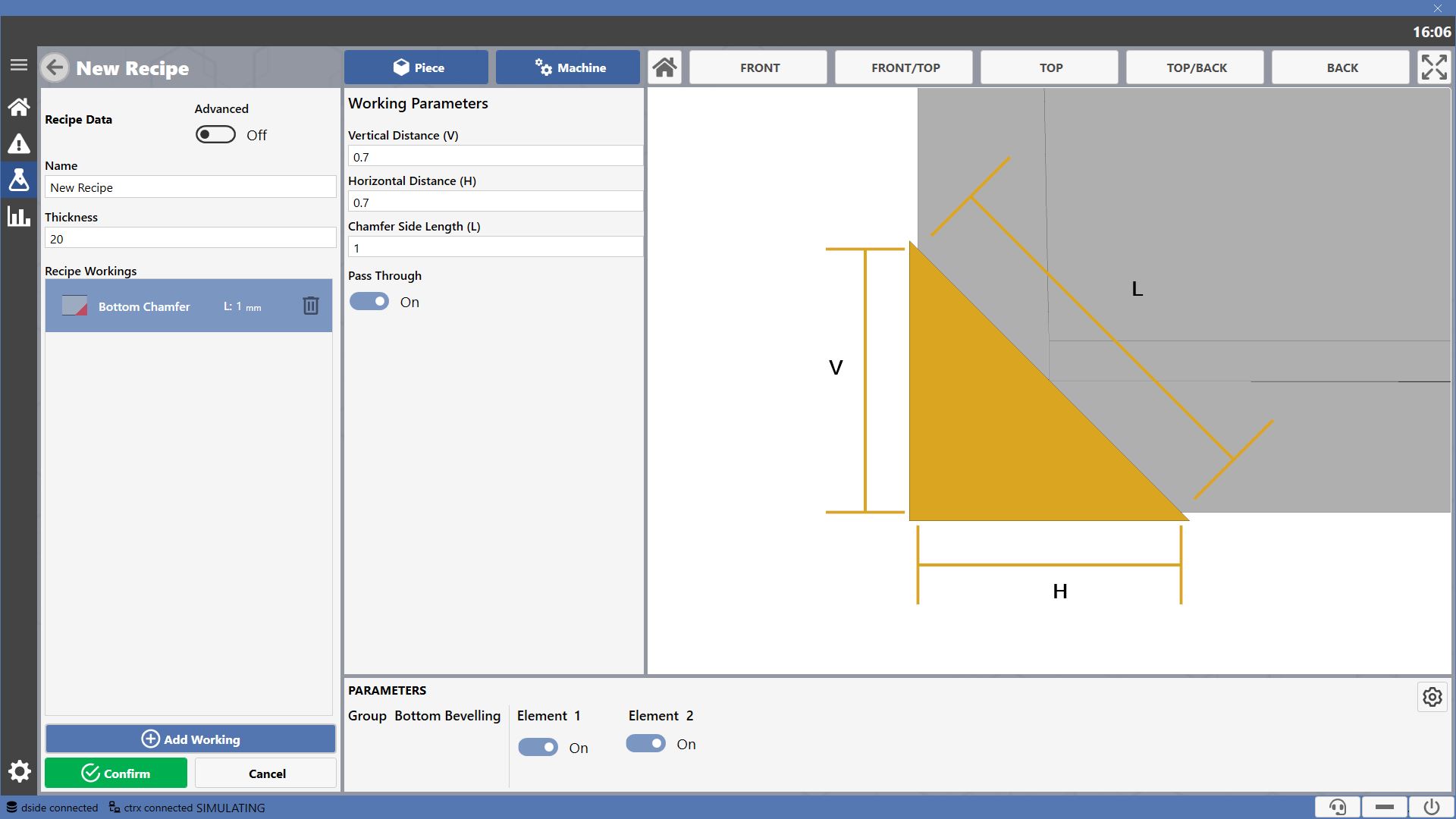

Parameters


Vertical Distance
Specify the vertical distance at which the chamfer working must end relative to the reference edge.


Horizontal Distance
Specify the horizontal direction distance at which the chamfer working must end relative to the reference edge.


Chamfer length
Specify the diagonal dimension that the chamfer must have.

Available Groups

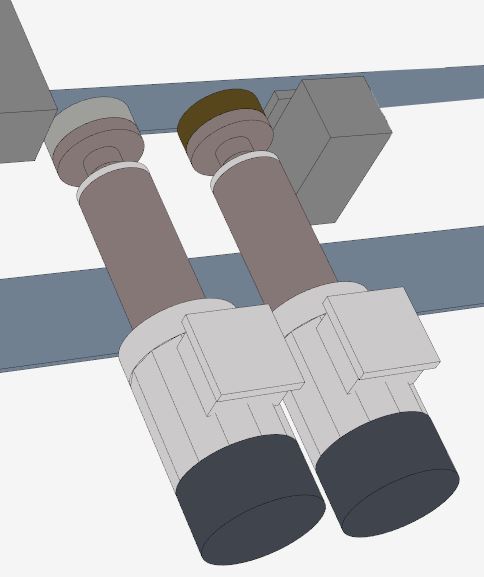

Bottom chamfer group


;
