DOC2.3.1.9 SIDE CUT

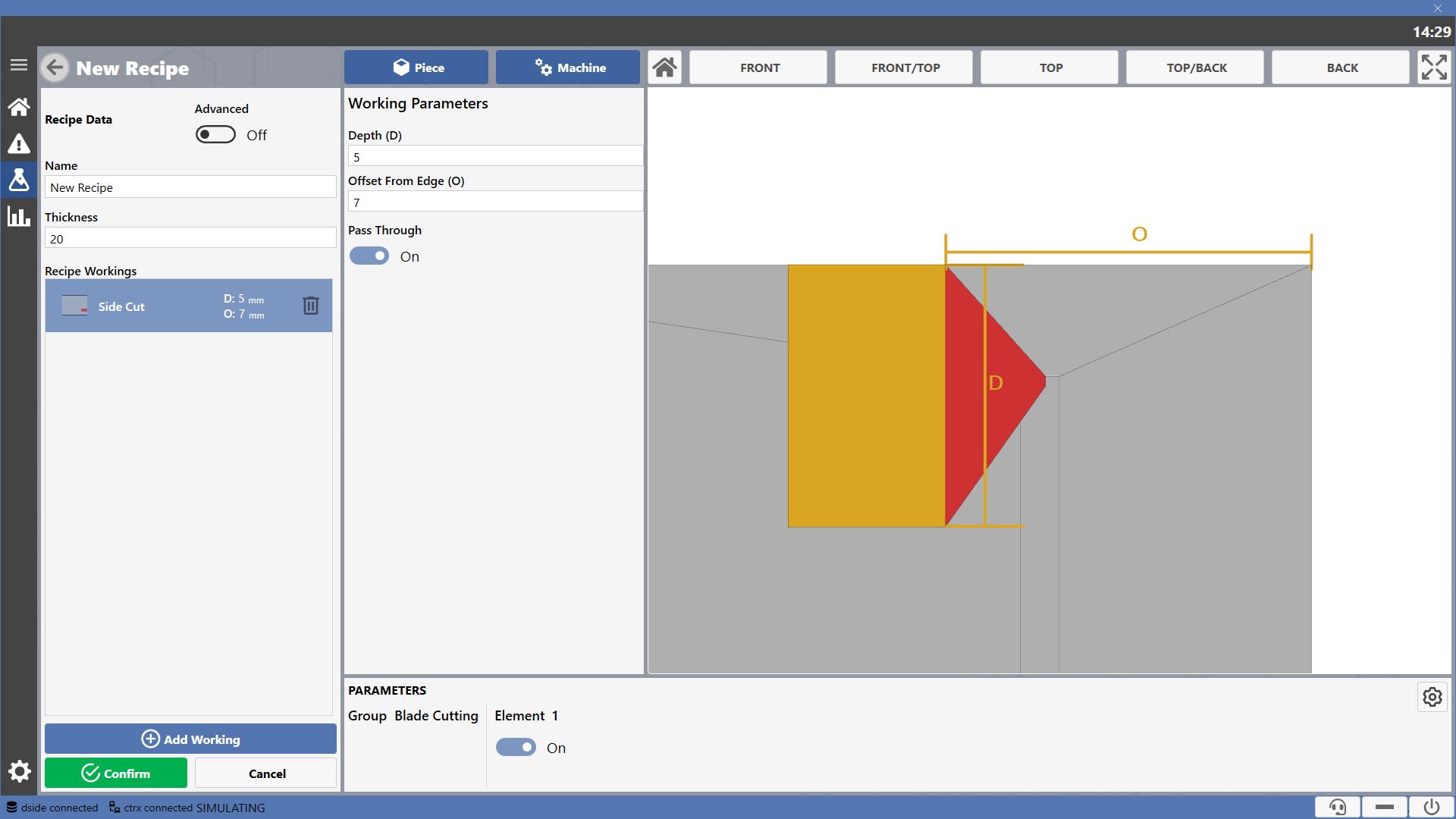

This working allows performing a cut on the edge of the piece.

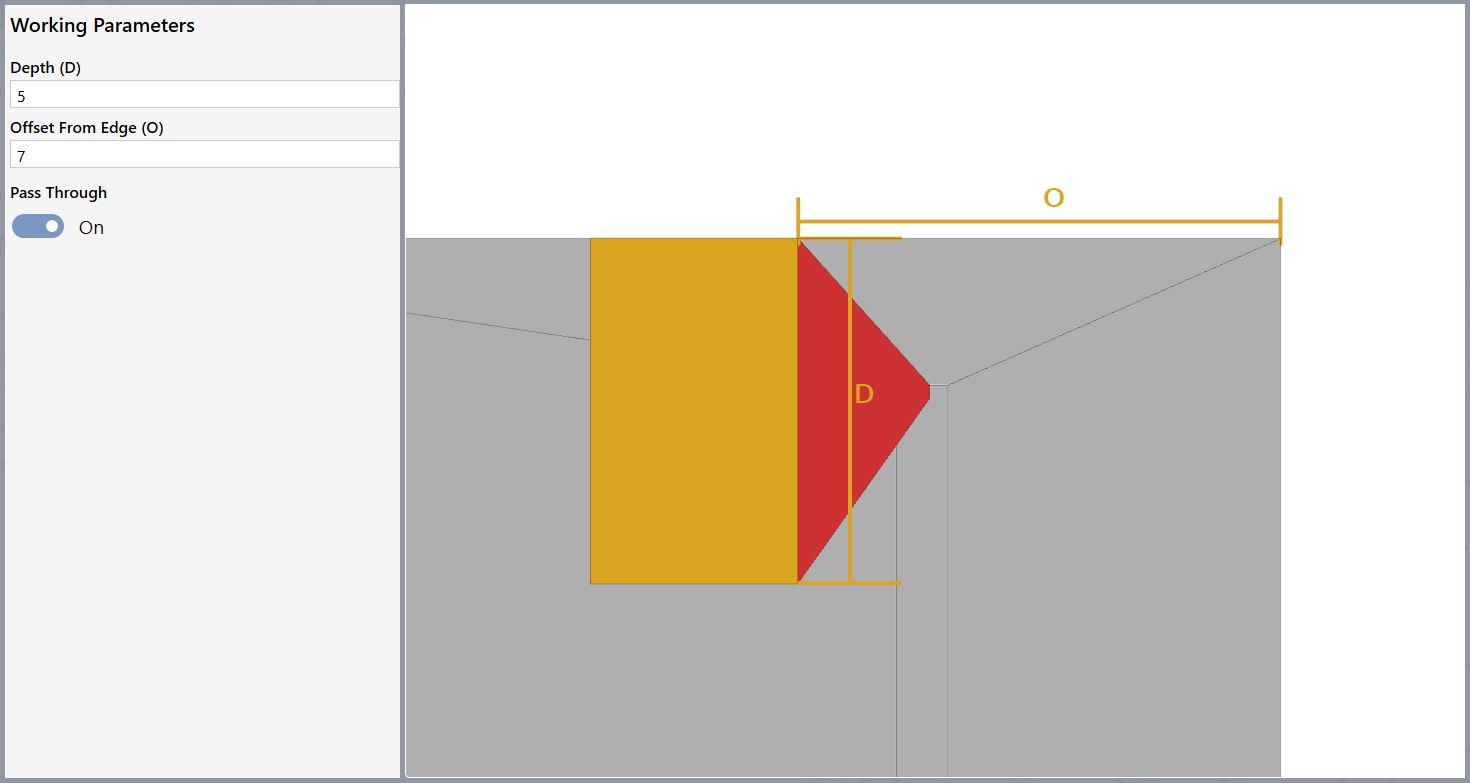

Parameters


Depth
Specify the cutting penetration into the material.


Offset From Edge
Specify the distance of the Lower Cut from the piece's bottom surface.

Available Groups

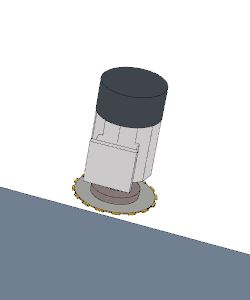

Cutting group/blade calibrator and side cutting blade

;
