DOC2.3.1.8 LOWER CUT

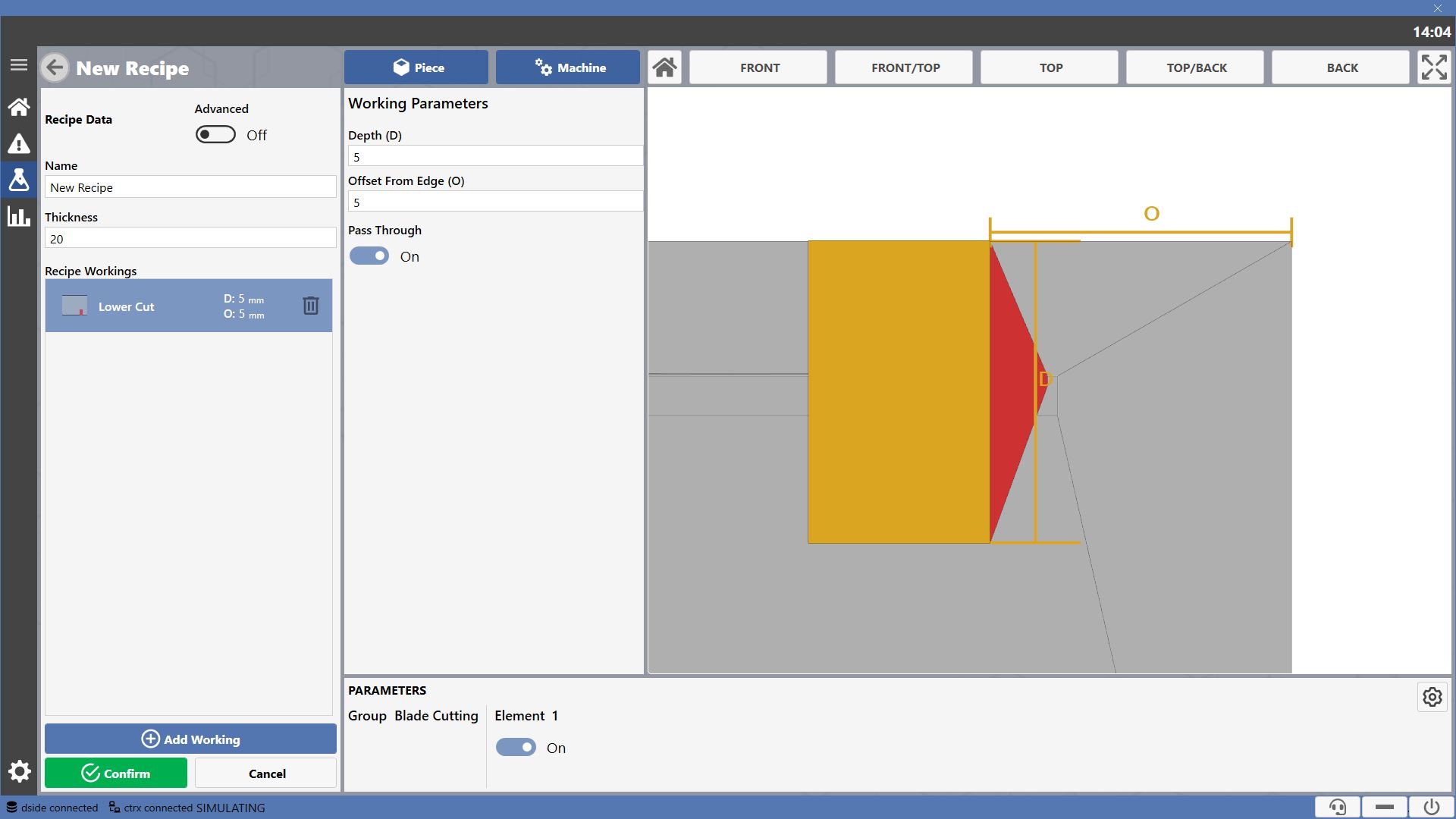

This working allows performing a cut on the lower surface of the piece.

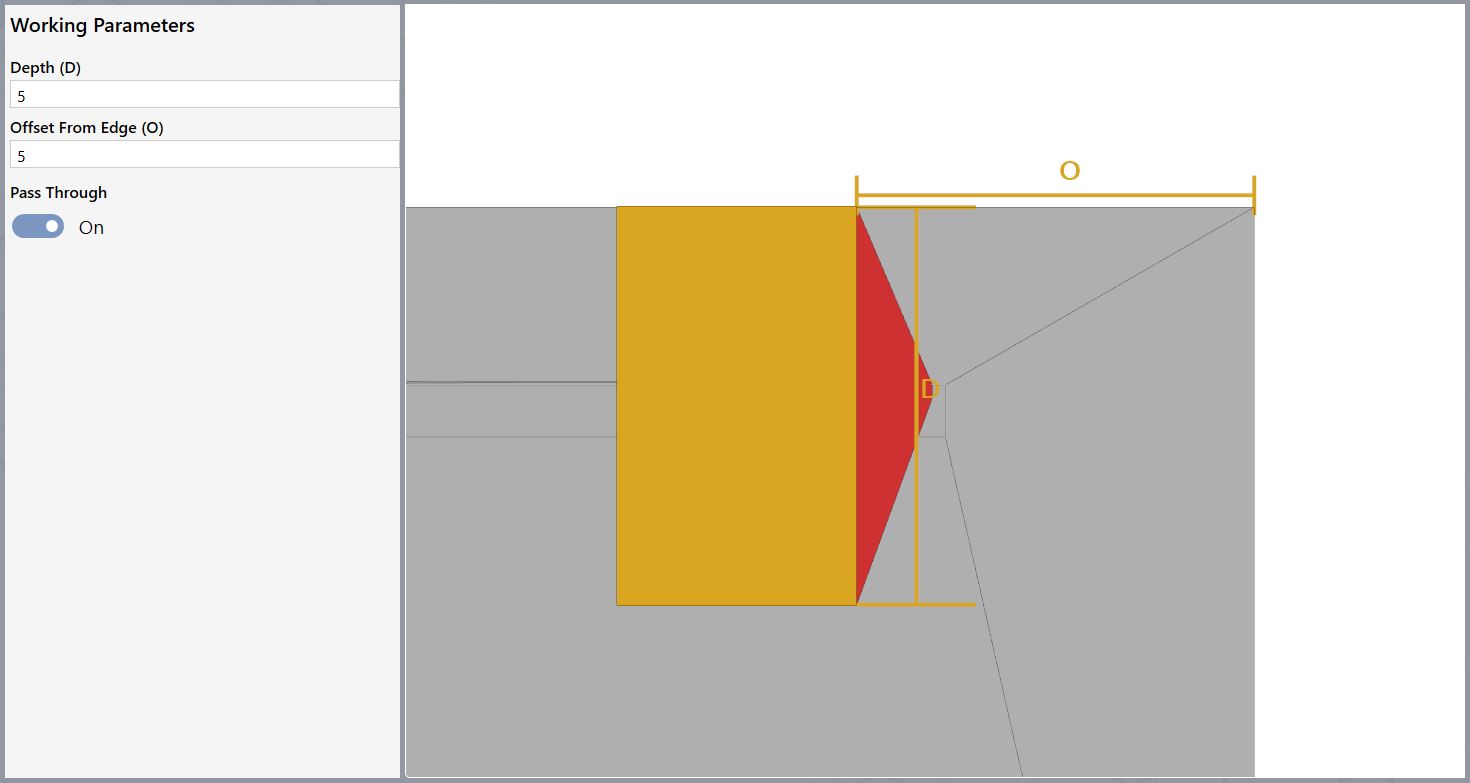

Parameters


Depth
Specify the cutting penetration into the material.


Edge Offset
Specify the distance of the Side Cut from the Piece edge.

Available Groups

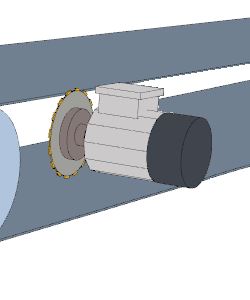

Blade Cutting/Grinding Group

;
