A first message, displayed in the right-hand column, allows the operator to set the fillet radius and confirm the selection.
A second message informs the operator that fillets can now be inserted between two lines. This operation remains available until the function is disabled.

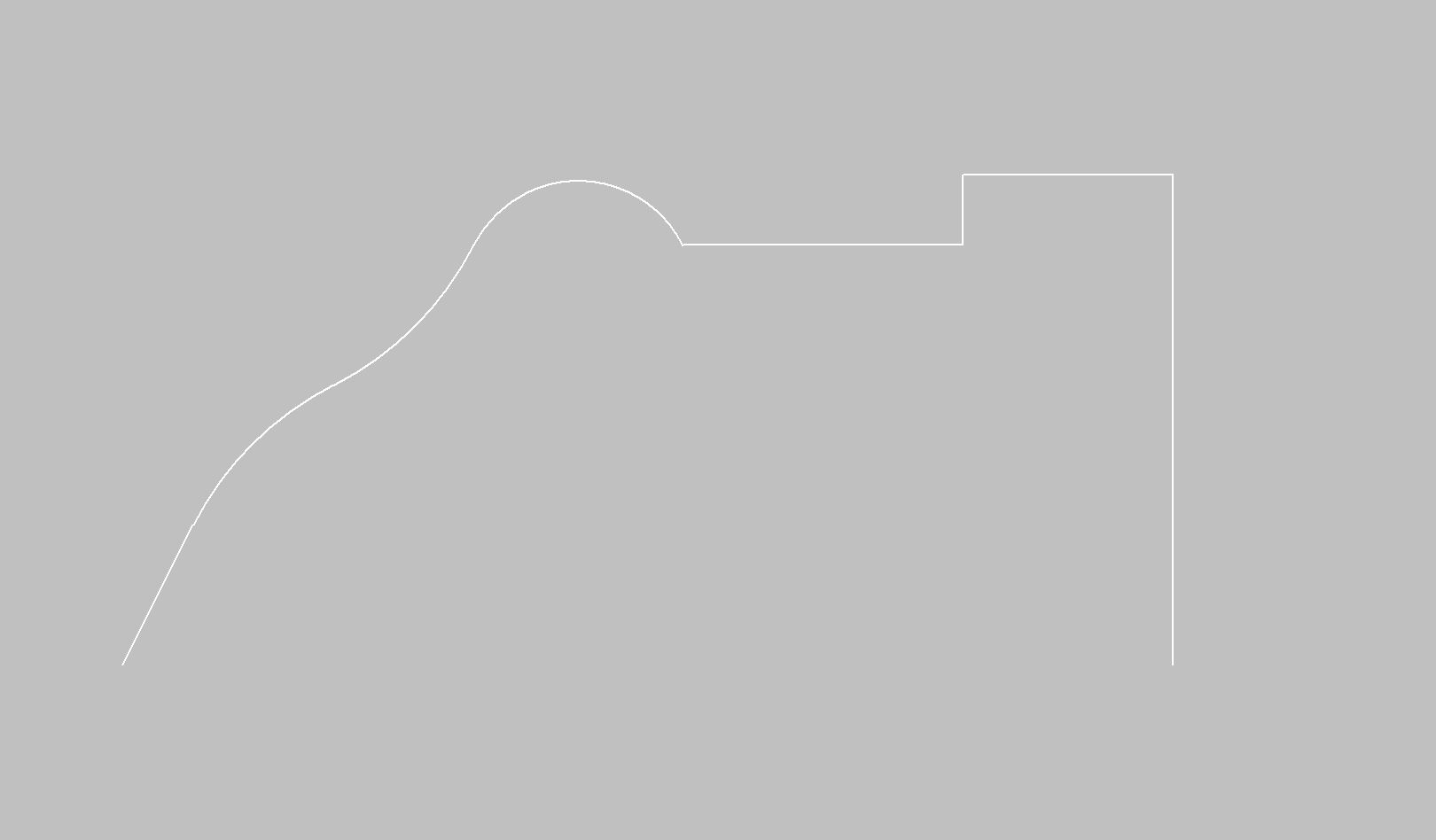

The following example shows fillets applied to two adjacent lines and to a line adjacent to an arc:

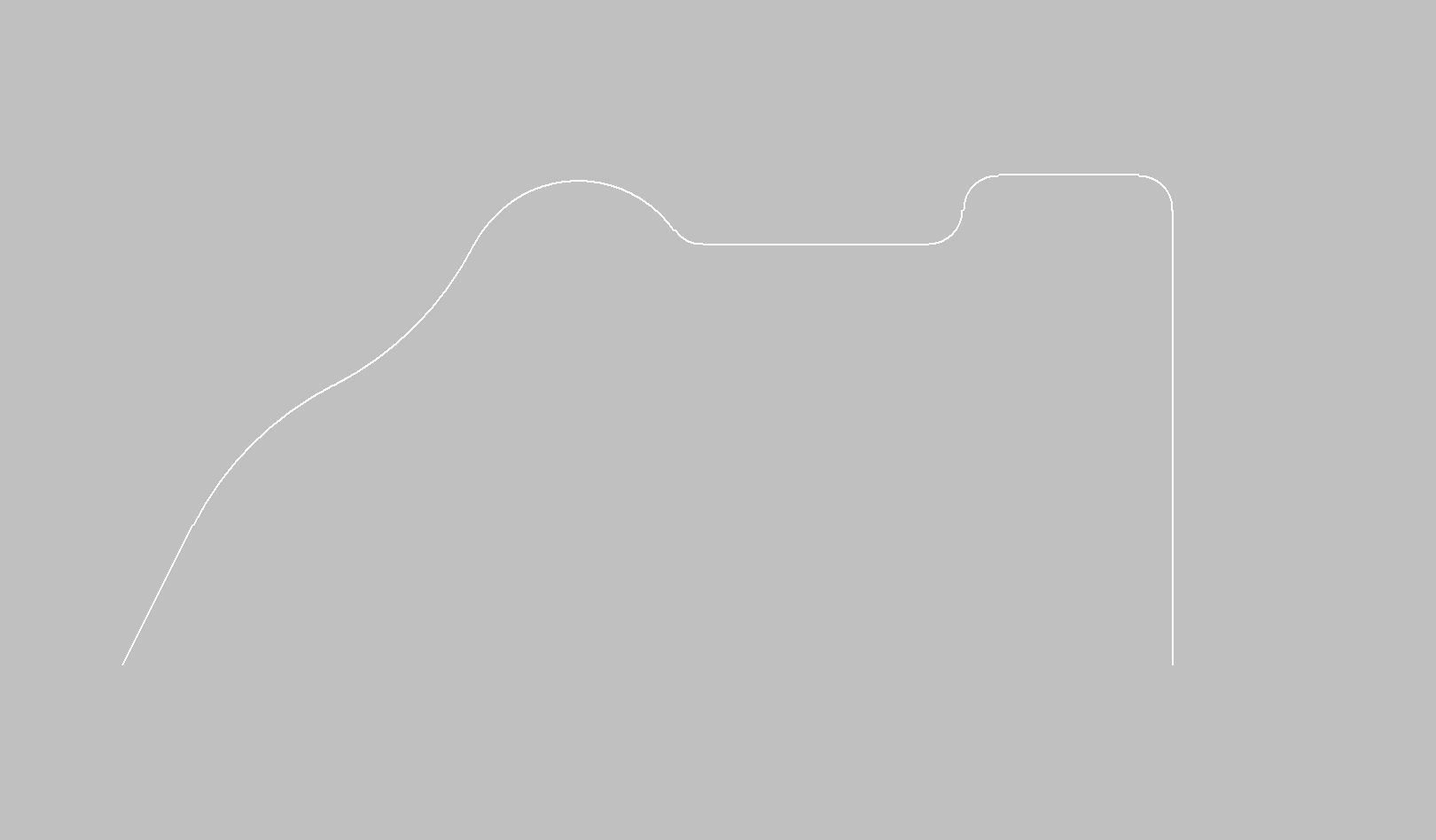

After applying the fillets:
