DOC2.3.2 MACHINING ORIENTATION

The two machining profiles are Linear and Curved:


Linear Profile

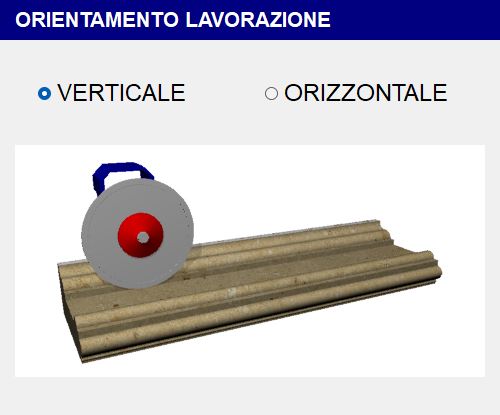

For linear profiles, users can choose whether to perform the machining operation with the blade vertical or horizontal (from the front or from the left).

Vertical Orientation

Horizontal Orientation


Curved Profile

For curved profiles, the orientation is determined by the profile type:

Machining type

Vertical Orientation

Horizontal Orientation

Concave


Convex

;
