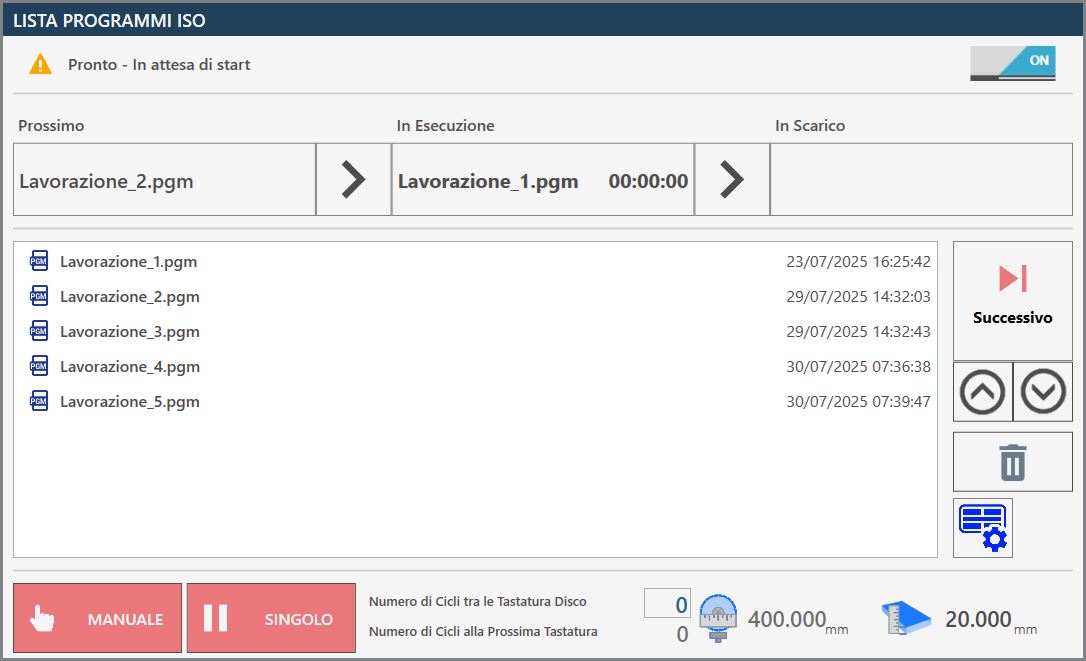

The page ISO file programming list allows to execute more programs consecutively, created previously through CAD-CAM programs, for machines with two working areas, Twin machines or programs with more workings created when the machine is already in operation.

Top bar

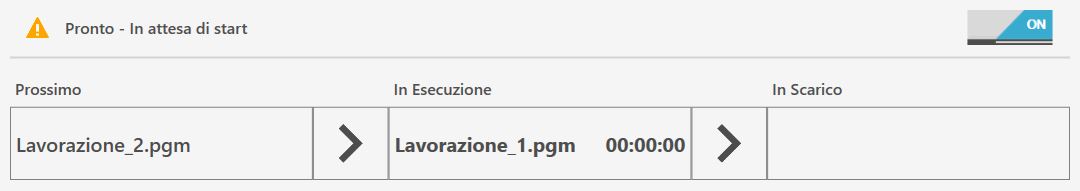

In the upper bar are reported monitoring information of the progress status of the list

	Activation/Deactivation ISO Program List This button located on the top right of the ISO Program List allows to enable/disable the functionality.
	Execution state of the list Indicate if the list results currently running or not.
	List progress bar Show the progress and the state of the execution of the list.

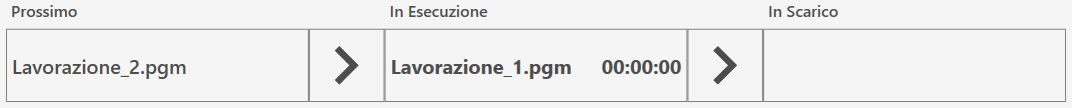

Progress bar of the list

This progress bar provides information on the execution status of the ongoing ISO program, while also offering a general overview on the next program in list and on the one that has already completed the processing phase and has passed to the unloading.

In the previous image, no program is yet visible in the downloading phase, because the execution of the list has not been started and no piece has yet been processed. Conversely, if there is only one ISO file in the list or the processing has been started and all other files have already been executed, the Next section will be empty.

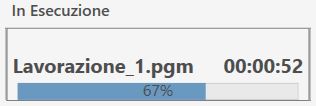

During execution, it will be visible in real time the progress state of the program, as illustrated below.

Side menu

On the right side of the vacuum panel are some buttons related to the management of individual files in the programs list.

	Run next program Go directly to the execution of the next program from the list.
	Move selected element higher Upward movement of the selected ISO file within the list of files to execute.
	Move selected element lower Moving down of the selected ISO file within the list of files to execute.
	Delete selected element Removes from the list the element currently selected. If more items are selected will be deleted only the first of the selection.

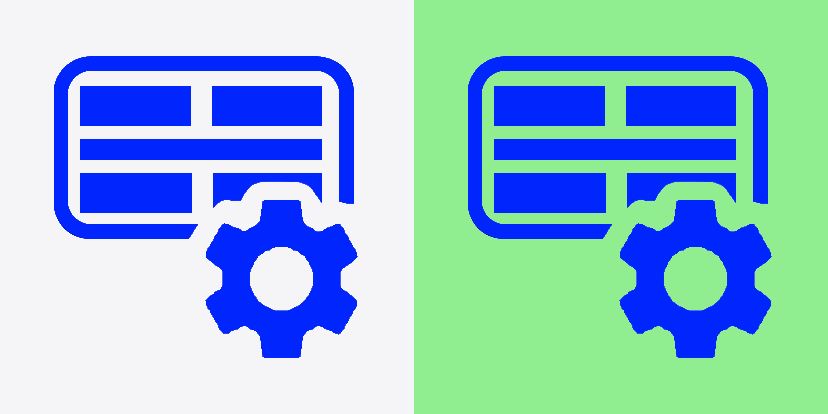

	Suction cups panel Access to panel for vacuum management.

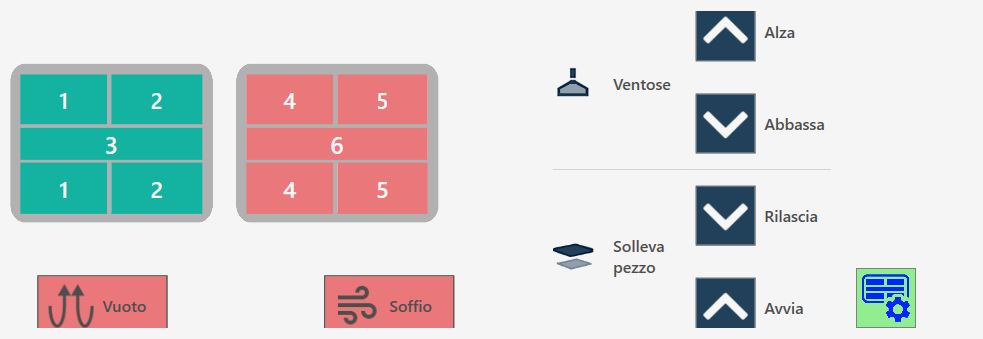

Suction cups Panel

Is possible to use the vacuum cups to move pieces from one work zone to the other.

Suction cups buttons

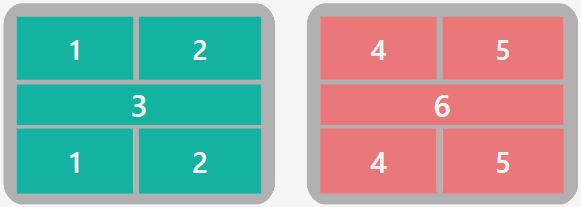

	Enable / disable suction cups The screen shows the vacuum cups group seen from above in the various zones in which is divided. By pressing on the interested area, its state is changed. If green indicates that the zone is predisposed to perform the vacuum. If red indicates that the zone is prepared for the blow.
	SUCTION CUPS: UP - Vacuum parking At the pressure of the button, the suction cups are retracted in order to bring them in the rest/parking area.
	VENTOSE: LOWER - Prepare suction cups At pressure of the button, the suction cups are lowered from the parking area until the end stop. It is important that the suction cups have the necessary space to fully outflow.
	RAISES PIECE: RELEASE - Download piece When the button is pressed the Z axis is lowered until the material contacts the workbench, the vacuum pump is turned off and the blow is turned on from all the suction cups to detach the piece. After a timeout, the axis is raised to safety level.
	RAISES PIECE: START - Piece lifting With this command the vacuum cups are brought to contact with the material, is turned on the vacuum pump in the areas marked in green and the blowing in the areas marked in red, and when the vacuum switch indicates that the vacuum has been generated, is raised the axis to the position set for the movements. WARNING! Pay attention to the active suction cups making sure to use the greatest possible area to lift the piece.
	BLOW - Command Blow The button turns on or off the breath from the suction cups which are not predisposed for the vacuum. The indicator signals if the breath is on (green) or off (red).
	Vacuum - Command vacuum pump This button turns on and off the vacuum pump. The indicator shows if the pump is on (green) or off (red).

Safety conditions

Pay particular attention to the active suction cups during the lifting, making sure that the areas used are sufficient to lift the piece of movement. Try to always use the largest area of vacuum available to take the piece and check that there are no defects and breaks on the material that can create dangers or problems to the operation of the machine.
Once the vacuum pump is on, its shutdown is allowed only through the automatic functions provided for this purpose. The reset button or emergency mushroom pressure has no effect on the vacuum pump which will continue to function. The pump can be forcibly switched off by the appropriate button within the 'Additional Commands' page.
In automatic procedures, before performing the piece lifting, the vacuum status is checked through a specific sensor: if a sufficient vacuum value is not detected, the ""vacuum failure"" alarm appears. The pump will continue to remain active until the vacuum switch detects a correct value, or if it will be disabled from the ""Additional Commands"" page.

Lower bar

In the lower part of the bar are visible some functionalities related to the execution of the ISO program list, as well as the monitoring of both the tool and the slab.

Execution List Management

In the lower part we find also the two buttons relative to the execution modes of the programs:

	Manual / automatic Defines whether the machine status is manual or automatic.
	Single / Next Automatic Defines if the start of the next program will be done automatic or no.

Slab and tool monitoring

In the center and on the right of the lower bar, the operator can configure periodic monitoring of the tool diameter, setting checks at intervals defined based on the number of cycles performed.

	Number of Cycles Between Disks' Probes Specify the number of cycles that must elapse between a disk probing operation and the next one.
	Number of Cycles To The Next Probe Indicates the number of cycles remaining before the next disk probing operation.
	Tool diameter The value of the disk diameter is reported.
	Slab thickness Is reported thickness of the slab.

ISO Program List Execution

If the ISO Program List is disabled, the switch in the upper right corner of the panel will appear off; it will then be possible to enable the functionality simply by clicking this button.

The ISO program list is automatically expanded as ISO are generated in Parametrix, in any case the operator can reposition elements within the list or remove them from it according to their needs.

Before proceed with the execution of the list, the operator has the possibility to set the number of cycles that will be performed among the keyboard operations of the tool.
Then the number of cycles remaining to the next probe will be updated and visible.

The operator starts the execution of the program list by pressing the 'Start cycle' button. In this way, the programs are executed in sequence, with simultaneous viewing of the program in progress, the one that will be executed subsequently and the one already completed.

If the execution mode of the programs is set to Manual and Single, the execution of the list will be interrupted at the end of the running program, right after having prepared the next program to execute.
In such case, the operator has the possibility to press the Next button when he deems it more appropriate and proceed with the execution by pressing again the 'Start Cycle' button.
