In this section, it is possible to create pieces through the import of DXF files.

List of files

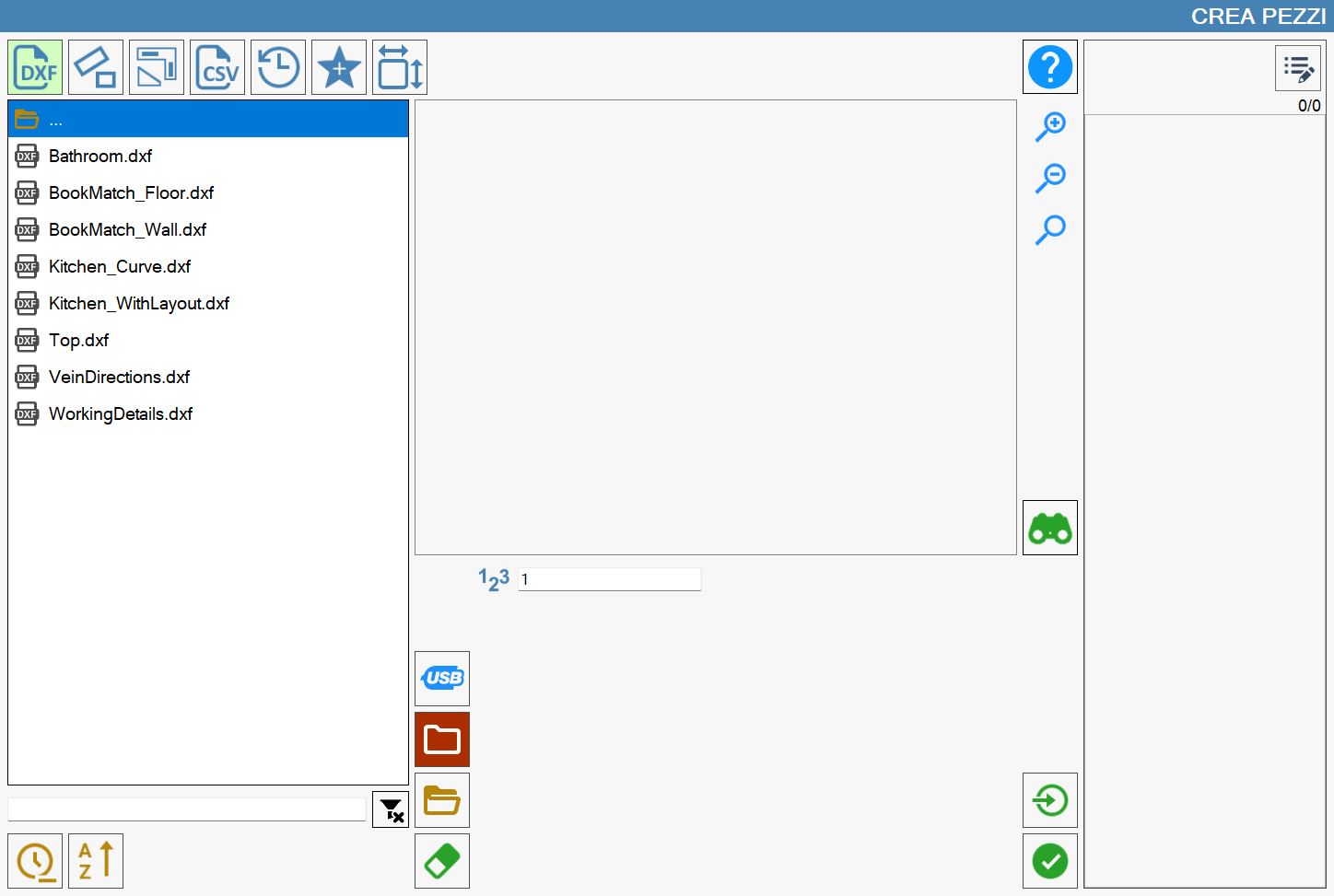

In the left part of the window, there is a list that shows all the folders and DXF files contained in the currently selected path.

The element at the top of the list,

allows to return to the folder above the one in which one is currently.

Initially, the list of DXF files present in the PC's working folder is shown. It is possible to change the folder using the special buttons that are located on the right of the list of files.

	USB memory Allows to access the USB memory inserted on the PC, navigate its folders, and view its files.
	Working folder Quick access to PC working folder.
	Explore folders Through this button, it is possible to explore all folders of the PC.
	Delete file Allows to switch to 'Delete file' mode. In this mode, the icon of a gum will appear on the left of each file’s name contained in the list. Select a file, in this case, delete it definitively.

Order and filter the displayed files

The items that are below manage the application of filters and the sorting of the files that are visible.

At the top of the image is located a search bar, through which it is possible to filter the files by name, showing only those that contain the text inserted.

In this section of the screen, you can also find the following buttons:

	Clean filter Delete the text entered in the search bar, eliminating the file display filter.
	Sort by date Order the files present in the list based on the creation date. By default they are ordered from the most recent to the oldest. Pressing the button again, the files will be ordered from the oldest to the most recent. You can repeat the operation several times, changing the order.
	Sort by name Order the files present in the list based on the name. By pressing the button you choose if the files must be ordered in an increasing or decreasing way.

Preview

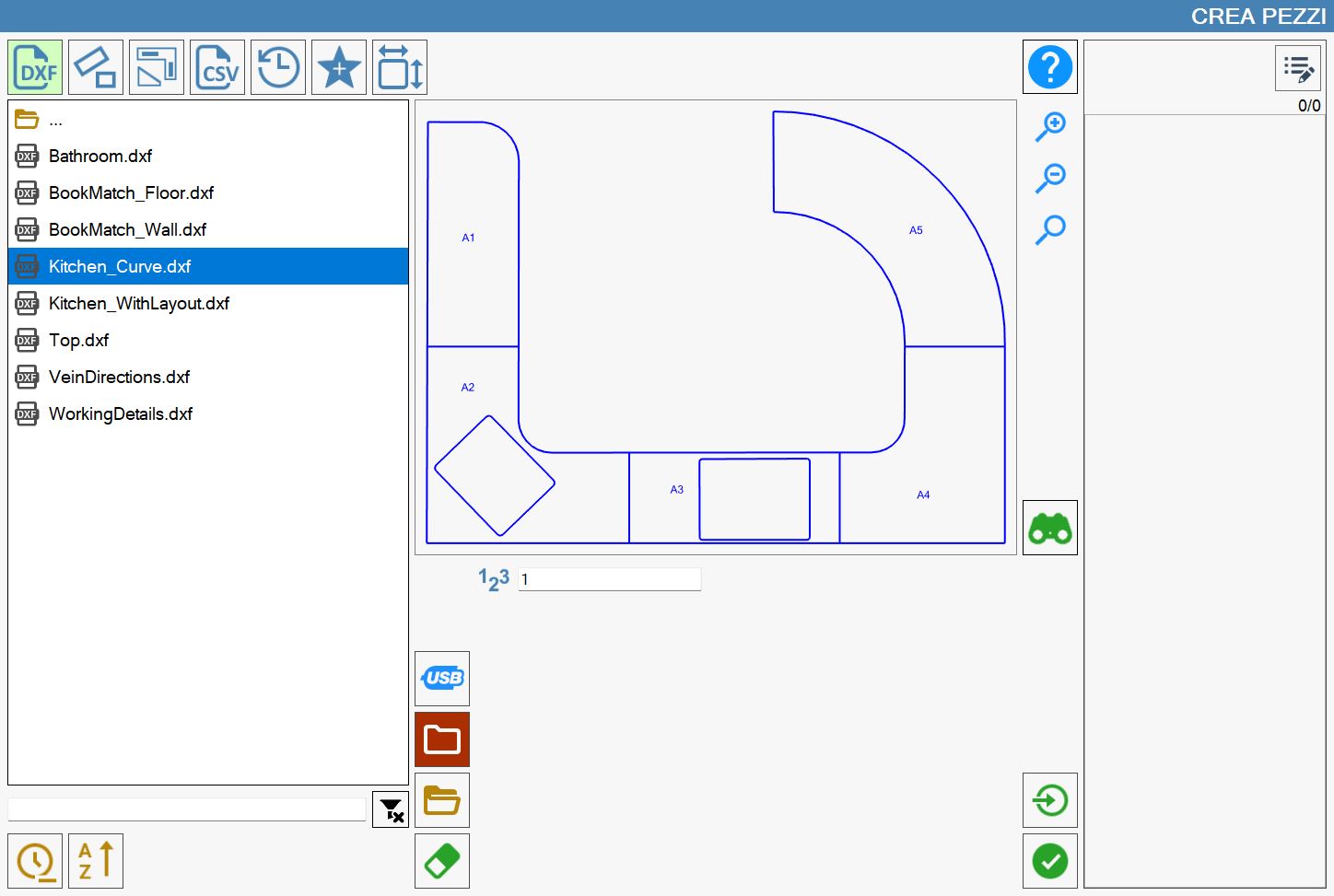

Upon selection of a file, in the panel in the center of the screen, a preview of the drawing is displayed, so as to make immediate identification of its content.

It is possible to interact with the preview by dragging its content, or by using the buttons placed on its right.

	Increase zoom Increase the zoom on the preview.
	Decrease zoom Decreases the zoom on the preview.
	Restore Viewing Restore the preview display to the starting situation, in which the whole drawing is visible.

Additional buttons

The following buttons also allow to carry out additional actions.

	Single import If this button is enabled, it makes possible the creation of more distinct pieces in single quantity instead of a single piece with more copies.
	Panel details Opens the panel to view the details of the selected DXF file.

Panel details

If a file has been selected, you can access the 'Details Panel' to visualize the properties of the DXF. This is possible through the following button located on the right of the preview:

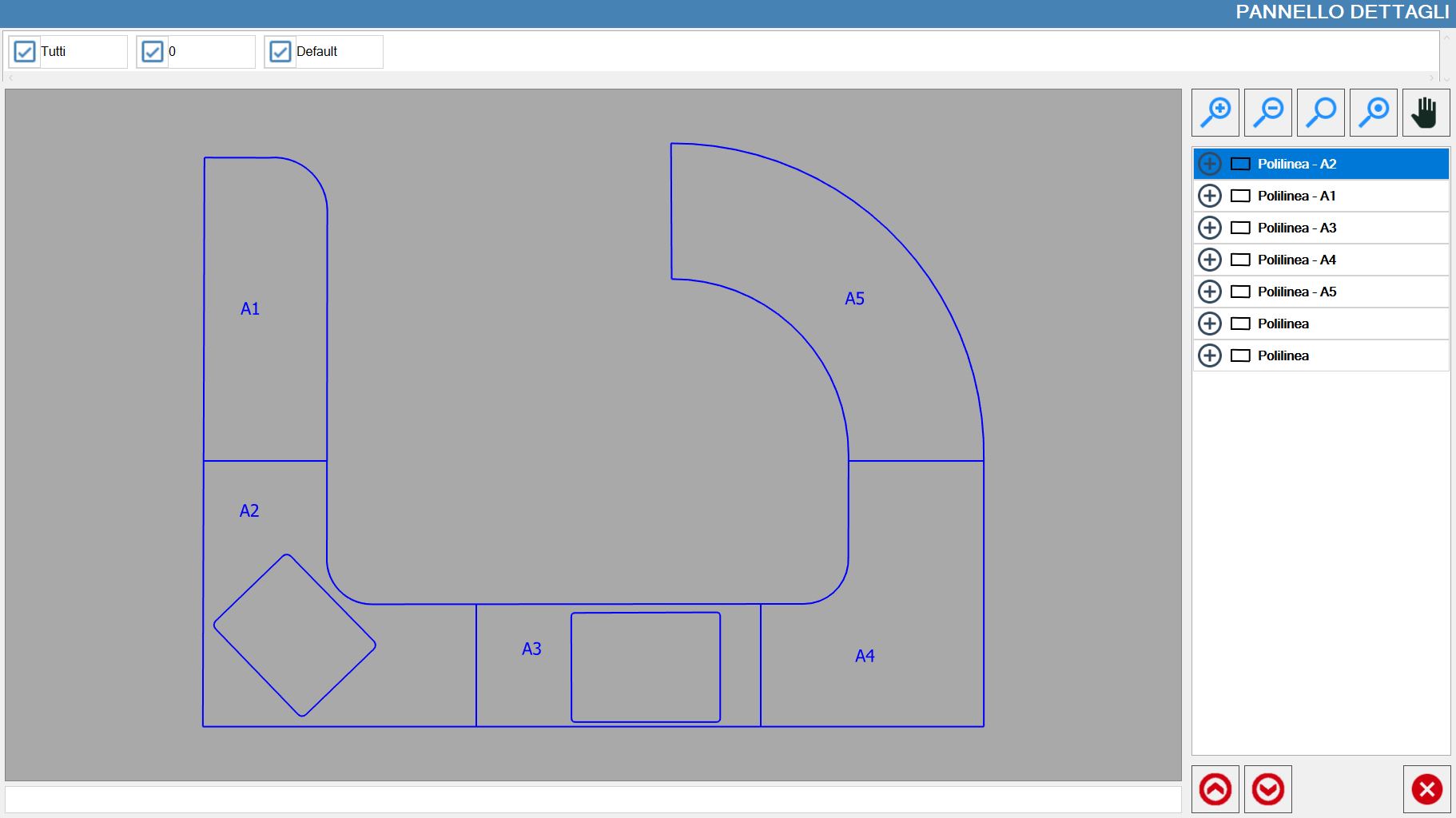

Once opened, it will show the following panel, in addition to the list of pieces that make up the selected DXF:

Visibility management layout

On the top of this panel are reported the layouts in form of checkbox activatable or disactivatable at will.

The first item of this list of layouts allows to enable or disable the visualization of all layouts.

Side panel

Buttons related to visibility and padding

Besides the buttons already shown previously relating to the modification that zoom level and to the restoring of this, there are two new buttons:

	Highlight selected piece Increase the zoom on the selected piece from the polyline list.
	Move view Allows to move the preview through the interaction with the screen.

List of polylines

On the central right side of the panel are reported the pieces that compose the chosen .dxf, in the form of polylines.
Selecting one of the values present in the list, the related visible piece will be highlighted with the yellow color in the preview.

When the button next to each piece is pressed, the list of polylines that constitute the piece will be made visible.

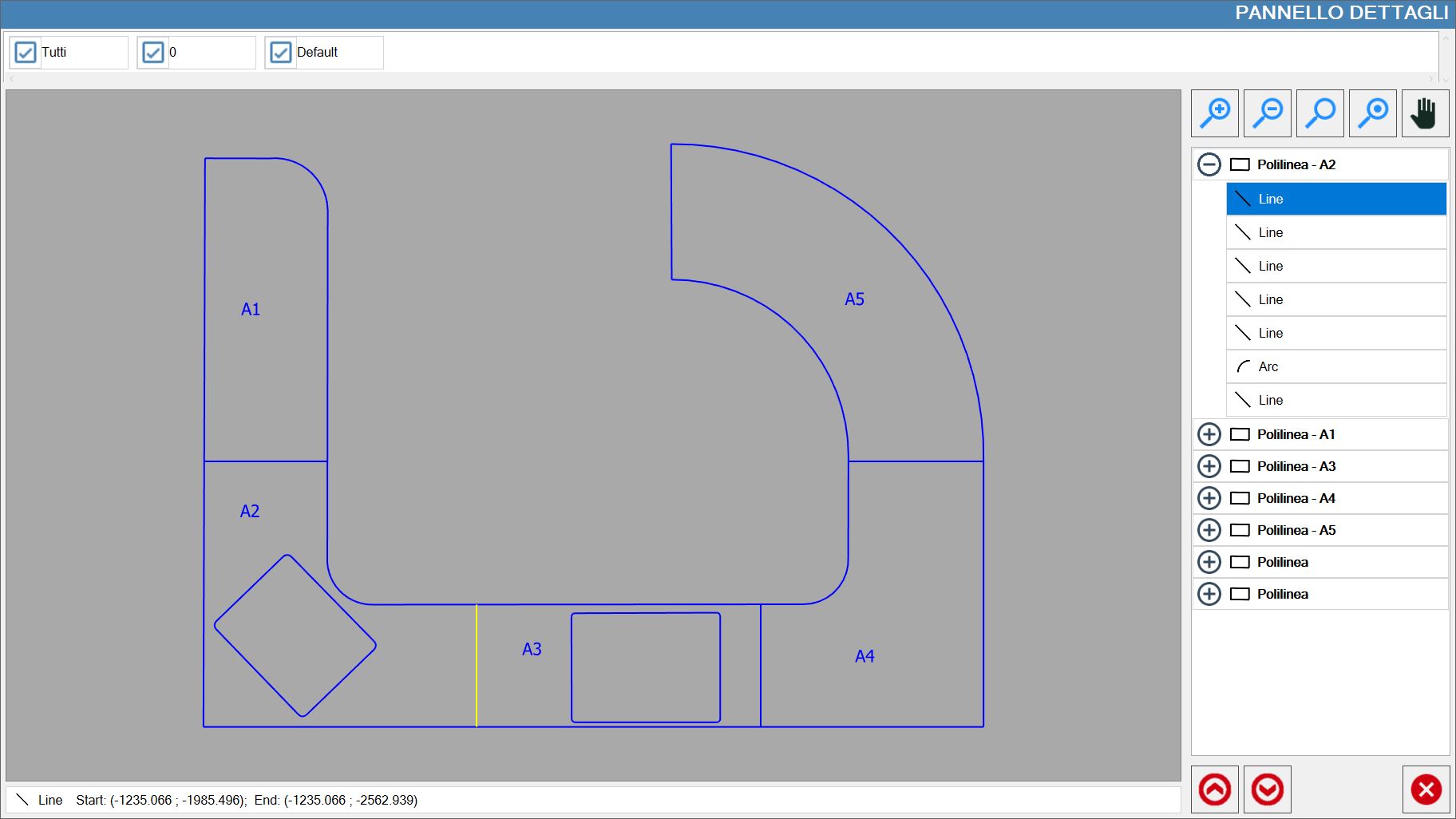

It will be also possible to highlight a single polyline of the DXF simply selecting the respective line from the list:

Lower buttons

These buttons are placed in the lower part of the side bar.

	Find previous open polyline Scrolls the open polyline list of the selected DXF towards the beginning of the list.
	Find previous open polyline Scrolls the list of open polylines of the selected DXF towards the end of the list.

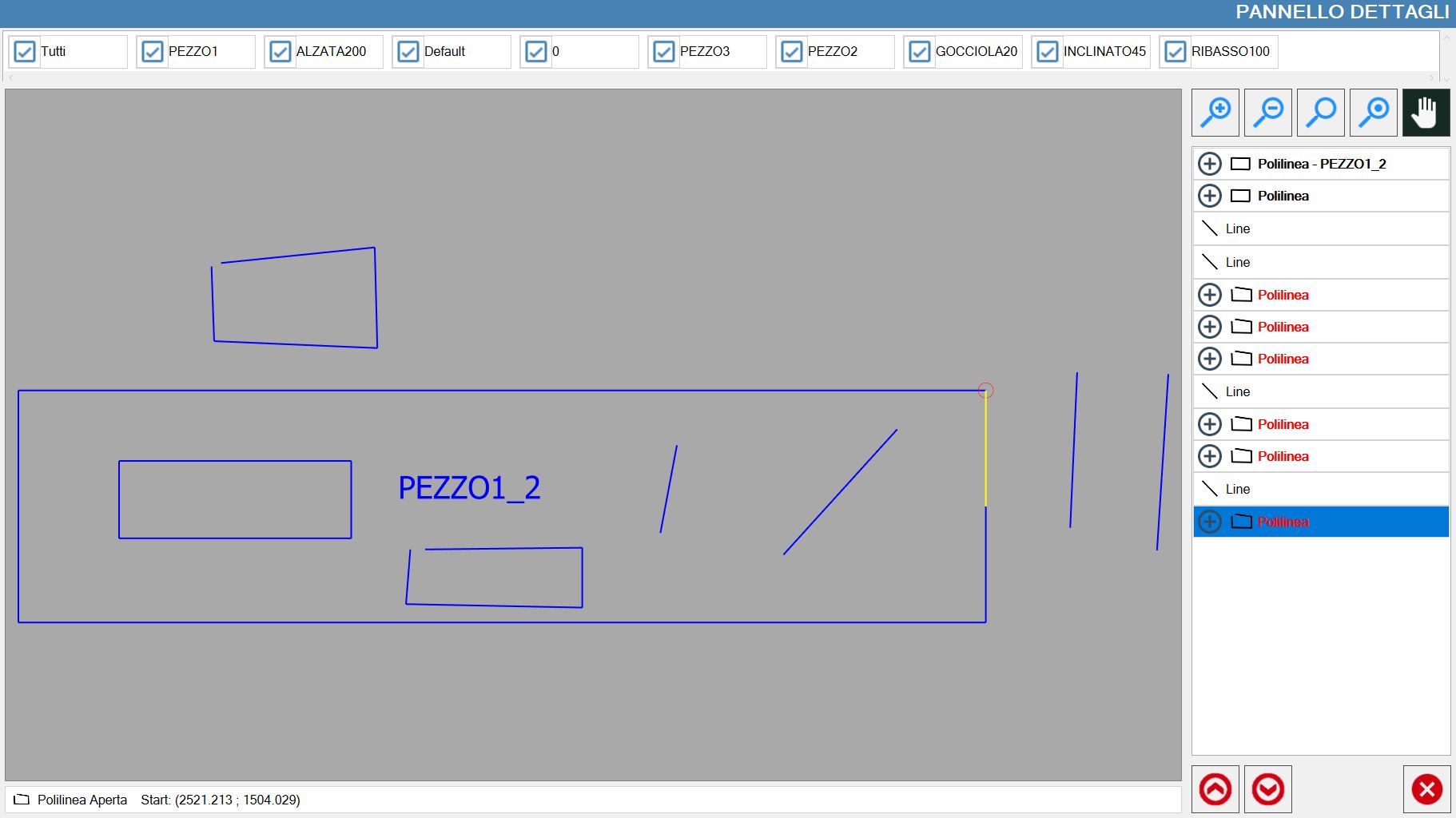

In the following example, Panel Details has been opened for a .dxf that presents some pieces constituted by open polylines, reported in red in the list:
