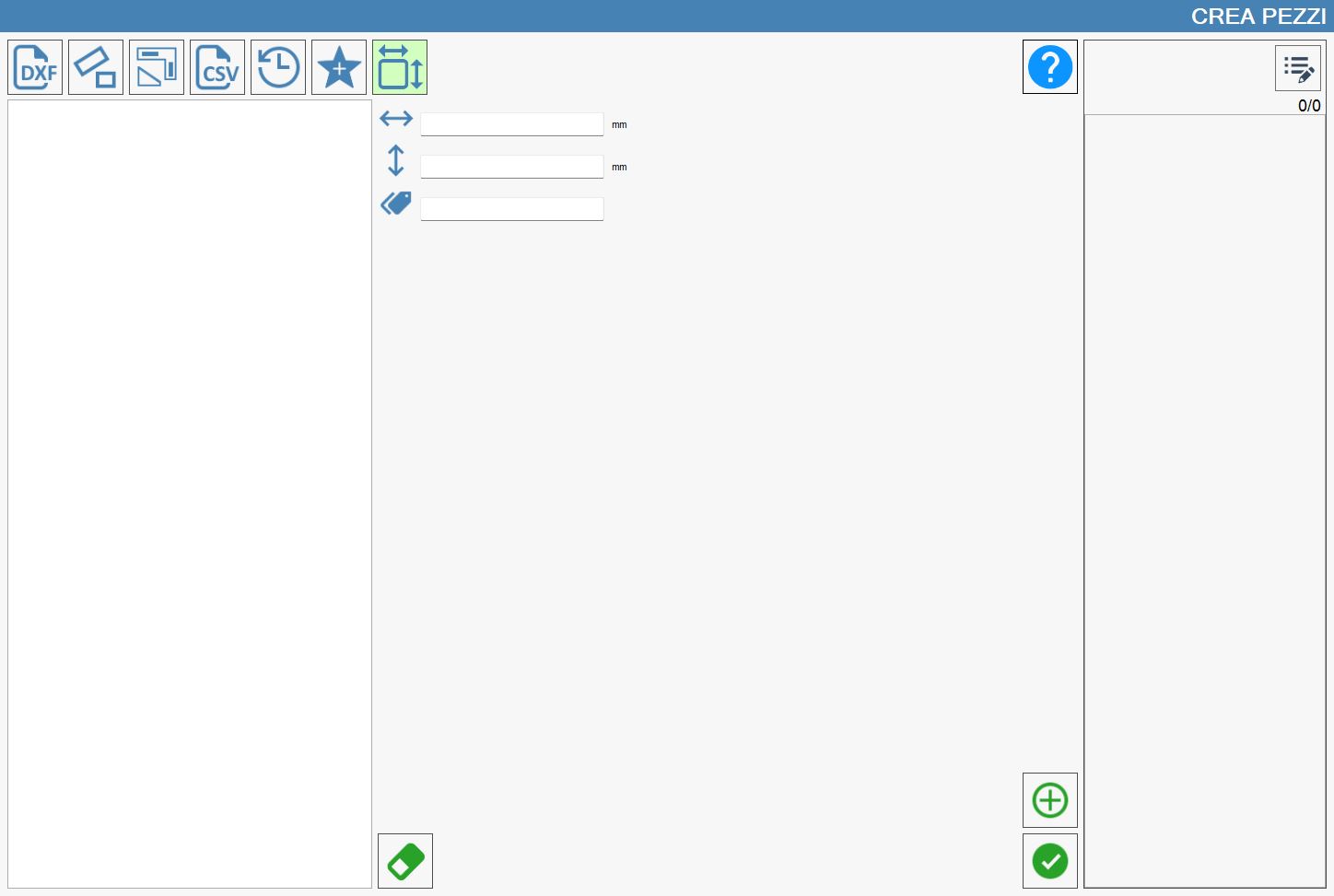

In this section of the 'Create pieces' panel it is possible to create the commercial pieces. The characteristics of this type of pieces are the following:

• they are created with a high number of copies;

• the dimensions of width and height are changeable even when a piece is inserted in the working area.

Parameters

	Width Width of the rectangle. It is measured with the unit of measurement reported to its right.
	Height Height of the rectangle. It is measured with the unit of measure reported to its right.
	Mark Label that is added to piece to identify it. It is an optional parameter, as not fundamental for piece creation.

Import of a commercial piece

To correctly conclude the creation of a commercial piece, it’s necessary to use the following button:

Import pieces commercial Confirm the creation of the commercial piece and insert it into the list of pieces to work.

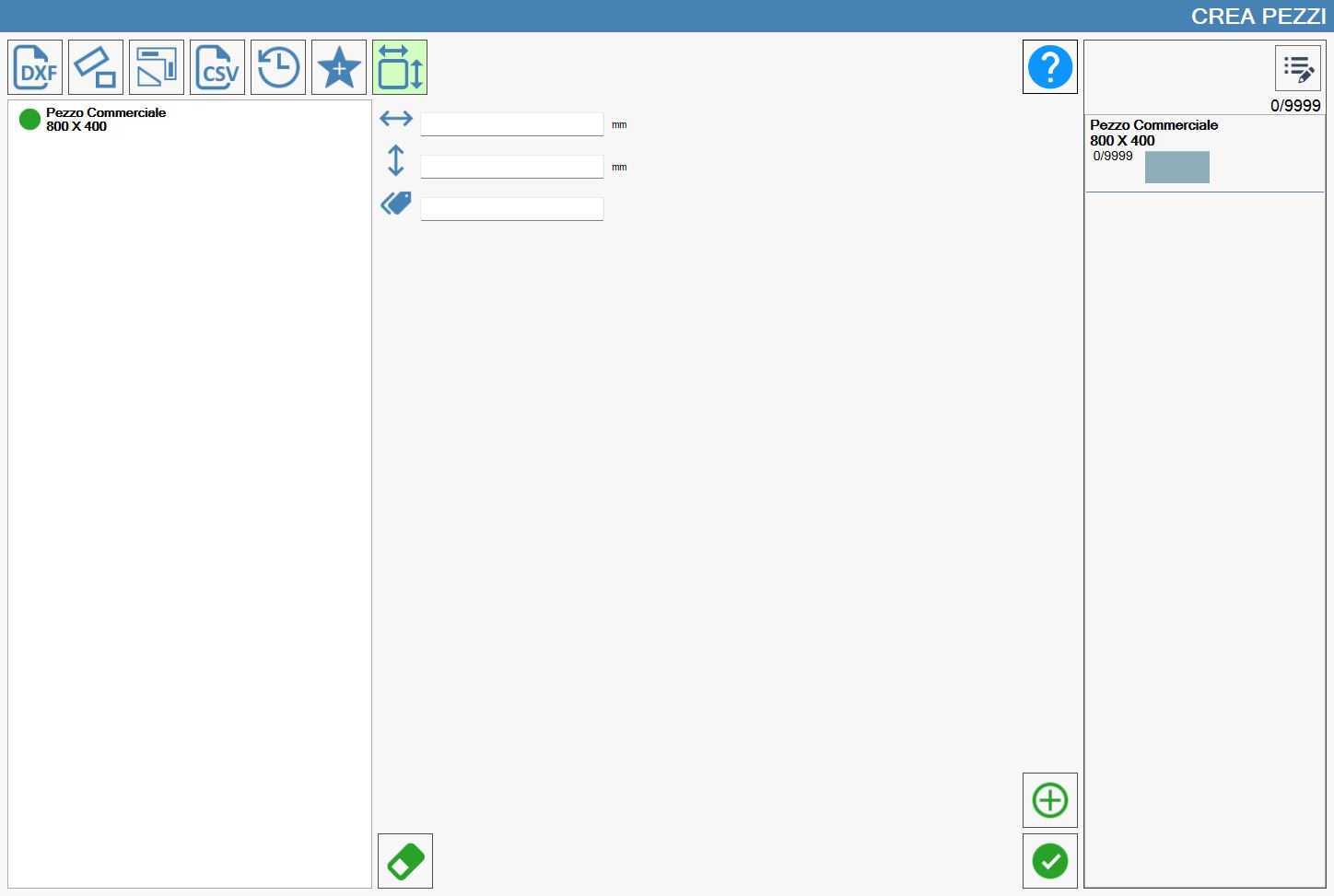

The creation procedure will also update both the list of commercial pieces on the left, and the list of pieces to be executed on the right side. The following example shows both lists updated:

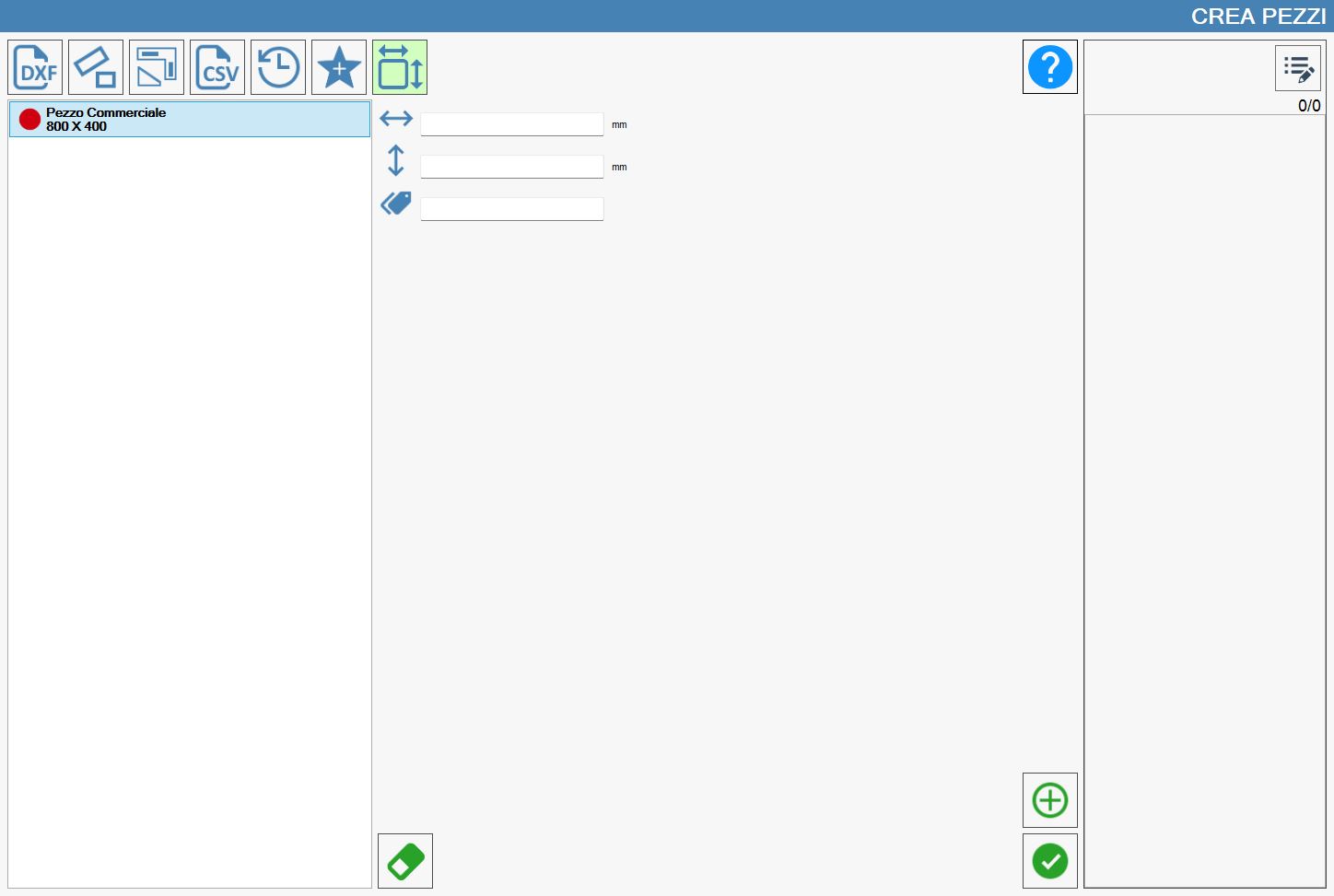

As it can be noticed observing the column on the left side of the screen, a green icon precedes the piece’s name. Clicking that icon, it will become red, and the piece will be removed from the list on the right side.
