This functionality allows to convert any piece in its square shape of maximum size, that is the smallest rectangle able to contain it entirely.

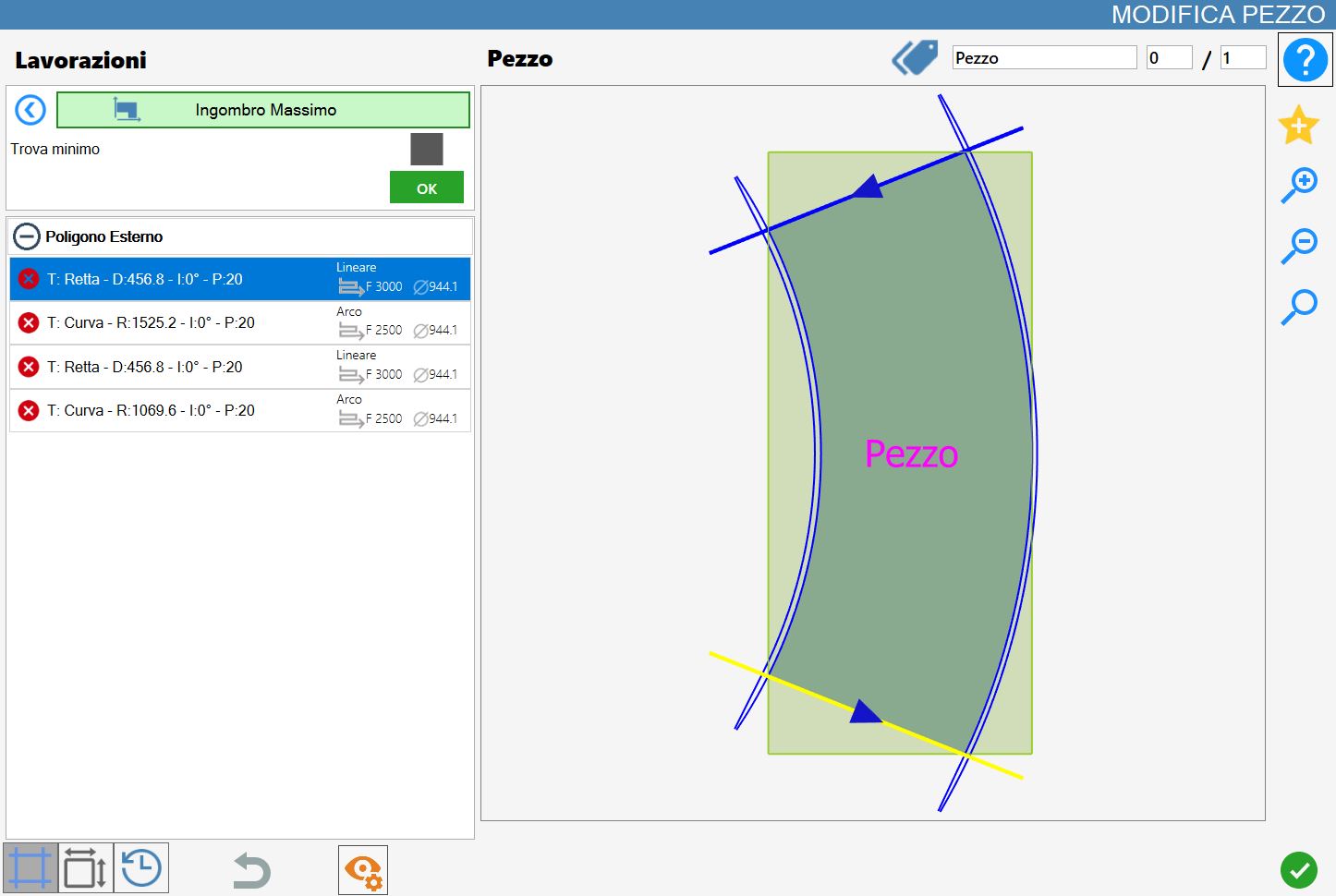

The interface for this function looks like the following image:
/2.2-20250630-112112.png)
Parameters
It is possible activate the following parameter clicking on the checkbox on its right.
Find minimum | This function allows to calculate the minimum footprint of the piece on the slab surface, optimizing its positioning. |
Execution of working
Parameter deactivated

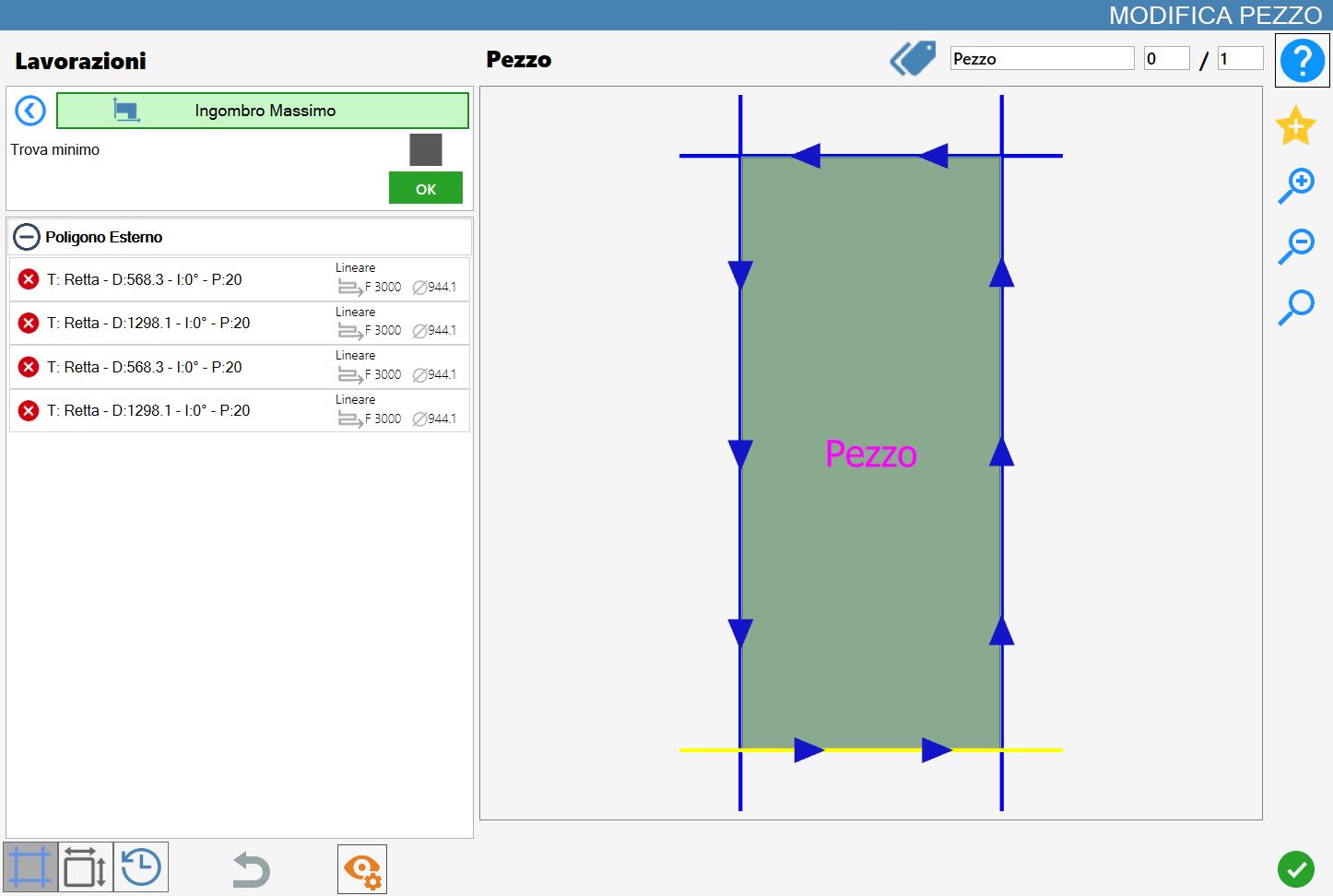

Clicking on the 'OK' button, the piece will be converted into its rectangular version.
/2.0-20250630-112001.png)
Parameter activated

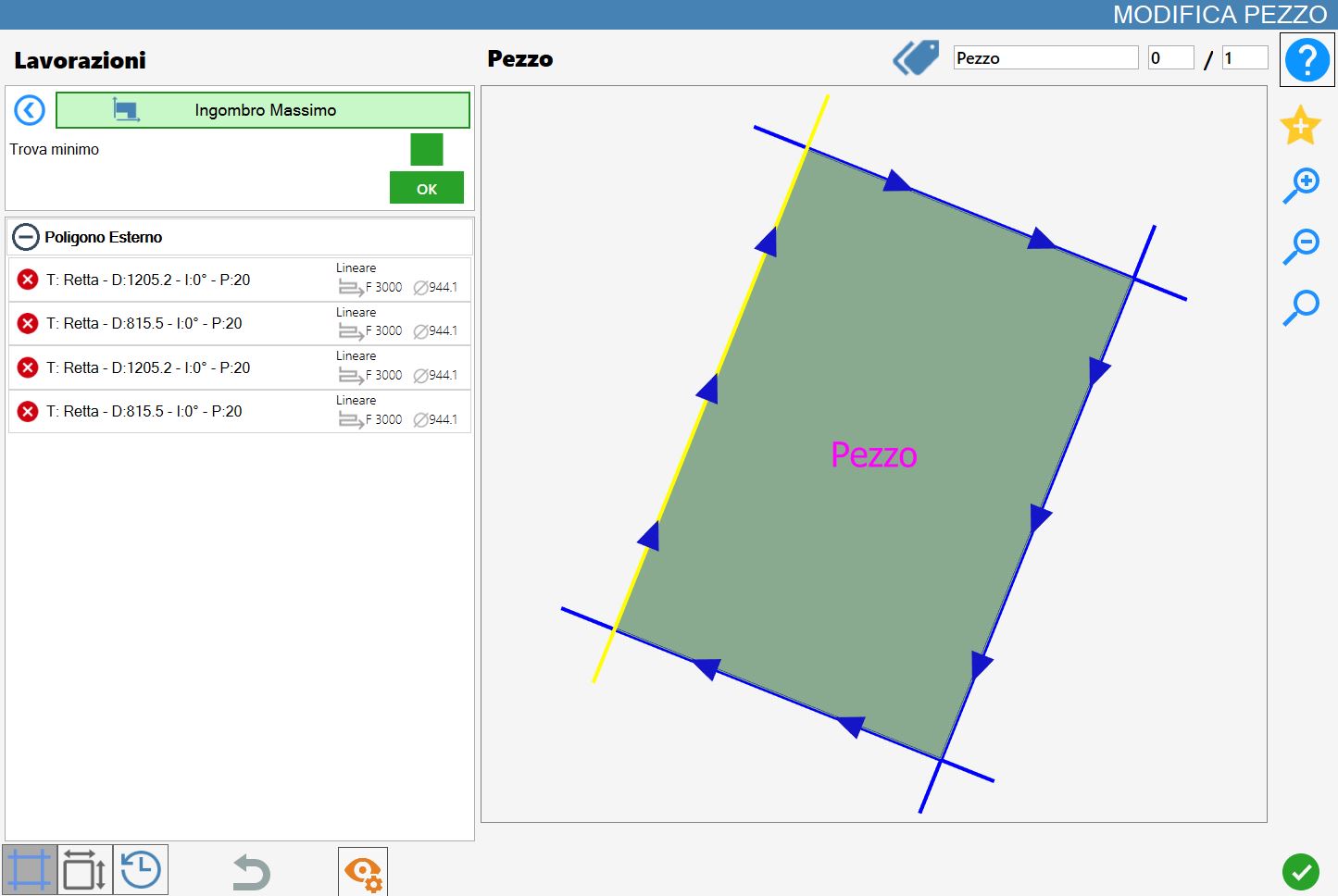

By clicking on the checkbox and subsequently on the button 'OK' will be executed the working on the piece:
/2.1-20250630-112041.png)
