Machine technical documentation Operational document

DOC3.13.20 MIRROR

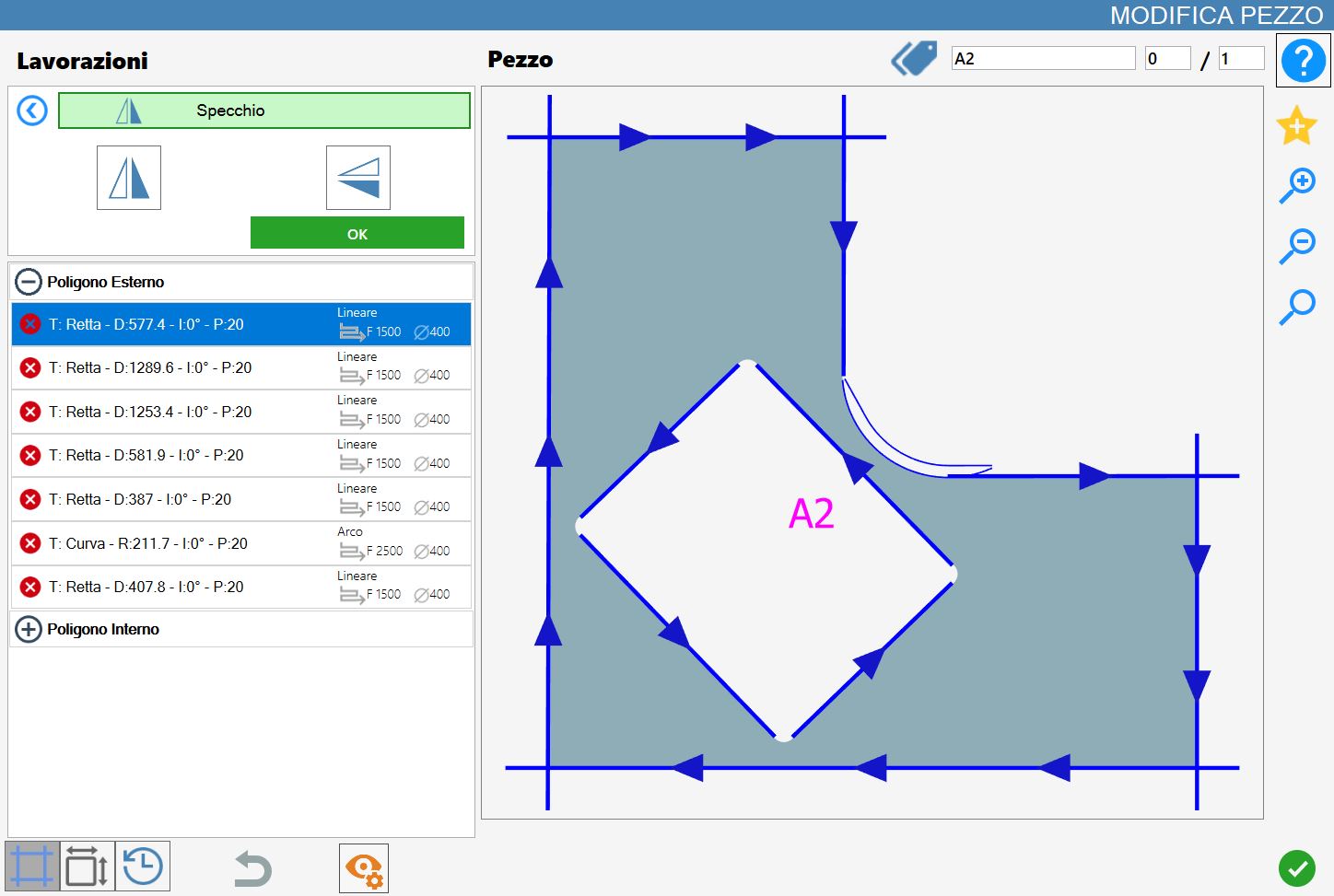

This functionality allows the operator to overturn horizontally and/or vertically the selected piece.


Parameters


Horizontal mirror
The enabling of this button will apply a preview of horizontal overturning of the selected piece.


Vertical Mirror
The enabling of this button will apply a preview of the vertical overturning of the selected piece.

Execution of working

It is possible to apply the horizontal and vertical flipping at the same time, or only one of these.
The obtainable results are three:

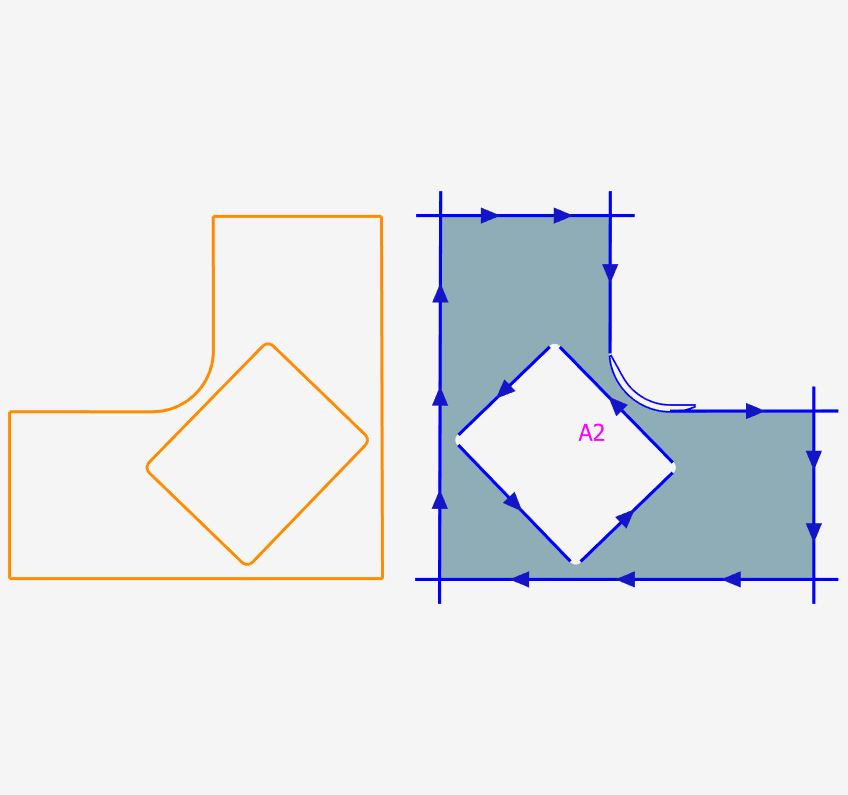

Only Horizontal overturn

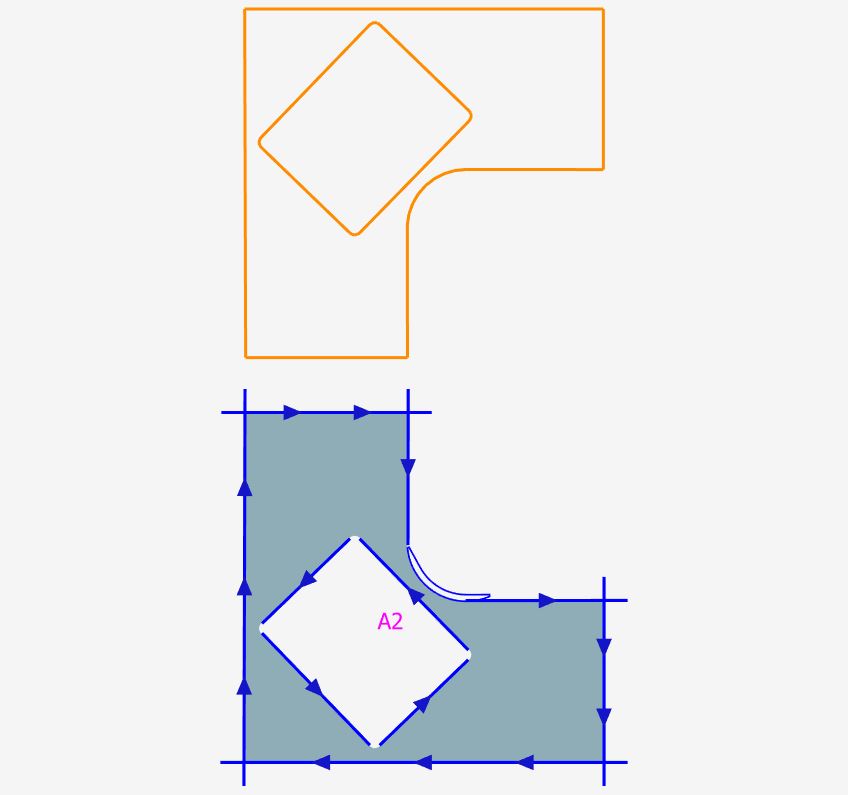

Only Vertical overturning

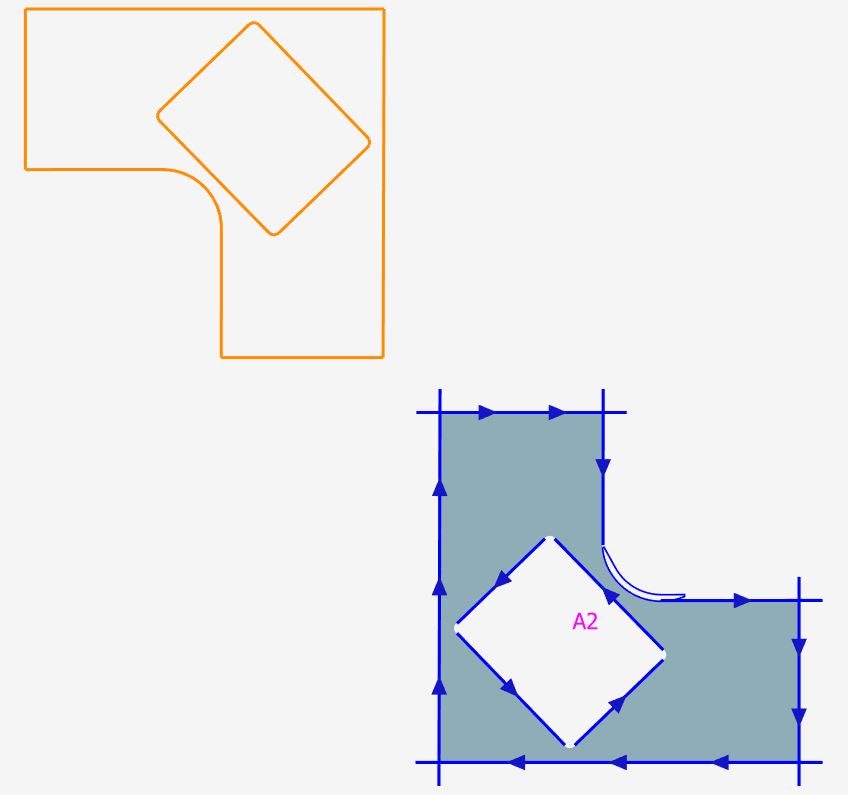

Horizontal and Vertical flipping

;
