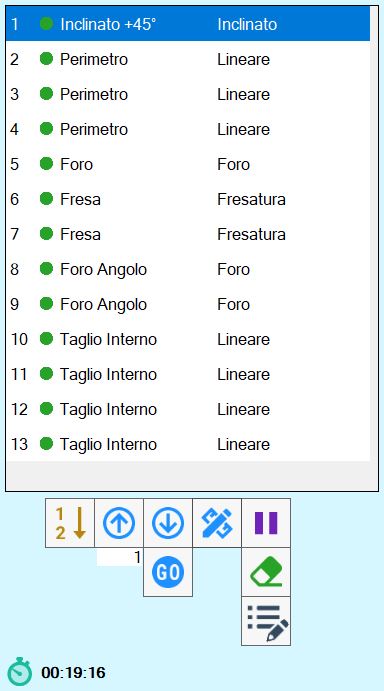

The cuts that the machine must execute are reported inside of this list.

Using the list of cuts, the operator can:

• Change the execution order of the cuts.

• Modify the features of a cut.

• Insert pauses between a cut and the other.

List elements

	Activate/Deactivate cut Indicate if the cut must be enabled or disabled for the working. Press on the button it changes the state.
	Type cutting Indicate the type of the cut ('Perimeter', 'Internal Cut', 'Mill', etc…).
	Processing type Indicate the working type associated with the cut ('Linear', 'Arc', 'Milling', etc…).

Functions

The arrangement of the cuts in the right list, indicates the order with which they are cut.
With the buttons below, it is possible to modify this order, or insert a pause in the execution of the operations between a cut and the other.

	Move with arrows They allow to shift the selected cut to the upper or lower position.
	Déplacement to desired position Allows to move the currently selected cut to the position indicated by the adjacent text box.
	Selection of order from work area Allows to choose the order of the cuts, directly from the work area.
	Pause Allows to insert a pause in the next position to the cut selected.
	Delete cut Allows to delete a cut by selecting it inside the list.
	Modify cut It allows to change some properties of the selected cut.
	Additional piece properties Allows to modify the additional properties of the selected piece inside the working area.

At the bottom of the list is also shown:

Estimate cutting time Preview of the estimated time to execute the program of cutting the elements of the list.

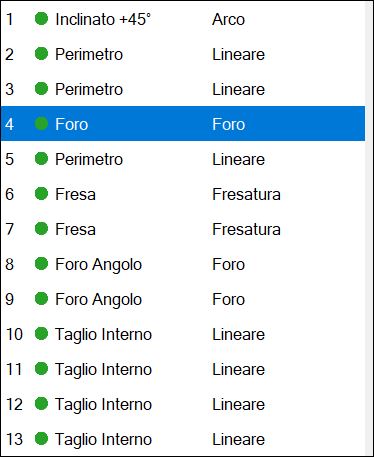

Move with arrows

With these buttons it is possible to move the selected cut to the upper or lower position.

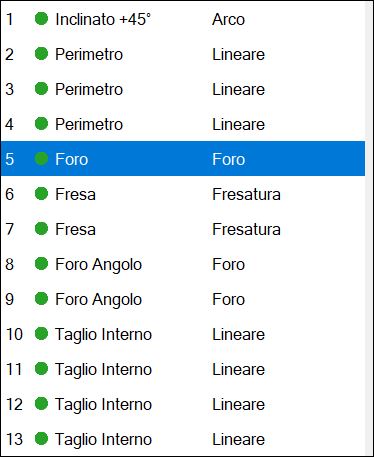

In the following example you want to move the cut placed in fifth position and move it up one.

Prima dello spostamento	Dopo lo spostamento

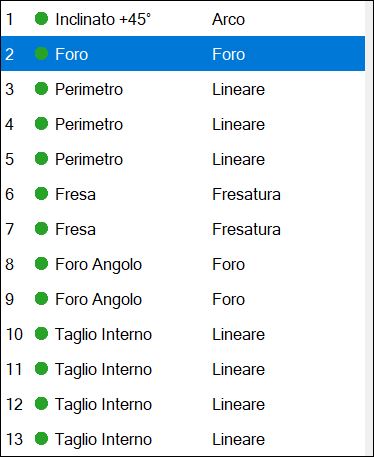

Displacement to desired position

This function allows to move the selected element to the position of the list indicated in the adjacent text box.
In this example it is wanted to cover the second position to the fifth cut of the list. It will be necessary to insert the value '2' in the box and subsequently press the button.

Prima dello spostamento	Dopo lo spostamento

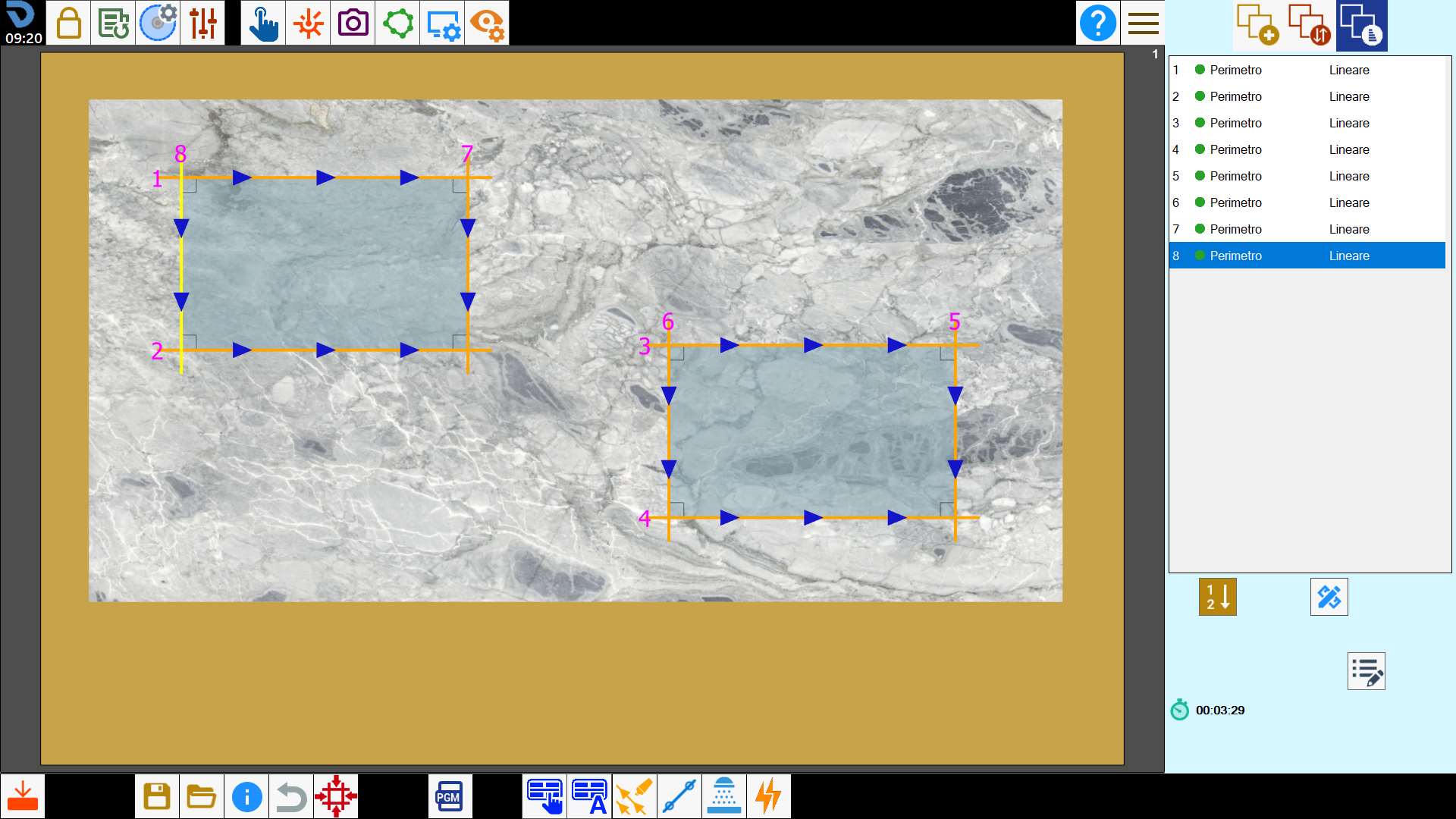

Selection of order from the work area

Through this function is possible to choose the order of the cuts, directly from the working area.
Pressing the button, the program writes on each cut a number that indicates the position that occupies in the list.

To change its order, click in sequence inside the cut you want to have as first, then the second and so on.
Once finished, press the button again to validate the choice made.

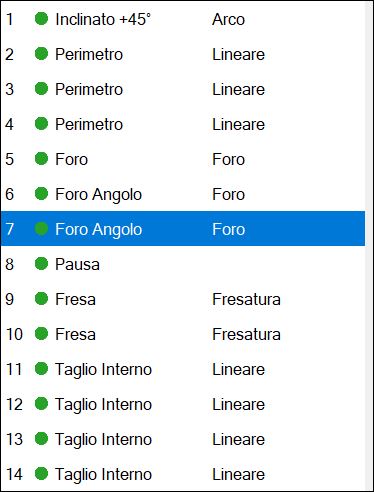

Pause

It is possible to insert a pause between the execution of a cut and the next.
The program will execute all the previous cuts to the pause, then stop the machine and wait the command of Start by the operator.

The pause is always inserted after the execution of the selected cut.
It can be used, for example, to change tool.

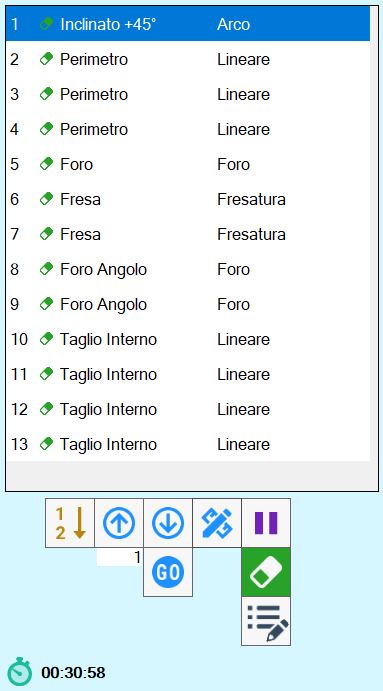

Delete Cut

Once the button is pressed, the icon of a rubber is flanked to each voice of the list.
Press then a cut to delete it permanently.
