Donatoni Macchine
Machine technical documentation Operational document

DOC3.21 OPTIMIZATION AND MANAGEMENT OF THE CUTS

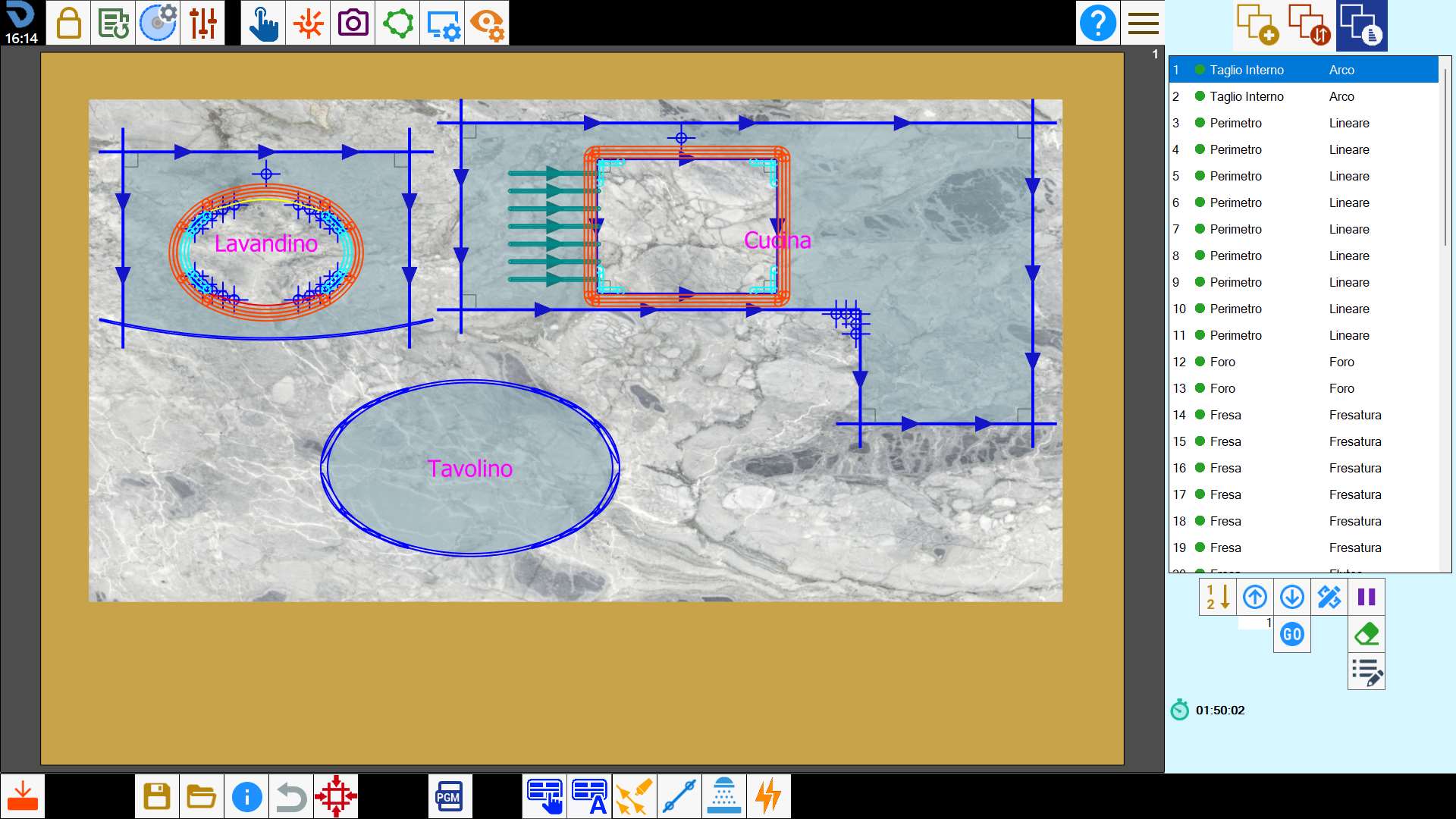

Through the third button in the top right, you access the optimization and cut management screen.


Lower bar

In the lower section are shown some buttons that allow to perform operations on cuts.


Buttons


Probing Slab
Allows to add a slab probe cycle before executing the cuts.


Create ISO program
Generate the cutting program and allows to access the ISO control page.

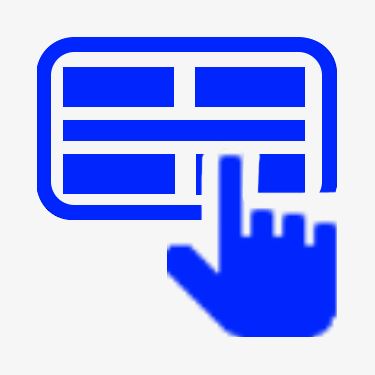

Manual move
Allows to move a section of material using the suction cups.

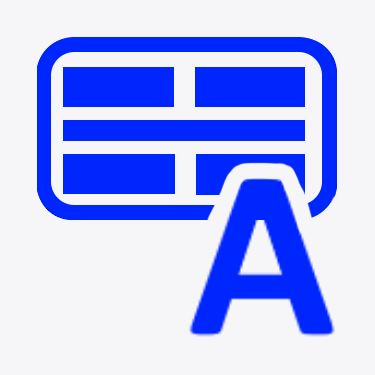

Move automatic.
Performs the material shifts needed to not ruin any piece.


Multiple selection
Allows to select more cuts at the time.


Single cut
Allows to add one cut manually to the slab.


Bench washing
Allows to start a washing cycle of an area, or to wash the entire work bench.


Operations on cuts
Allows to apply operations and/or custom orderings on the cuts.

;
