DOC3.21.2 SLAB PROBING

This function allows to add a slab probe cycle at the beginning of the cutting program.
The cycle allows to measure thickness real of the slab.


Execution of the functionality

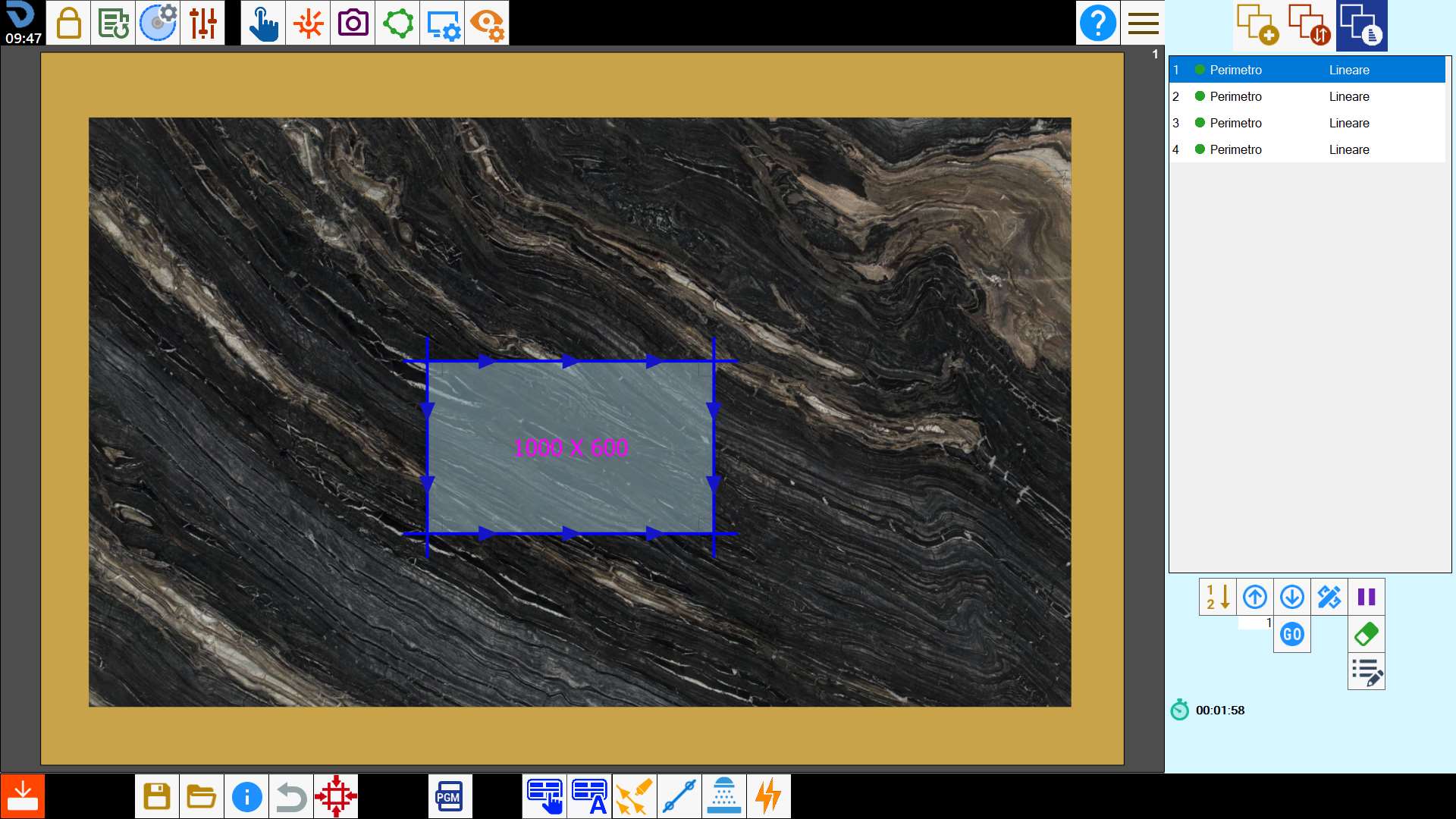

After having pressed the button, the program will ask the user to select on the working area the point of the slab in which to execute the probe.

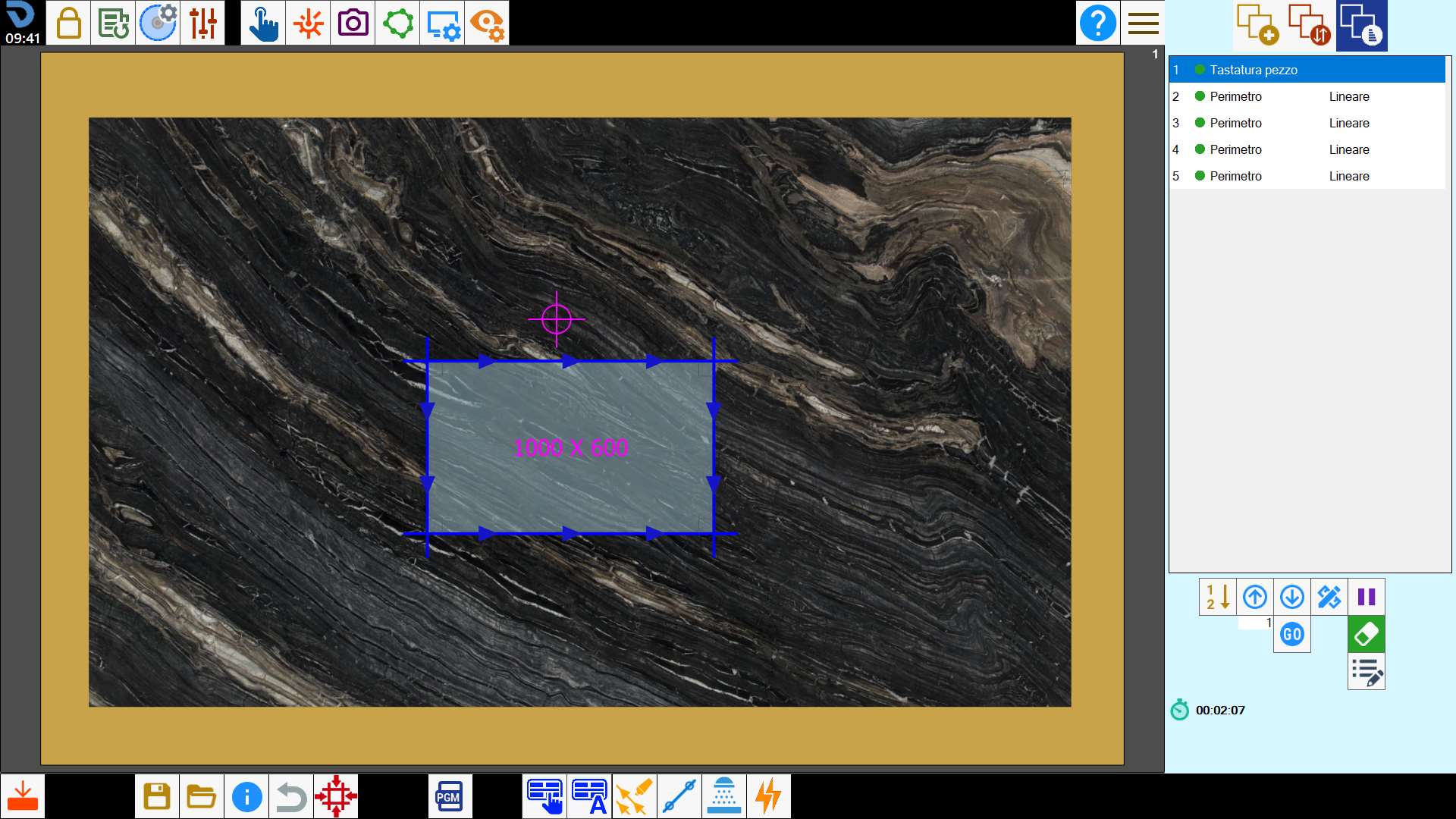

The keyboard position is indicated on screen with a magenta symbol.

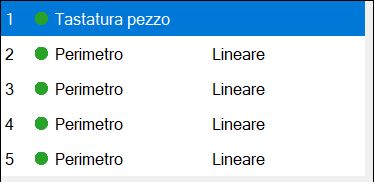

This procedure is then inserted at the beginning of the list of cuts.


NOTE

If more keyboards are inserted into the cutting program, the slab thickness will be calculated as the average of the values obtained from all measurements performed.

;
