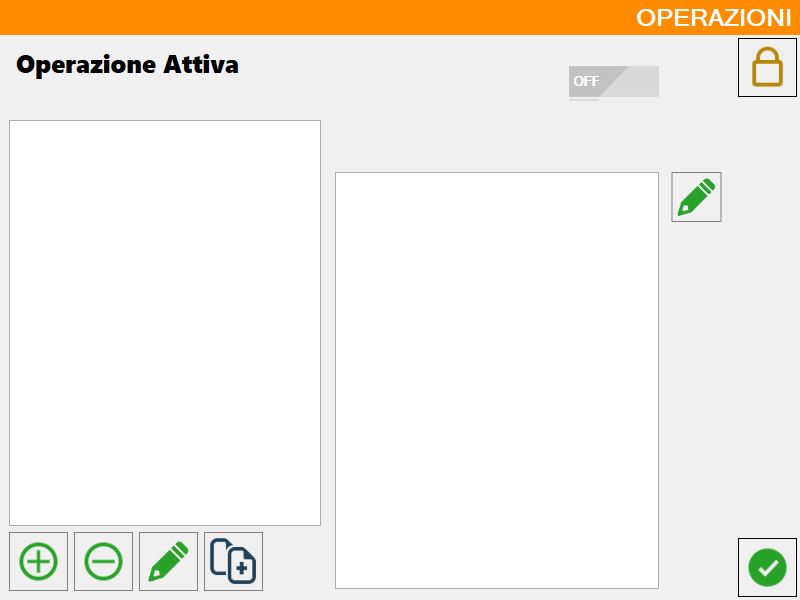

Inside the user parameters panel, in the first user values window we find a 'Active Operation' where next to it the operation the operator has activated is displayed, if you want to add, modify or delete you must press on the pencil next to it and this window opens:

Bottom bar buttons

Buttons for the generic management of macros

	Activate/Deactivate operations in Automatic Indicates if application of the selected operation is enabled when moving to the screen for cut optimization and management.
	Manage operations Allows to access the panel for activation/deactivation of standard operations.

Buttons to manage the macro list:

	Add Allows to create a new custom operation.
	Delete Allows removing the selected operation within the list.
	Modify name Allows to modify the name with which the operation is saved.
	Copy Allows to create a copy of the selected operation

Button to manage the content of a single macro:

Modify operation Allows to handle the standard operations that compose the selected operation.

Manage operations

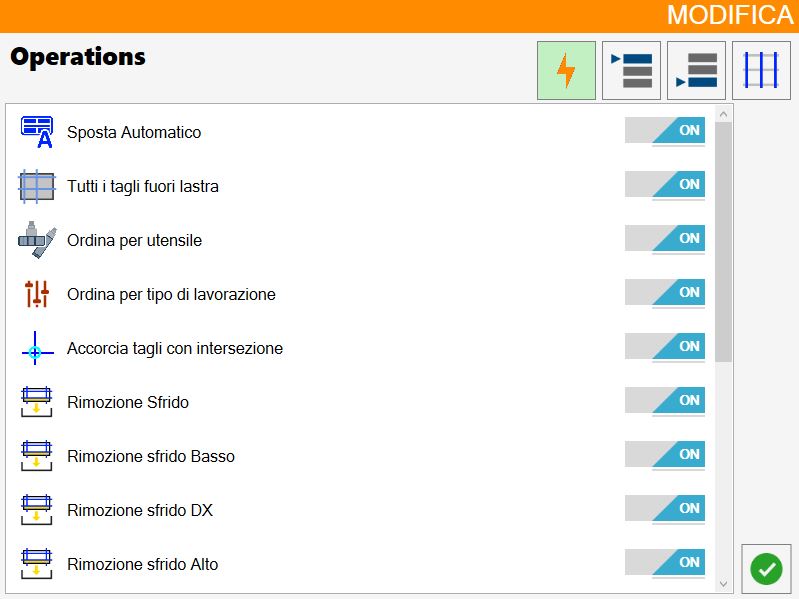

The following window opens where you can choose whether or not to activate an operation for each of the four types of operations that will be illustrated below (Standard, Workings ordering in head, Workings ordering in queue and Ordering based on cuts):

Add operation

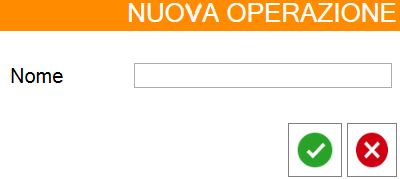

The following window opens that allows you to set the name for the new working:

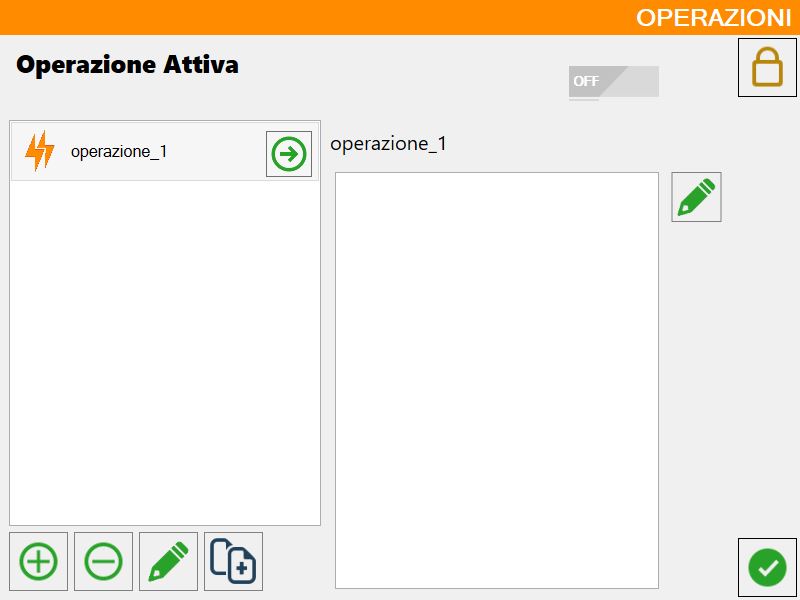

Once confirmed the choice of the new macro name, this will be added in the left panel and will initially be empty:

Modify operation

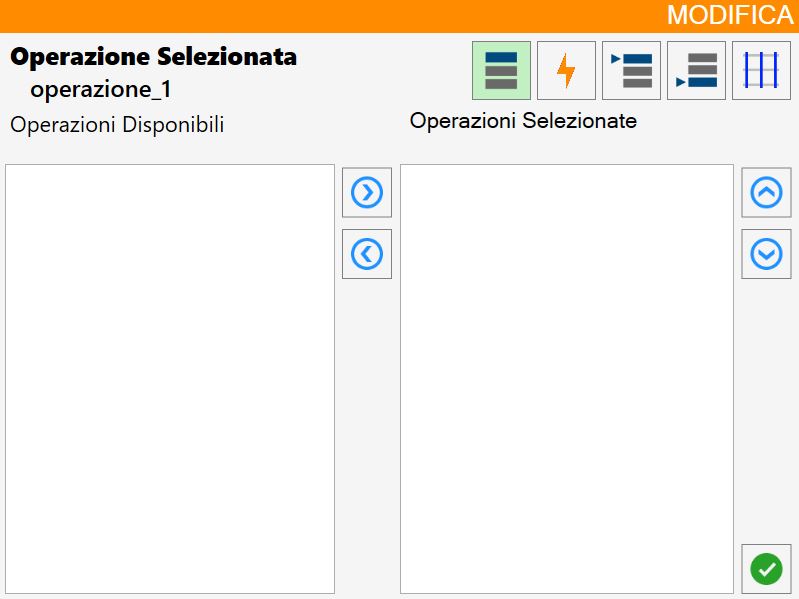

Below is shown the window of edit relative to the selected operation:

Selected operations buttons

	Sorting by working Contains operations that allow to modify the order of workings.
	Standard Operations List of standard operations on cuts.
	Sorting workings in head List of operations that foresee the shift on the top of the cut list belonging to a working type.
	Sorting workings in queue List of operations that foresee the moving to queue at the list of cuts belonging to a working type.
	Sorting based on cuts List of operations that foresee the sorting of the cuts based on their position on the work area.

Buttons of management of the operations

	Add/remove operation Inserts or removes an operation from the list of selected operations.
	Move Sort Move one of the selected operations one place higher or lower.

Invert order of operations (Optional)

You can choose to activate this optional that allows to invert the order of the operations.

If for example I press on the following operations:

• First bottom cuts

• External internal

• First left cuts

The real order of operations is:

• First left cuts

• External internal

• First bottom cuts

Why are the positions overwritten, so to make the order of the operations chronological there is this optional.

With it in this case the order of operations is this:

• First bottom cuts

• External internal

• First left cuts

Activation of a macro

When the macro has been created and modified as you like, it is possible to select it and activate it.

	Enable macro disabled Each deselected macro has just to the right the button to activate the disabled macro.
	Enable macro enabled The macro currently selected and not yet enabled presents the same button of the others, but of green color to indicate the possibility to proceed with enabling.
	Macro activated The macro currently loaded is highlighted in green and has just to the right a symbol that confirms its loading. The name of the macro loaded furthermore will be visible in the User Values of the parameters, at the voice 'Active Operation':

Procedure creation and loading of a macro

The first step consists of ensuring that the activation button is set on ON, to be able subsequently to employ the desired macro.

You proceed with the creation of a new operation setting a name, you click below on the new operation visible from now in the list and immediately after on the modify button on the right side of the panel to have access to the panel that allows to modify the macro.
For each type of operation, select the desired operations from the list on the left (Available) and add them to the list of selected operations. You can then proceed to confirm the configuration to view and manage it in the operations panel.
It is possible to make the loading of the macro by clicking the button placed just to the right of the name of the macro.

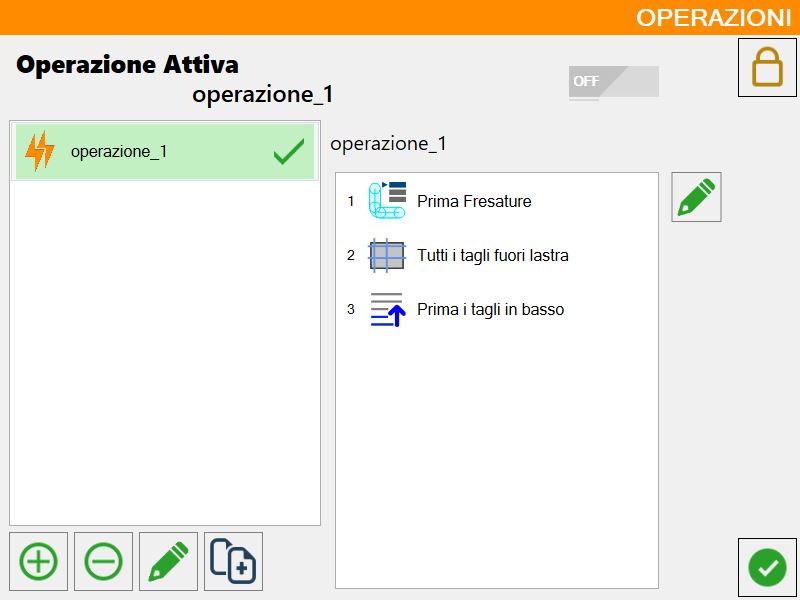

Below is provided an example of the macro named 'operation_1', containing 3 operations visible on the right, and highlighted in green with the corresponding symbol because in 'loaded' status.

The first step is to ensure that the activation button is set to ON, condition necessary to be able to use the desired macro. Once activated, proceed with the creation of a new operation, assigning it an identificative name. After having created it, the operation will appear in the list: it is therefore necessary to select it and click on the modification button located on the right side of the panel, so as to access the macro configuration interface.

Inside this interface, for each type of operation, it is possible to select the desired items from the left list (labeled as 'Available') and add them to the right list, which represents the selected operations. Completed the selection, it is sufficient to confirm the configuration to make it visible and manageable in the panel of operations.

The macro loading can be performed by clicking on the appropriate button, located immediately to the right of the name assigned to the macro. By way of example, consider the macro named 'operation_1': this includes three operations, displayed in the panel to the right, and is highlighted in green with the appropriate symbol indicating its 'loaded' status.
