Starting the tool redressing cycle, proceed to the redressing of the same.

Button

	Tool sharpening cycle Allows to access to the Tool redressing panel.

Redressing tool from parameters page

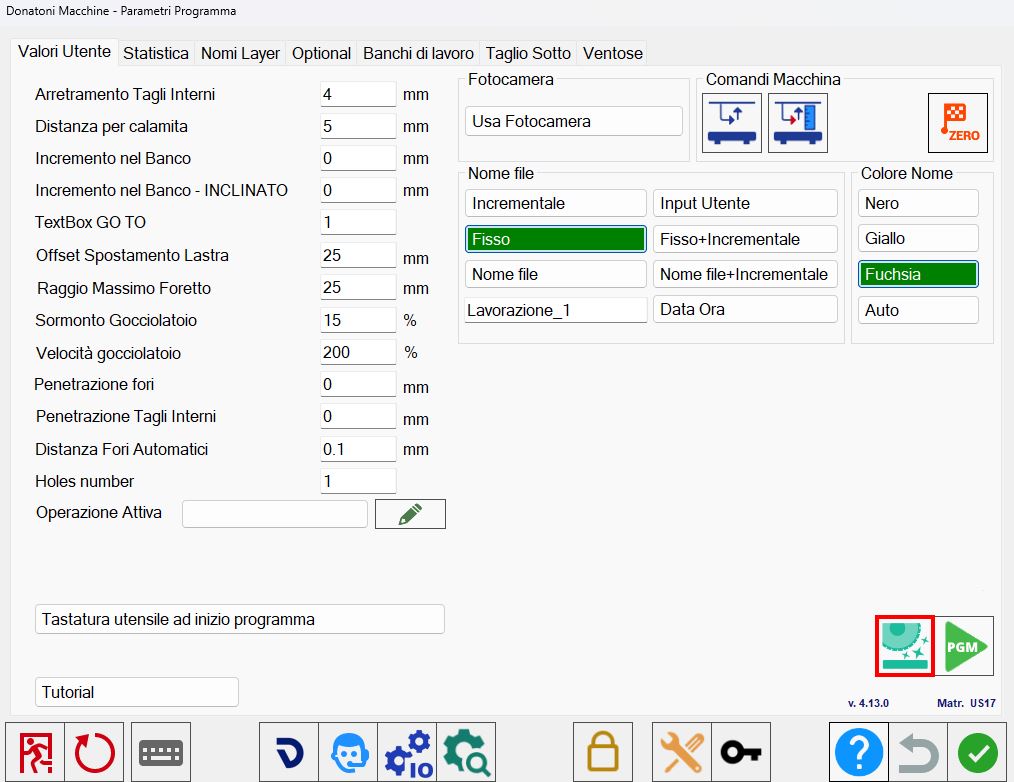

Accessing the parameters section of Parametrix we will find the following window:

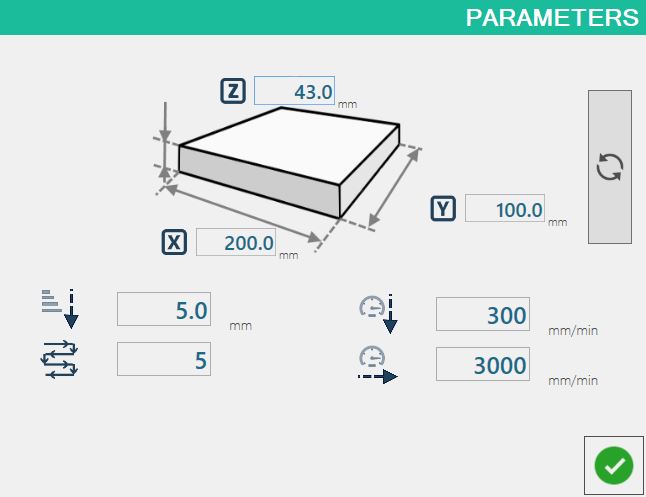

By clicking on the icon highlighted in red in the previous image, a window will open similar to the one shown here below:

From this window, it is possible to set the following parameters for the tool redressing.

Parameters

	Increase Penetration Indicate the penetration value for each pass.
	Steps to step Indicate the number of steps.
	Penetration Speeds Determine the speed during the phase of the tool's penetration on the material.
	Forward Speed Indicate desired speed for cutting phase in incoming.
	Restart cycle Clicking on this button will restart the cycle.
	Width Width of material for the redressing.
	Height Height of the material for the re-edger.
	Thickness Thickness of the material for the reliving.

Redress tool from manual control panel

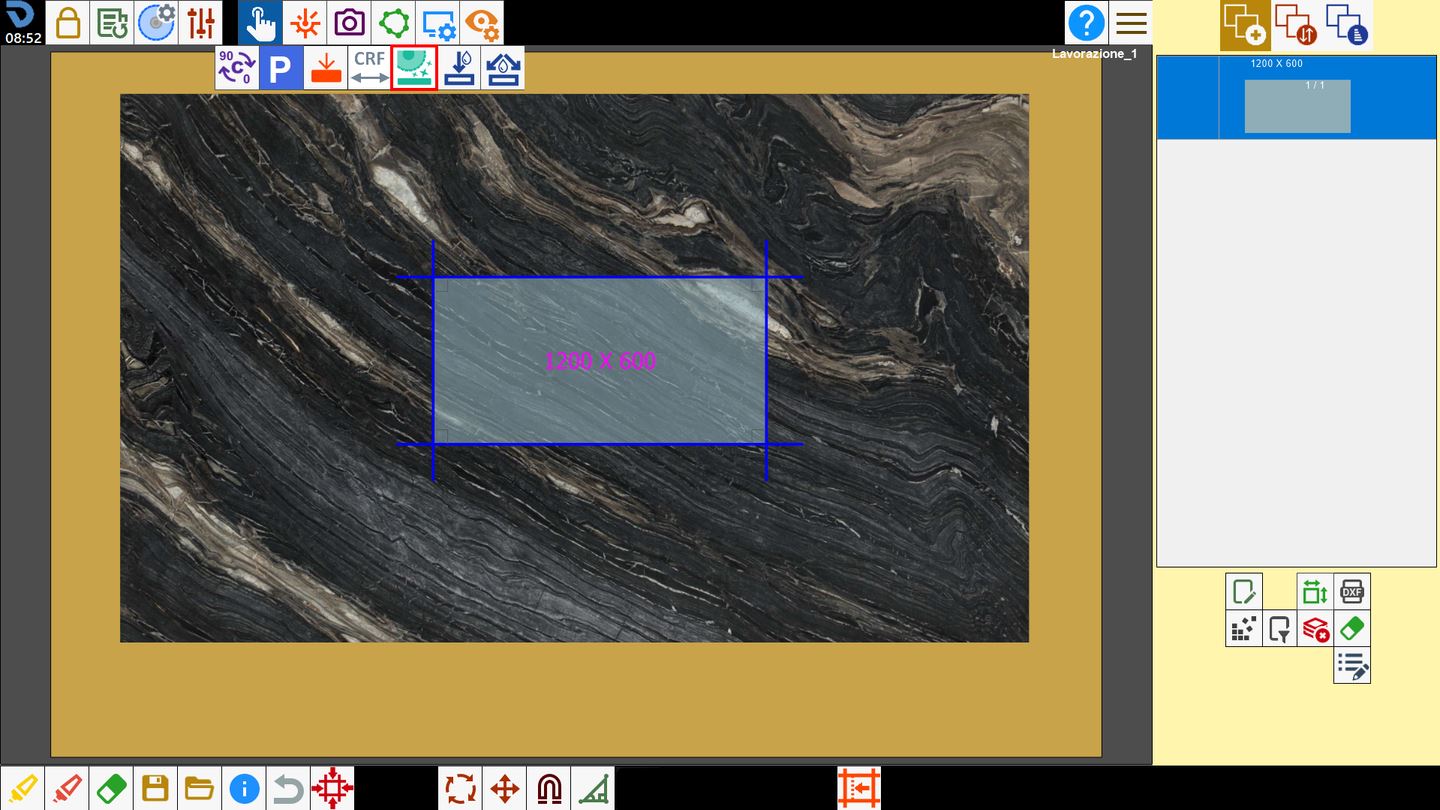

Accessing the panel of manual controls it is possible to go to perform the tool redressing.

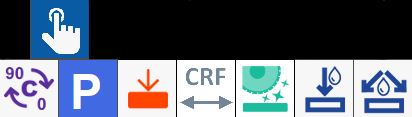

Clicking the icon highlighted in red in the figure below, a dialog box will be displayed that allows to start or cancel the procedure.

Redress tool in window of Piece Management

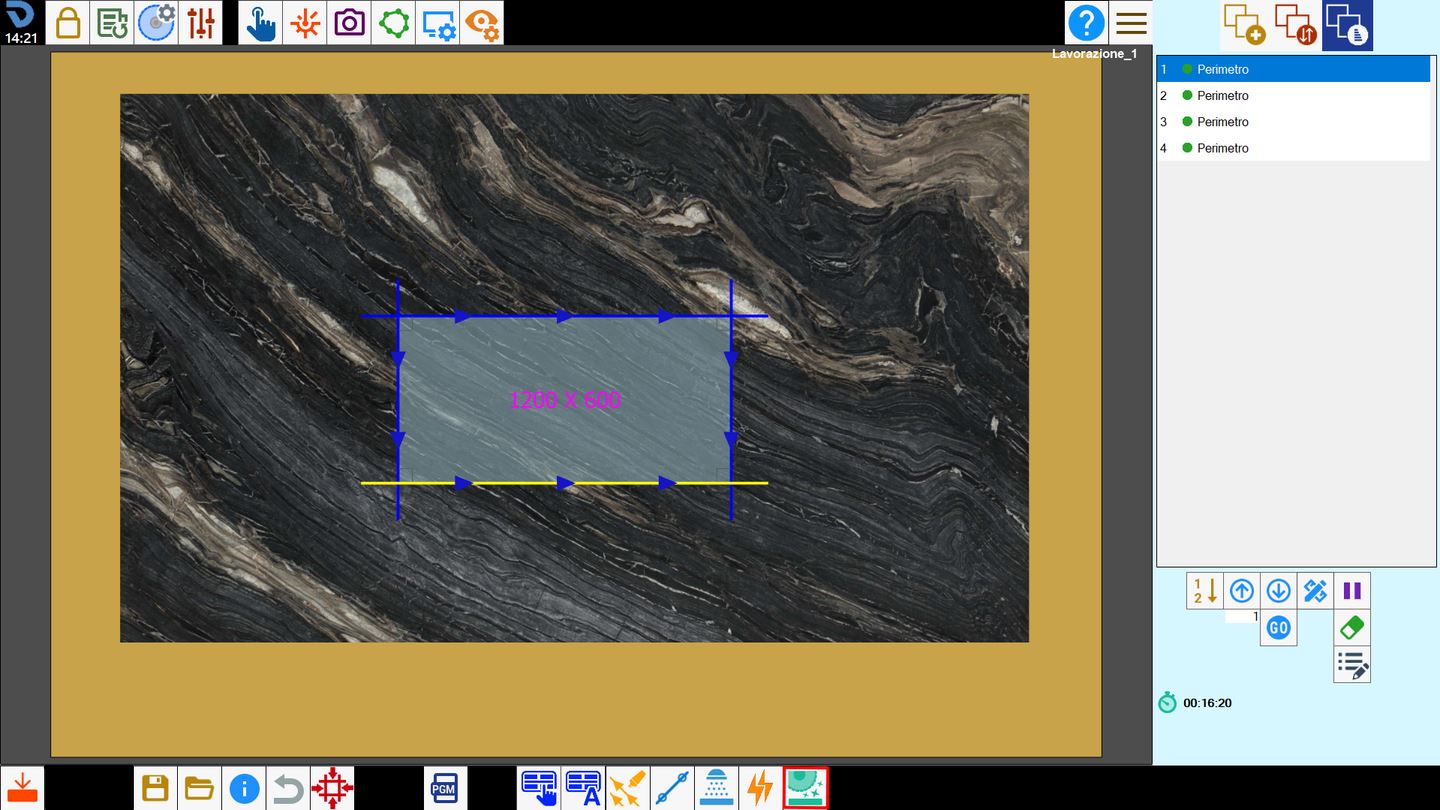

Accessing this window, a screen similar to the one showed next will be visible.

To add a tool redressing before a cut, select the desired cut from the list and click the button highlighted in red in the previous image.

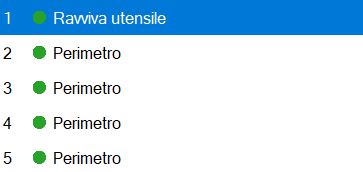

As shown in the following image, a tool redressing is configured to be performed before the first cut.
