This functionality allows the operator to generate labels on the piece before pressing the PGM button.

Buttons

Inside the lower bar of the Parametrix main screen, there is the button to access the Book Match functionality.

	Labeling Opens the panel that allows to manage the labeling

There exist two distinct labeling modes, illustrated below.

Basic Labeling Mode

The base mode puts at disposal of the operator three possible modes of labeling in its panel.

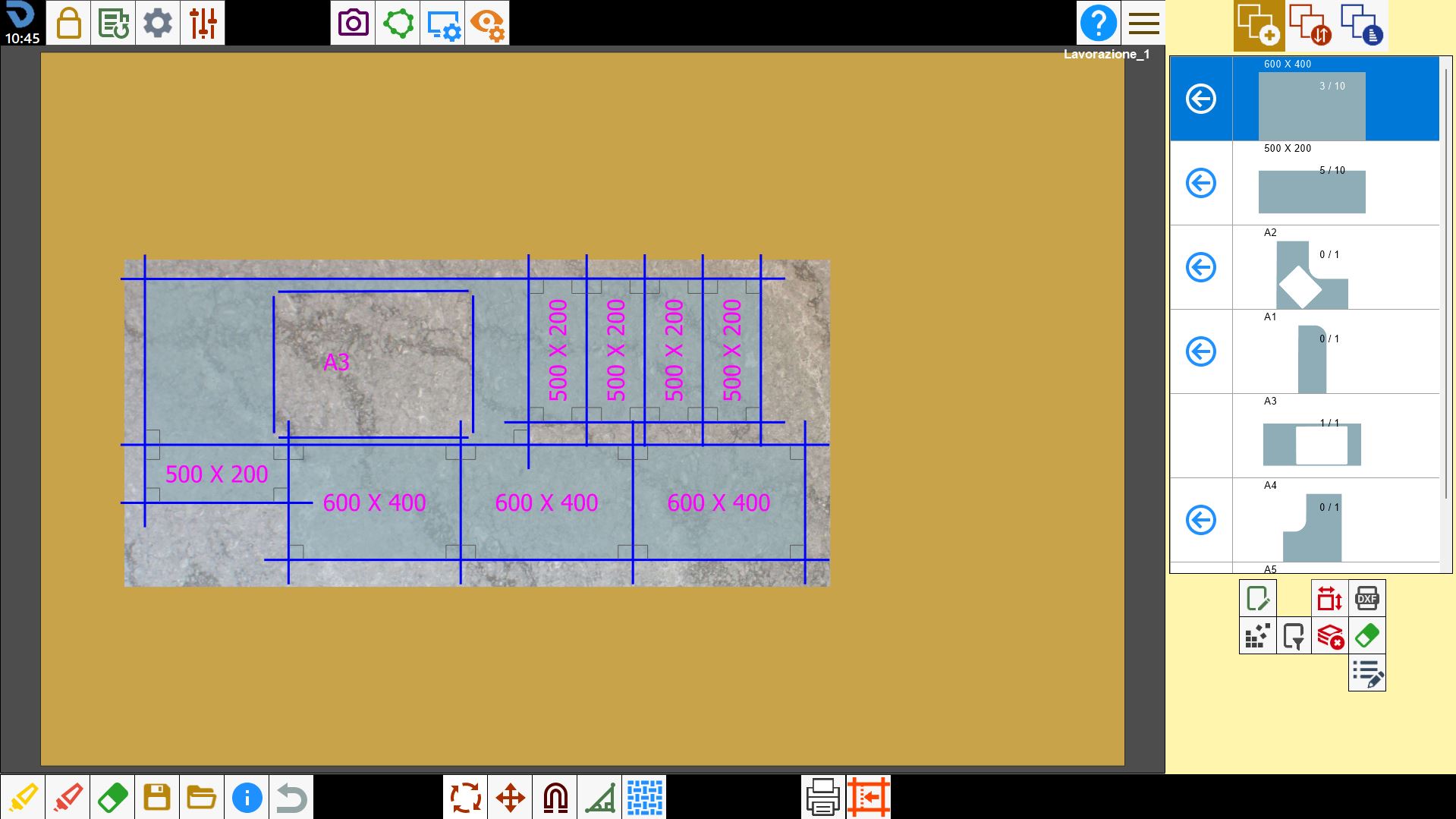

	Labeling in the working area After having selected a piece, the operator presses this button to apply the labeling directly in the preview.
	Labeling from the piece list Clicking this button will be possible generate the labels from the piece list.
	Labeling with manual insertion of information Clicking this button it will be possible to generate the labels inserting manually the information of the piece.

Labeling in the working area

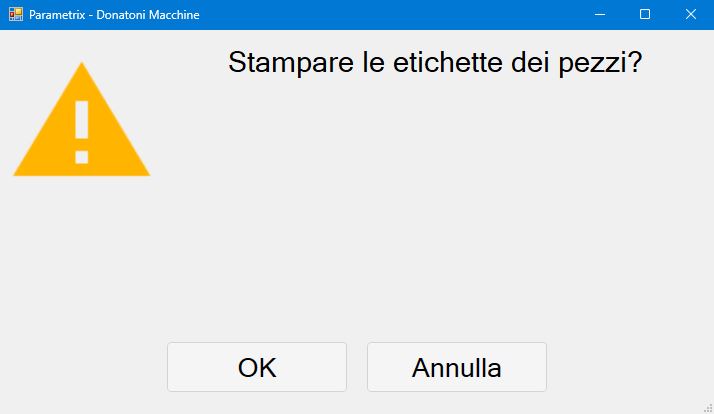

The selection of at least a piece in the visible preview on screen and the subsequent pressing of this button triggers the following warning:

Labeling from the pieces list

This mode allows to select the pieces for which you want to apply the label printing.

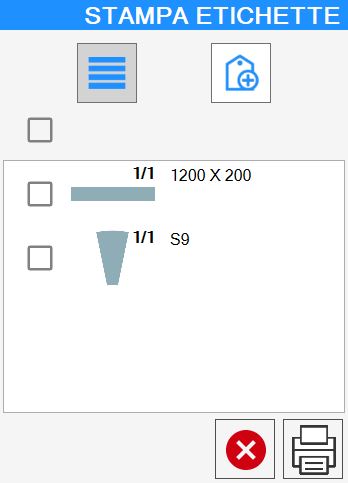

Will be opened a small panel similar to that represented below:

Print labels Start the procedure of generation of the selected labels.

Labeling with manual information insertion

This mode allows to manage the information of the labels and their additional properties.

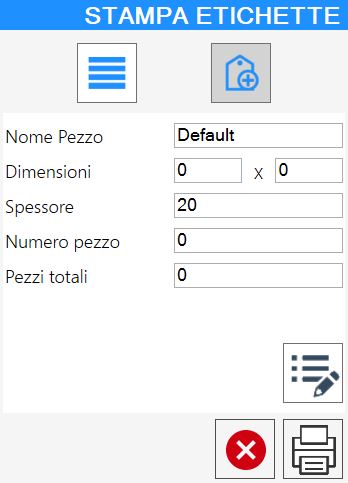

Will be opened a small panel similar to that represented below:

	Additional properties Allows to access the panel to change additional properties of a piece.

Additional properties print labels

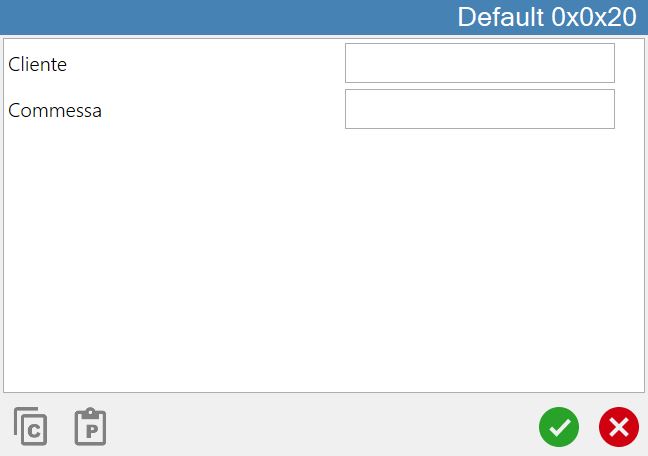

Based on the additional properties properly set, it is possible to manage the additional properties in the following panel.

The following buttons allow the operator to quickly manage additional properties:

	Copy additional properties Allows the operator to copy all the values of the additional properties currently visible.
	Paste additional properties Allows the operator to paste the additional properties in the fields with values copied before.

Advanced Labeling mode

This mode, as for the previous one makes available buttons to execute Labeling in the working area and Labeling from piece list.

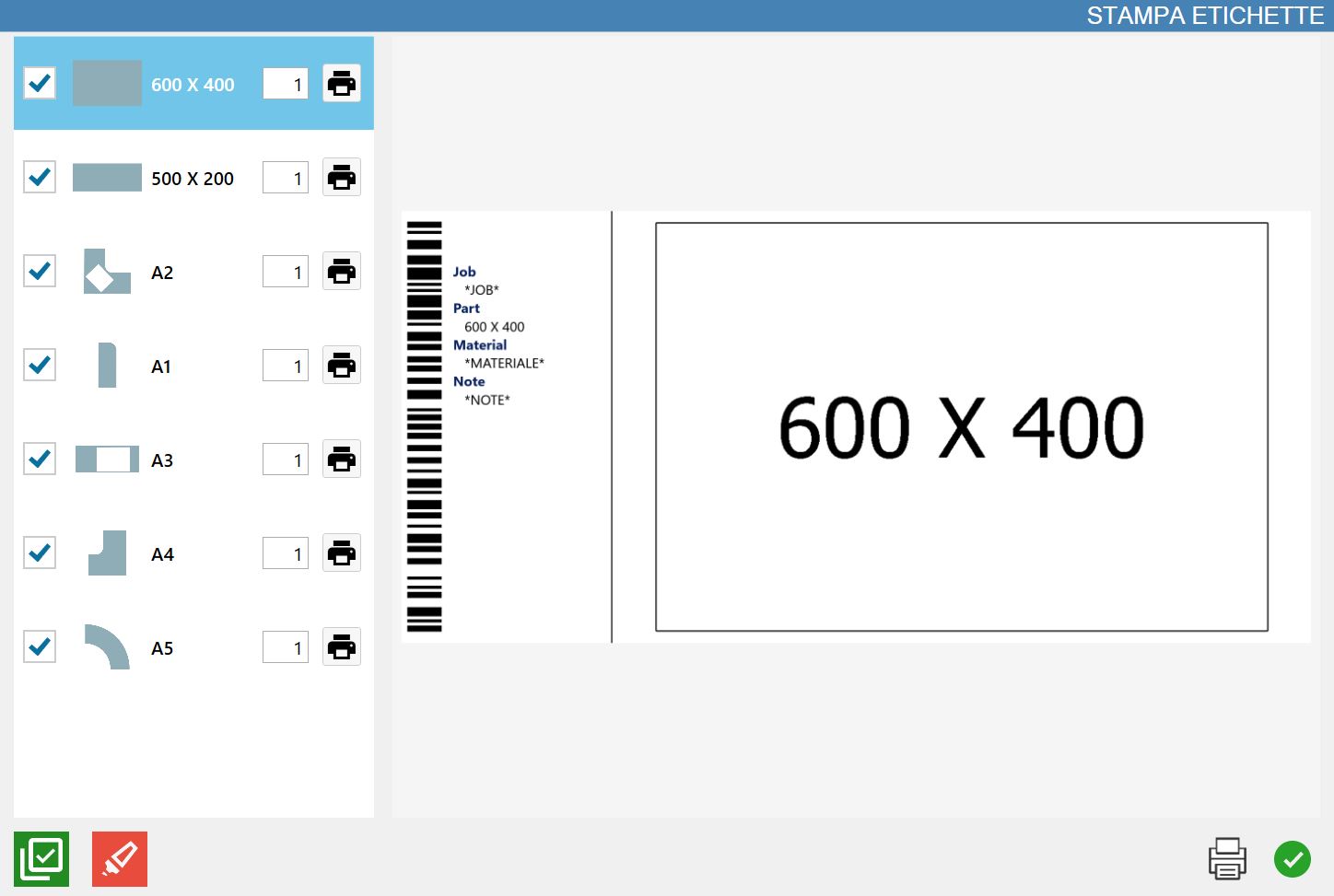

In the list of pieces visible on the left is reported a single occurrence for each piece.
In the remaining part of the window instead is visible a preview of the label currently selected.

In the bottom part of this panel are put at disposal of the operator the following buttons:

	Activate/Deactivate multiple selection The activation of this mode allows to select more items from the list, as desired. Deactivation instead allows the operator to select only one element at a time.
	Select all list elements The activation of the button triggers the selection of all the list items, while the deactivation de-selects all the items except the one currently selected.

Print labels in Open state

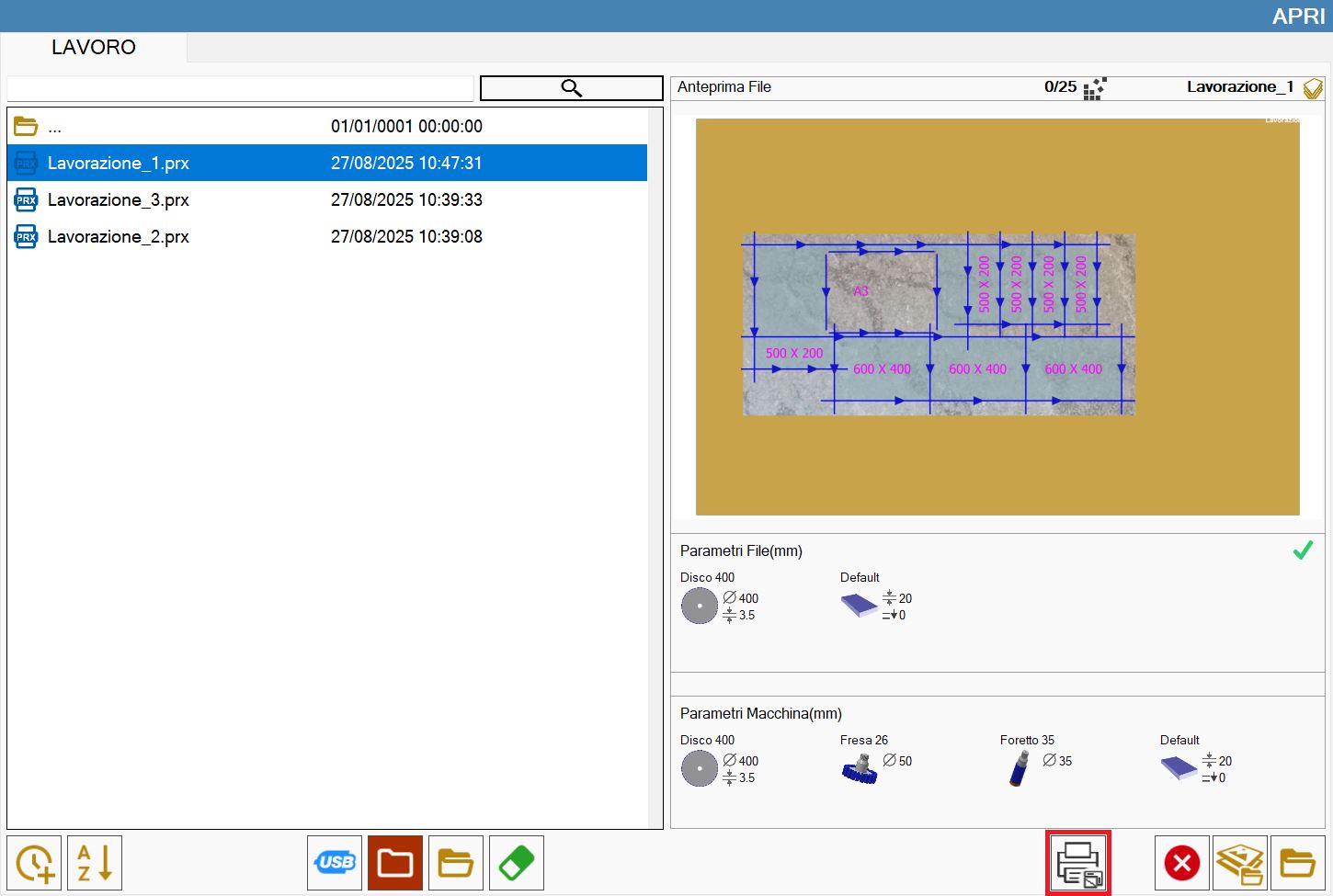

Once the PGM is generated, it is possible to proceed with printing the corresponding labels by accessing the 'Open Status' section, located in the lower right of the window. In this phase, the measurements are added automatically to the drawing.

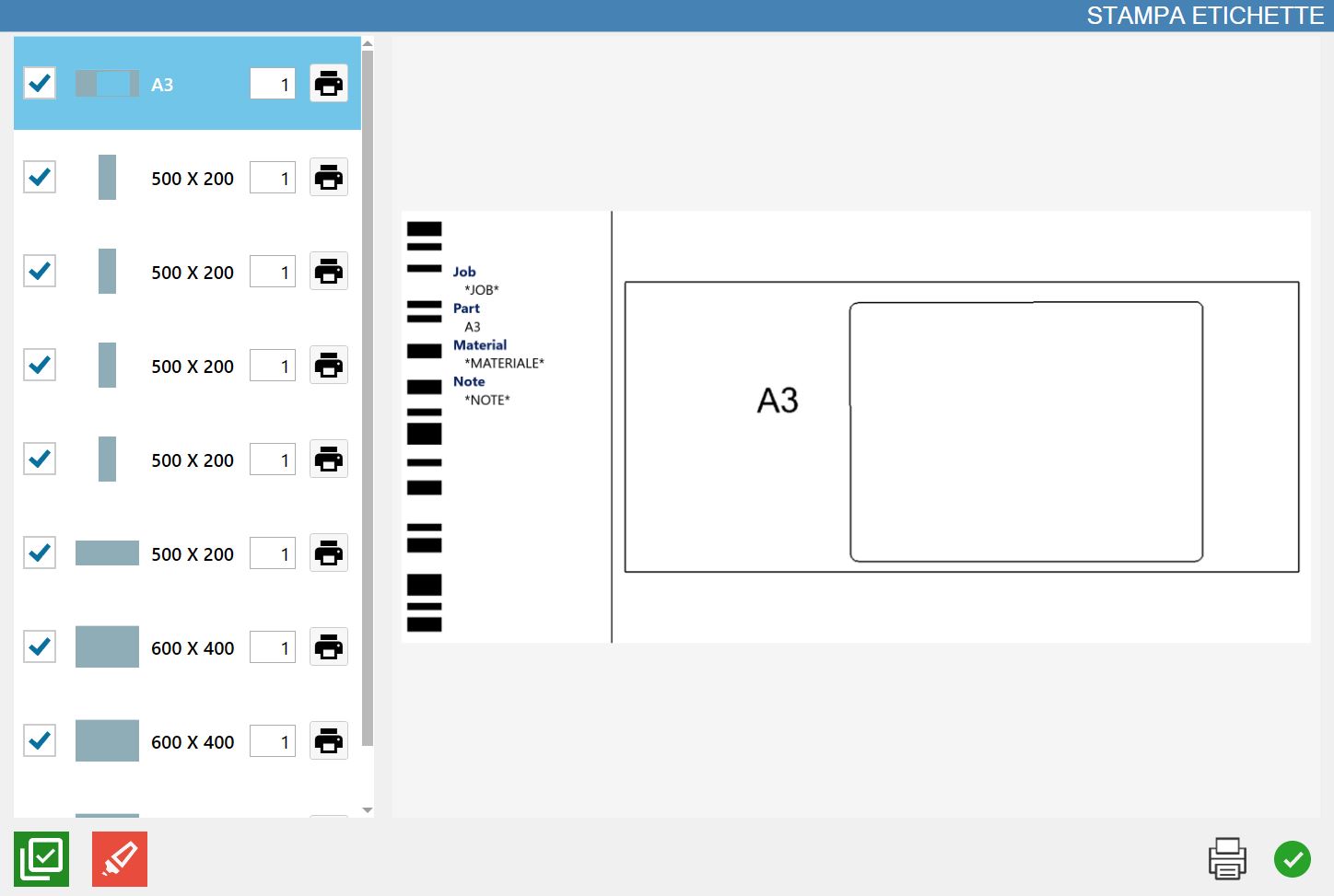

Pressing the 'Print labels' button, the following panel will be displayed that allows to select the labels that you want to print.

On the left side of the panel are reported all pieces present in the selected state, even if repeated.
In the remaining part of the window is visible a preview of the label currently selected.

It is suggested to use a label format of adequate size (for example, 20 cm x 10 cm) to guarantee a correct readability of the quoted drawing.
