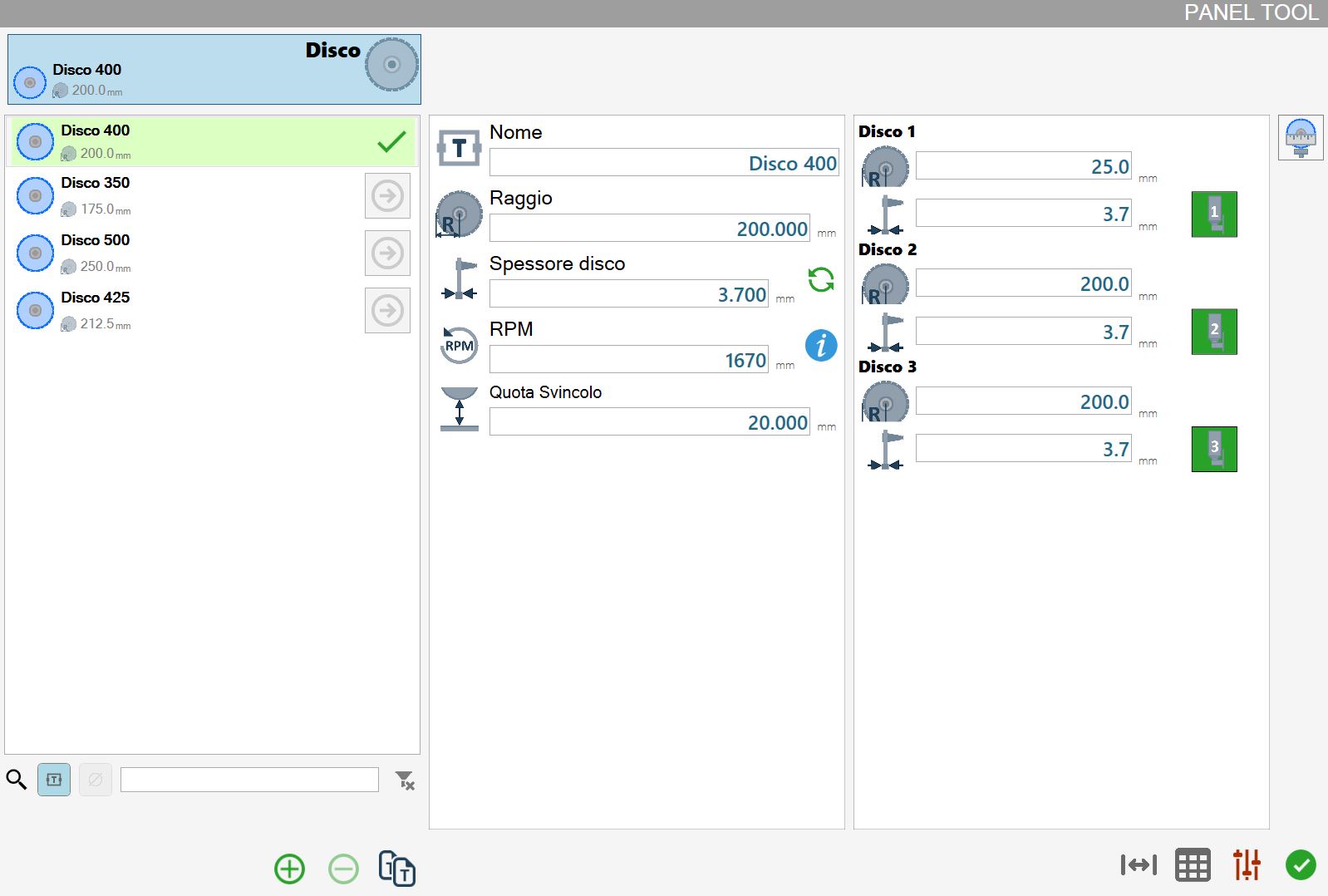

This panel allows the operator to manage the machine's disks.

Parameters

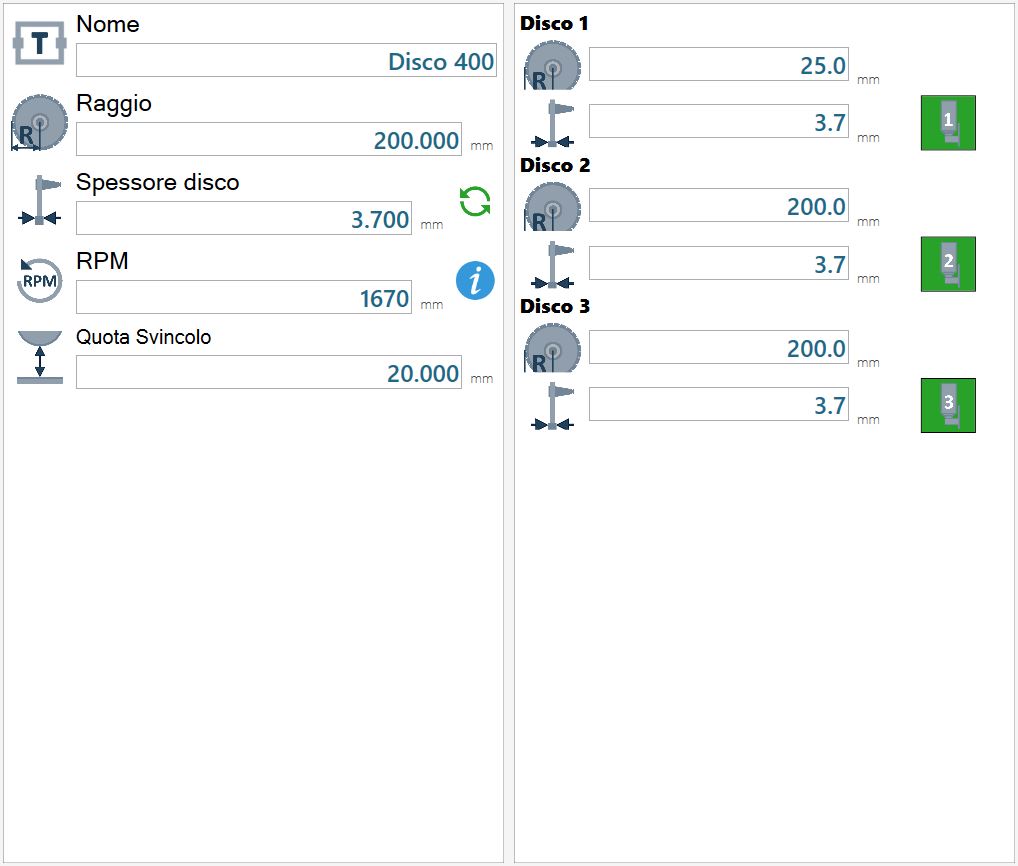

The parameters of the selected disk set are shown in this section.
On the left you can find the general parameters of the disk set, while on the right the specific parameters for the disk associated with each probe.
For SX5 or SX6 machines 5 and 6 disks will be shown in the right section.

General parameters disk set

The parameters of the left section are listed, referring to the selected set of disks.

	Name Name of the disks set.
	Radius Radius of the set discs. NOTE All the discs of the set must have the same diameter.
	Disk thickness Average thickness of the set’s disks.
	RPM Rotations per minute of the motors on which the disks are mounted.
	Junction Quote Junction quote of the disk set.

There are also the following buttons:

	Recalculates thickness Allows to recalculate the average thickness of the disks.
	RPM Information Opens a table containing values of RPM recommended for the use of the machine.

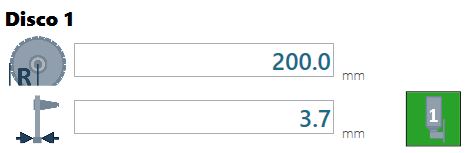

Single disk parameters

Each of these elements shows the parameters of the disk mounted on the probe to which they refer.

For each disk is possible set radius and thickness. The operator can decide if activate or not the disk using the button next.

Enable/Disable disk Allows to indicate if use or not the disk mounted on the corresponding attestator.

Buttons

	Prob disk Start a disk probe cycle.
	Compensation Allows to access the window for manual compensations.
	Complete data Allows access to the window for editing the disks’ data.

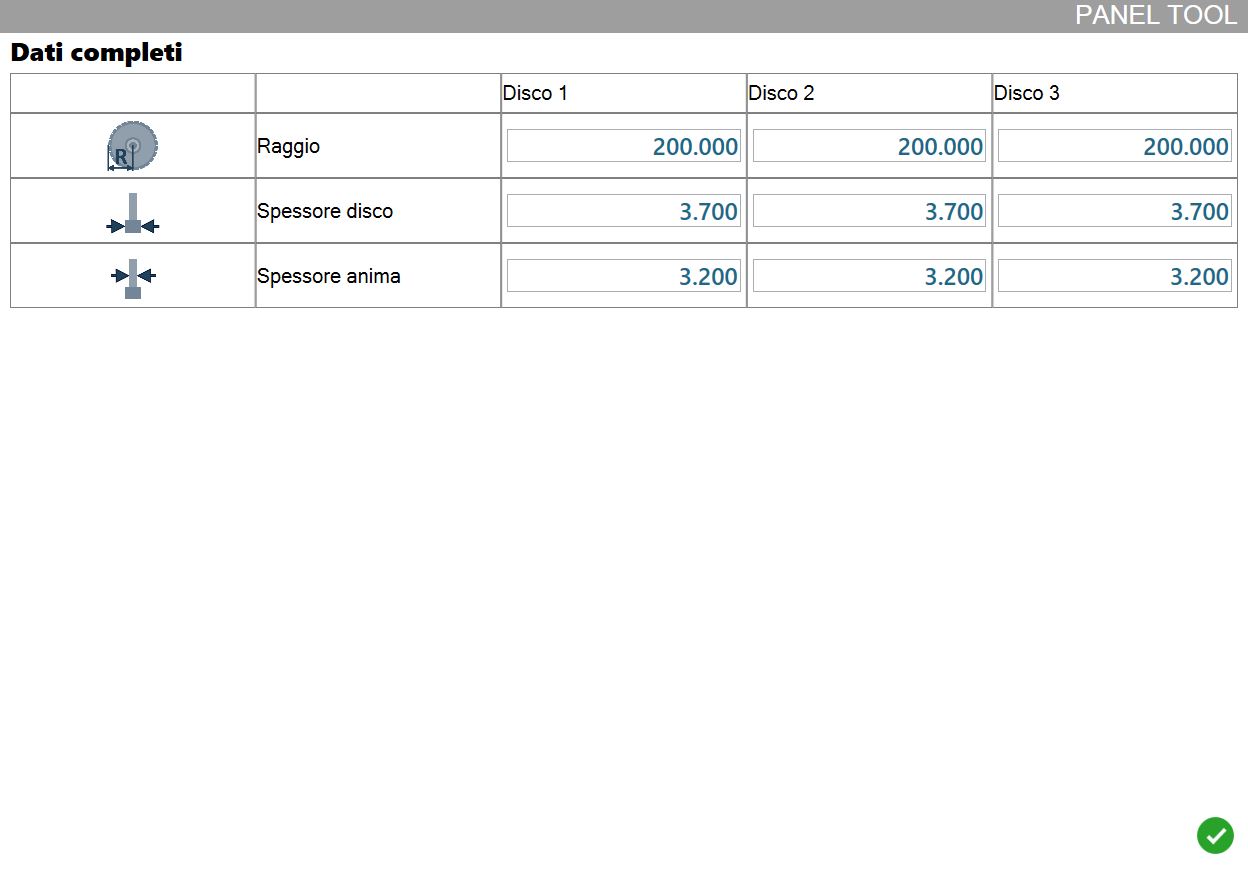

Complete data

In this window the operator can change all data concerning the set of disks mounted on the machine.
In particular, it is possible to set the radius, the thickness of the teeth and the core of each disk.

In particular:

	Disk thickness Measurement thickness of the disk's teeth.
	Core thickness Measure of the disk's core thickness.
