This window displays statistics for workings executed by the machine.
The statistics also include Single Cut, Pocket, Leveling and ISO execution workings.

On-screen statistics

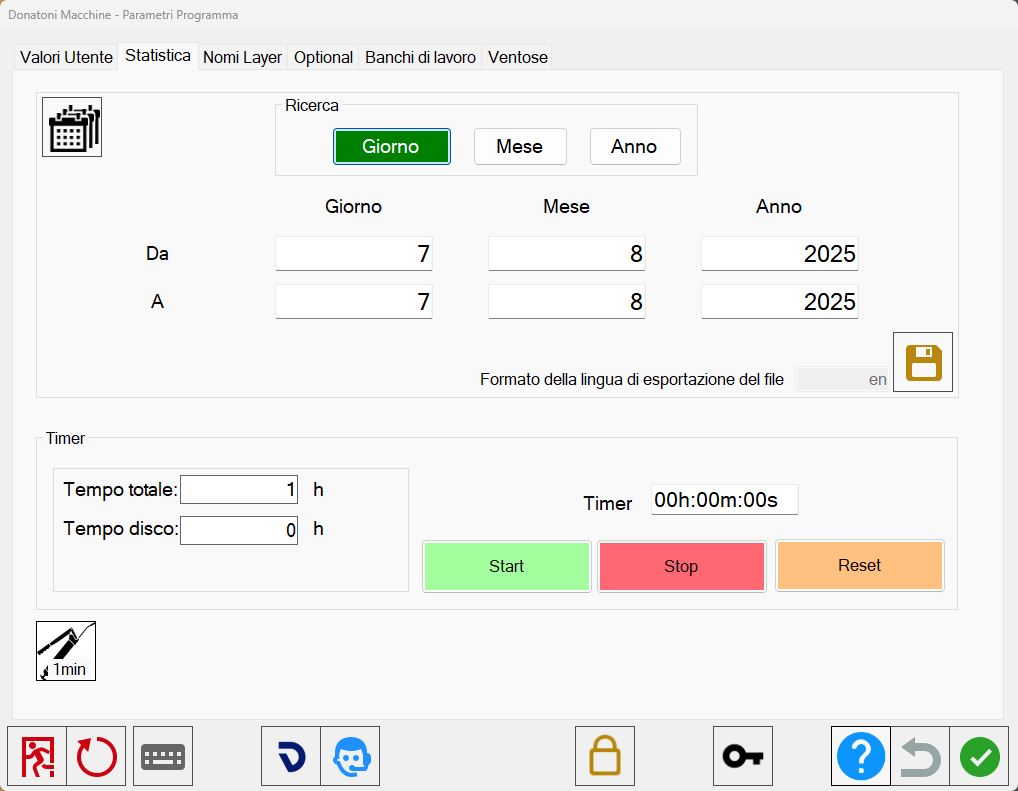

The button at the top left provides access to the on-screen statistics window.

On-screen statistics Opens a window in which statistics can be viewed on screen.

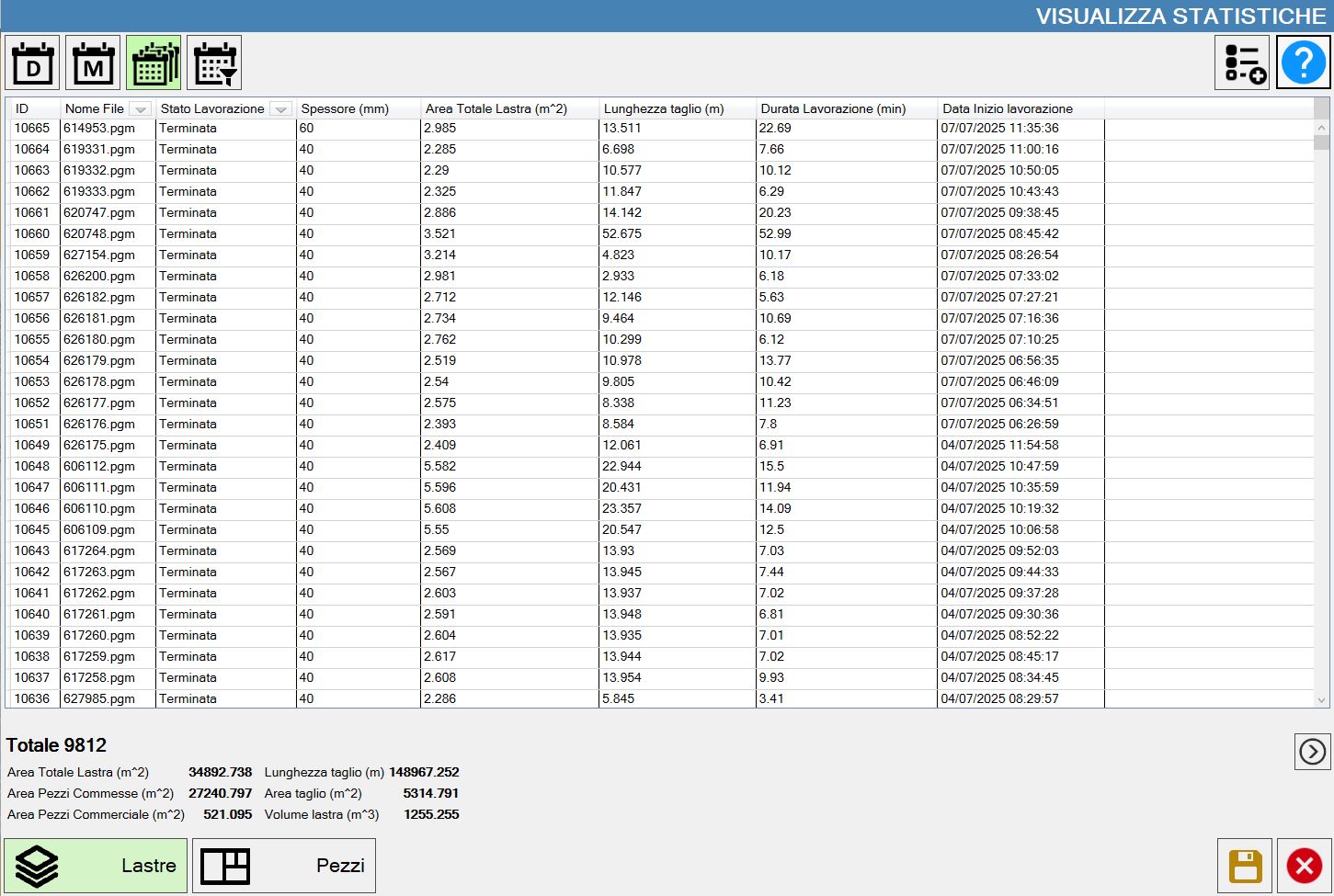

A window opens showing information relating to workings performed on the machine.

Each item in the list corresponds to data for a single working.
At the bottom of the page, a summary of the important information for all displayed workings is provided.

Buttons

	Daily statistics Displays statistics for workings performed on the current day.
	Monthly statistics Displays statistics for workings performed in the current month.
	Total statistics Displays statistics for all workings performed by the machine.
	Settable time interval Allows the time interval for displaying statistics on workings performed within that interval to be set.
	Columns to display Allows the columns to be displayed to be selected.
	Save statistics Saves the statistics currently displayed on screen to a CSV file.
	Display slab statistics Displays slab statistics.
	Display piece statistics Displays statistics for each piece.

Statistics for each machine (Optional)

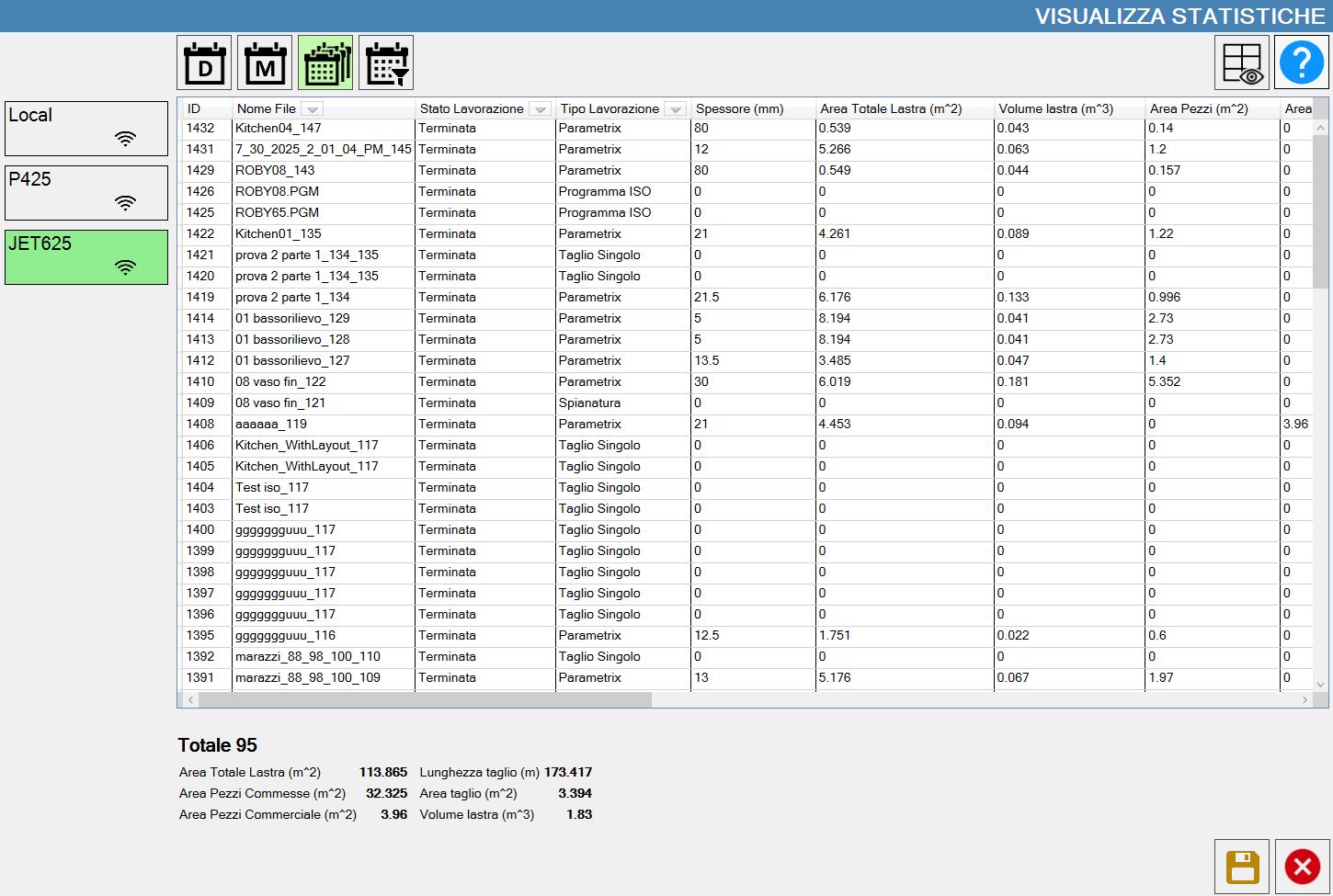

In the office-mode version of Parametrix, it is possible to connect to multiple machines and view the statistics for each one.
All machines connected to the device are displayed in the section on the left.

Research

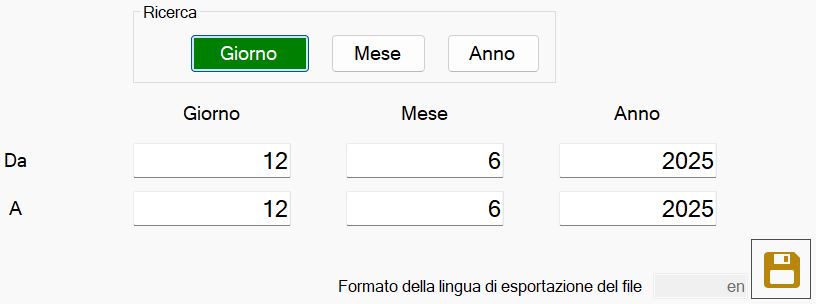

This function searches the statistics within a user-defined time range.

The operator can enter the start and end dates to define the time range of interest.
The search precision can be defined using the buttons.

	Search by day Filters statistics with daily precision.
	Search by month Filters statistics with monthly precision.
	Search by year Filters statistics with annual precision.

To export the statistics, use the button:

Save statistics Exports the statistics for workings performed within the defined time range to a CSV file. The file name consists of: current date _ hour, minutes and seconds at the time the file was created.

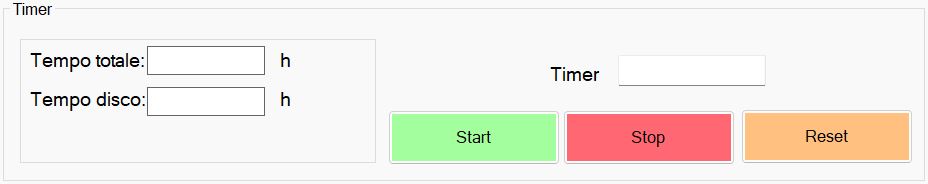

Timer

This section can be used to manage the machine timers.

Using the following buttons, the operator can manually manage a timer to keep track of elapsed time.

	Start timer Starts the timer.
	Stop timer Stops timer progression.
	Reset timer Resets the timer count.

The section on the left contains information about the operating time of the machine and the tools mounted on it.

Grease

To start automatic machine greasing, use the following button:

Start grease cycle Starts a greasing cycle lasting 1 minute.
