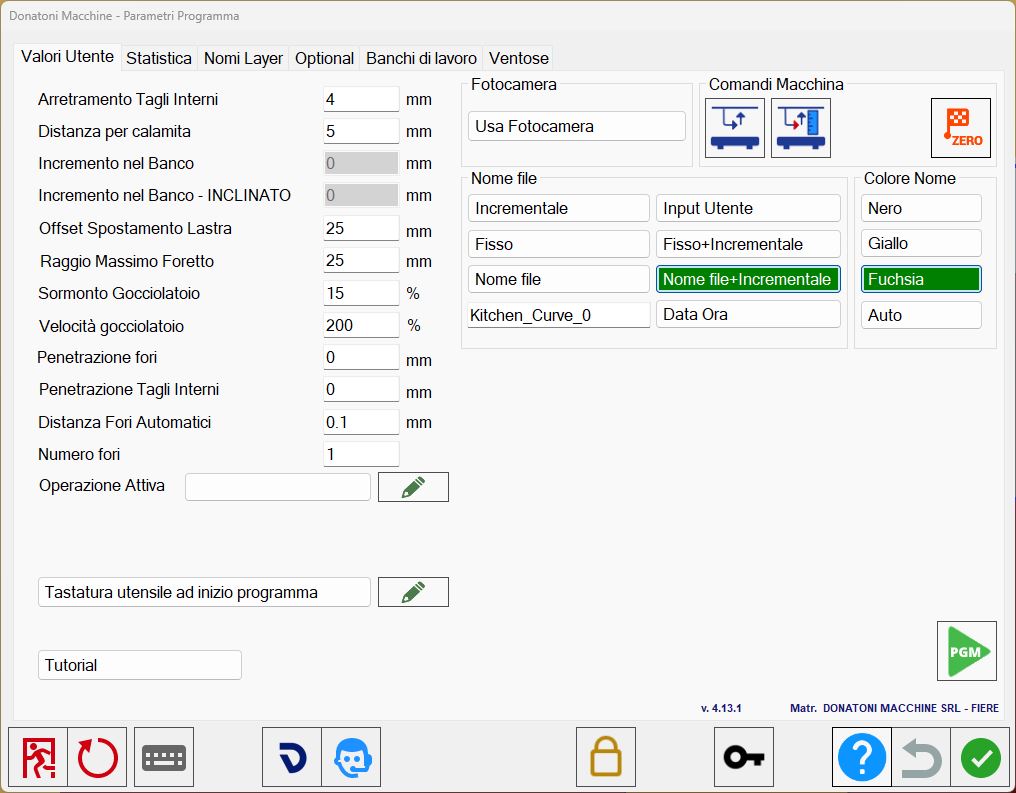

Receding of interior Cuts

Minimum disk approach distance to the piece for internal cuts.

Distance on magnet

Distance between two pieces before the magnet is activated.

Increase inside bench

Depth by which the tool penetrates into the workbench.

Increase inside bench - miter

Depth by which the tool penetrates into the workbench. For isoparametric mode only.

Offset Slab Move

Additional position for the Move function.

Maximum core drill radius

For DXF import, the maximum radius for a circle to be imported as a hole.

Overlay on Drip System

Drip system overlap percentage, from 99% to 0%.

Drip System speed

Drip system speed percentage relative to the speed of standard cuts.

Penetration holes

Sets the penetration of all holes; set to 0 for a through hole.

Penetration Internal Cuts

Sets the penetration of all internal cuts; set to 0 for a through cut.

Automatic holes distance

Indicates the distance between holes when inserting multiple holes.

Holes number

Number of holes to use for holes at an angle.

Active Operation

Allows a custom operation to be created for cuts.
If enabled, applies the selected operation when the cut optimisation and management screen is opened.
To enable it, press the button on the right. When enabled, it is green; otherwise, it is white.

Custom operations
Provides access to the custom operations panel.

Use Camera

Enables use of the camera or allows the operator to select the image from a file.

Enable/disable position check
Unlocks bench quote acquisition and disables the safety check.

Acquire bench quote
Sets the machine's current Z position as the bench quote.

Axis homing
The machine performs the axis homing cycle.

Incremental

Increments the ISO file name, 100, 101, 102…

Input

The user can enter the file name.

Fixed

Fixed ISO file name; enter the desired name in the adjacent field.

Fixed _ Incremental

ISO file name in fixed incremental format, e.g. File_101.

Time Data

ISO file name in date/time format, e.g. 20191206_080124.

File name

The ISO file takes the name of the imported file (DXF or CSV).

File Name _ Incremental

The ISO file takes the name of the imported file (DXF or CSV), with an incremental value added.

Black

Black piece text.

Yellow

Yellow piece text.

Fuchsia

Fuchsia piece text.

Auto

Automatically determines the best colour for the piece name

Background

Controls the background colour of the Book Match function

Name

Controls the name colour in the Book Match function

Perimeter

Controls the perimeter colour in the Book Match function

Check tool dimension at start of the program

When enabled, allows a probing cycle to be inserted at the start of the cutting program when switching to the cut management screen.

Custom operations
Provides access to the Tool Probe panel.

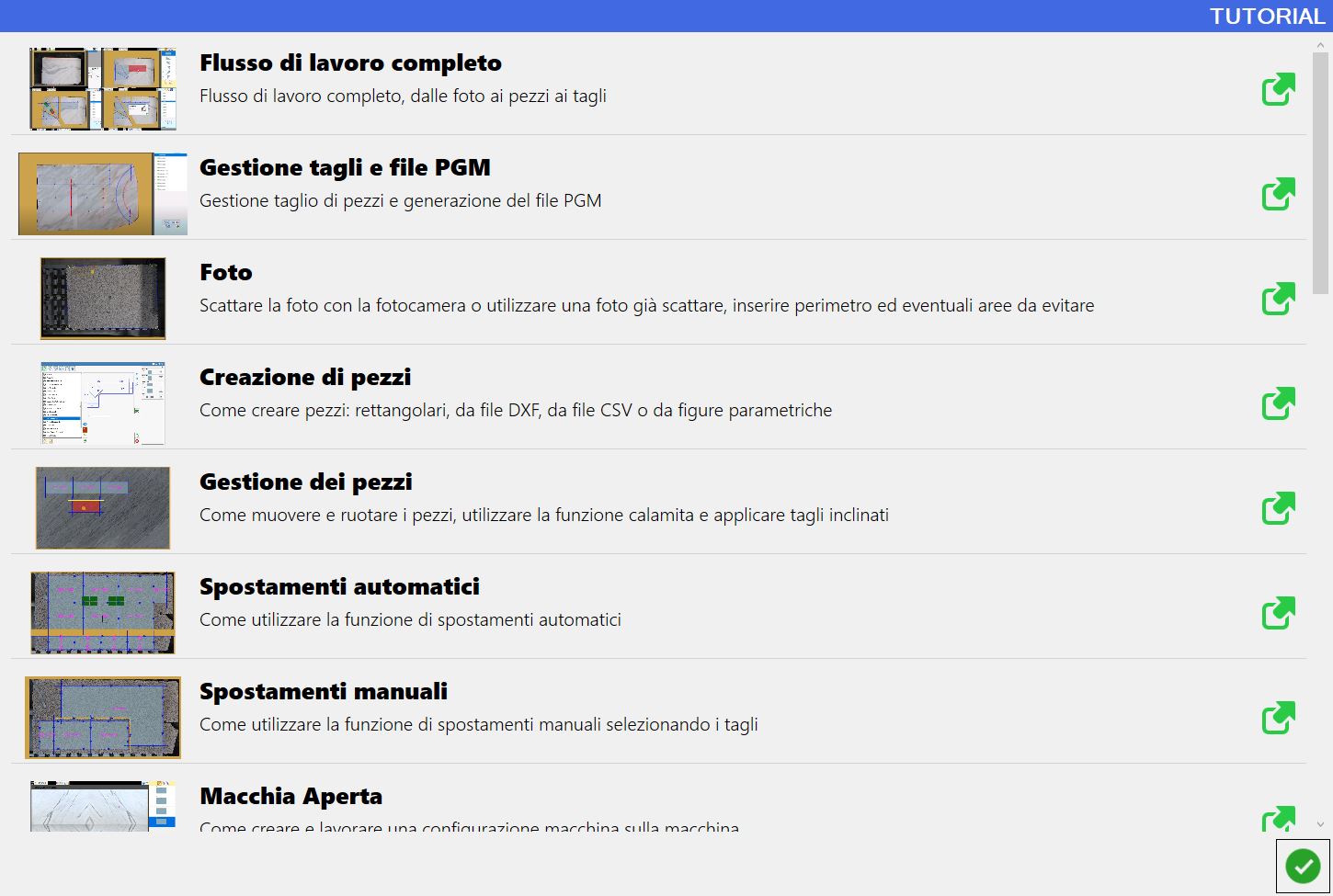

Tutorial

Provides access to the Parametrix video tutorials.

Enable/Disable PGM
Enables or disables the ISO control page when the PGM button is used on the third Parametrix screen.
If disabled, the file containing the working ISO program is still generated.

Unload all mode

This parameter has two possible values:
At the end: unloads the piece at the end of the working.
Optimised: unloads the piece when cutting is complete.
