Machine technical documentation Operational document

DOC3.10 DISPLAY OF WORKING ENTITIES

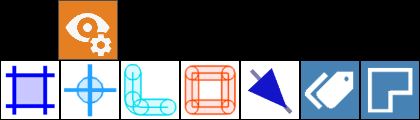

This function opens a small panel containing display tools.


Buttons


Show / Hide cuts
Enables or disables display of disk cuts on all figures in the work area.


Show / Hide holes
Enables or disables display of holes on all figures in the work area.


Show / Hide milling
Enables or disables display of milling operations on all figures in the work area.


Show / Hide rims
Enables or disables display of rims on all figures in the work area.


Show / Hide arrows
Enables or disables display of arrows on all figures in the work area.


Show / Hide Dynamic Tags
Enables or disables display of Dynamic Tags in the work area.


Highlight perimeter
Enables or disables highlighted display of the perimeter.

;
