Allows the position of the piece in the work area to be checked against its position on the machine. When “Machine on cut” is enabled, a cut is selected on the screen and the machine moves to the corresponding position.
This operation is useful for checking whether a cut lies within the material.

Execution

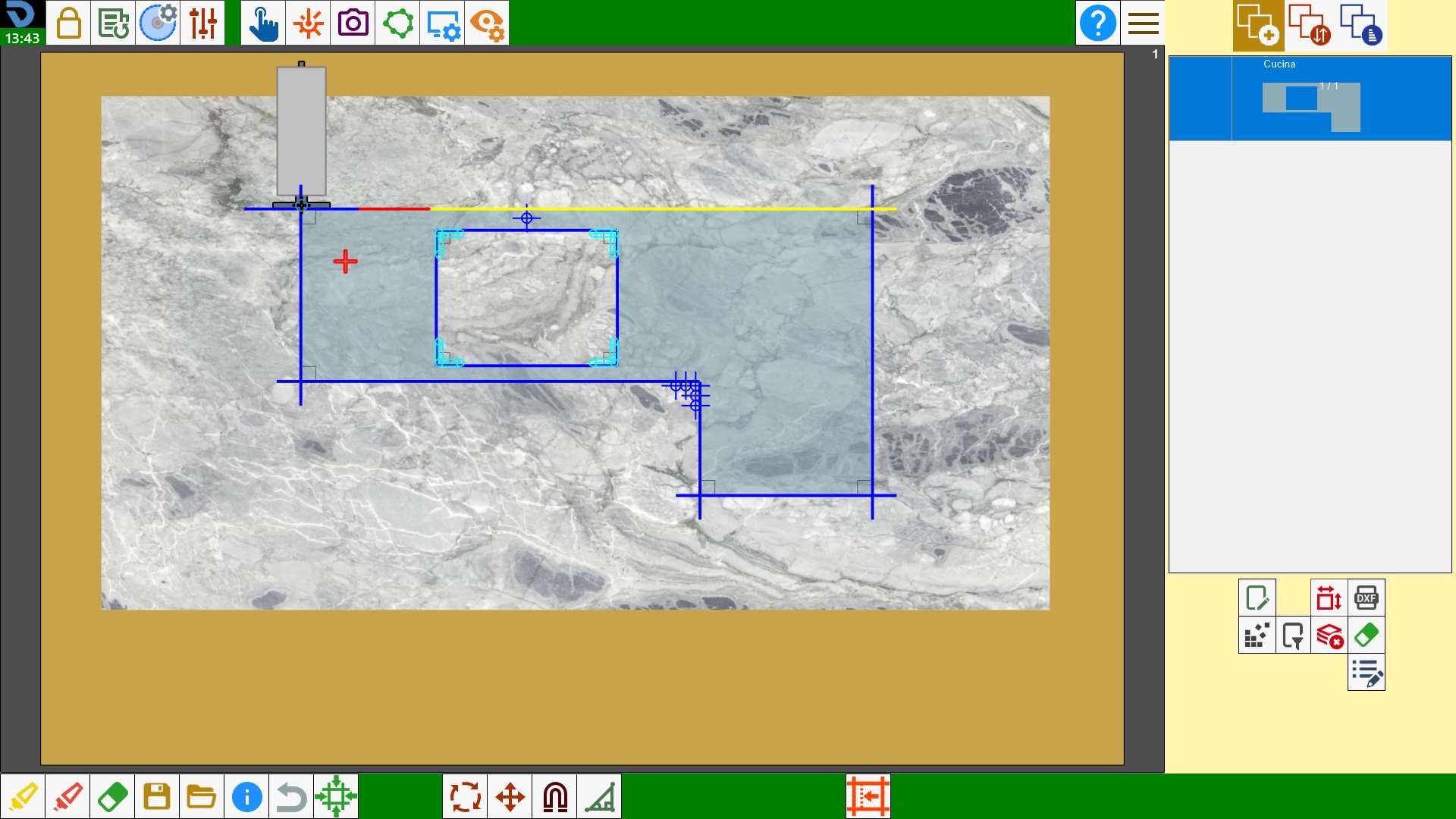

Pressing the button displays the machine in the work area.

Pressing one of the cuts moves the machine so that the centre of the disk is positioned at the end of the cut closest to the selected point.

Advanced mode (Optional)

Advanced mode allows different machine elements to be positioned at the selected point.
When the function is enabled, the following panel appears:

	Disk centre alignment Positions the centre of the disk at the end of the cut closest to the selected point.
	Cross laser alignment Positions the cross laser at the end of the cut closest to the selected point.
	Second tool alignment Positions the second tool (milling cutter or core drill) at the end of the cut closest to the selected point.
	Tool Plus alignment Positions the Tool Plus at the end of the cut closest to the selected point.

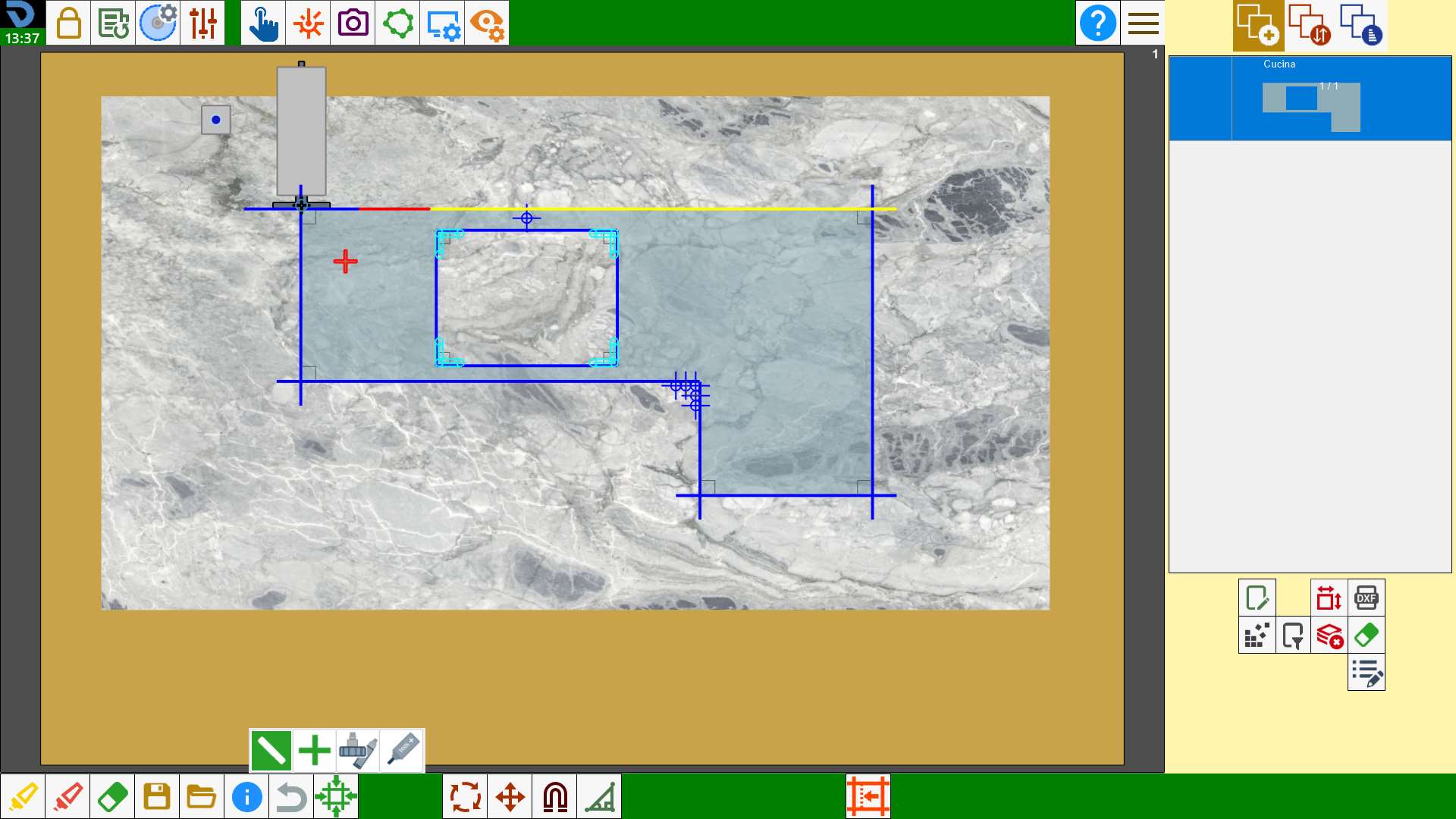

Disk centre alignment

Equivalent to standard mode. The machine moves so that the centre of the disk is positioned at the end of the cut closest to the selected point.

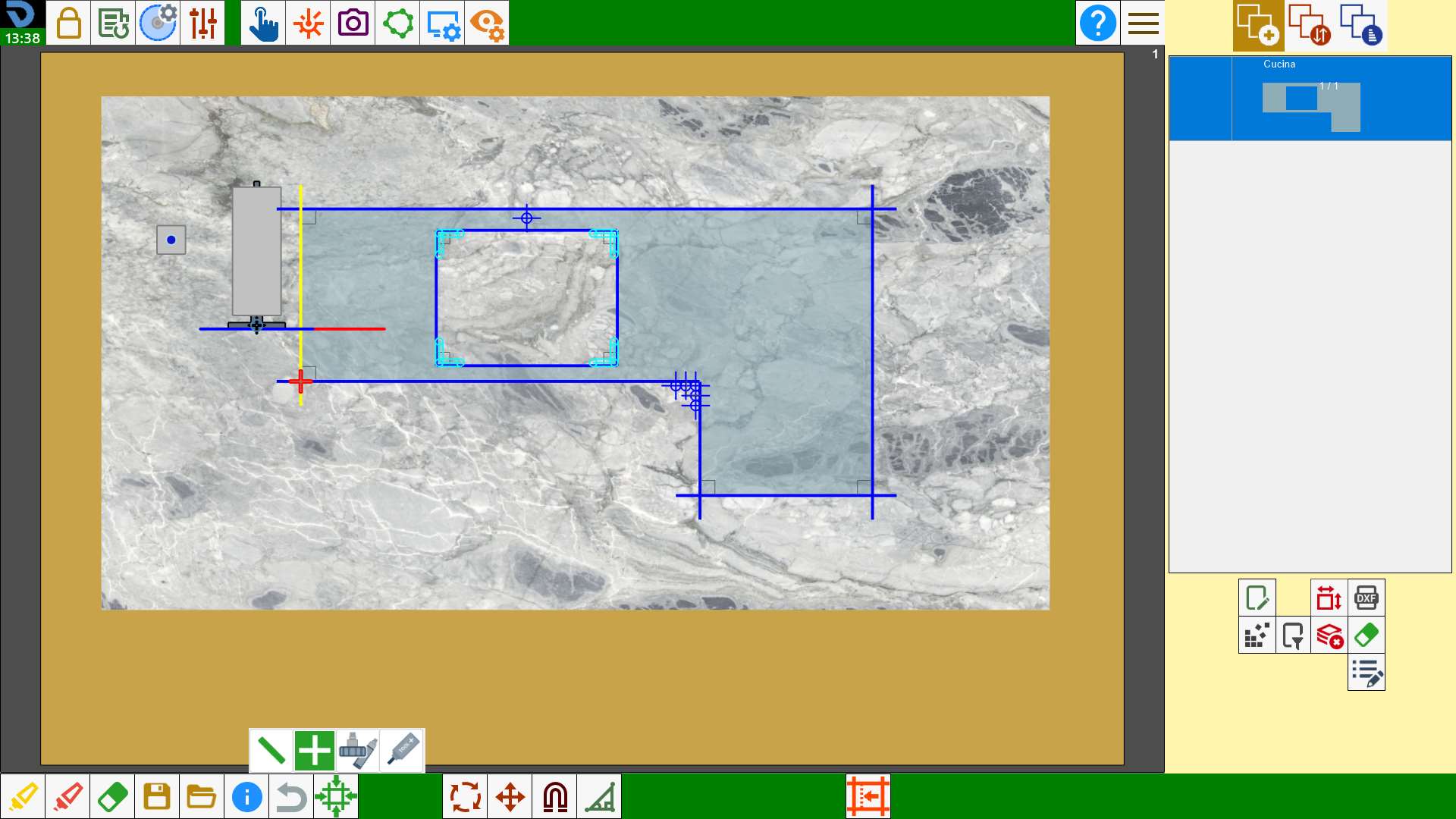

Cross laser alignment

The machine moves so that the cross laser pointer is positioned at the end of the cut closest to the selected point.

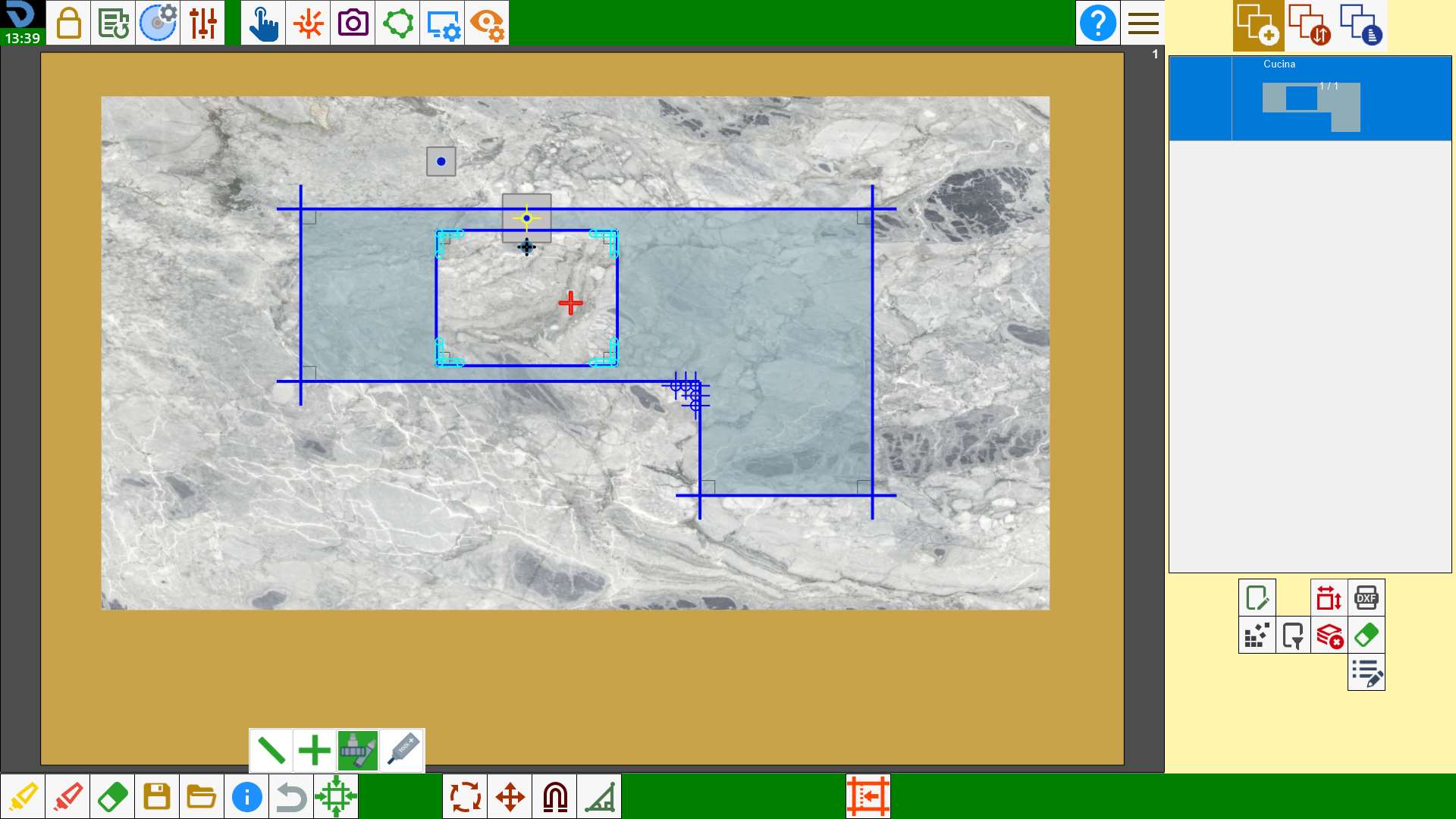

Milling cutter or core drill alignment

The machine moves so that the centre of the second tool mounted on the machine, whether a milling cutter or core drill, is positioned at the end of the cut closest to the selected point.

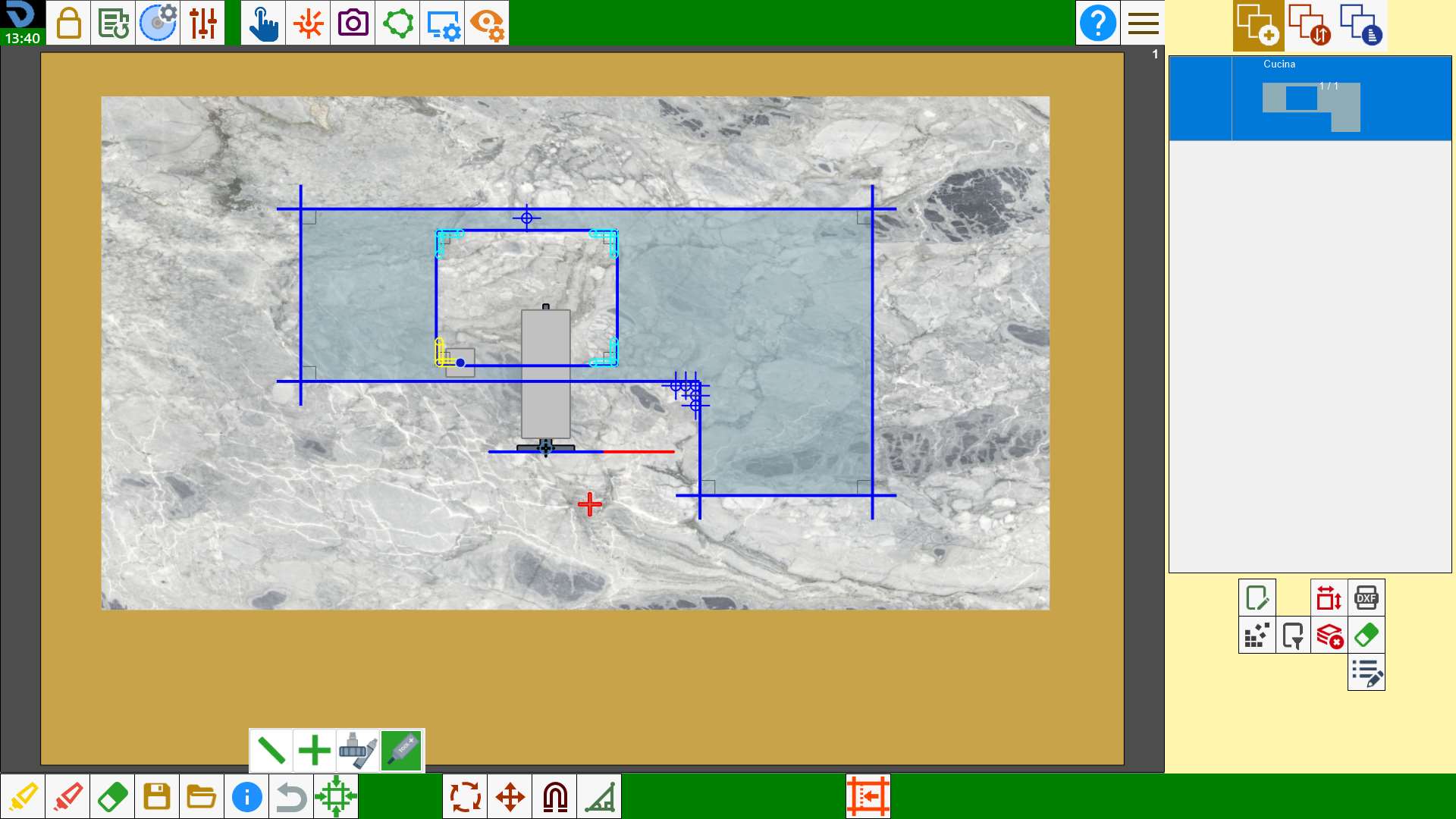

Tool Plus alignment

The machine moves so that the centre of the tool mounted on Tool Plus is positioned at the end of the cut closest to the selected point.
