DOC3.21.2 SLAB PROBING

This function allows a slab probing cycle to be added at the beginning of the cutting program.
The cycle measures the actual slab thickness.


Executing the function

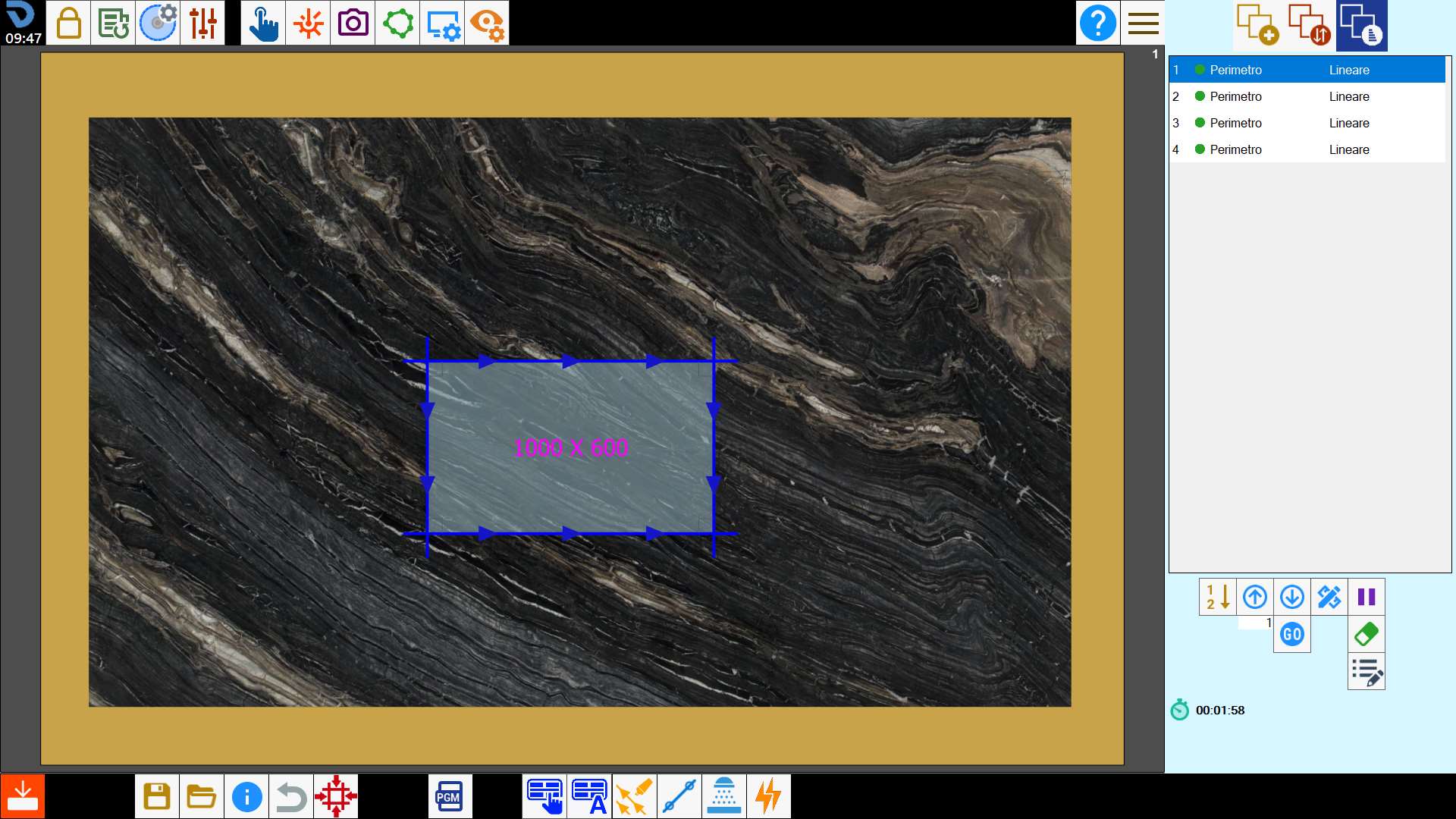

After the button is pressed, the program asks the user to select the point on the slab in the work area where probing is to be performed.

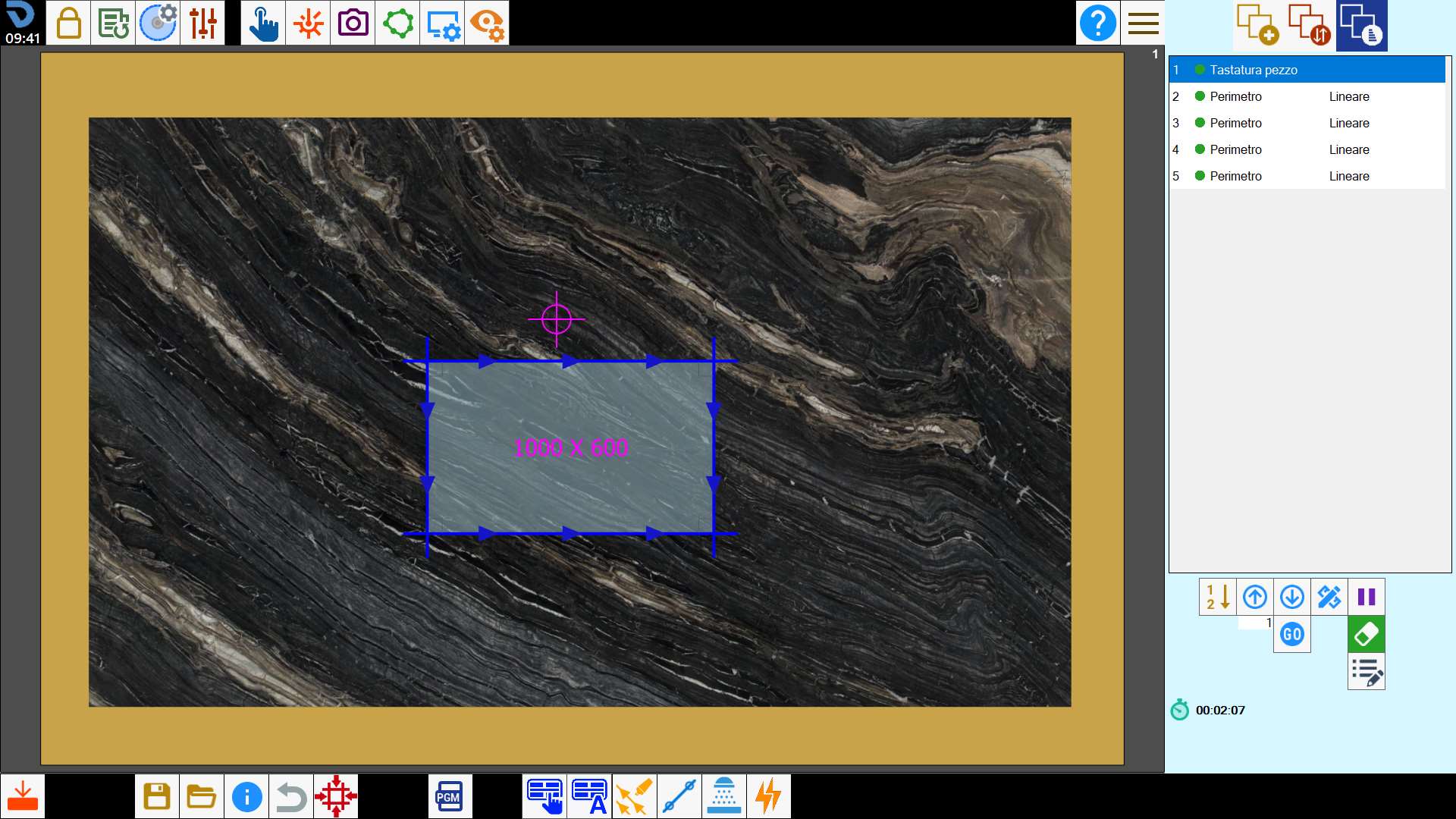

The probing position is indicated on the screen by a fuchsia symbol.

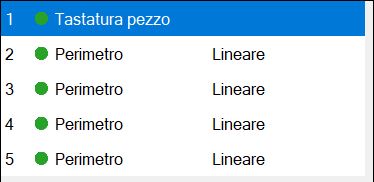

This procedure is then inserted at the beginning of the cut list.


NOTE

If multiple probing operations are inserted in the cutting program, the slab thickness will be calculated as the average of the values obtained from all measurements performed.

;
