Project Match is designed for planning large-scale projects.
Allows multiple slabs to be managed at the same time so that all workings required for the project can be programmed with an overall view.


Control panel

Pressing the button on the lower bar opens a panel used to navigate within the function.

To access Project Match, these buttons are displayed.


New Project
Creates a new project.


Load project
Loads an existing project.


View preview
Opens a screen showing a preview of the entire project.

Within a project, however, the panel contains different buttons.


Save work area
Saves the changes made to the selected work area within the project.


Save all work areas
Saves the changes made to all work areas in the project at the same time.


Save and close project
Allows the Book Match project to be closed, with the option to save or discard the changes.

NOTE

The panel can be moved by dragging it on the screen.

New Project

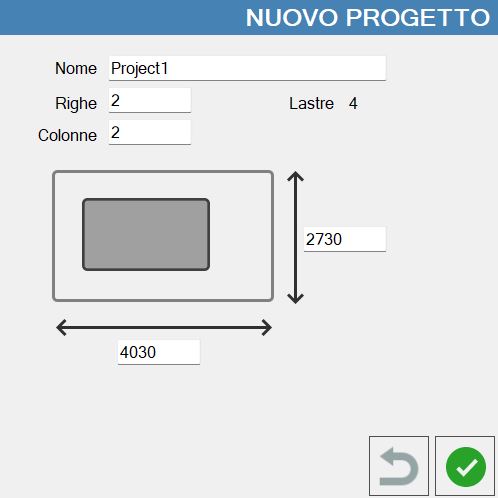

Pressing the button opens a window for creating a multi-slab Book Match project.


Name

Name used to save the project.

Rows

Allows the number of project rows to be selected.

Columns

Allows the number of project columns to be selected.

Slabs

Total number of slabs the project can contain.


Work area dimensions

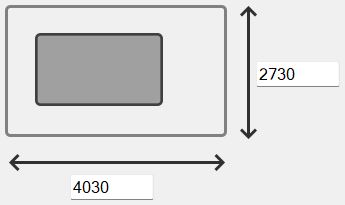

Allows the width and height of the work areas making up the project to be selected.

Load a project

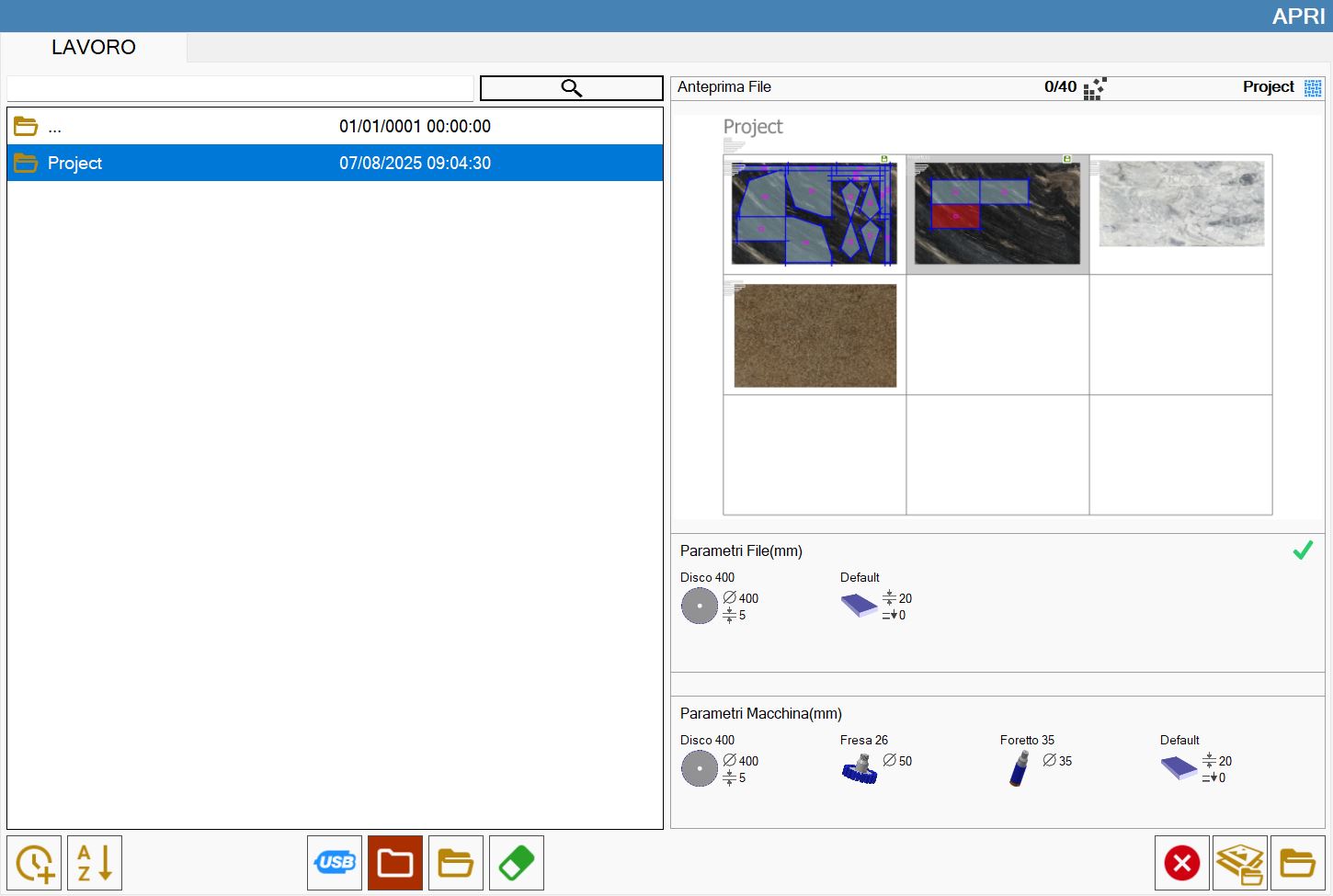

This screen shows the saved projects that can be opened.


Close a project

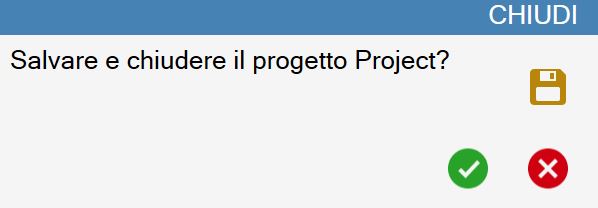

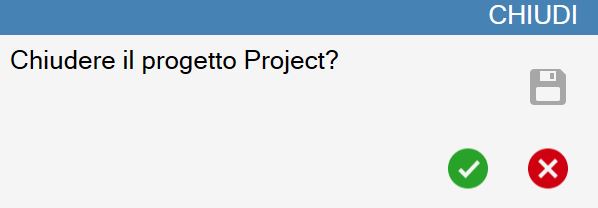

A window opens for closing the project.


Use the following button to change the closing mode:


Closing mode
Allows selection of whether to close the project and save the changes or close it without saving them.

Project

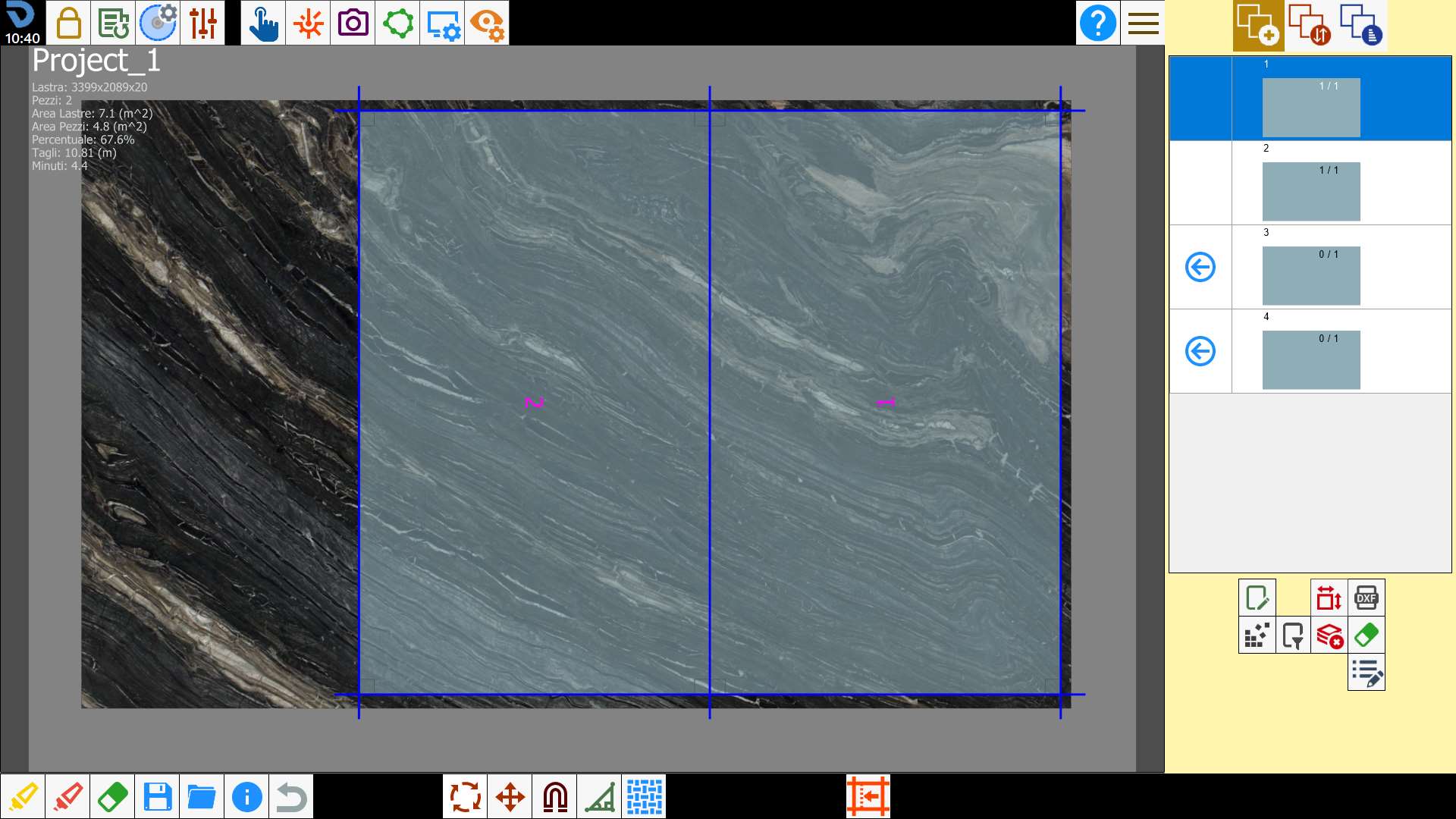

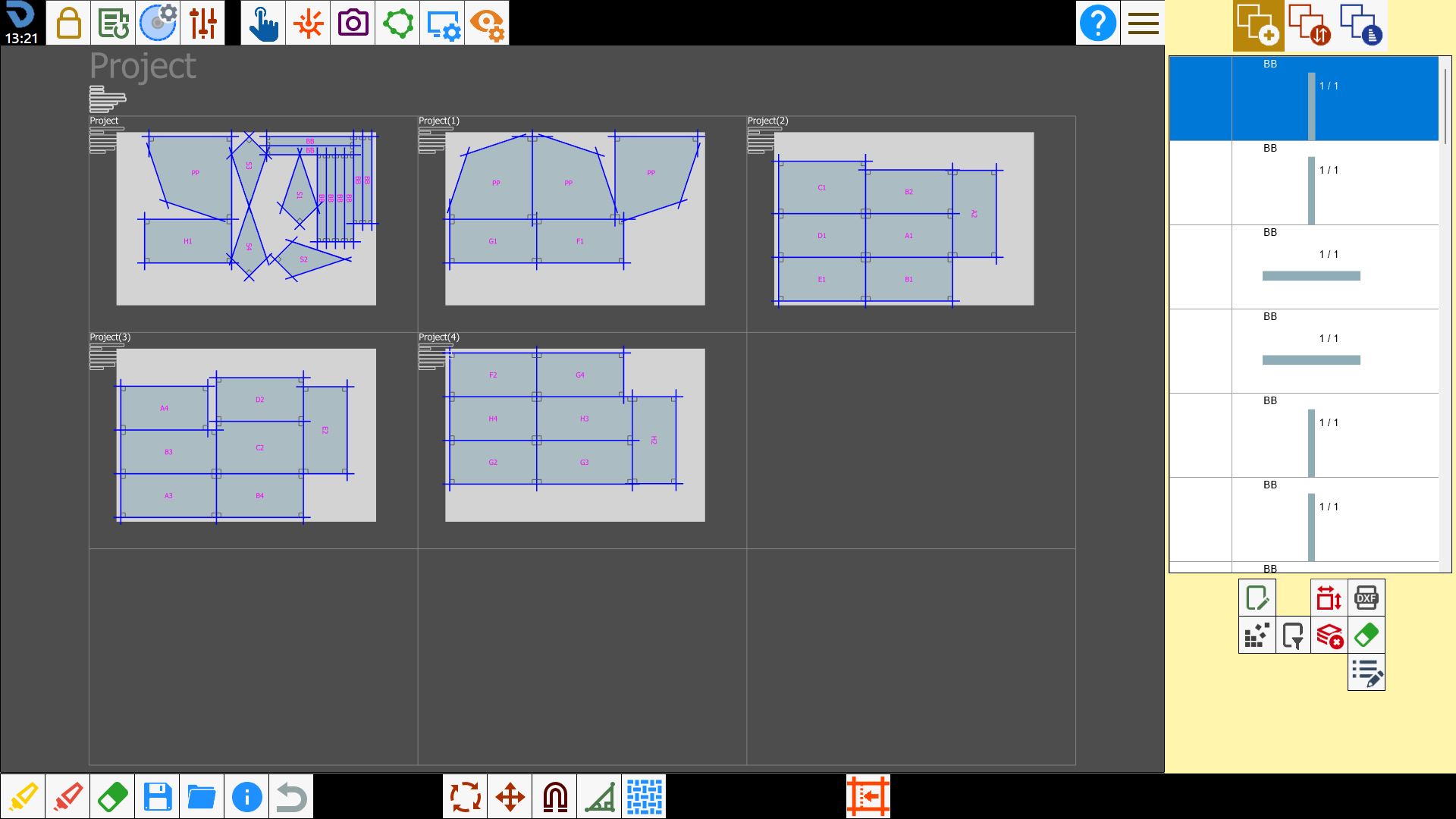

A project is structured in rows and columns that can contain slabs.
On this screen, slabs can be inserted into the project, their perimeters can be defined and pieces can be positioned.
The operator can move pieces between slabs as desired.

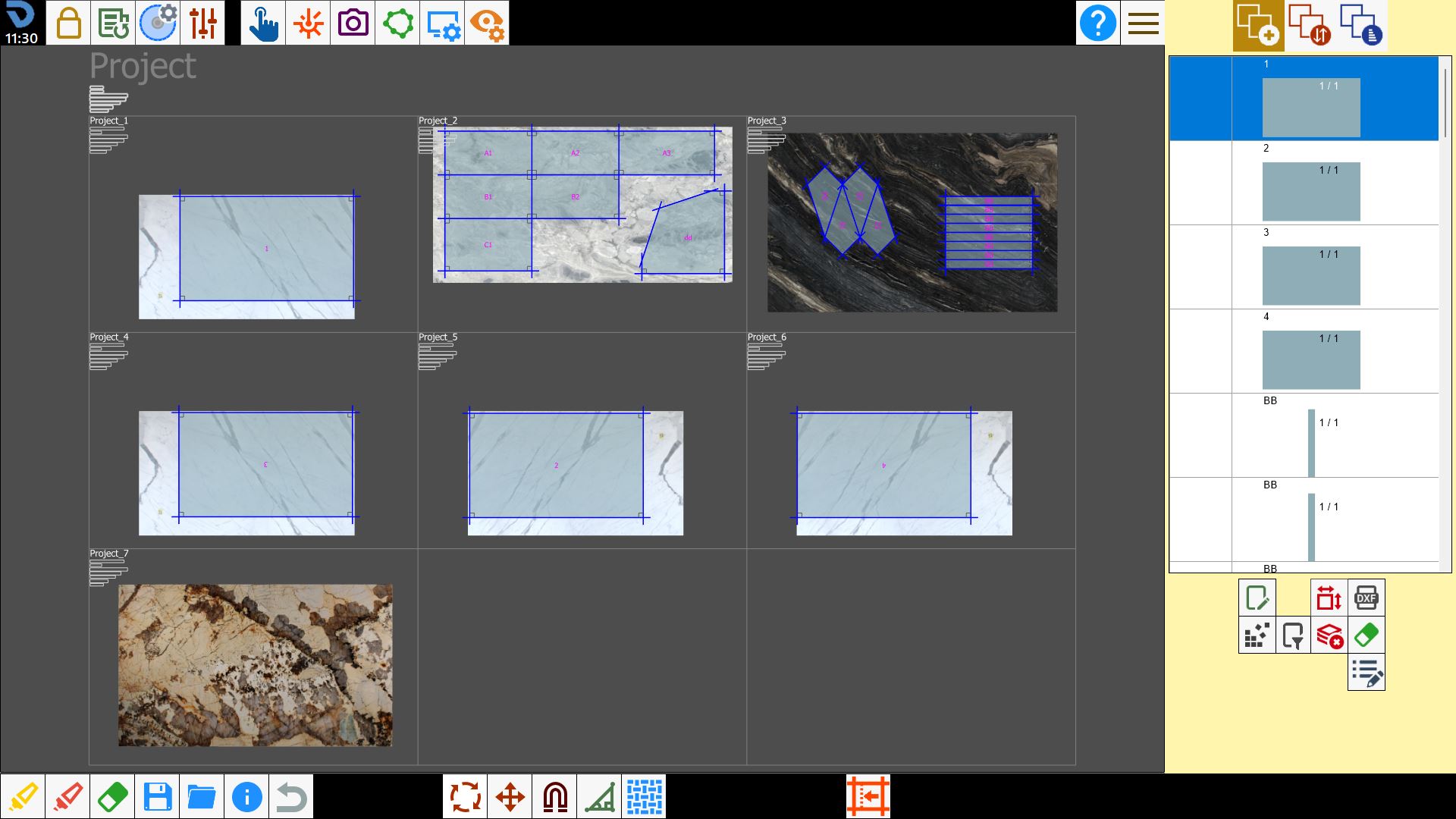

Work zones

The work zones are represented by the project cells.
Each zone allows the working of one slab to be managed by defining a perimeter and inserting pieces within it.


Some information is shown in the upper-left corner of each work zone.

Slab

Slab dimensions (width x height x thickness).

Pieces

Number of pieces positioned within the perimeter.

Slabs Area

Slab perimeter area.

Piece Area

Area of the pieces positioned within the perimeter.

Percentage

Percentage of the perimeter area occupied by the pieces.

Cuts

Total length of the cuts to be performed on the slab.

Minutes

Estimated time, in minutes, required to execute the cutting program on the slab.

Project parameters

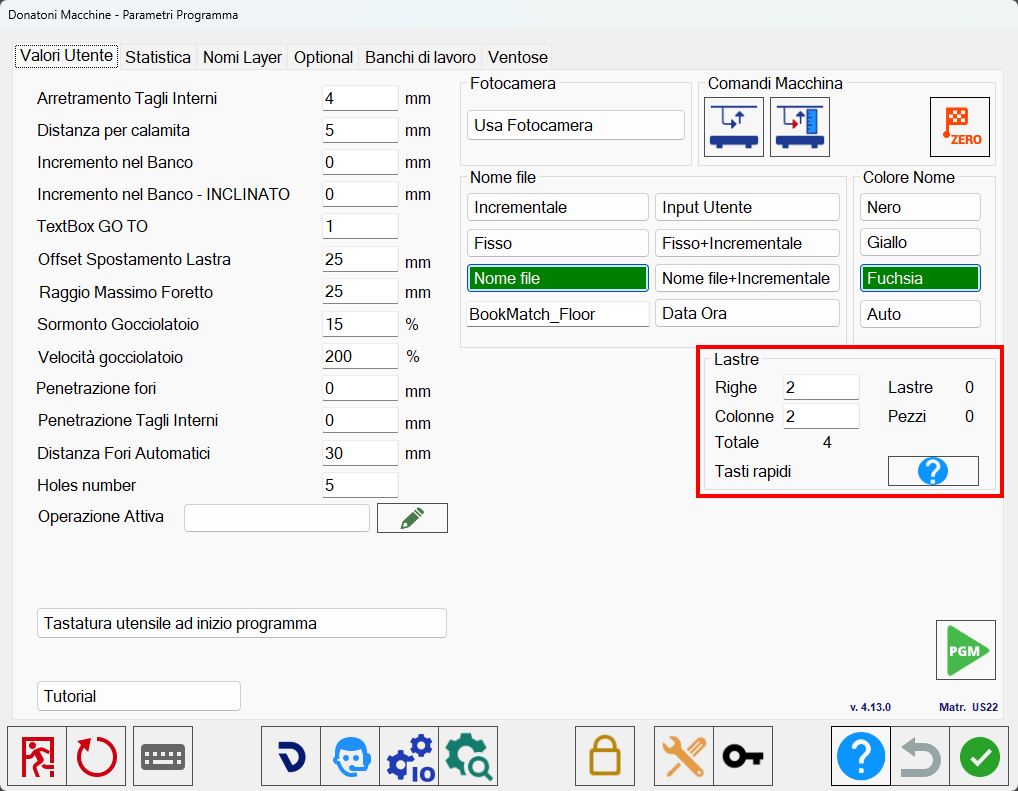

The “Slabs” section is shown in the user parameters panel and can be used to change some properties of the currently open project.


Rows

The operator can change the number of rows in the current project.

Columns

The operator can change the number of columns in the current project.

Total

Total number of zones making up the current project.

Slabs

Number of slabs inserted in the current project.

Pieces

Number of pieces inserted in the current project.


Keyboard shortcuts
Opens the Project Match keyboard shortcuts screen.

Keyboard shortcuts

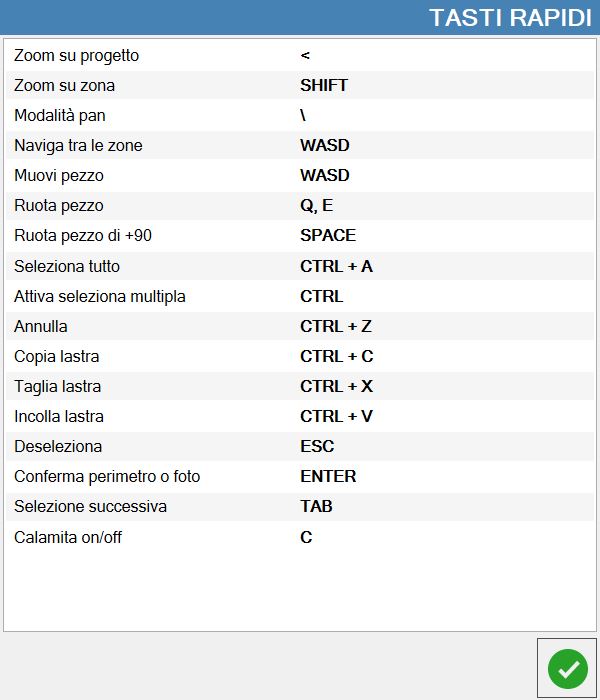

Keyboard commands are available for Project Match to make routine actions easier and simplify office work.


Zoom on project

Expands the view to the entire project.

Zoom on zone

Narrows the view to the selected work zone.

Mode pan

Allows the view to be moved by interacting with the screen.

Navigate zones

Allows the selected zone to be changed using the keys.

Move piece

Moves the selected piece in the four directions.

Rotate piece

Rotates the selected piece counterclockwise and clockwise, respectively.

Rotate piece _90

Rotates the piece 90 degrees clockwise.

Select all

If a work zone is selected, this command selects all pieces within it.
Otherwise, it selects all pieces in the project.

Enable multiple selection

Enables multiple selection of pieces/work zones.

Undo

Undoes the last operation performed.

Copy slab

Copies the slab in the selected work zone.

Cut slab

Cuts the slab in the selected work zone.

Paste slab

Pastes the slab in the selected work zone.

Unselect

Deselects all pieces/work zones.

Confirm perimeter\photo

Use to confirm the perimeter/photo

Select next

Selects the next piece within the selected work zone.

Magnet on/off

Enables/disables the piece magnet.

Quick commands

The quick commands window can be accessed using the right mouse button.
The available functions change depending on whether the click is inside a work zone or outside all zones.

Project commands


Save workings
Saves the changes made to all work zones.


Report
Saves a PDF file containing a project report.


Nesting
Performs nesting of the pieces on all slabs in the project.

Work zone commands


Lock/Unlock
If a work zone is locked, the pieces within it cannot be moved and no new pieces can be inserted.
Its perimeter cannot be changed and other photos cannot be selected.
It must be unlocked to make these operations available again.


Cut it
Takes the user to the management and cut-optimisation screen for the selected slab in order to create the ISO program.


Save
Saves the changes applied to the individual work zone.


Report
Saves a PDF file containing a report for the selected work zone.


Import File
Loads a saved slab-state file into the project.


Nesting
Performs nesting of the pieces within the selected work zone.

Nesting

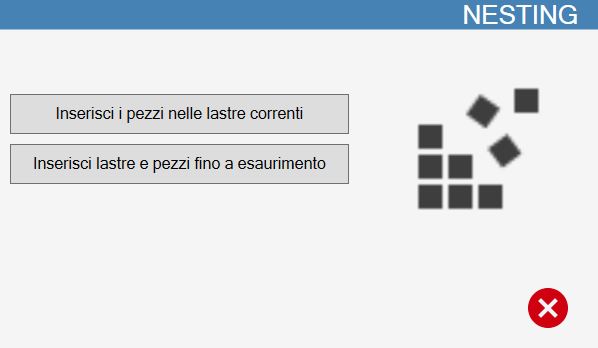

When Nesting is enabled for the entire project, two modes become available.


Insert pieces into current slabs

Inserts pieces on slabs already present in the project in order to optimise the available space

Insert slabs and pieces until all pieces are used

Slabs are created and Nesting is applied until all pieces in the list have been used.
The slab dimensions are the same as those of the first slab that was defined.
This is used to indicate how many slabs may be required to complete the project when slabs of the same shape are to be cut.

To use Nesting until all pieces have been inserted, a perimeter must be created to give the program the dimensions of the slabs that will be used.
Slabs of the same size will be created until all pieces in the list have been inserted using Nesting.


Report

Saves a PDF report in the dedicated folder for the current project/work zone.

ReportWorkzone.pdf

ReportProject.pdf

Preview

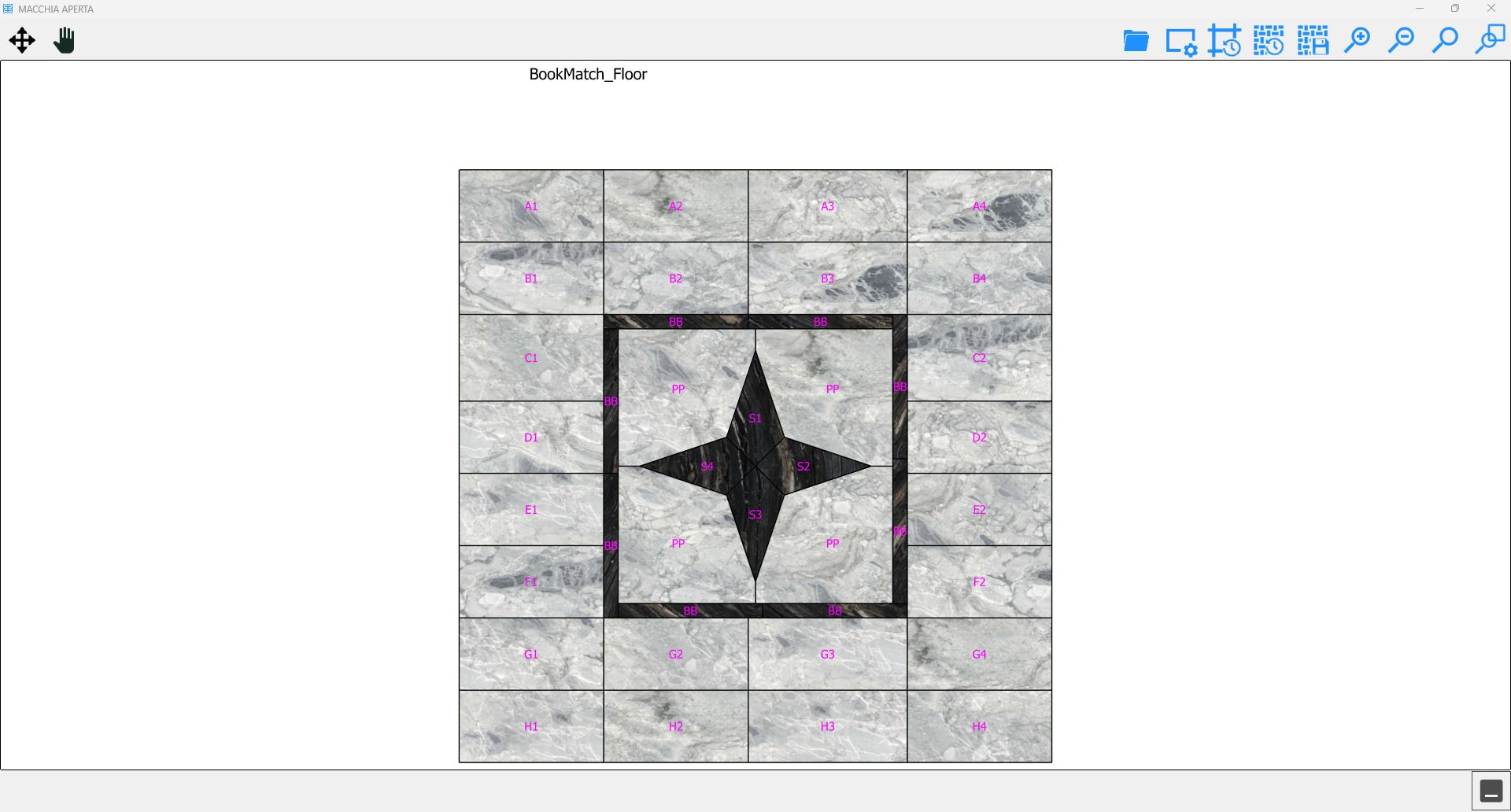

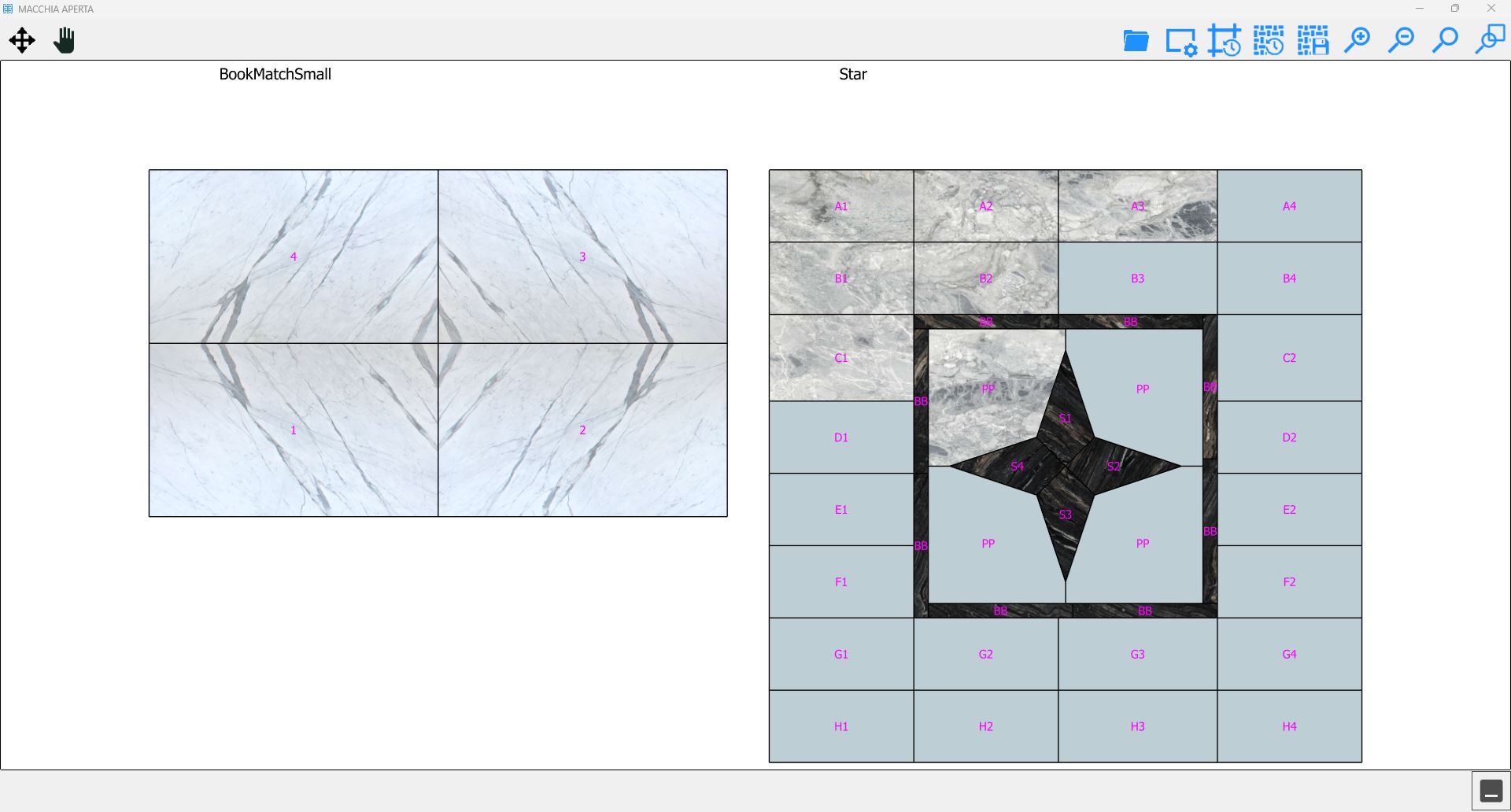

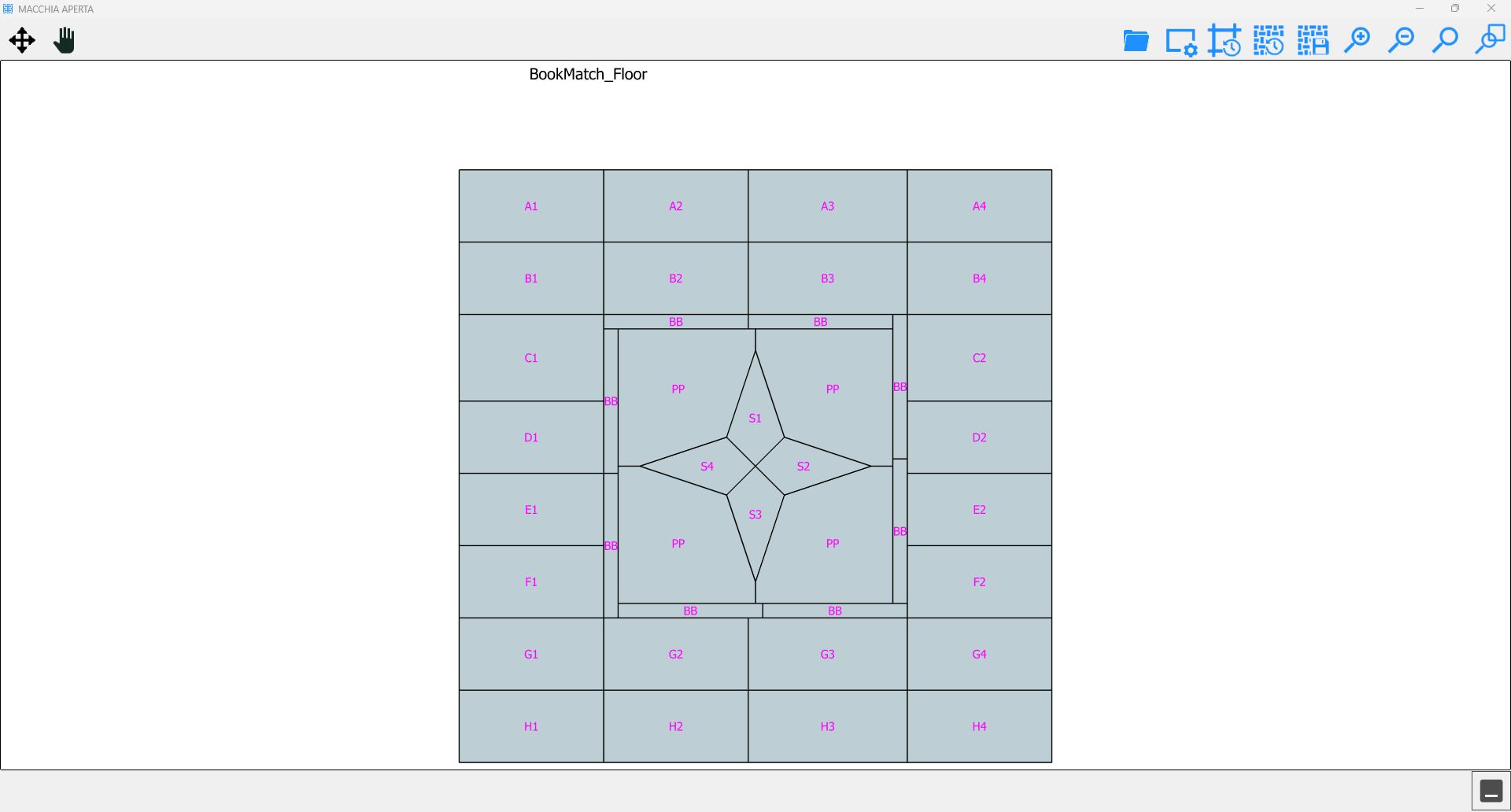

This window provides an overall real-time view of the project.
Pieces can be inserted into the selected work zone by pressing inside them in the preview.
In addition, by dragging the background of a piece, the operator can change the position of the piece on the workbench.


Buttons

The following buttons are located on the left.


Move pieces
Allows the pieces making up the preview to be moved.
Displays the buttons on the lower bar of the window.


Pan view
Used to move the preview view with all pieces.

The following buttons are located on the right.


Open render
Opens the folder where the project renders are saved.


Customise preview
Opens a panel used to customise the colours of the entities in the preview.


Restore piece positions
Restores moved pieces to their original position.


Restore project configuration
Restores the project configuration.


Save render
Opens a panel used to save the project render.

Project planning

Create a new project

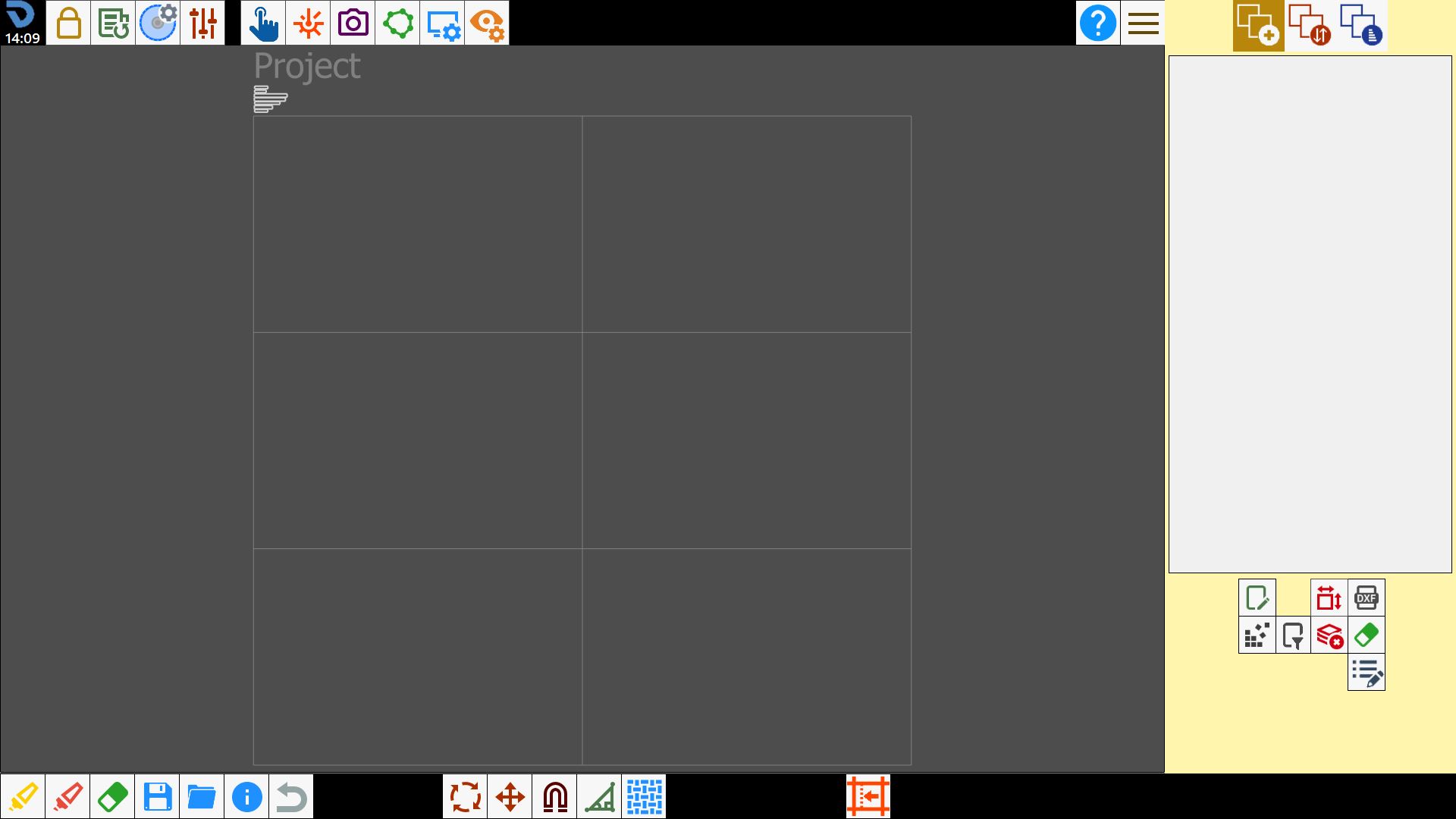

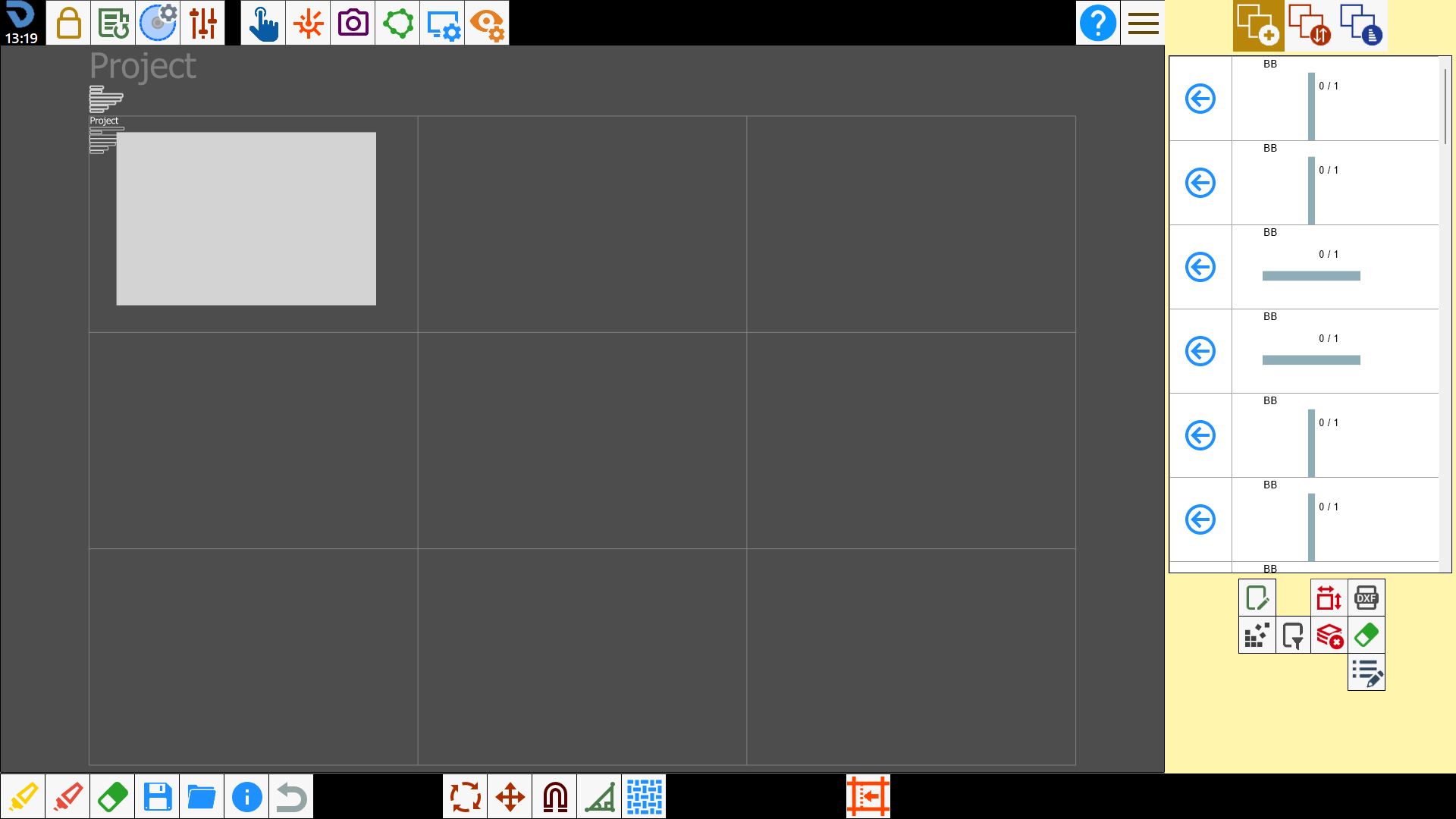

The operator creates a new project by specifying its name, the number of rows and columns that make it up—remembering that each cell corresponds to one slab—and the cell dimensions. Once confirmed, the screen will appear as follows:


Add slabs

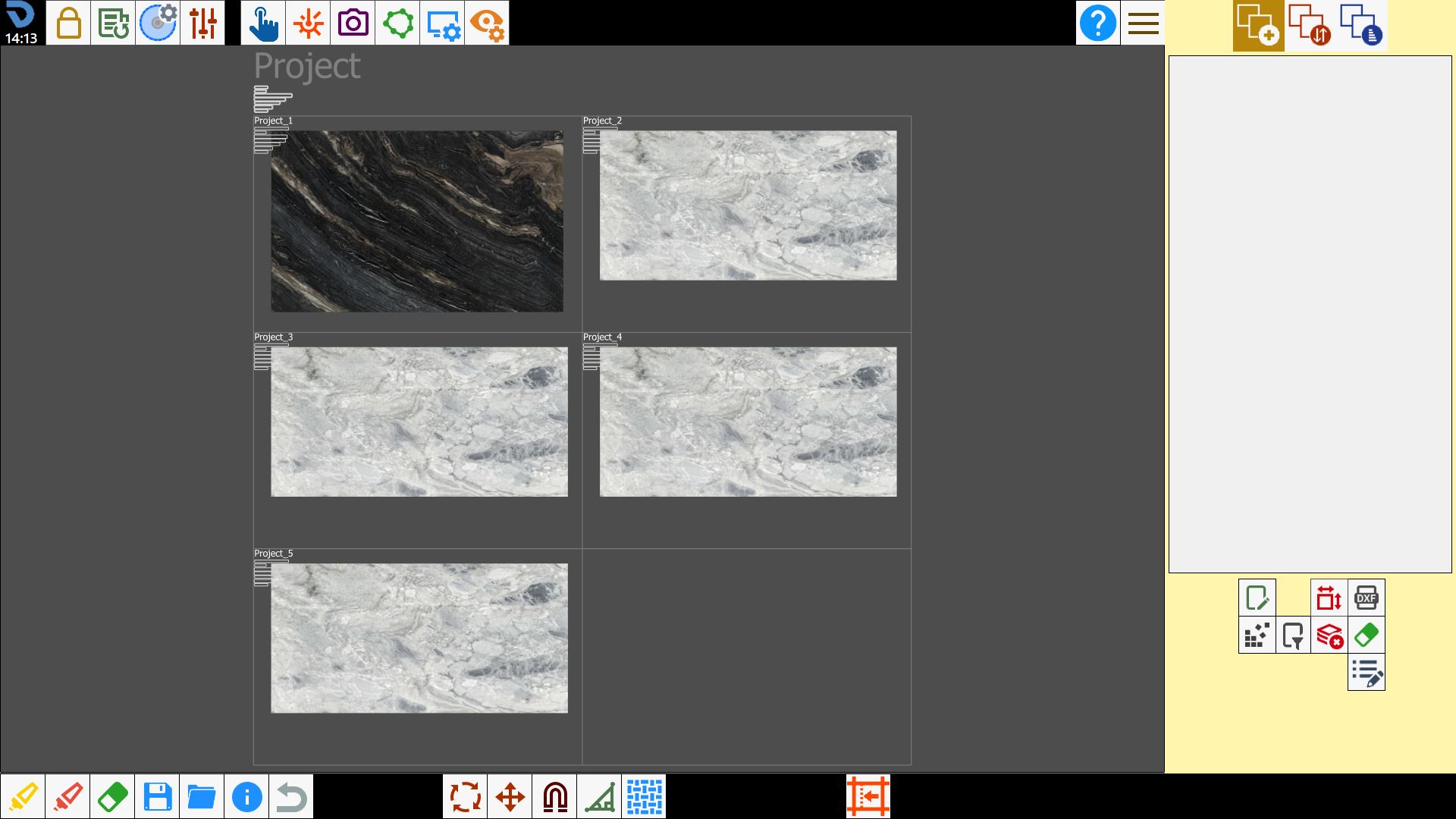

Then insert the slabs into the work zones. To do this, select a zone, load a photo from file and select the perimeter.


Import pieces

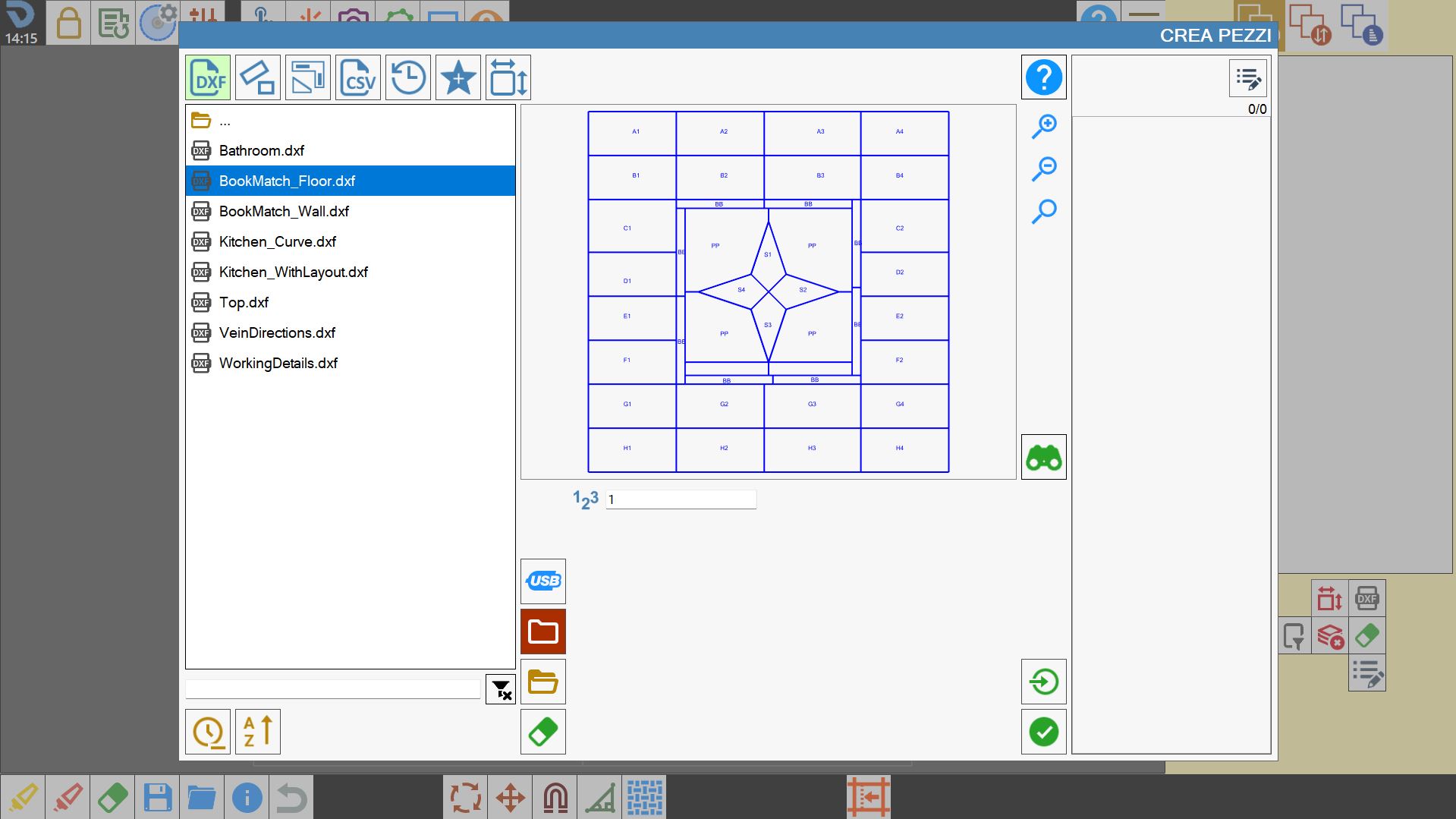

At this point, import the pieces to be cut. Both DXF files and standard pieces can be loaded. There is no limit to the number of files that can be loaded.


Open preview

When pieces are present in the list, the project preview window can be opened.
It shows all pieces that have been imported.


Insert pieces into slabs

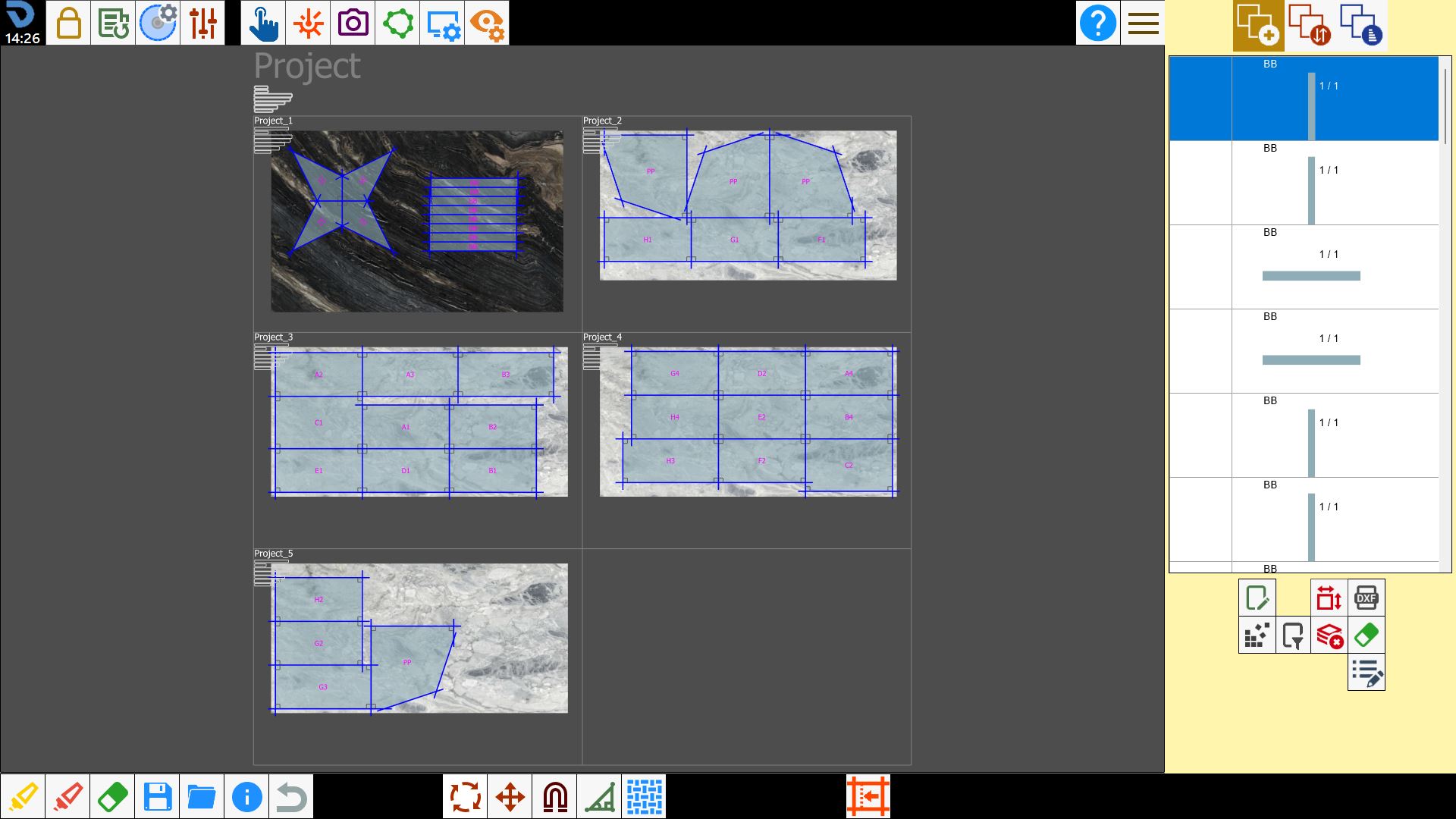

To insert pieces into the slabs, use the standard method from the pieces list or select inside the piece areas shown in the preview.
They will then be inserted on the slab in the selected work zone.
Dragging one of the pieces from the preview also moves the piece on the slab, so that the best area of the slab can be selected to match the veining between the various pieces. The reverse can also be done: drag the piece on the slab and use the preview to check whether the veining matches according to where it is moved.


;
