Donatoni Macchine
Machine technical documentation Operational document

DOC3.3.1 TOOL PLUS (OPTIONAL)

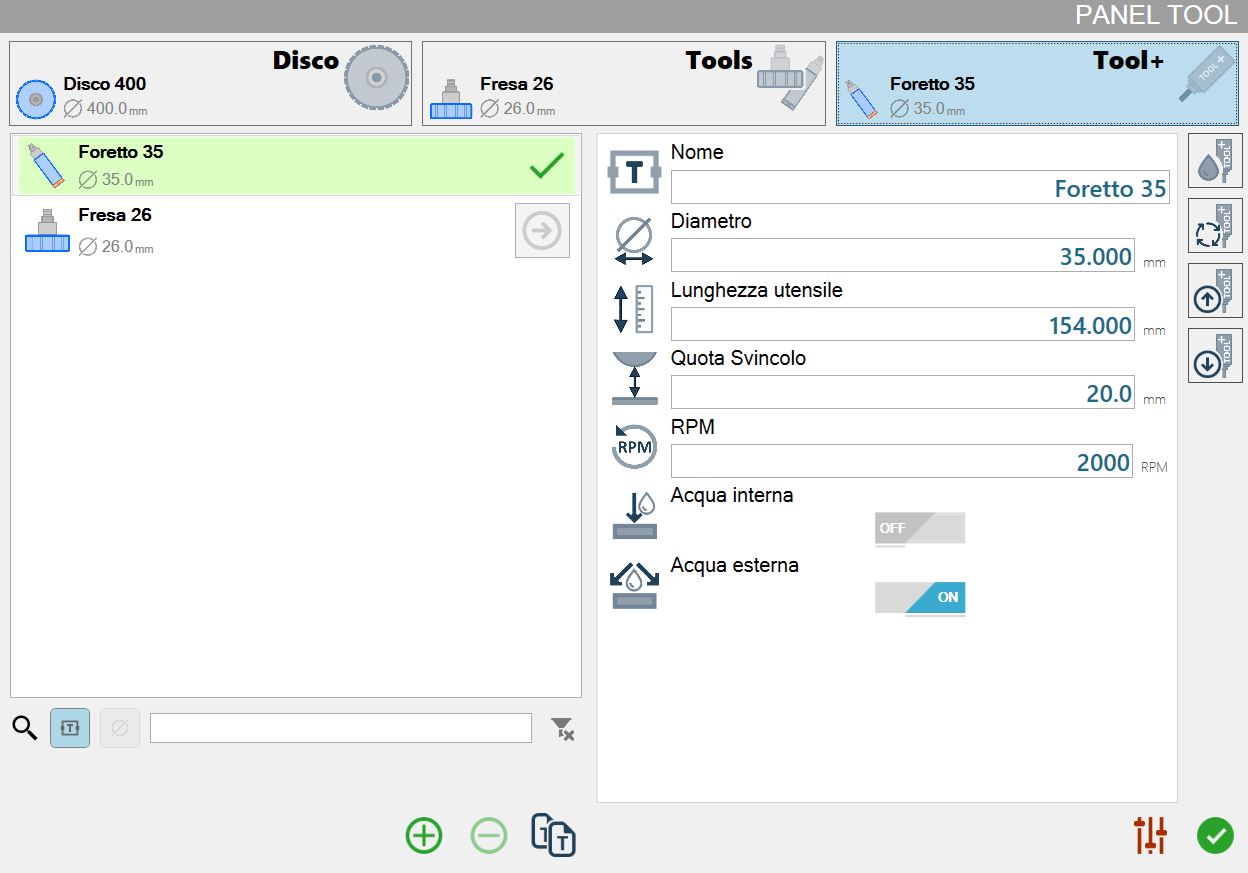

If the machine is equipped with the optional Tool Plus, a new dedicated section is available in the tool panel.


Buttons


Water On/Off
Controls the water flow from the Tool Plus line.


Enable/Disable rotation
Starts or stops Tool Plus rotation.


Raise
Raises the machine unit on which the tool is mounted.


Lower
Lowers the machine unit on which the tool is mounted.

;
