Donatoni Macchine
Machine technical documentation Operational document

DOC3.3.3 DOUBLE-DISK MACHINE

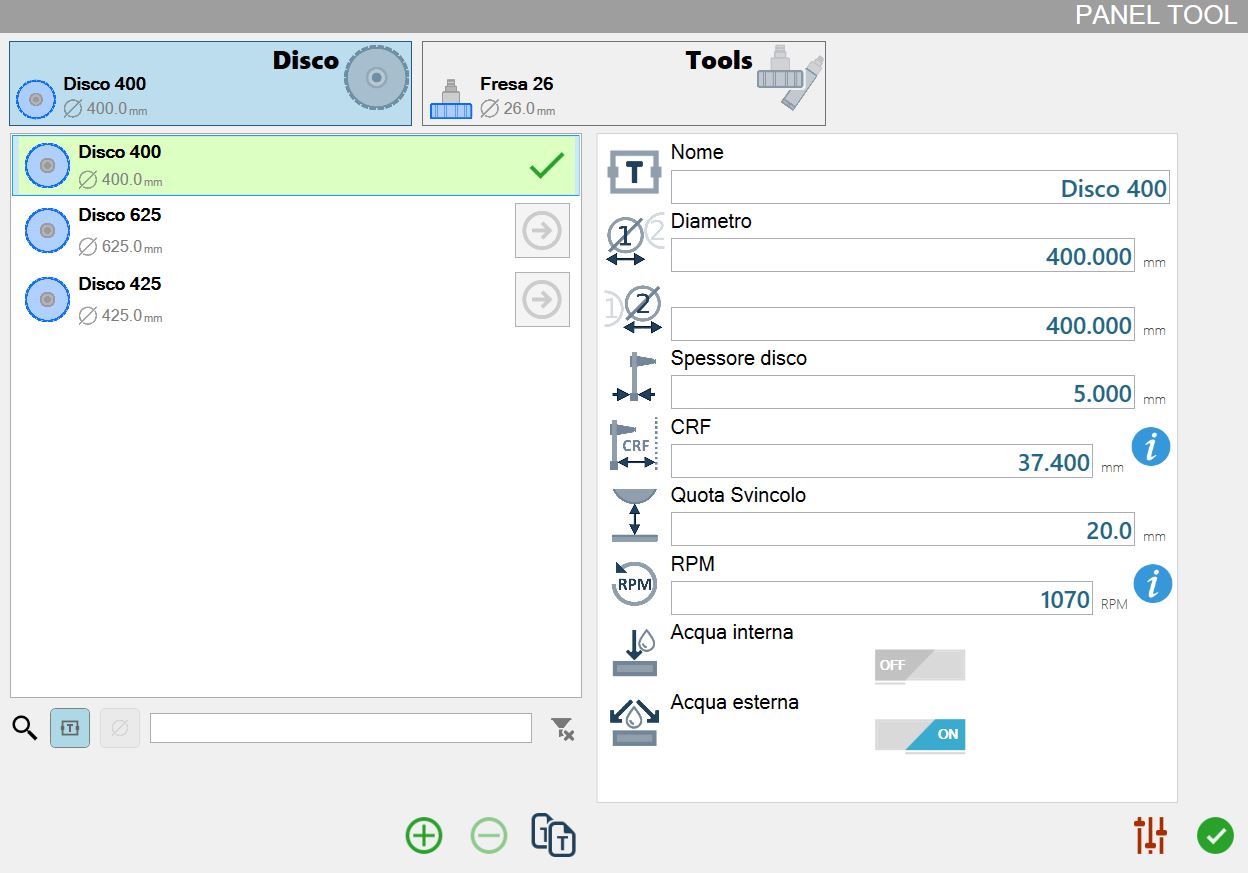

This machine type allows two disks to be mounted on the head instead of one. The tool panel allows both to be managed.


Parameters

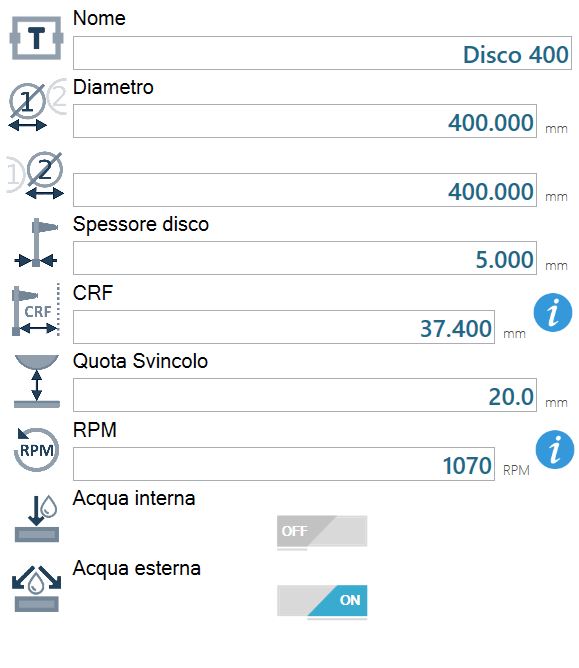

Each tool in the “Disk” section contains information relating to both disks mounted on the machine.


Specifically:


First disk diameter
Diameter of the first disk mounted on the machine.


Second disk diameter
Diameter of the second disk mounted on the machine.

;
