Using this function, Parametrix can automatically determine the perimeter of a photographed slab.

Buttons

Automatic perimeter Starts the calculation to automatically recognise the perimeter of the slab shown.

How to use automatic perimeter

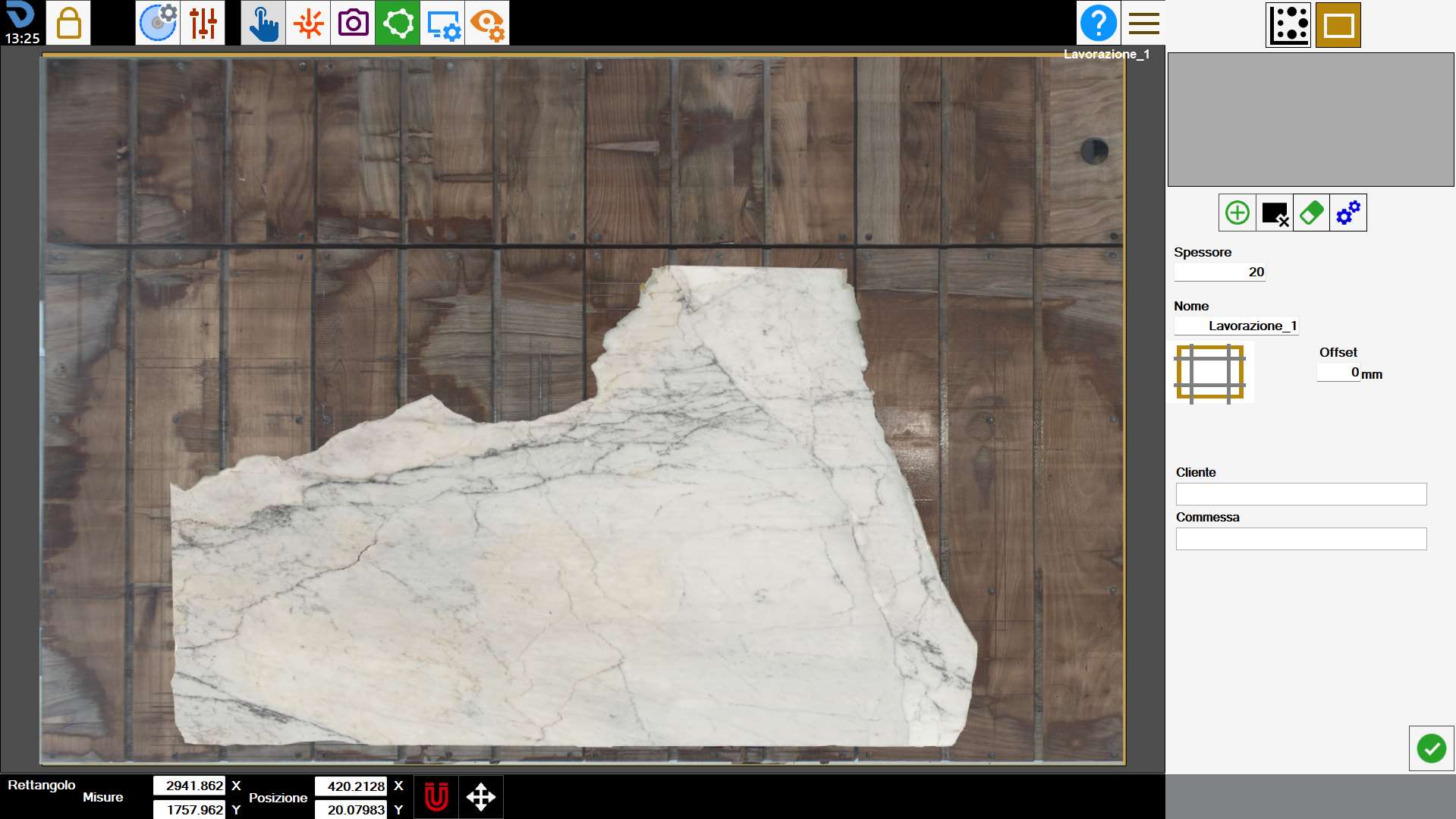

To use this function, take a photo of a slab on the workbench or load an image from the computer.
The operator is then taken to the perimeter management panel.

In the section on the right, press the button to calculate the automatic perimeter.

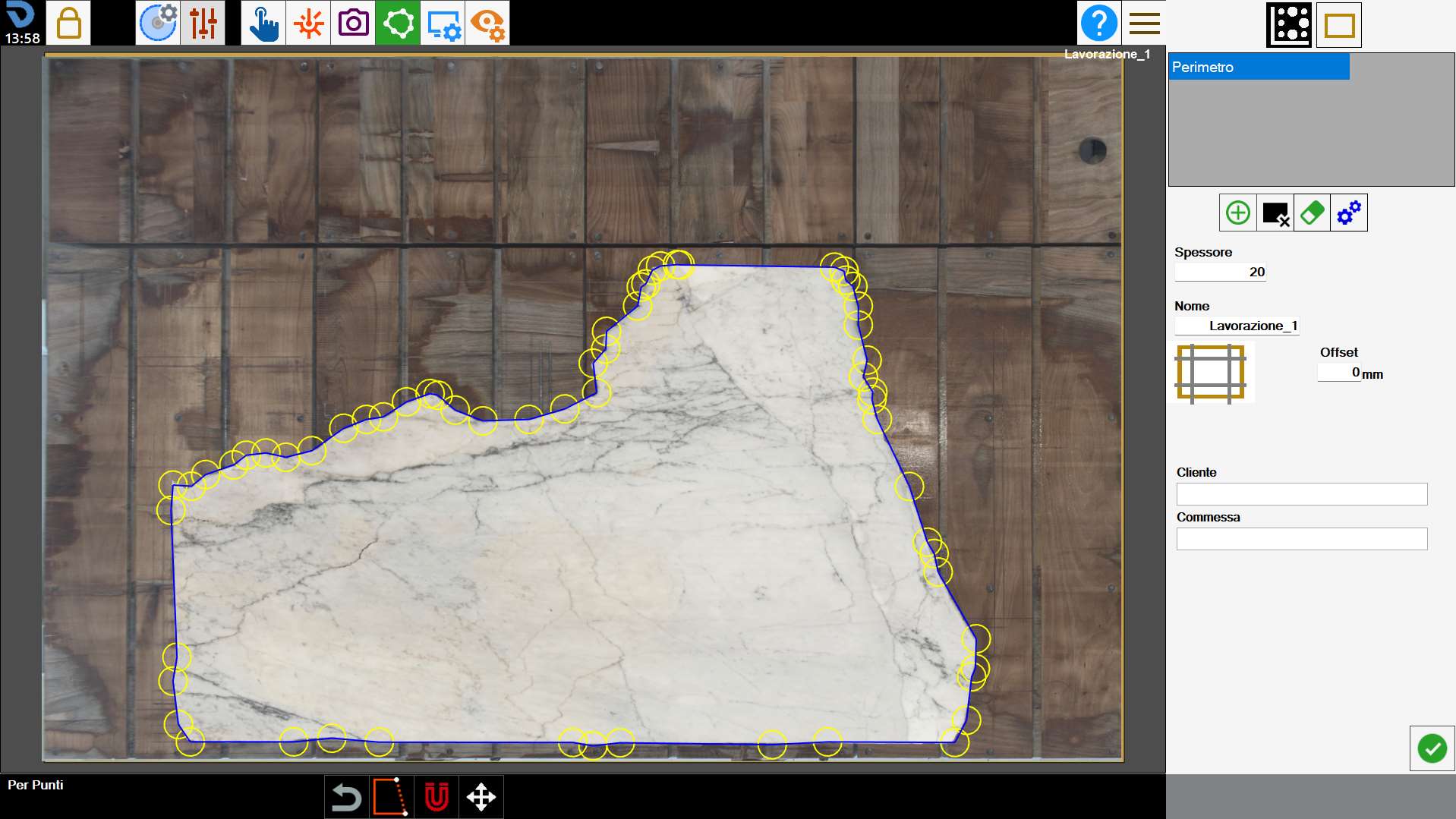

At the end of the operation, the vertices of the calculated perimeter can be edited manually if they are not sufficiently accurate.
