Technical maintenance sheet Controlled procedure
Before proceeding, carefully read the | |
Intervalevery 300 working hours | Operation complexityLow01 / 05 |
Authorized personnelMachine operator | Required PPE:  |
Images
Procedure
At least every 300 working hours, use a suitable grease gun to grease the Z-axis ball nut bearing with 1 cm3 of grease through the grease nipple shown in the figure

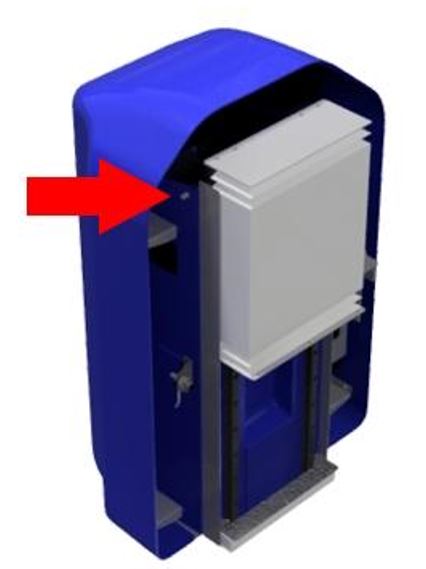

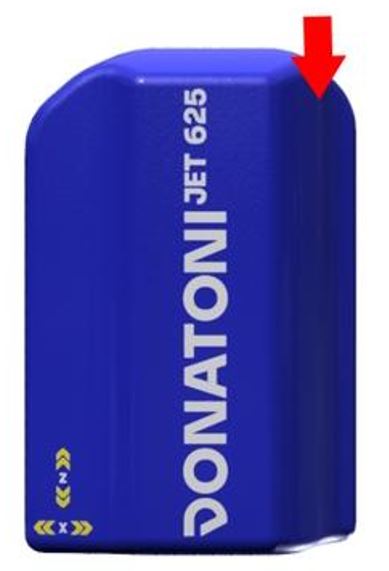

The grease nipple is located on the right side of the quill, underneath the guard shown in the figure, and is positioned as indicated and highlighted in the image.
