Technical maintenance sheet Controlled procedure

MN0006GREASING Y-AXIS BRIDGE TRANSMISSION SHAFT BEARINGS

Before proceeding, carefully read the

SAFETY INSTRUCTIONS

Intervalevery 300 working hours

Operation complexityLow01 / 05

Authorized personnelMachine operator

Required PPE:


Video



Procedure

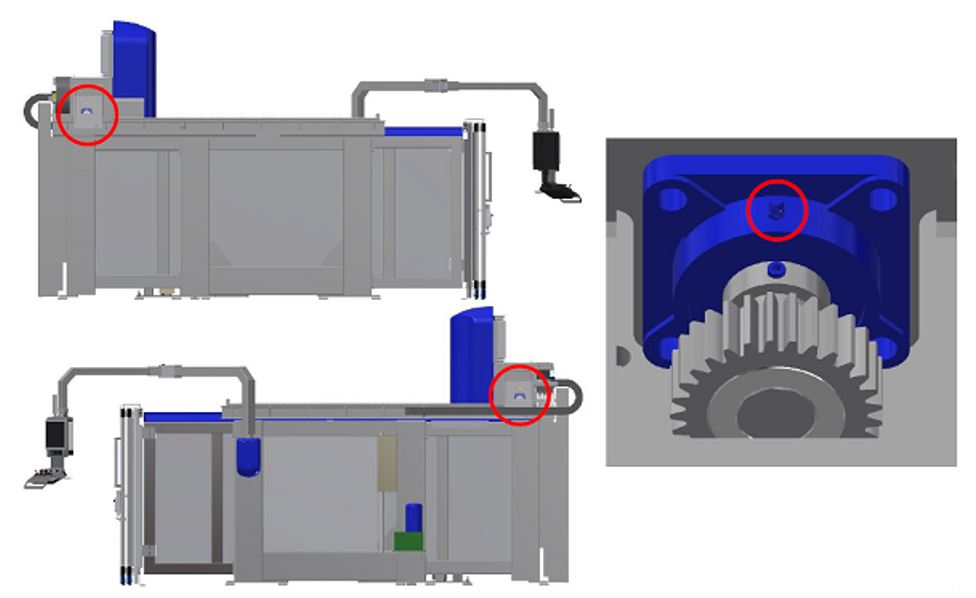

At least every 300 working hours, use a suitable grease gun to grease the Y-axis transmission shaft bearings with 1 cm3 of grease through the grease nipples shown in the figure


;
