Technical maintenance sheet Controlled procedure

MN0011HYDRAULIC POWER UNIT OIL CHANGE

Before proceeding, carefully read the

SAFETY INSTRUCTIONS

Intervalevery 2000 working hours

Operation complexityLow01 / 05

Authorized personnelMachine operator

Required PPE:


Video

Procedure

As a rule, the oil must be changed at least every 2000 working hours; replacement must be accompanied by thorough cleaning of the reservoir.

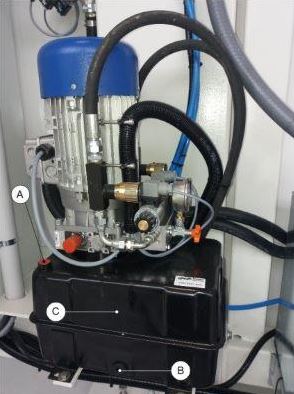

Drain the oil through the lower plug (pos B in the figure). Fill the reservoir with fluid through a 10 micron mesh filter via the filler cap (pos A in the figure)


;
