Donatoni Macchine
Technical maintenance sheet Controlled procedure

MN0012CLEANING ELECTRICAL CABINET FILTERS

Before proceeding, carefully read the

SAFETY INSTRUCTIONS

Intervalevery 2000 working hours

Operation complexityLow01 / 05

Authorized personnelMachine operator

Required PPE:


Procedure

Operations

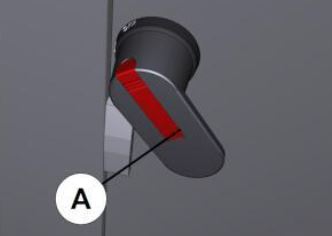

Turn switch A to the OFF position

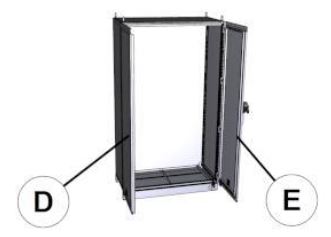

Open doors D and E

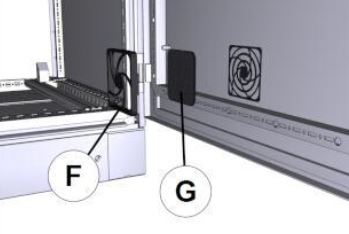

Remove guard F and filter G

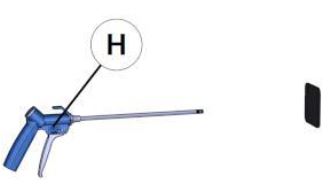

Clean the filter using a jet of compressed air H


Restore the components by carrying out the procedure in reverse order

;
