Technical maintenance sheet Controlled procedure

MN0047FOCUSER REPLACEMENT

Before proceeding, carefully read the

SAFETY INSTRUCTIONS

Intervalevery 100 working hours

Operation complexityLow01 / 05

Authorized personnelMachine operator

Required PPE:

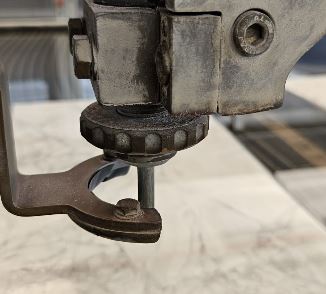

  1. Remove the probe to facilitate disassembly

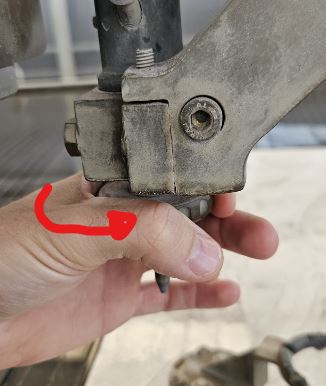

  2. Turn the ring nut to remove the focuser.

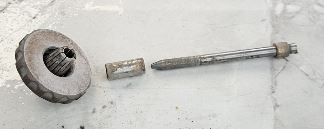

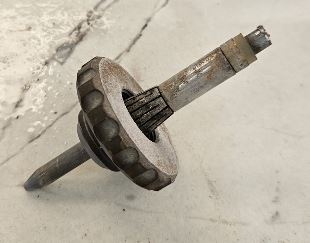

  3. Replace the focuser with a new component, retaining the spacer


  4. Reassemble and screw the ring nut back on after inserting the new component

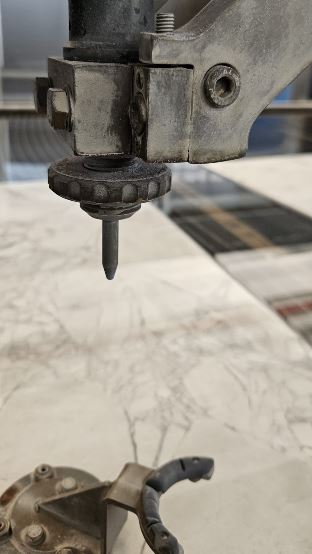

  5. Reinstall the slab probe


  6. Perform nozzle probing to set the correct “Delta Z” value

Video

;
