Donatoni Macchine
Technical maintenance sheet Controlled procedure

MN0053ABRASIVE HOSE REPLACEMENT

Before proceeding, carefully read the

SAFETY INSTRUCTIONS

Intervalevery 1000 working hours

Operation complexityMedium03 / 05

Authorized personnelMachine operator

Required PPE:


  1. Rotate axis A to 90_ to access the closure on the head

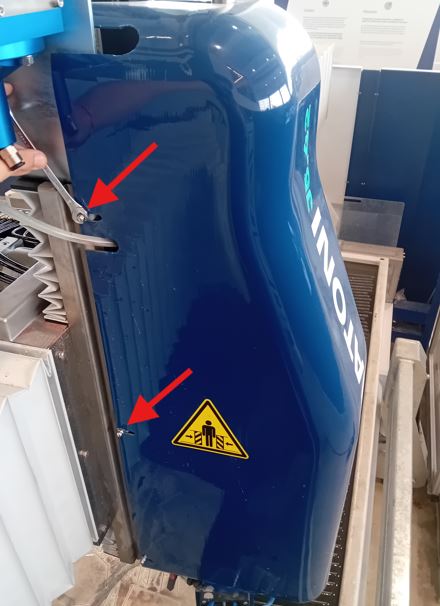

  2. Remove the guard


  3. Remove the protective guard under the head

  4. Remove the hose clamp

  5. Pull the hose out from below, noting its routing; the new hose must be routed along the same path

  6. Insert the new abrasive hose

  7. Secure the hose with the dedicated fastener

  8. Close the guards, taking care with the cables under the head

Video

;
