Technical troubleshooting sheet Emergency diagnostic procedure

PE0028A AXIS NOT IN CORRECT POSITION

Before proceeding, carefully read the

SAFETY INSTRUCTIONS

DescriptionA axis out of position

SeverityLow01 / 05

Authorized personnelMachine operator

Required PPE:


Description

The system generates the message "A axis not in correct position" whenever the "Parking" button or the "Manual tool change" button is pressed and the "A" axis is not in the correct position (zero degrees).

Symptoms

…..

Possible causes

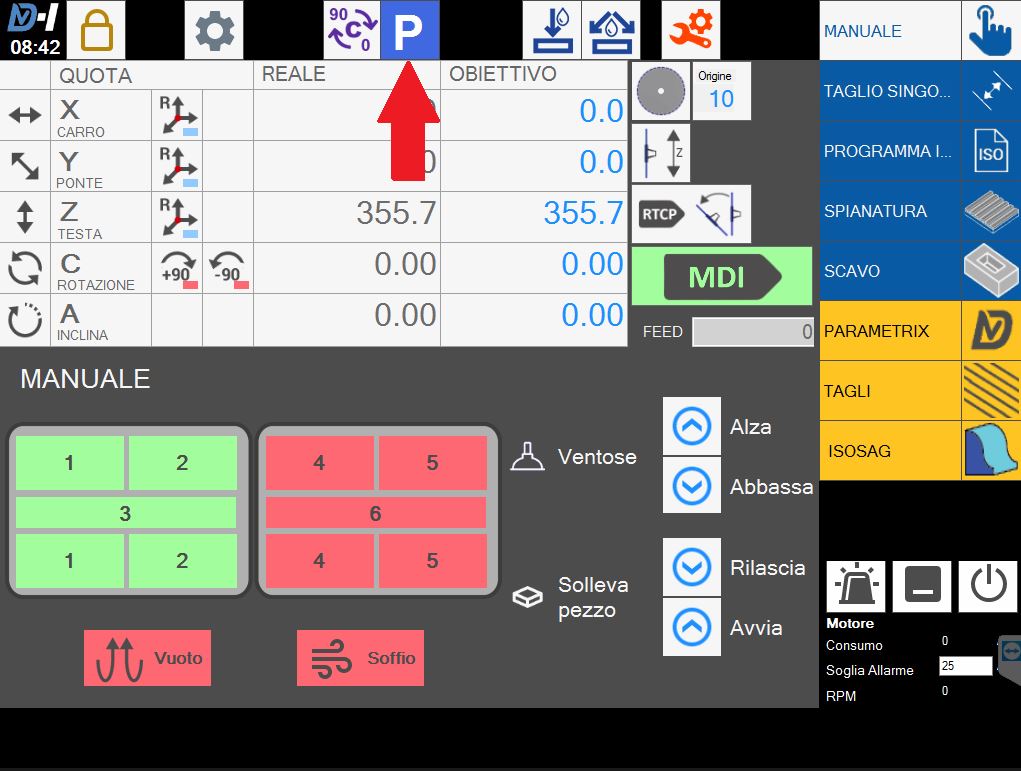

The P parking button was pressed while the A axis was not at 0.00_.


The manual tool change button was pressed while the A axis was not at 0.00_


Possible solutions

  1. Move the A axis to the 0.00_ position before pressing the parking or manual tool change buttons

;
