Donatoni Macchine
Machine technical documentation Operational document

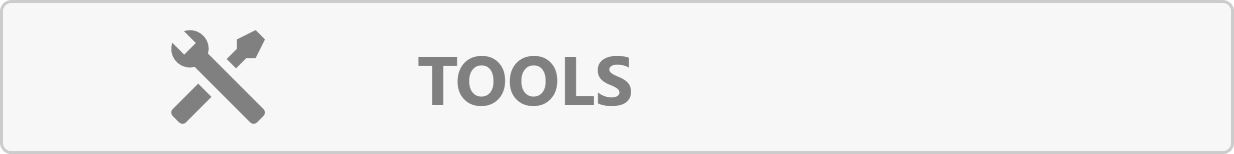

DOC2.2 TOOLS

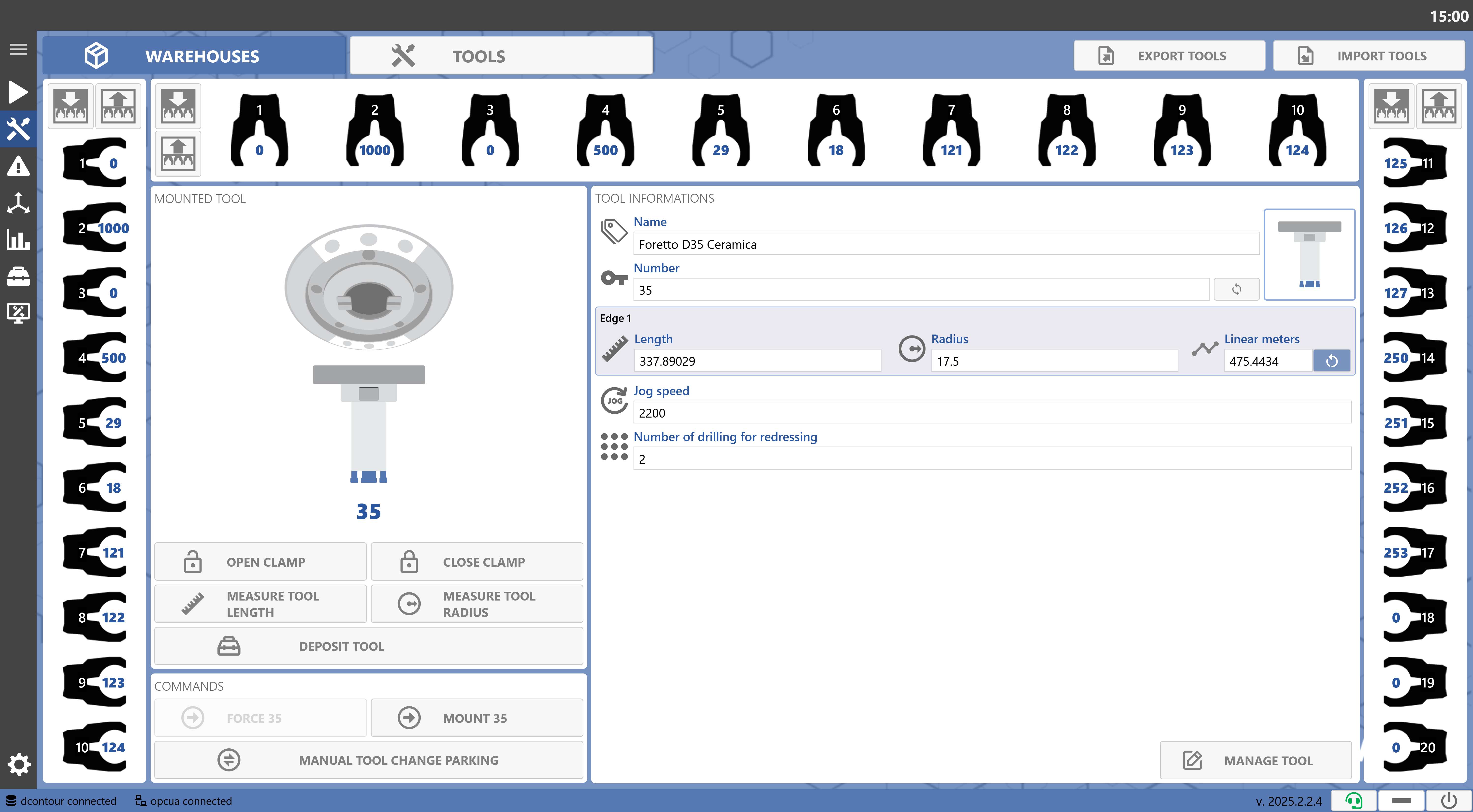

This page allows the machine tool magazine to be managed.

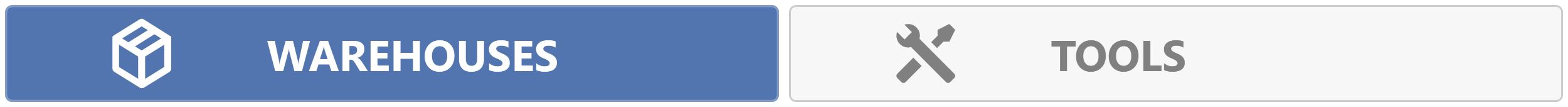

Magazines / Tools View

Buttons for displaying the magazine layout or the tool list in the upper-left area of the page.

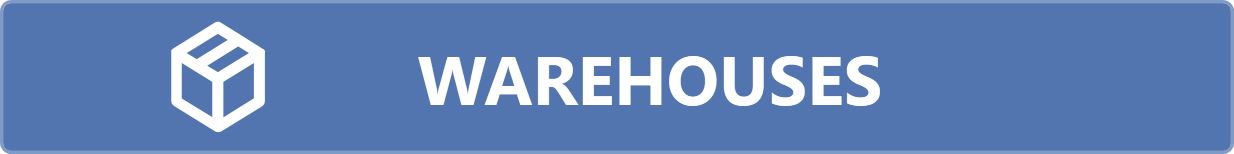

Magazines
Displays the magazine layout and the corresponding tools.


Tools
Displays the tool table.

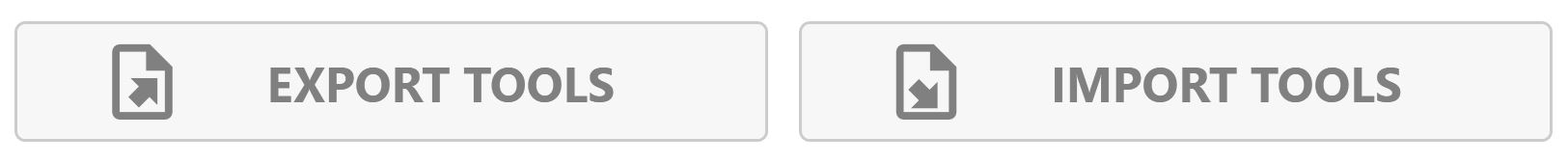

Top Bar

The top-right bar of the page allows tools to be exported or imported.


WARNING!

These functions are available only if the user enters the operator password on the settings page.

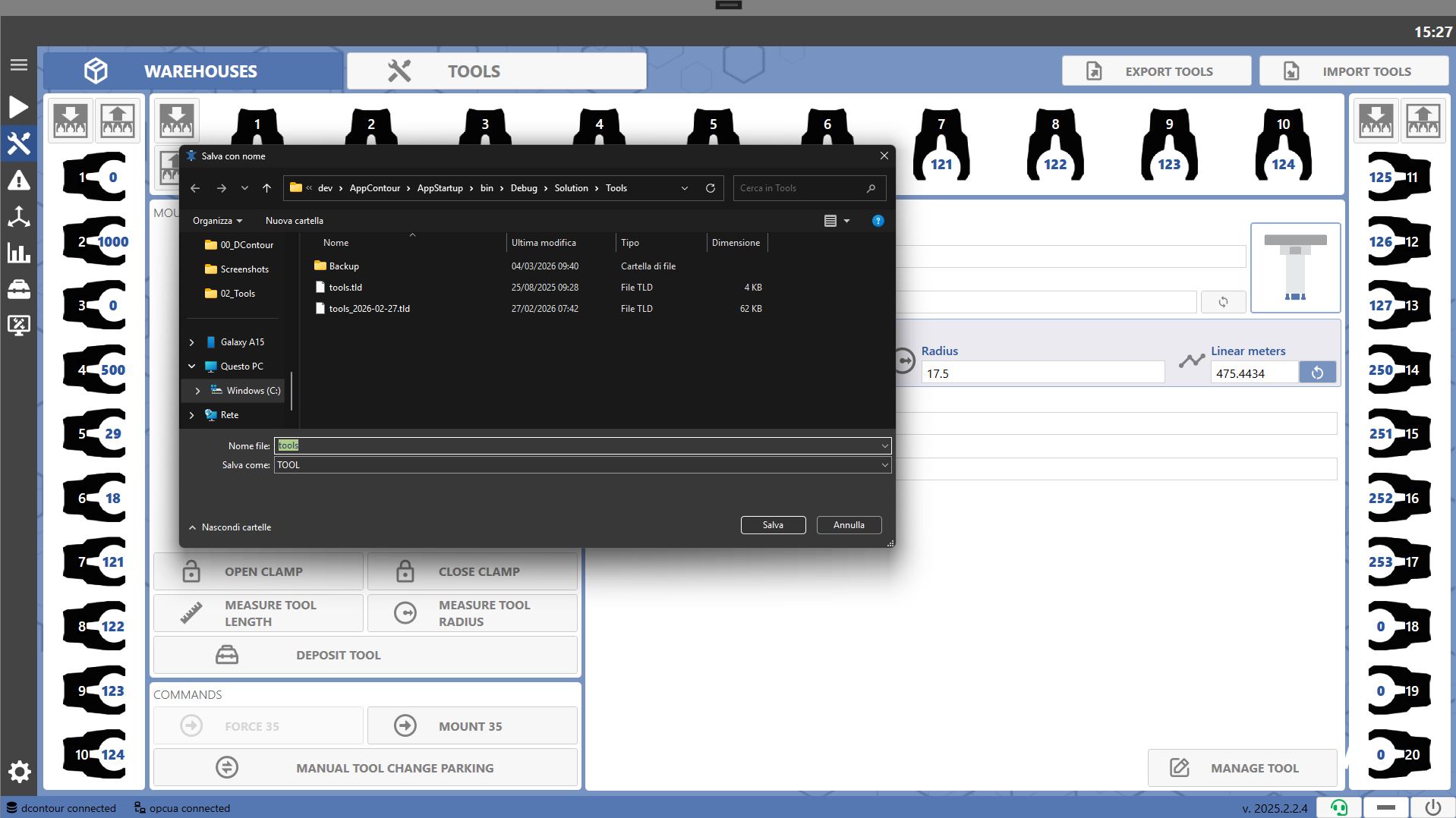

Tool Export
Allows the tool list to be exported in ‘.tld’ format after selecting the save path:


Tool Import

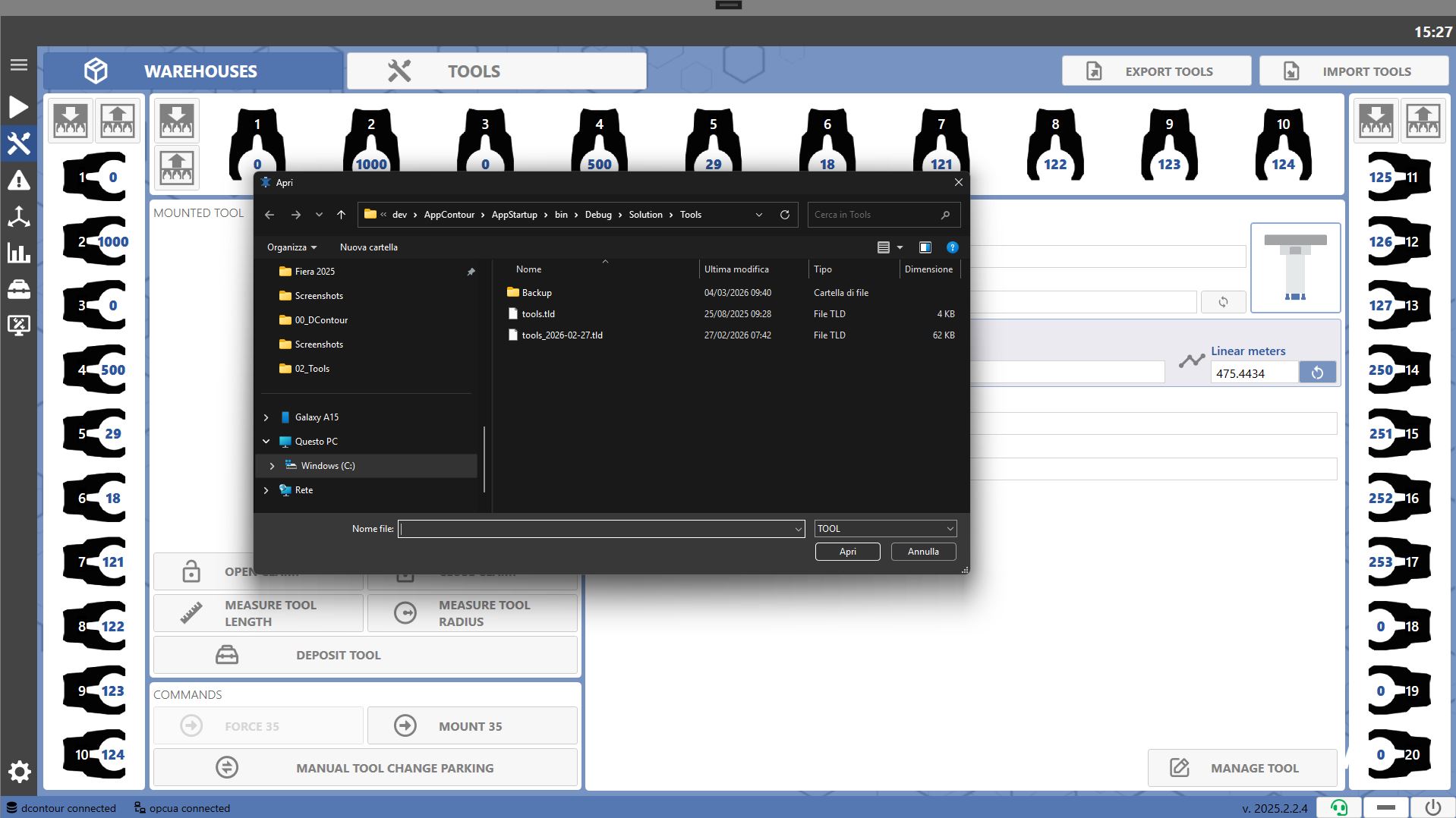

Allows the tool list to be imported from a ‘.tld’ file after selecting the file to import:


Tool Types

The tool types managed by the system are listed below.


Profiled Tool

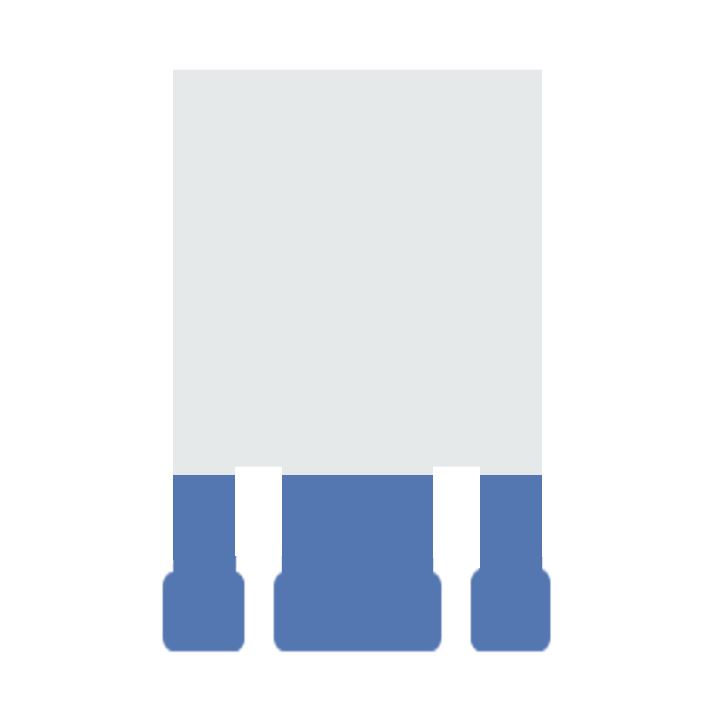

Core Drill Tool

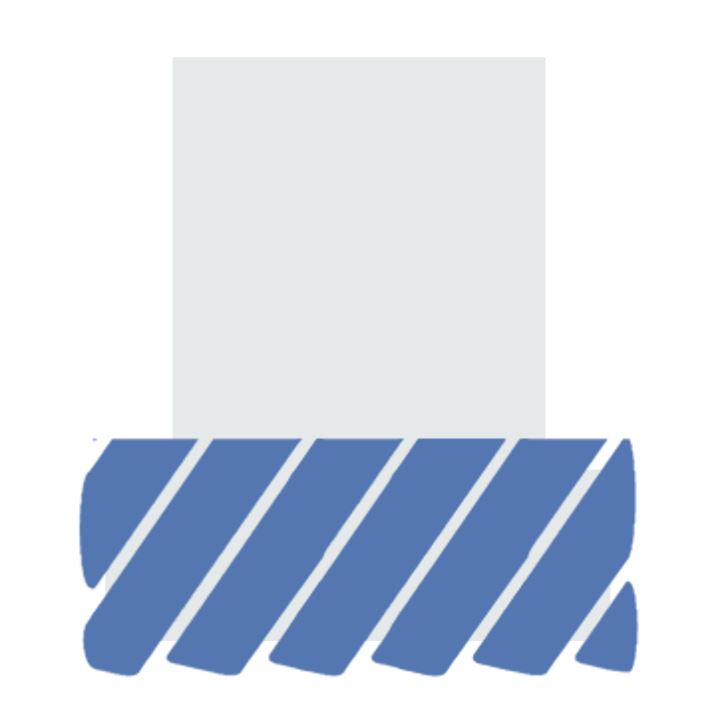

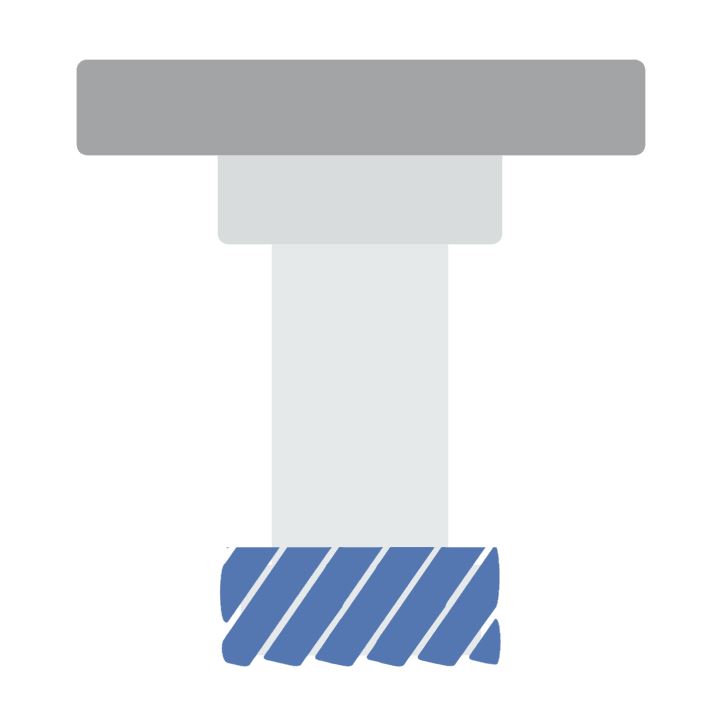

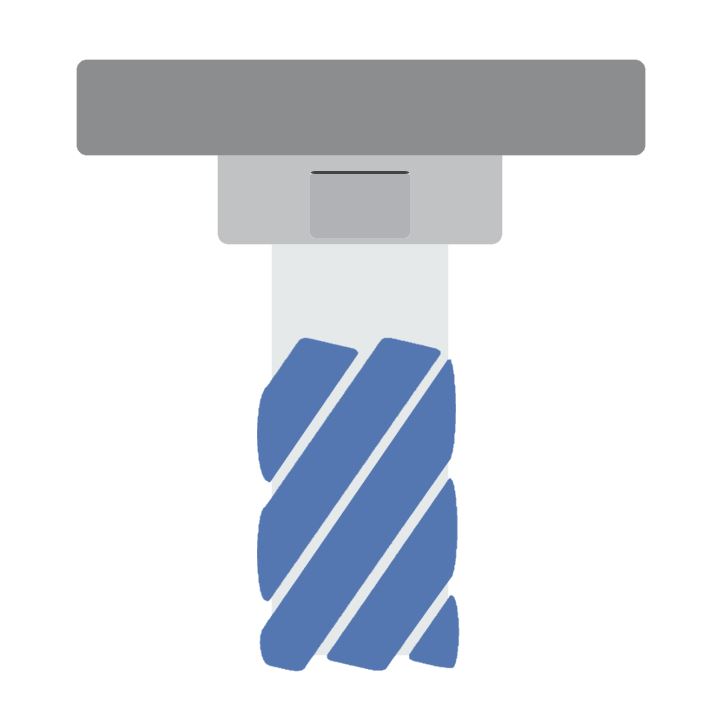

Milling Tool


Pocket Milling Tool

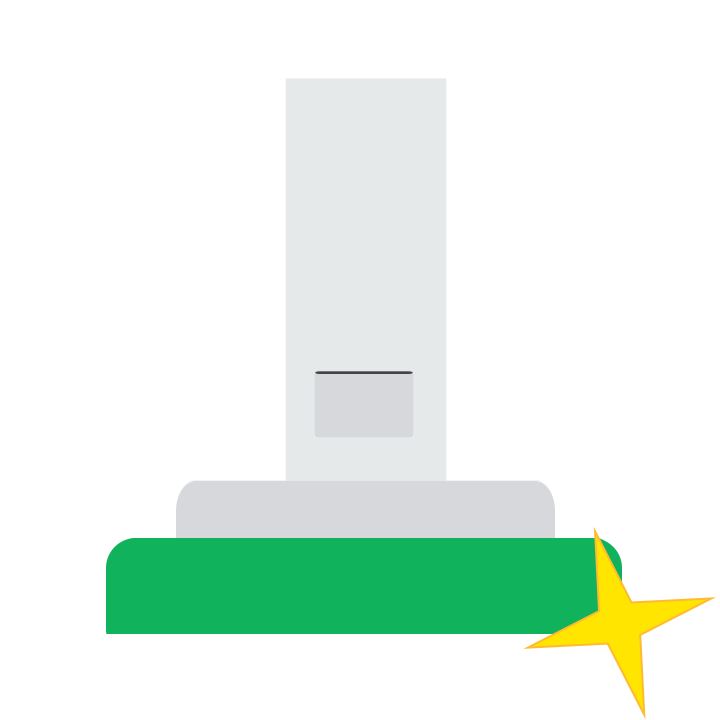

Polishing Pad Tool


Angle Head


Angle Head Disk Tool

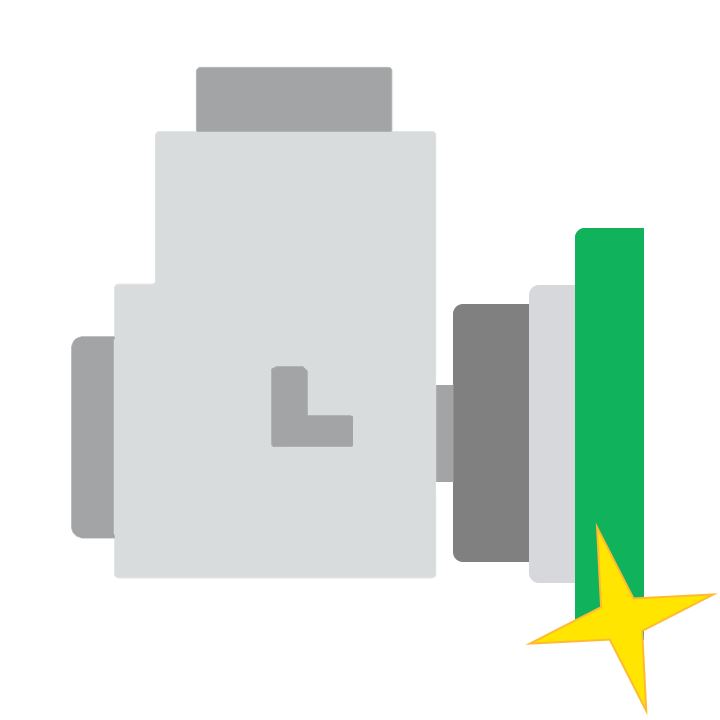

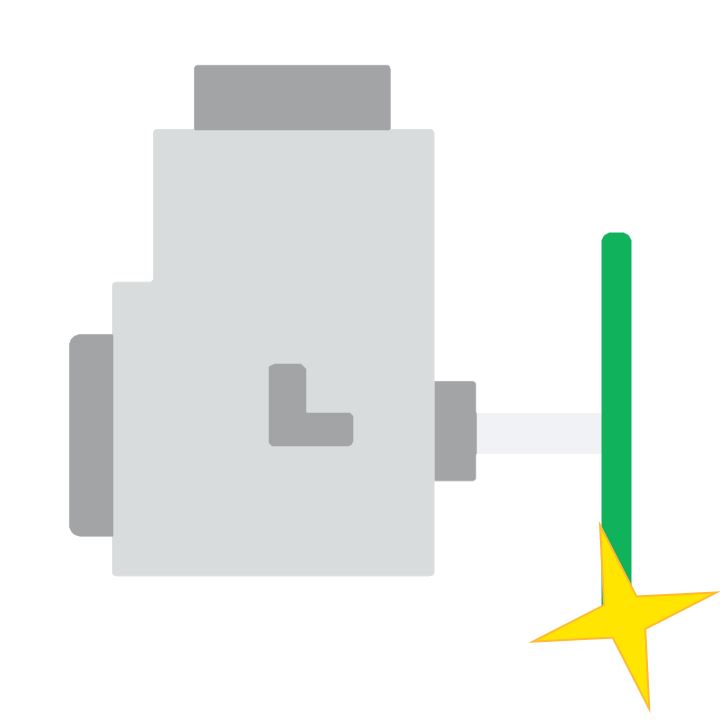

Angle Head Polishing Disk Tool

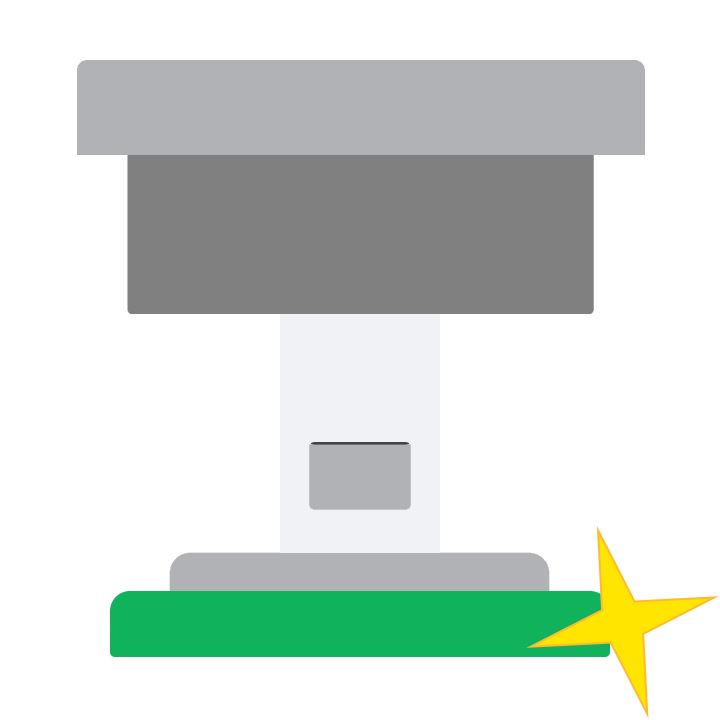

Angle Head Polishing Pad Tool

;
