Donatoni Macchine
Machine technical documentation Operational document

DOC2.3.1.7 TOP CUT

This working allows performing a cut on the top surface of the piece.

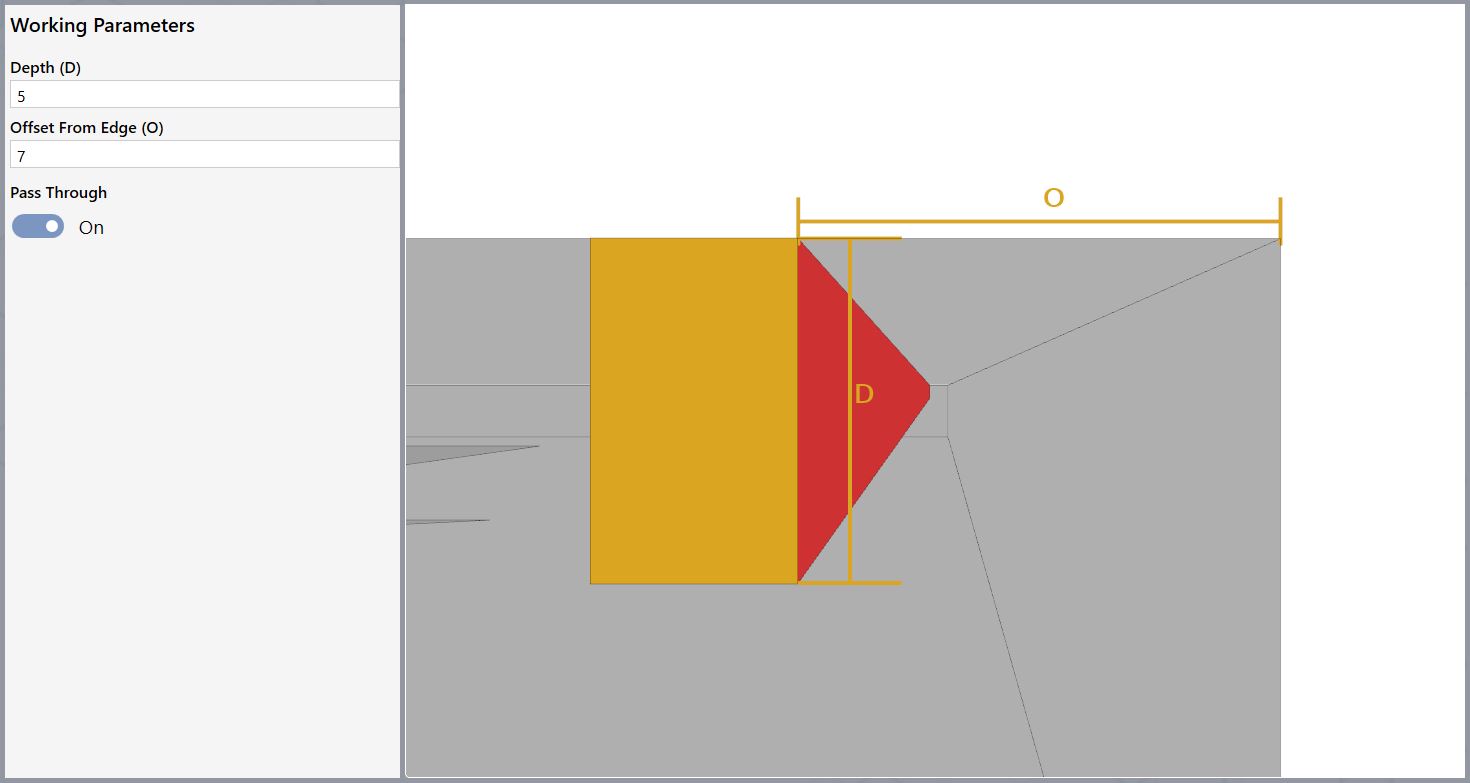

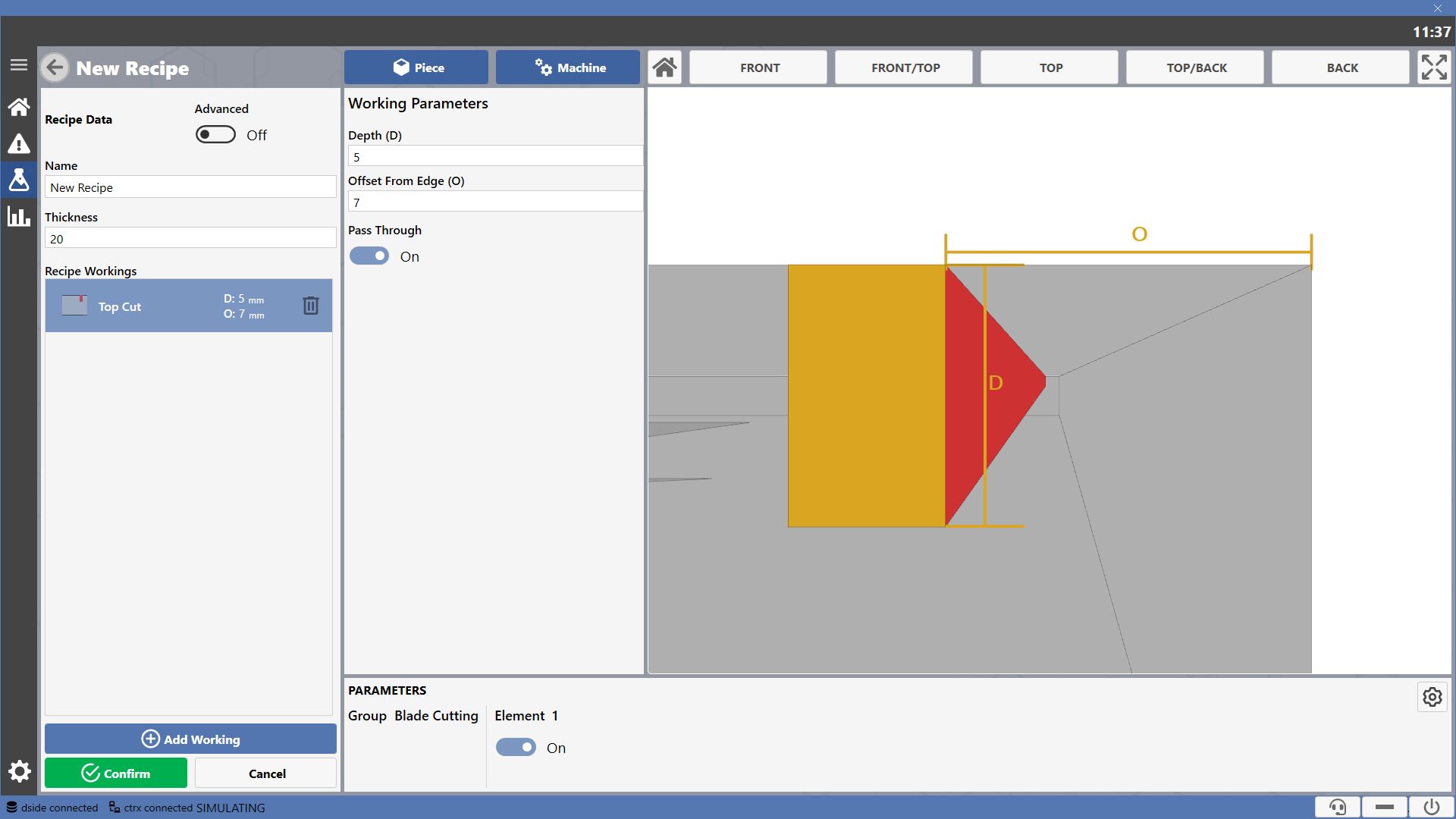

Parameters


Depth
Specify the cutting penetration into the material.


Offset From Edge
Specify the distance of the Side Cut from the Piece edge.

Available Groups

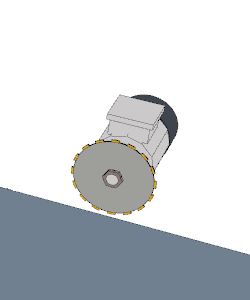

Blade Cutting/Grinding Group

;
