A preview of the calculated cuts is displayed according to the previous selections. The page is divided into several areas containing commands for managing changes.
After checking the cuts or making the required changes, press the NEXT button to open the page used to generate the cutting program.

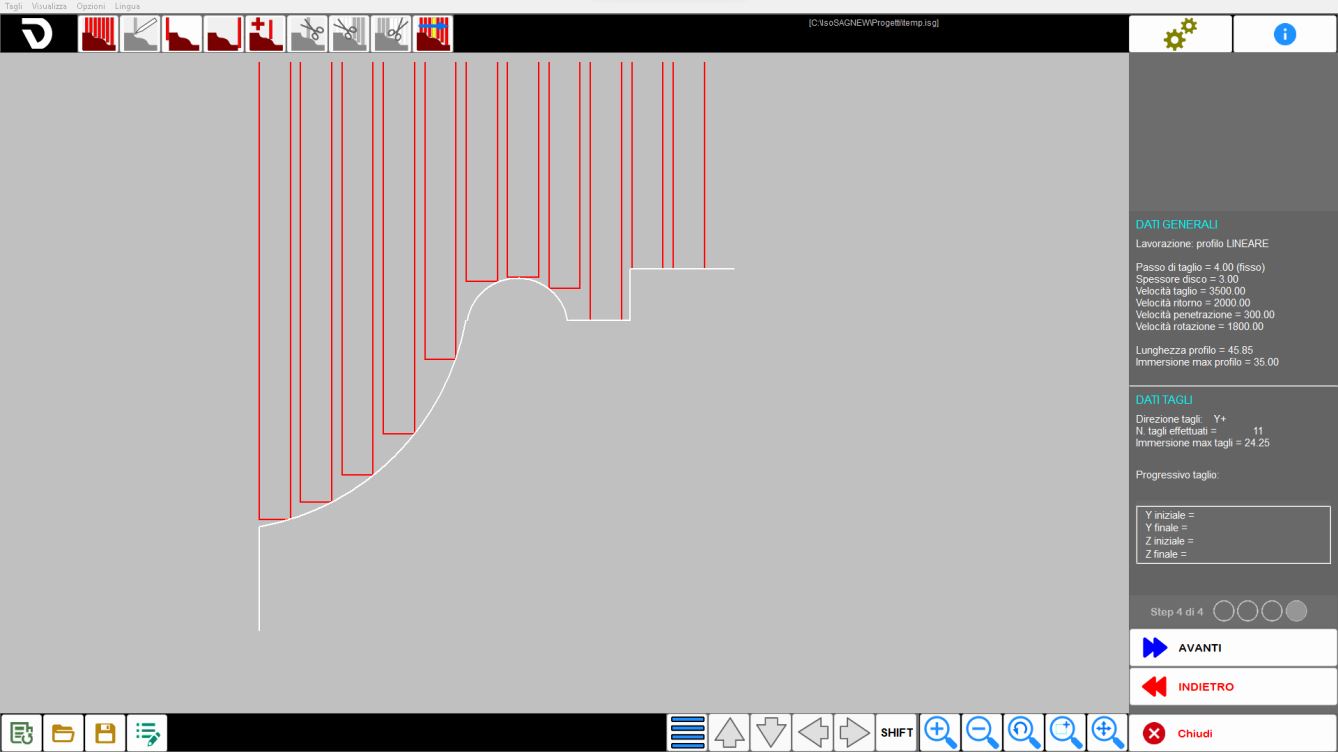

Anteprima dei tagli calcolati

Top bar

NOTE

Some buttons remain disabled until a cut is selected.


Generate cuts
Regenerates the cuts using the default settings.

NOTE

This operation is performed automatically when Step 4 of 4 is reached.


Edit cut position
Changes the position of the selected cut.


Add a leading cut to separate the workpieces
Inserts a cut at the starting point of the machining operation.


Add a trailing cut to separate the workpieces
Inserts a cut at the end point of the machining operation.


Add a cut at the mouse position (Ins)
Adds a new cut at the position indicated by the mouse.


Delete selected cut
Removes the selected cut from the preview and recalculates the sequential cut numbers for all remaining cuts.


Delete cuts before the selected cut
Using the selected cut as a reference, removes all cuts with a lower sequential number.


Delete cuts after the selected cut
Using the selected cut as a reference, removes all cuts with a higher sequential number.


Cut simulation
Selects all cuts one at a time according to their sequential cut number.

NOTE

To speed up the cut review, press the
left arrow
key; to slow it down, press the
right arrow
.

Right side bar

In the fourth step, this bar contains the following information:


Cut sequence number
For each selected cut, the cut sequence number, the spatial coordinates of the edges and the contact state of the edges with the entities are displayed, indicating whether one or both are in contact.


General Data
Displays a set of machining data configured in the previous steps.


Cut Data
On reaching Step 4, certain calculated data is displayed automatically, including the direction and number of cuts and the maximum cut penetration value.

Bottom bar


Cut options
An alternative to the right mouse button for displaying cut options.


Move/extend cuts
An alternative to the keyboard arrow keys for moving/extending cuts.


Zoom
Manages Zoom _ and Zoom -.


Window zoom/AUTO zoom
Window zoom and AUTO zoom.

;
